AH-102

Cod EAN: 4007754000658

Utility case Extruded u-shaped profile with insertion grooves for printed circuits Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal Mat black ABS plastic side covers Material surface: anodised and mat etchedTotal height: 36...

Citeste mai mult

Intreaba despre produs
Cumpara acum


AH-102

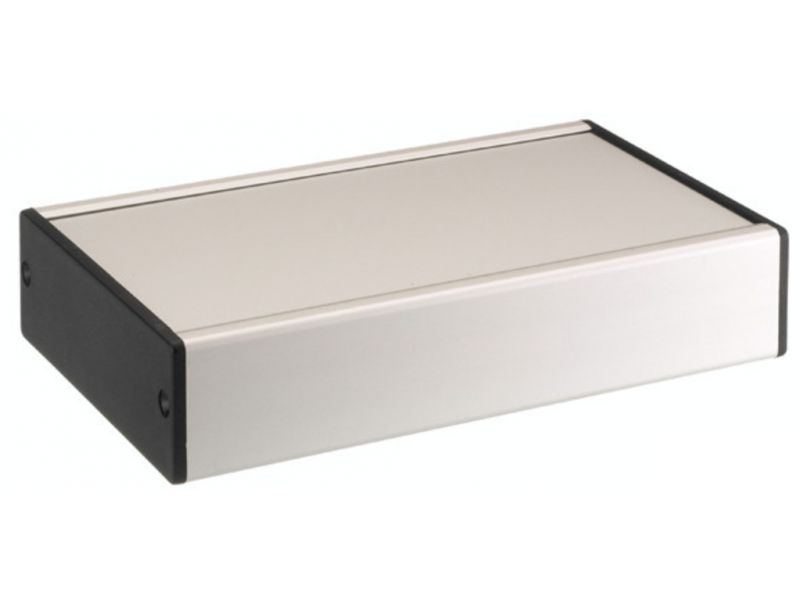

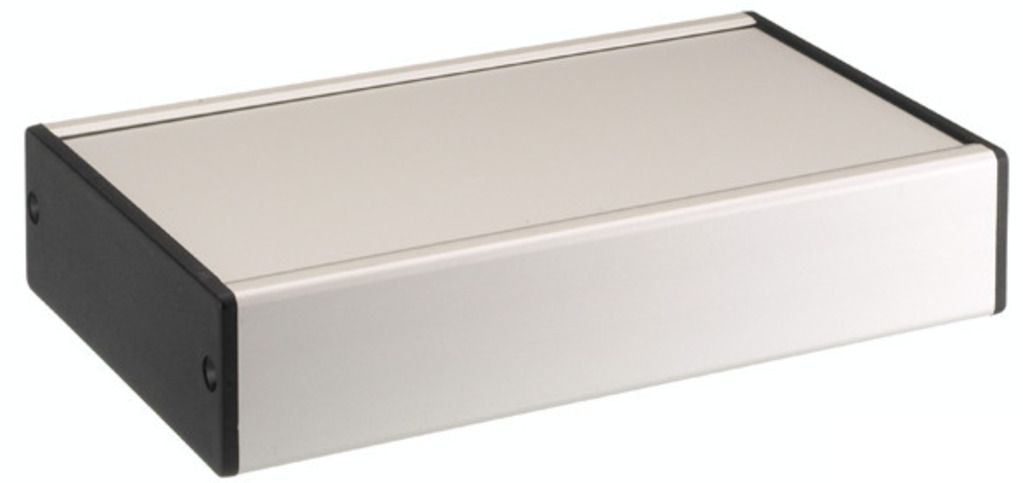

Utility case
  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: anodised and mat etched
  • Total height: 36.5 mm

Parametrii

Intended use case
Material aluminium sheet, ABS plastic
Dimensions 103 x 36.5 x 167 mm
Width 103 mm
Height 36.5 mm
Length 167 mm
PCB dimensions 100 x 160 mm
Weight 242 g

Fisiere de descarcat

Fisa produsului AH-102
