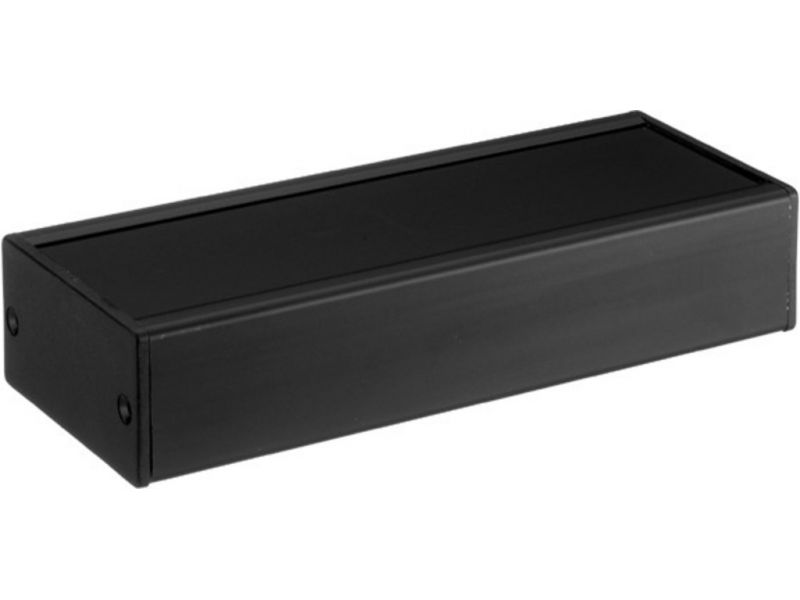

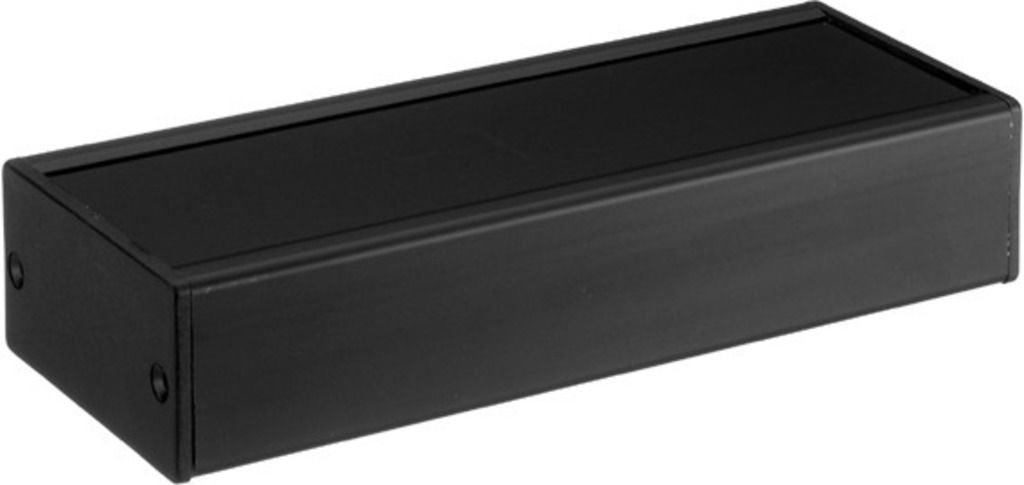

AH-62/SW

Cod EAN: 4007754074369

Utility Cases Extruded u-shaped profile with insertion grooves for printed circuits Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metalMat black ABS plastic side covers Material surface: black Total height: 36.5 mm

Intreaba despre produs
Cumpara acum


AH-62/SW

Utility Cases
  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: black
  • Total height: 36.5 mm

Parametrii

Intended use case
Material aluminium sheet, ABS plastic, black
Dimensions 65 x 36.5 x 167 mm
Width 65 mm
Height 36.5 mm
Length 167 mm
PCB dimensions 62 x 160 mm
Weight 205 g

Fisiere de descarcat

Fisa produsului AH-62/SW
