AH-63

Cod EAN: 4007754000702

Utility case Extruded u-shaped profile with insertion grooves for printed circuits Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal Mat black ABS plastic side covers Material surface: anodised and mat etchedTotal height: 36...

Citeste mai mult



AH-63

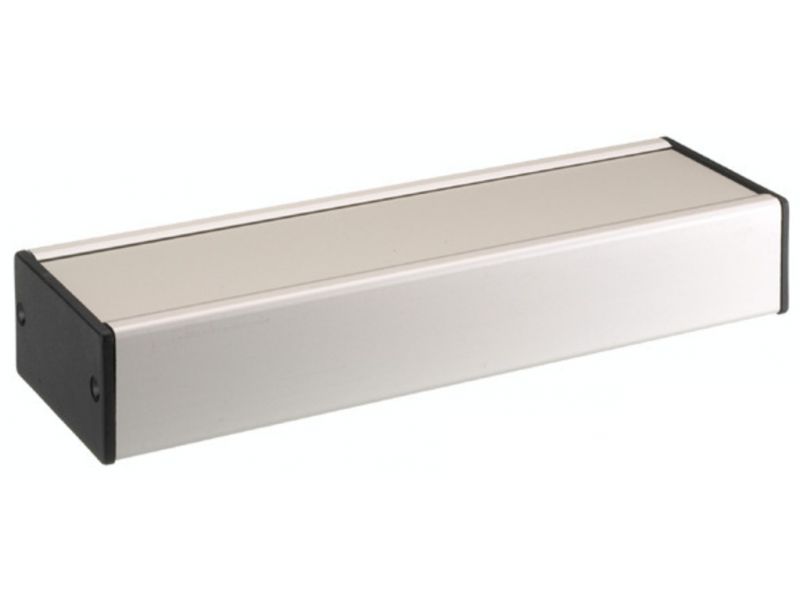

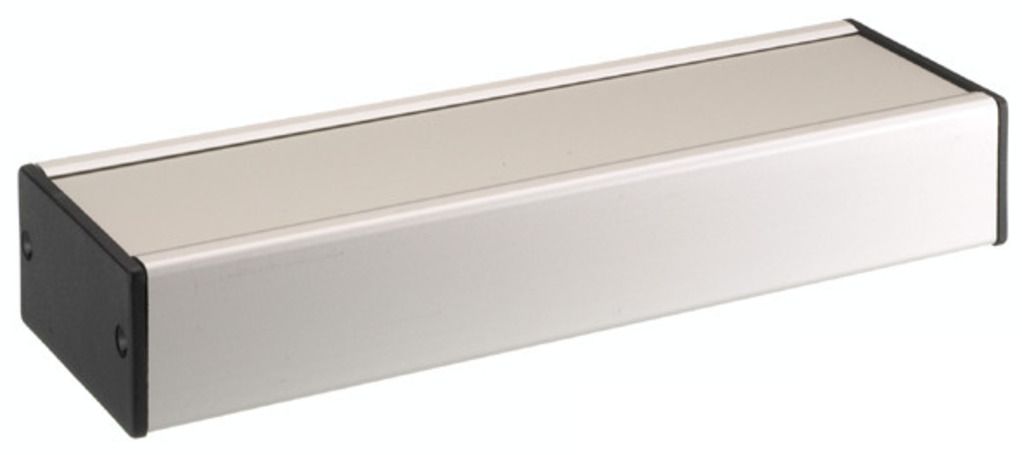

Utility case
  • Extruded u-shaped profile with insertion grooves for printed circuits
  • Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
  • Mat black ABS plastic side covers
  • Material surface: anodised and mat etched
  • Total height: 36.5 mm

Parametrii

Intended use case
Material aluminium sheet, ABS plastic
Dimensions 65 x 36.5 x 207 mm
Width 65 mm
Height 36.5 mm
Length 207 mm
PCB dimensions 62 x 200 mm
Weight 231 g
