AN-05

Cod EAN: 8595614118279

External 2G/3G GSM antenna, To be used in combination with GSM dialling and control unit GD-04K for extending the operating range Frequencies: 800-2,100 MHz Antenna gain: 4 dB max. Magnetic base Admissible ambient temperature: -40 °C to +60 °C Lengt...

Citeste mai mult

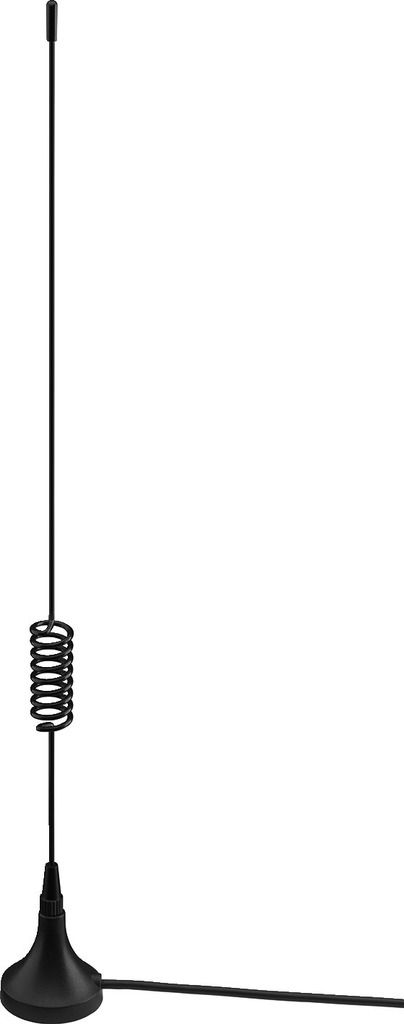

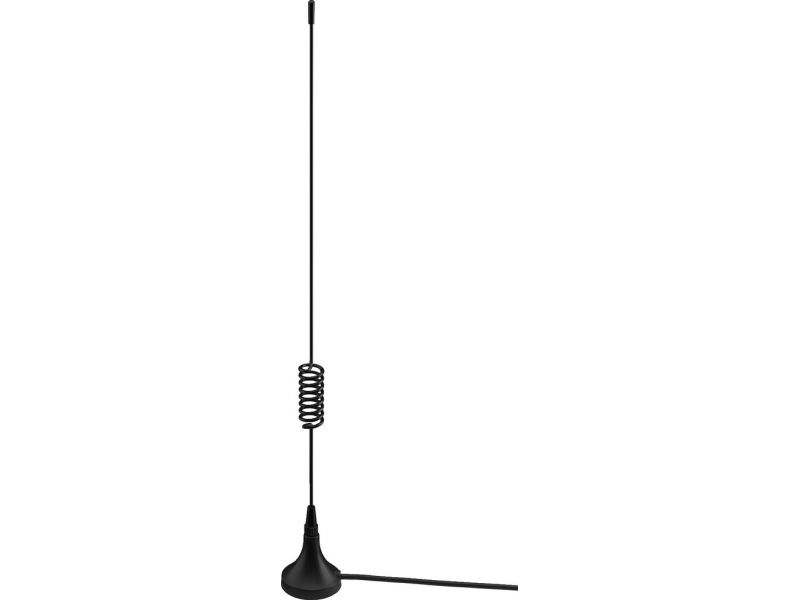

AN-05

External 2G/3G GSM antenna,
  • To be used in combination with GSM dialling and control unit GD-04K for extending the operating range
  • Frequencies: 800-2,100 MHz
  • Antenna gain: 4 dB max.
  • Magnetic base
  • Admissible ambient temperature: -40 °C to +60 °C
  • Length: 30 cm
  • 3 m connection cable with SMA plug

Parametrii

Description external 2G/3G GSM antenna
Carrier frequency 800-2,100 MHz
Admiss. ambient temp. -40-+60 °C
Dimensions length: 30 cm
Weight 57 g
Connections 3 m connection cable with SMA plug
