LSR-22/10
Cod EAN 4007754057515
High-power cement resistor, 2.2 Ω, 10 W

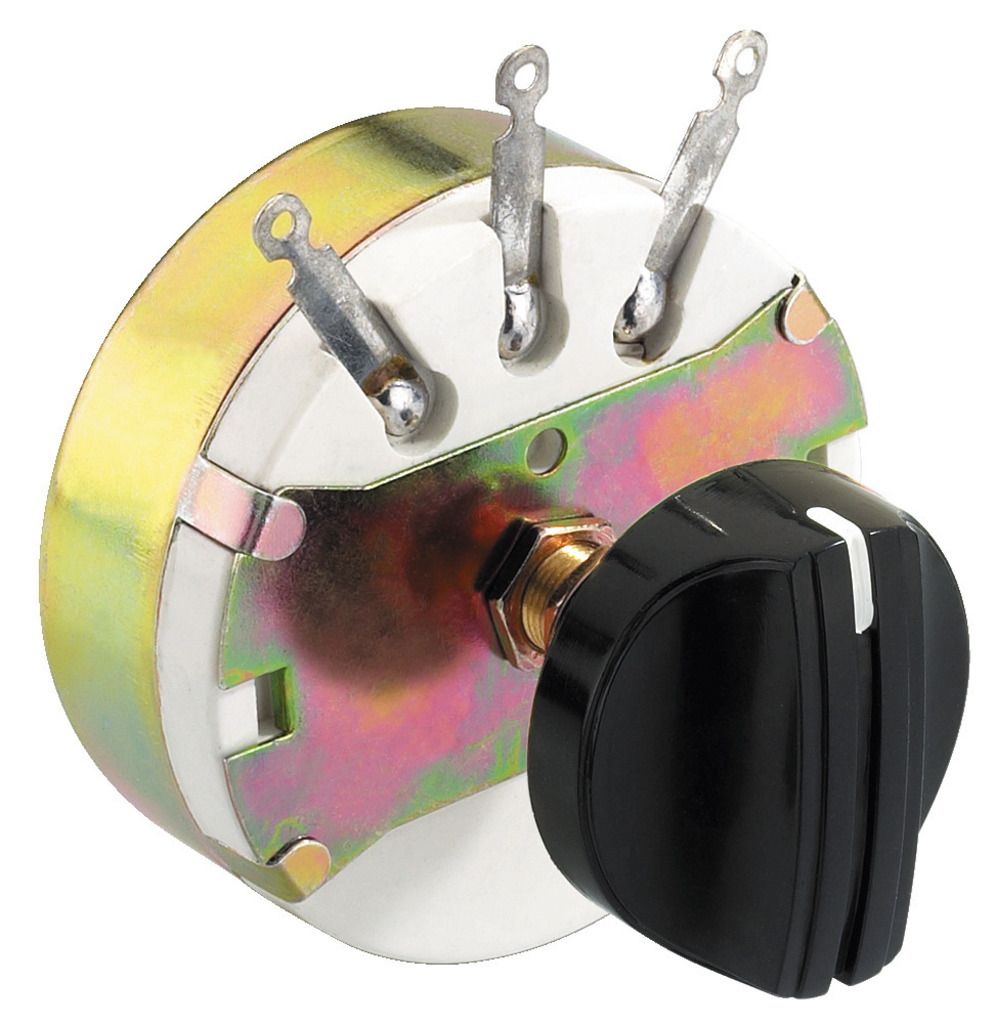

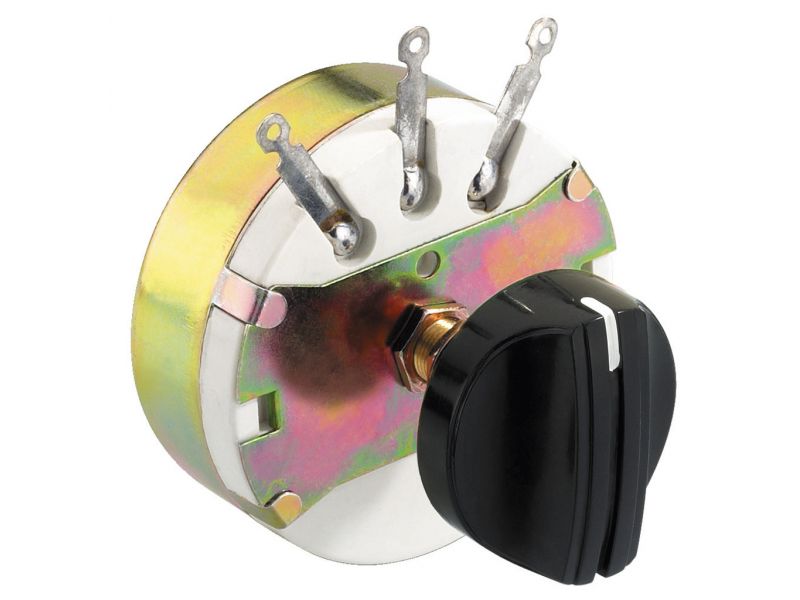

L-pad attenuator High-performance level control Plastic carrier Mono version With push-on knob Thread length: 19 mm Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGZum Falsch 3628307 BremenGermanyinfo@monacor.com
Impedance | 8 Ω ± 20% |
Channels | mono |
Attenuation | 0 dB to ∞ dB |
Attenuation direction | counterclockwise |
Turning angle | 300° ± 5° |
Power rating | 100 W MAX |
Admiss. ambient temp. | 0-40 °C |
Weight | 127 g |
