ATS-22T

Cod EAN: 4007754246247

16-channel Digital Voice Transmission System, 863-865 MHz Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers High resistance to interfere...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ATS-22T

16-channel Digital Voice Transmission System, 863-865 MHz
  • Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers
  • High resistance to interference due to digital transmisison
  • Parallel operation of up to 4 different channels possible without any interference
  • Licence-free in the EU

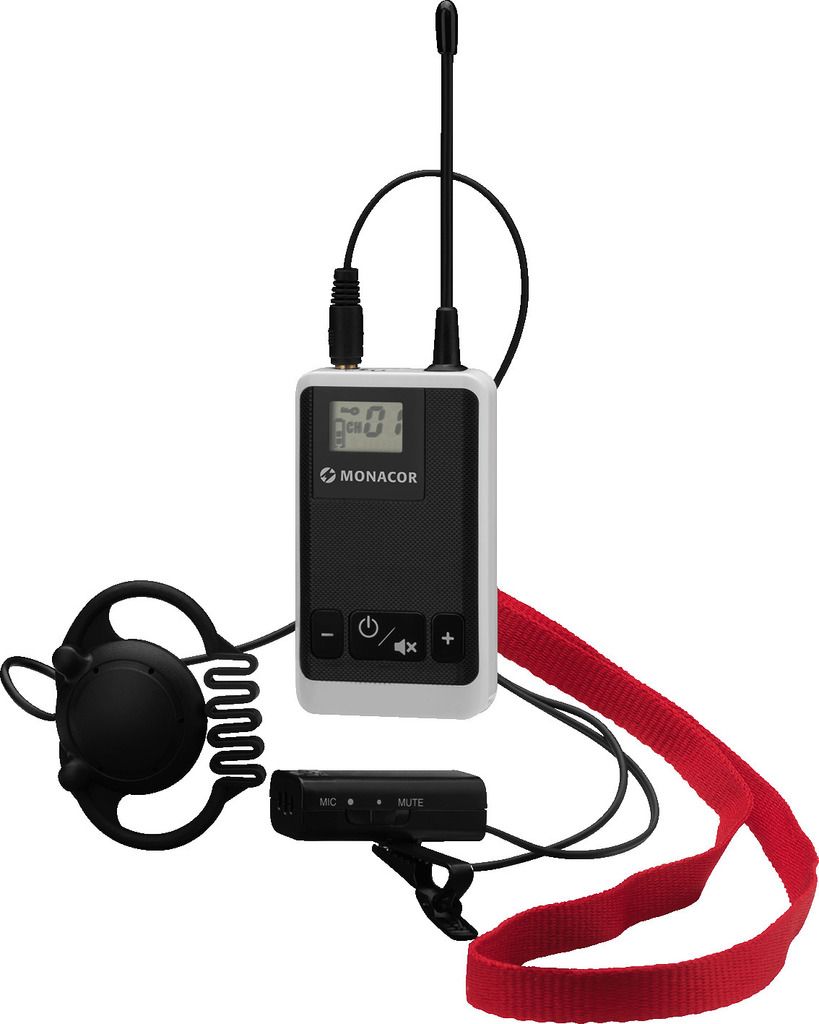

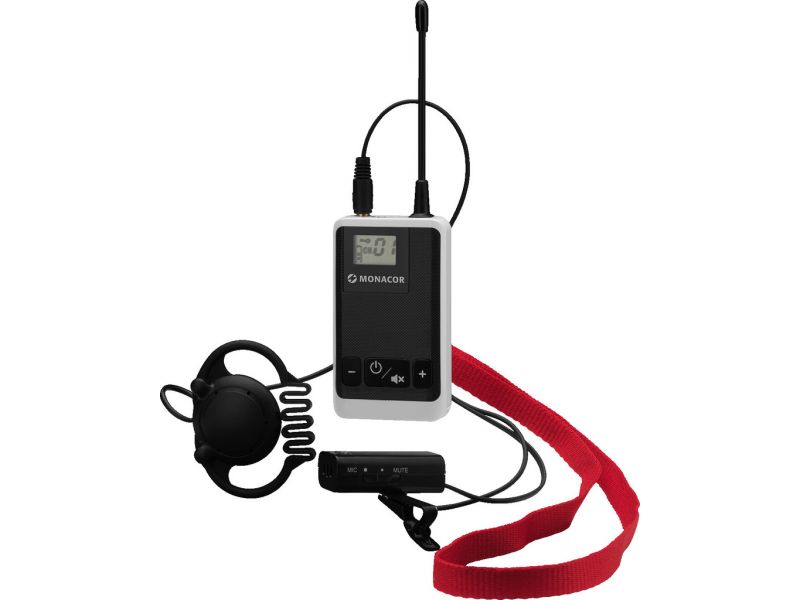

16-channel miniature transmitter,
for microphone operation and audio line signals, with intercom function.
  • Supplied with headset
  • Activation switch for intercom function with the receiver ATS-22R
  • Audio line input via 3.5 mm jack at the headset
  • LCD for indicating channel and battery status
  • Mute button
  • Transmitting power: ≤ 10 mW (EIRP), operating range: approx. 70 m
  • Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
  • Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
  • Dimensions: 40 x 80 x 12 mm
  • Weight: 37 g

Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Parametrii

Description 16-channel digital miniature transmitter
Carrier frequency range 863-865 MHz
Channels 1
Operating time > 12 h
Admiss. ambient temp. 0-40 °C
Transmitting power ≤ 10 mW
Operating range 70 m
Power supply transmitter integrated rech. lithium batt. (3.7 V/600 mAh)
Width transmitter 40 mm
Height transmitter 80 mm
Depth transmitter 12 mm
Weight transmitter 37 g
Connections transmitter 3.5 mm jack (microphone/line in), micro USB charging port

Fisiere de descarcat

Fisa produsului ATS-22T konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare sicherheitshinweise
