ATT-1950

Cod EAN: 4007754179835

6-way PA volume control for 482 mm (19") rack installation 6 audio transformers for 100 V transmission technology Power rating: 6 x 50 W Connection for priority circuit, 6 priority relays ( DC 24 V/20 mA) Attenuation in 10 steps, position 0 is OFF Al...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ATT-1950

6-way PA volume control for 482 mm (19") rack installation

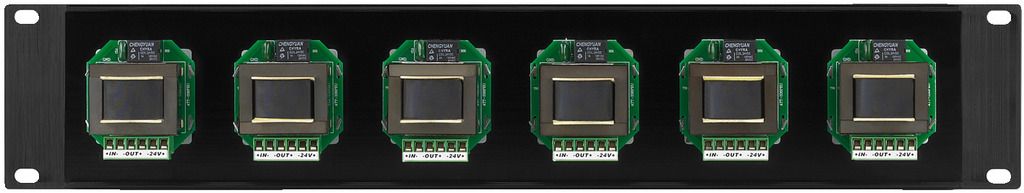

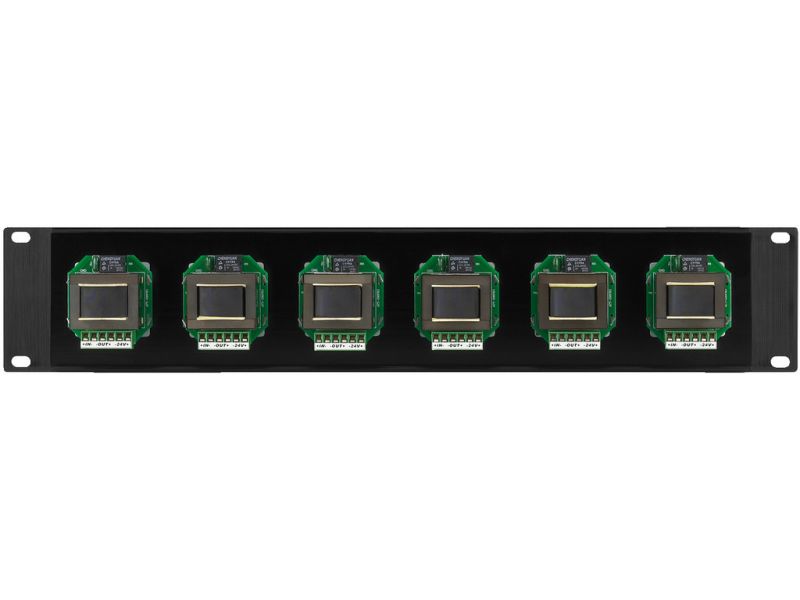

  • 6 audio transformers for 100 V transmission technology
  • Power rating: 6 x 50 W
  • Connection for priority circuit, 6 priority relays ( DC 24 V/20 mA)
  • Attenuation in 10 steps, position 0 is OFF

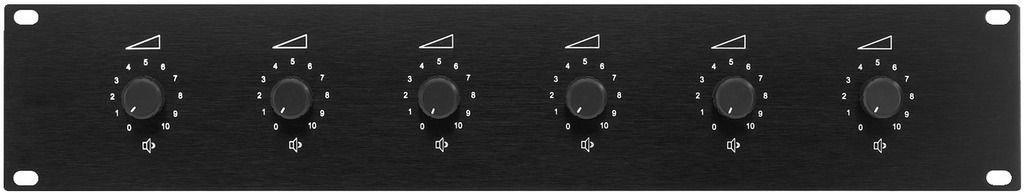

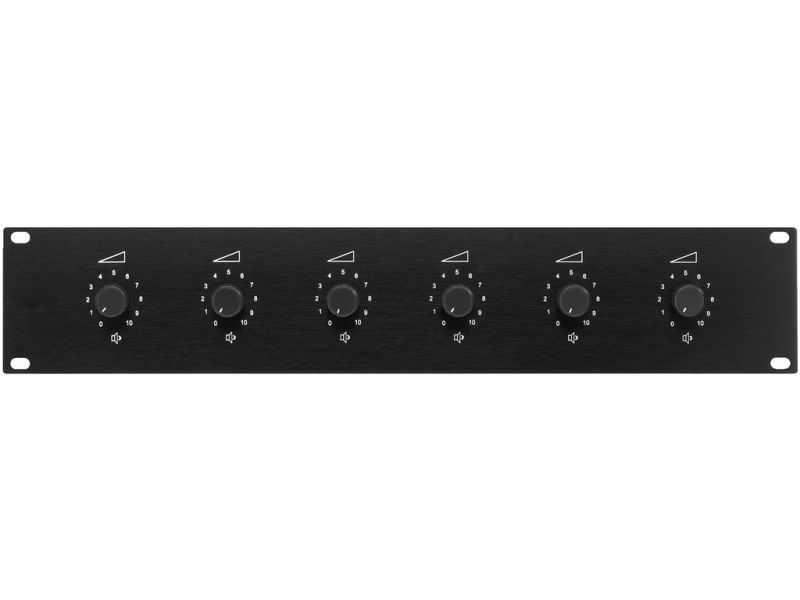

  • Aluminium front panel
  • Available in 3 power classes
  • Plug-in screw terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description wall-mounted PA volume control
Frequency range 50-18,000 Hz
Power rating 6 x 50 W
Priority facility yes
Dimensions 484 x 88 x 77 mm, 2 RU
Weight 1.379 kg

Fisiere de descarcat

Fisa produsului ATT-1950 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
