BS-30

Cod EAN: 4007754430059

Ceiling cabinet PA system for mounting on or suspending from ceilings or ceiling constructions High-quality transmission of speech and music 100 V transmission technology via audio transformer with 3-step power taps 30/15/7.5 W 4 x 2-way speaker (5...

Citeste mai mult

Intreaba despre produs
Cumpara acum


BS-30

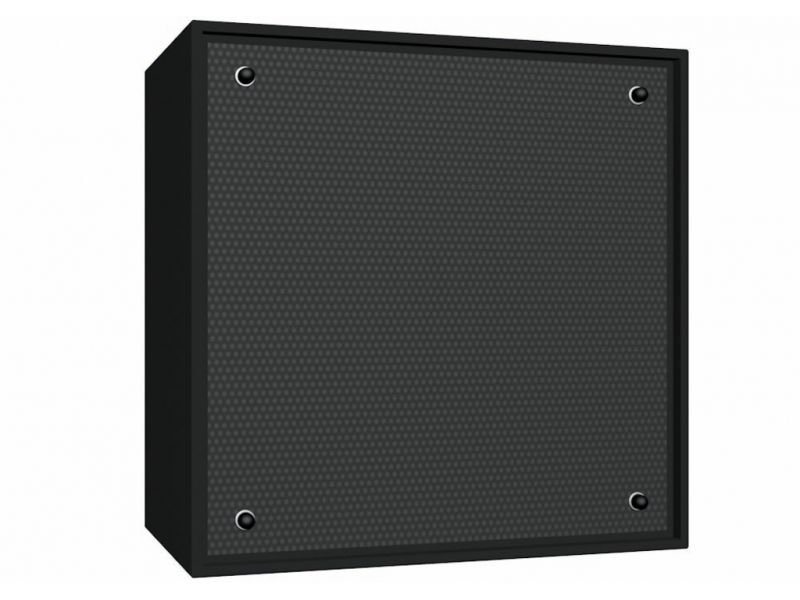

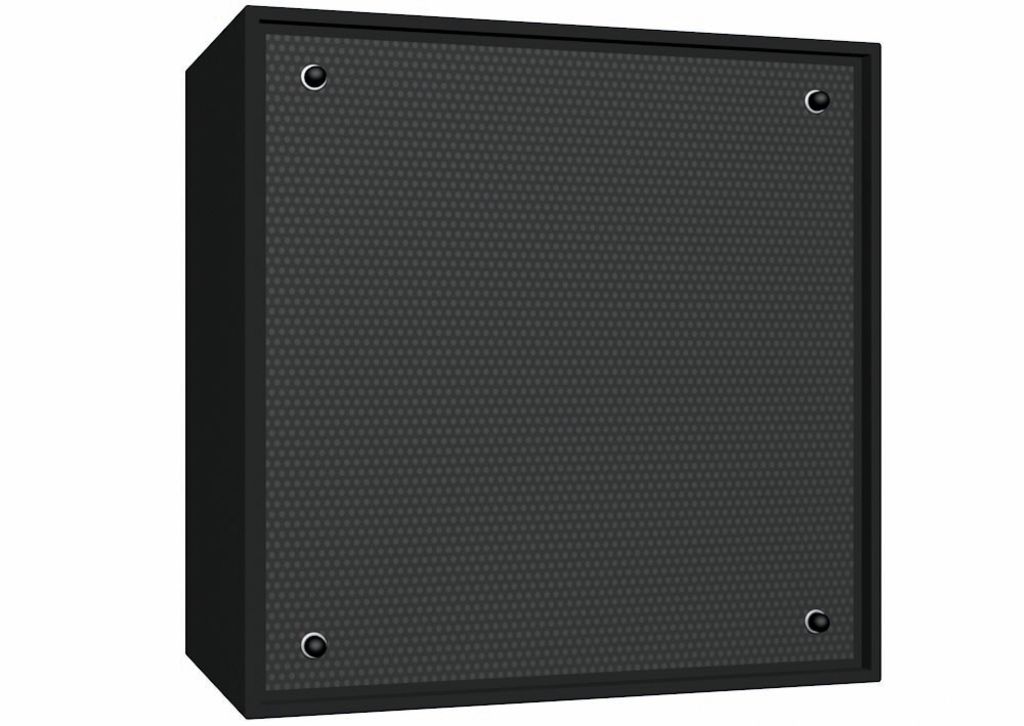

Ceiling cabinet PA system
for mounting on or suspending from ceilings or ceiling constructions
  • High-quality transmission of speech and music
  • 100 V transmission technology via audio transformer with 3-step power taps 30/15/7.5 W
  • 4 x 2-way speaker (5 cm) with additional high-range horn
  • Excellent efficiency, superb sound characteristics and optimised radiation properties due to 4 speakers so that it is possible to achieve a defined directionality even within the critical mid-range
  • Particularly suited for ceiling PA in surroundings with a long reverberation time, high ceilings and a high ambient noise level
  • Black laquered MDF cabinet with mounting eyelets for suspension by steel cables
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 30 W
Power rating (RMS) 30/15/7.5 W
Frequency range 80-22,000 Hz
System 2-way
Number of speakers 4
Speaker size 5 cm
SPL 102 dB/W/m
Max. rated SPL 117 dB
Radiation angle/beam angle H85°/V85° (1 kHz) H60°/V60° (2 kHz) H50°/V50° (4 kHz)
Radiation angle, horizontal 85° (1 kHz) 60° (2 kHz) 50° (4 kHz)
Radiation angle, vertical 85° (1 kHz) 60° (2 kHz) 50° (4 kHz)
Housing material MDF
Colour Black, RAL 9005
Mounting device Mounting lugs
Dimensions 500 x 500 x 300 mm
Width 500 mm
Height 500 mm
Depth 300 mm
Weight 21 kg
Inputs Pressure clamps
Packaging dimensions (W x H x L) 0.6 x 0.4 x 0.45 m
Gross weight 22 kg
Net weight 21 kg

Fisiere de descarcat

Fisa produsului BS-30
