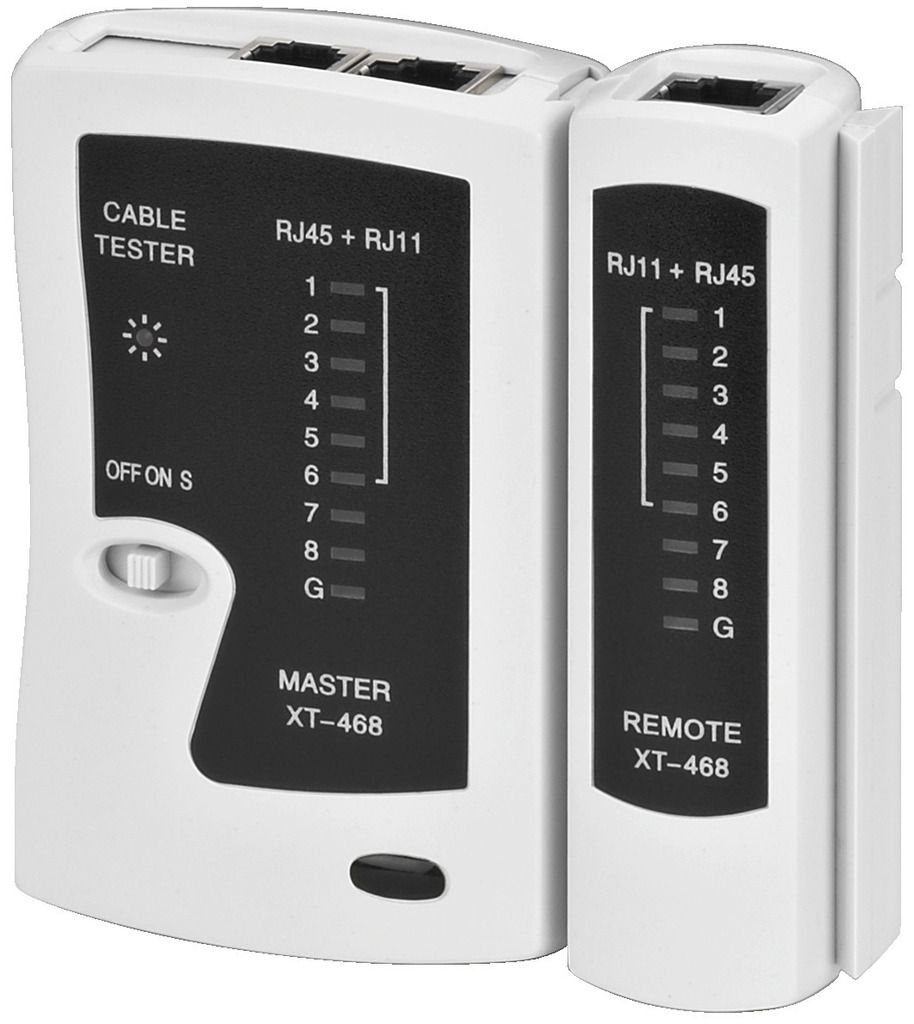

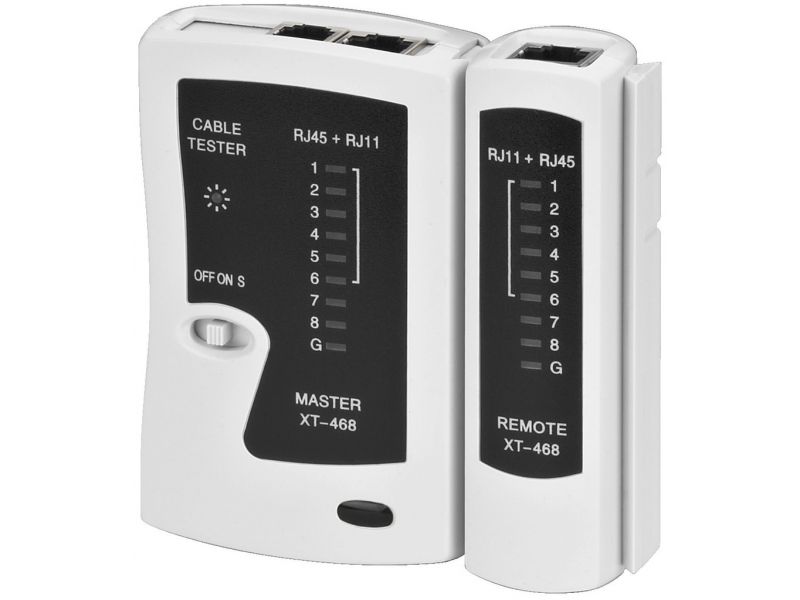

CAT-1TEST

Cod EAN: 4007754232011

Cable tester, for testing the continuity of Cat. 5, Cat. 6 and ISDN cables. Connection test with LED indication for 8 single cores and shielding Detection of continuity, miswiring, disconnection, short circuit, crossover cable and earthing Connecti...

Citeste mai mult

Intreaba despre produs
Cumpara acum


CAT-1TEST

Cable tester,
for testing the continuity of Cat. 5, Cat. 6 and ISDN cables.
  • Connection test with LED indication for 8 single cores and shielding
  • Detection of continuity, miswiring, disconnection, short circuit, crossover cable and earthing
  • Connection compatibility with the following modular plugs: RJ45 (8P8C), RJ12 (6P6C), RJ11 (6P4C, 6P2C)
  • Supported network standards: Token Ring, 10Base-T, 10Base-T2, 285A, TIA568A/568B
  • Separate receiver for extra long and extensively laid cables
  • Main device and separate receiver can be attached to each other via lateral guiding rail
  • Power supply via 9 V battery (not supplied)
  • Supplied with protective bag
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Description cable tester
Type testing the continuity of network cables
Suitable for Cat. 5, Cat. 6 and ISDN cables
Power supply 9 V battery
Admiss. ambient temp. 0-40 °C
Weight 132 g
Connections RJ45, RJ11
Packing unit 1
Packaging dimensions (W x H x L) 0.11 x 0.185 x 0.035 m
Gross weight 0.166 kg
Net weight 0.132 kg

Fisiere de descarcat

Fisa produsului CAT-1TEST konformitaetserklaerung-ce konformitaetserklaerung-ukca
