CLUB-1SUB

Cod EAN: 4007754214345

The CLUB System: Compact full range speaker, subwoofer and amplifier perfectly matched to each other and in combination provide a top-quality performance. Considering the dimensions and price, they are simply fascinating. The devices of the CLUB seri...

Citeste mai mult

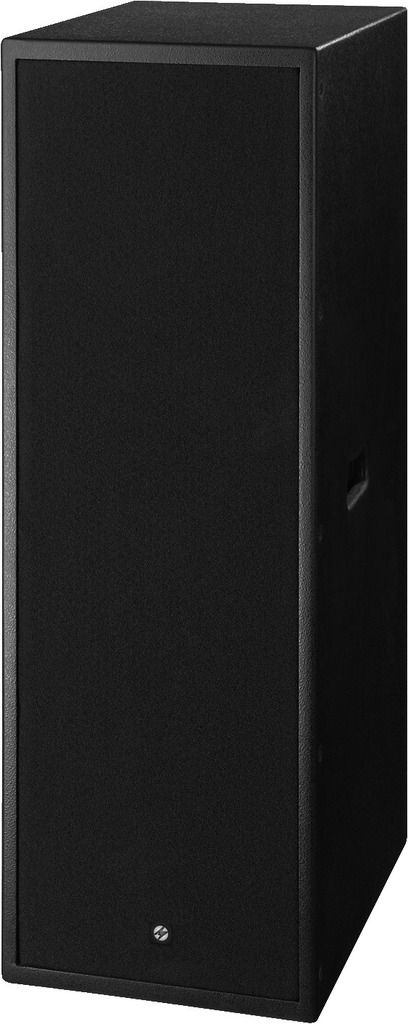

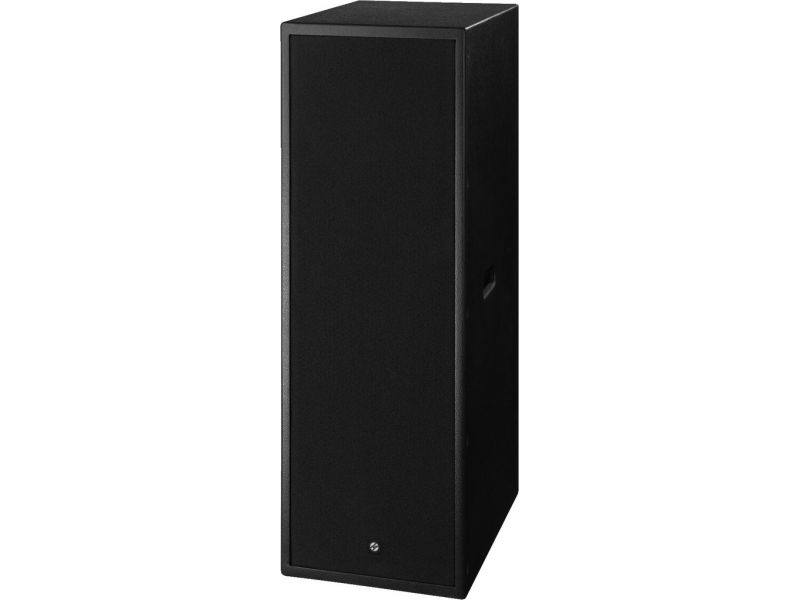

CLUB-1SUB

The CLUB System:
Compact full range speaker, subwoofer and amplifier perfectly matched to each other and in combination provide a top-quality performance. Considering the dimensions and price, they are simply fascinating. The devices of the CLUB series provide unique possibilities, whether applied individually or together with other PA products of highest quality.
The perfect central power unit for various PA systems capable of high volumes. Ideally suited for clubs and lounges, trendy bars and restaurants, PA applications in function rooms, music pubs, dancing schools, gyms with exercise rooms, etc. The 3-channel concept of extra high power capability with variable frequency filters and various connecting facilities allows for a variety of different system concepts.
Professional subwoofer, 600 W/8 Ω or 2 Ω or 2 x 300 W/4 Ω
  • 4 x 20 cm (8") top-class woofer
  • Slim and compact design
  • Variable impedance concept (switchable between 1 x 8 Ω and 2 x 4 Ω, for parallel connection in the 2 x 4 Ω position as 1 x 2 Ω)
  • High-quality lacquered MDF cabinet, full front grille with acoustic foam
  • An amplifier with integrated or external active crossover network is required for operation
With its exceptionally high power capability and a perfect sound, one CLUB-1SUB is sufficient already to provide such an extended bass reproduction that even several top parts, e.g. like the CLUB-1TOP which is a perfect combination can ideally be complemented. In case of particularly high level requirements in the bass range, it is possible to connect up to three CLUB-1SUB units without any problems, e.g. to the mono sub channel of the STA-1603CLUB (each in the 8 Ω mode, all in parallel). In 2 x 4 Ω operation, the CLUB-1SUB is of course also an ideal partner for other multichannel amplifiers or every suitable 2-channel subwoofer amplifier.
discret 02/2011
“Above all, the CLUB system impresses by a sophisticated concept for a high flexibility, reliability and a solid quality with high level reserves. The system surely provides a high power capability, great features and a good workmanship for its price and the sound is more than adequate for many applications in the scene gastronomy and club gastronomy, even of high requirements.”

tools4music 01/2011
“The powerful power amplifier and the slimline bass speaker can even impress bass-enthusiastic ravers.”
+ Good workmanship
+ Slimline design
+ Impedance selection
Beat 69, 07-08/2011
“A multi-purpose system showing high stability and reliability in continuous operation. The small satellites provide an assertively pleasant sound. The subwoofers feature a dynamic and full sound. The CLUB system ensures sophisticated, compact and reliable PA applications of high quality at a fair price.”
SOUNDCHECK 10/2010
“A slimline column speaker with a well-balanced bass reproduction and impedance selection.”

Parametrii

Active/passive passive
Transmission technology cable
Total power rating 1,200 W
Power rating (RMS) 600 W
Impedance 8 Ω/2 x 4 Ω/2 Ω
Frequency range 45-250 Hz
System bass-reflex subwoofer
Bass speaker 4 x 20 cm (8")
Number of speakers 4
Speaker size 20 cm (8")
SPL 96 dB/W/m
Max. rated SPL 122 dB
Radiation angle/beam angle omnidirectional
Housing material MDF
Colour black
Admiss. ambient temp. 0-40 °C
Dimensions 300 x 880 x 440 mm
Width 300 mm
Height 880 mm
Depth 440 mm
Weight 29.5 kg
Inputs 1 x or 2 x NEUTRIK SPEAKON,switchable
Packaging dimensions (W x H x L) 0.57 x 1.03 x 0.44 m
Gross weight 35.48 kg
Net weight 30.36 kg
