CM-601

Cod EAN: 4007754194487

Electret boundary microphone For theatrical performances, discussions, conferences and in churches A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone Dual low cut filter (80 Hz/120 Hz)...

Citeste mai mult



CM-601

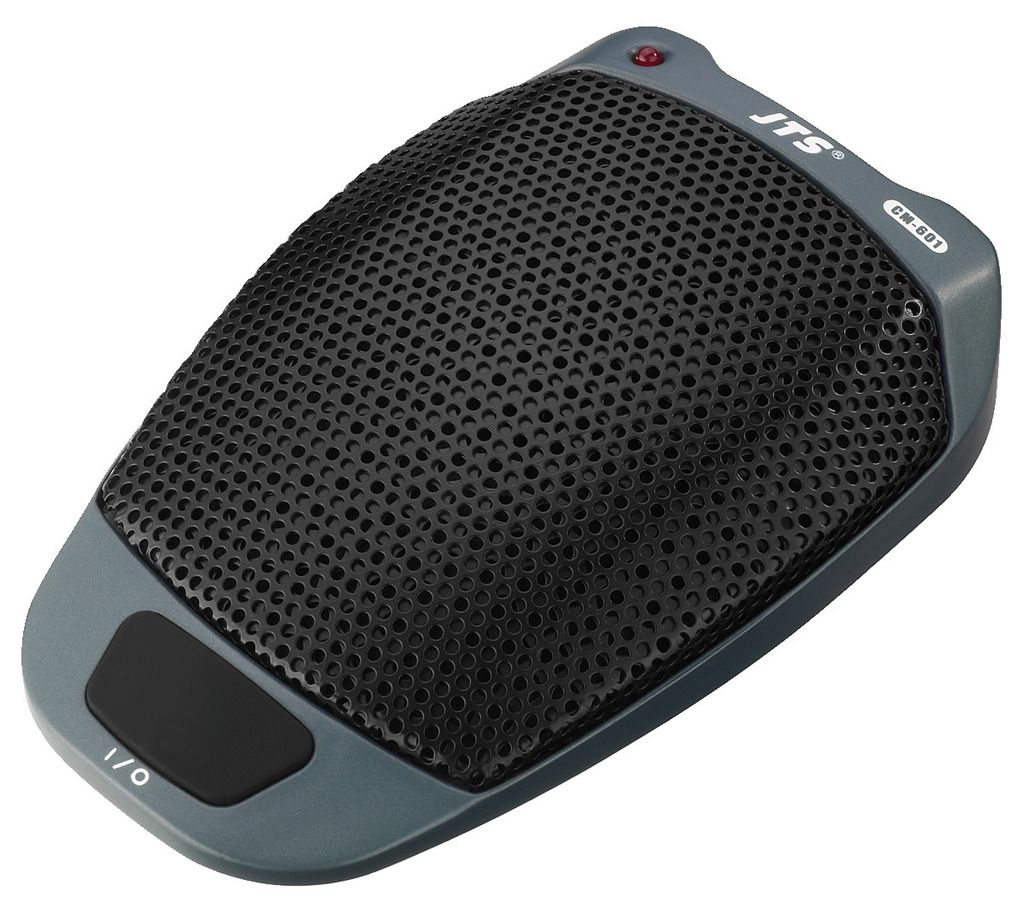

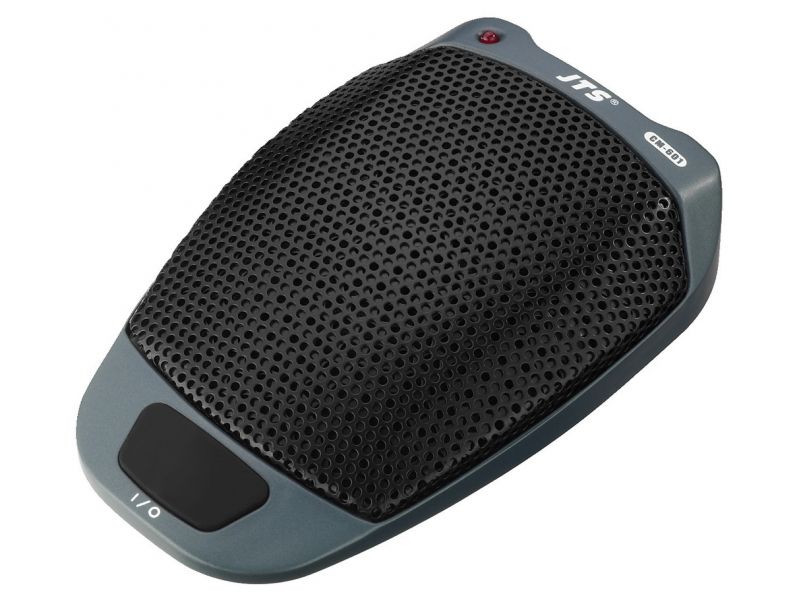

Electret boundary microphone
  • For theatrical performances, discussions, conferences and in churches
  • A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone
  • Dual low cut filter (80 Hz/120 Hz)
  • Configurable push-button (PTT, PTM or switching function)
  • Standby LED
  • Robust and shock-absorbing body
  • Elastic cartridge suspension for preventing structure-borne noise and impact sound

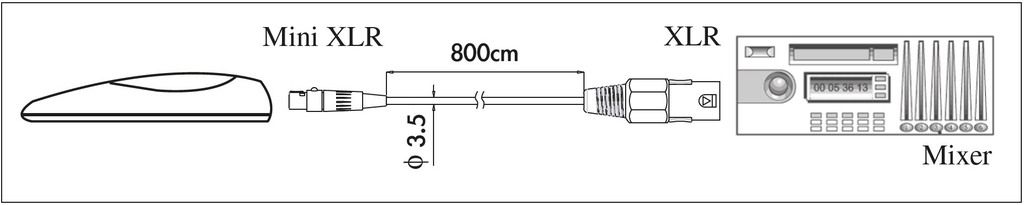

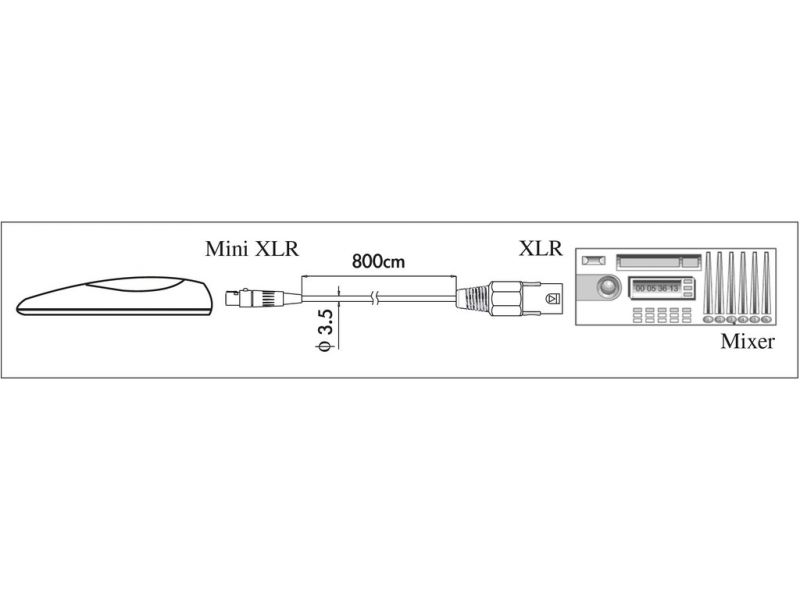

  • With 8 m cable mini XLR jack to XLR plug
  • Connection via 3-pole mini XLR plug, bal.
  • With preformed outline at the bottom for possible wall mounting

Parametrii

Description boundary microphone
Transmission method cable
Polar pattern semi-cardioid
System electret

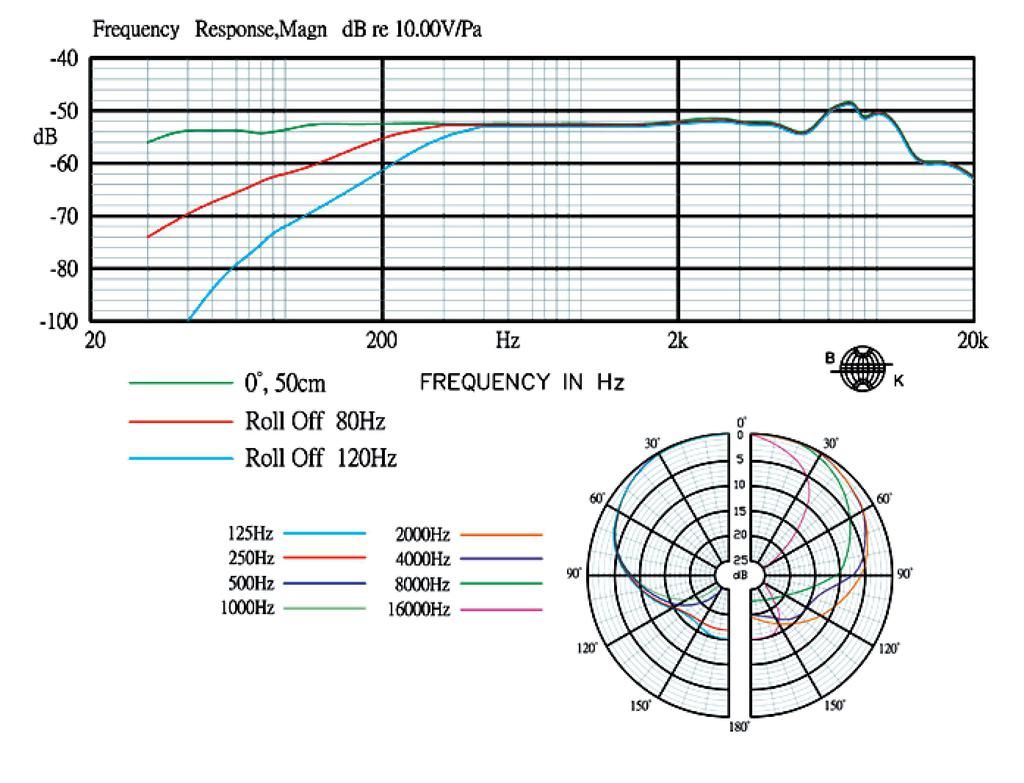

Audio frequency range 30-12,000 Hz
Nominal impedance 100 Ω
Sensitivity 2.2 mV/Pa
Max. sound pressure 125 dB
Power supply DC 15-48 V, phantom power
Housing material diecast metal
Admiss. ambient temp. 0-40 °C

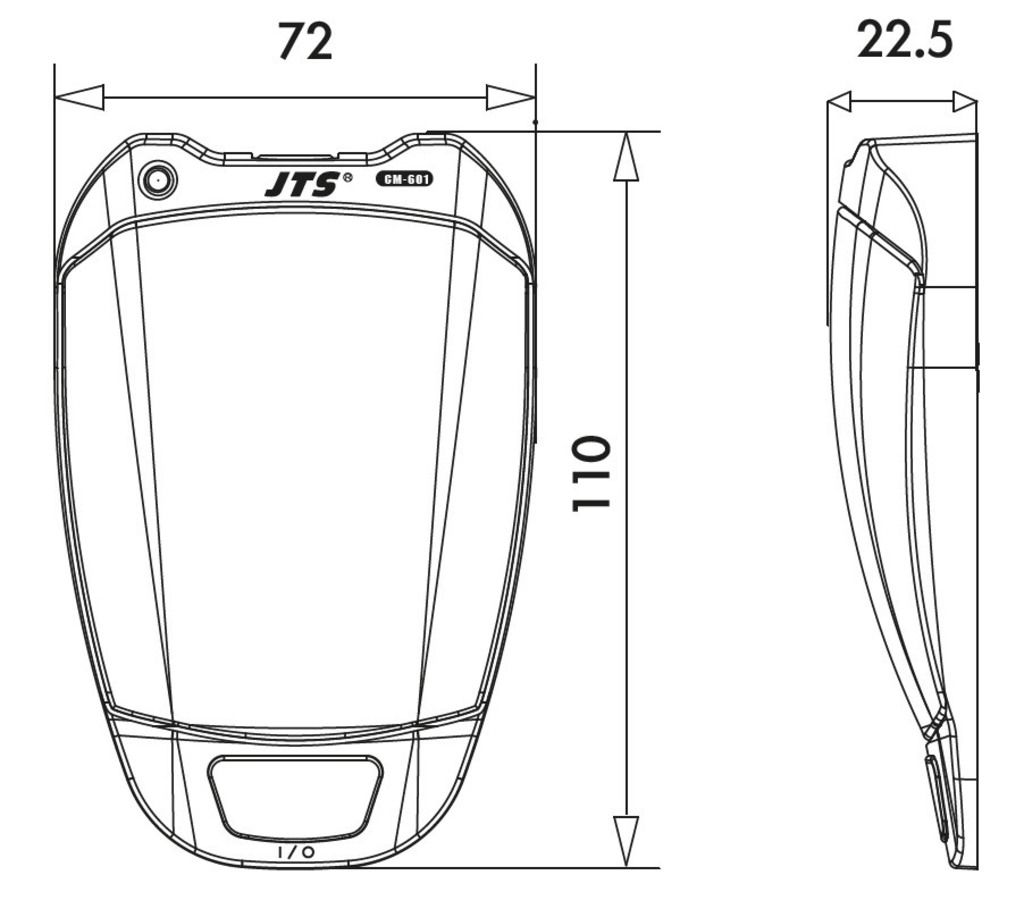

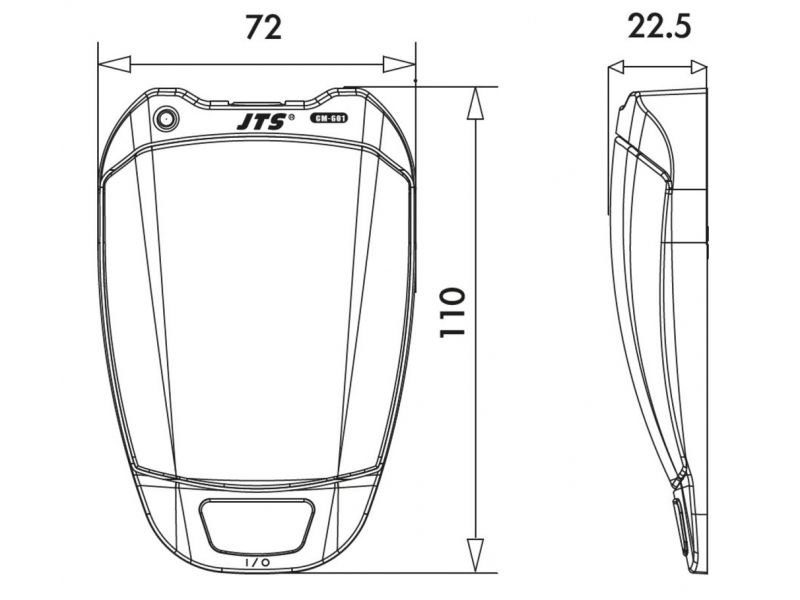

Dimensions 72 x 22.5 x 110 mm
Weight 0.85 kg
Cable 8 m, mini XLR/XLR
Connection 3-pole mini XLR plug, bal.
Packaging dimensions (W x H x L) 0.155 x 0.06 x 0.16 m
Gross weight 0.399 kg
Net weight 0.269 kg
