CT-3

Cod EAN: 4007754248852

Cable tester For cables with the following connectors: XLR (3 poles) XLR (5 poles) 6.3 mm RCA DIN (up to 8 poles) Banana plug Speaker (2 poles, 4 poles, 8 poles) USB Type-A RJ45 LED fault indication, can be set for each contact via selector swit...

Citeste mai mult

Intreaba despre produs
Cumpara acum

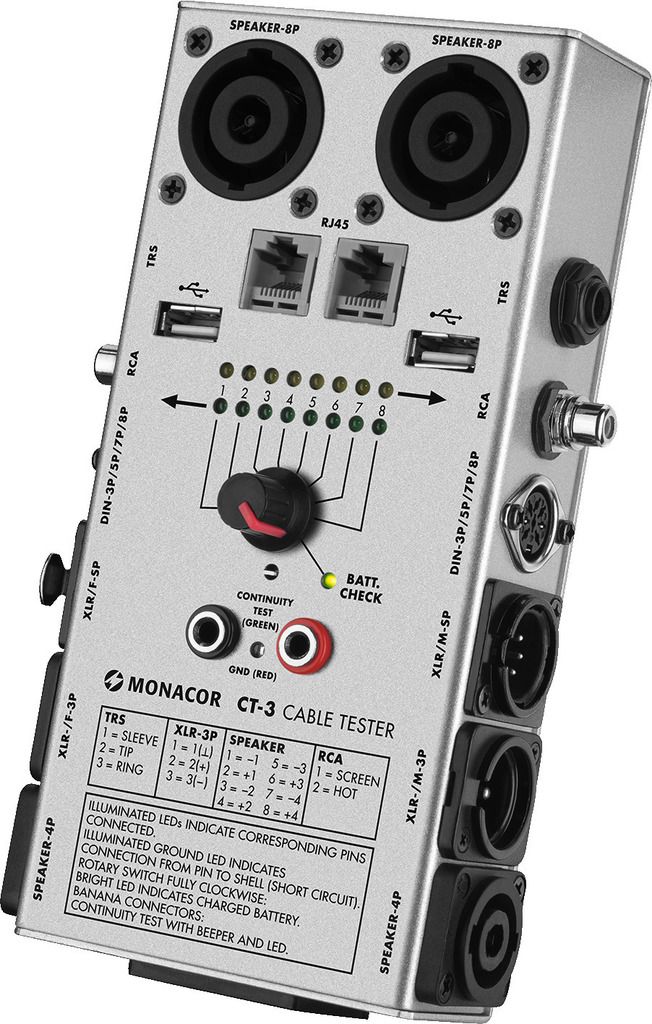

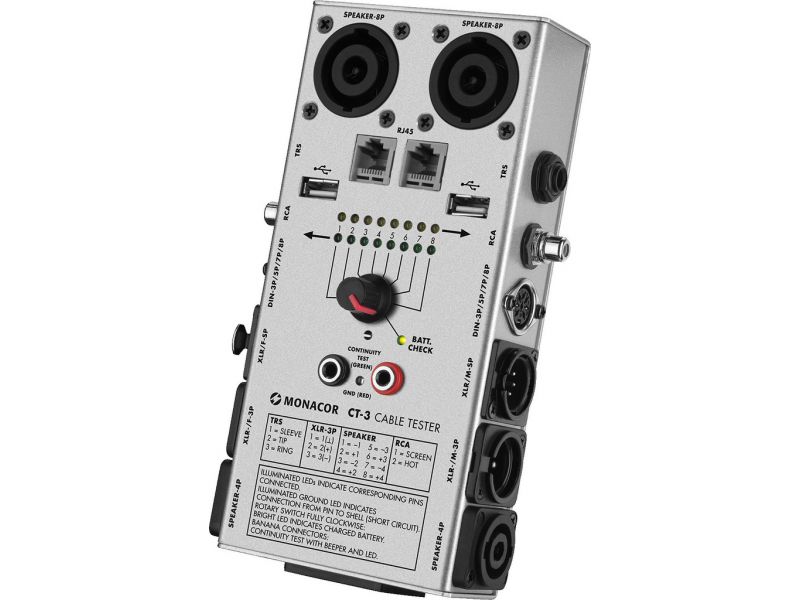

CT-3

Cable tester
For cables with the following connectors:
  • XLR (3 poles)
  • XLR (5 poles)
  • 6.3 mm
  • RCA
  • DIN (up to 8 poles)
  • Banana plug
  • Speaker (2 poles, 4 poles, 8 poles)
  • USB Type-A
  • RJ45
  • LED fault indication, can be set for each contact via selector switch
  • Audible and visible continuity test via supplied test leads
  • Battery status LED
  • Robust metal housing
  • Power supply via 9 V battery (not supplied)
  • Dimensions: 112 x 60 x 190 mm
  • Weight: 800 g

Parametrii

Description cable tester
Type with LED fault indication
Colour silver
Material metal
Power supply 9 V battery
Admiss. ambient temp. 0-40 °C
Dimensions 112 x 60 x 190 mm
Weight 800 g
Connections XLR (3 poles), XLR (5 poles), 6.3 mm, RCA, DIN (up to 8 poles), banana plug, Speaker (2 poles, 4 poles, 8 poles), USB Type-A, RJ45
Packing unit 1
Packing dimensions (W x H x L) 0.125 x 0.065 x 0.215 m
Gross weight 0.96 kg
Net weight 0.81 kg

Fisiere de descarcat

Fisa produsului CT-3 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
