DA-10-260/T

Cod EAN: 4007754263909

The sound projector with a power capacity of 10 W is fitted with two 13 cm full range speakers and a 100 V transformer with 4 power taps. A robust plastic-coated aluminium housing in RAL9010 and a vandal-resistant aluminium mounting plate ensure a perm...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DA-10-260/T

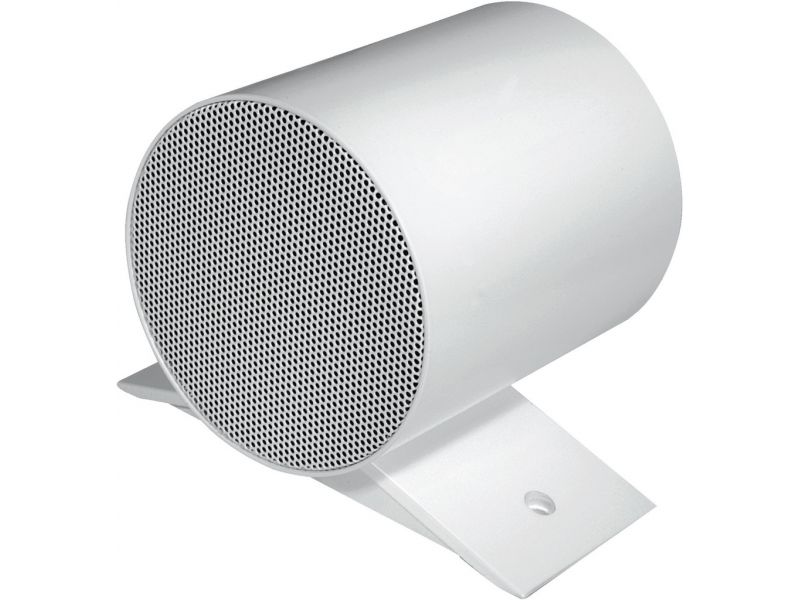

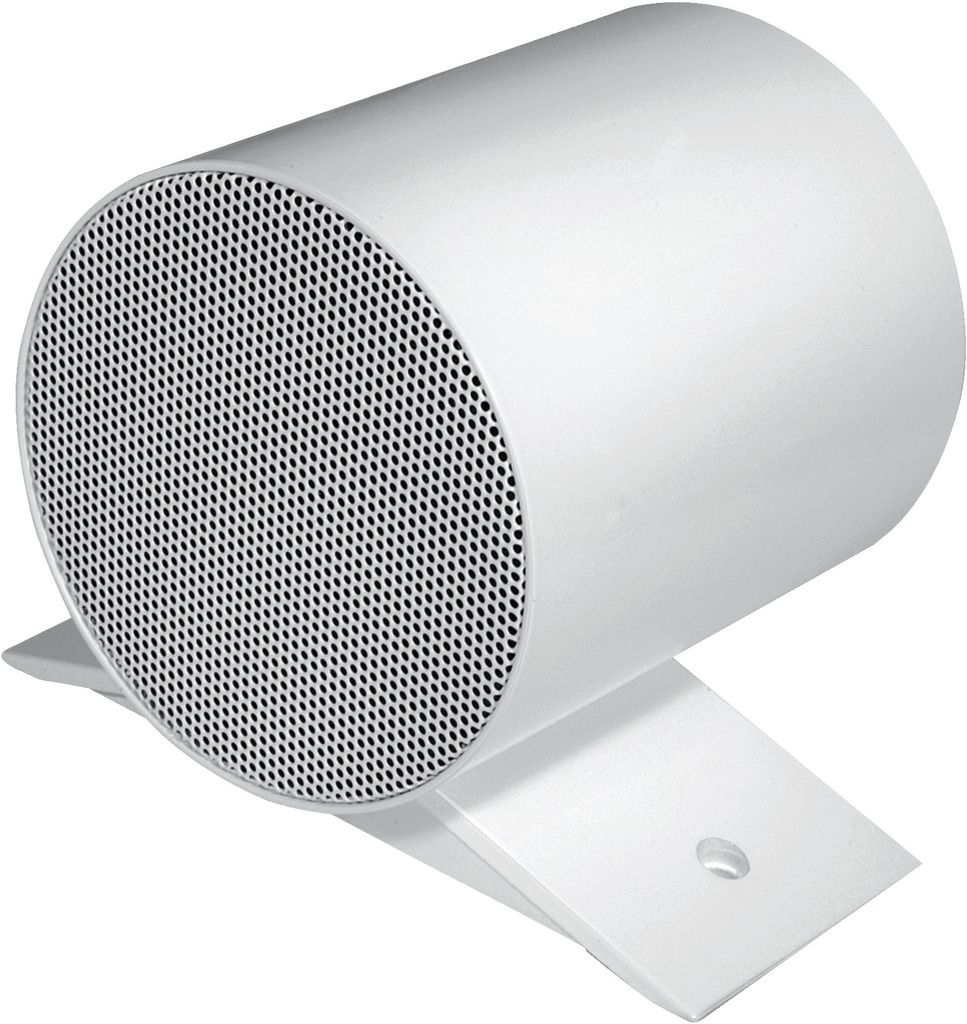

The sound projector with a power capacity of 10 W is fitted with two 13 cm full range speakers and a 100 V transformer with 4 power taps. A robust plastic-coated aluminium housing in RAL9010 and a vandal-resistant aluminium mounting plate ensure a permanent installation of this speaker. The 2-pole ceramic terminal and thermal fuse as well as the waterproof speaker ensure extra operating reliability.
With the high protection class IP65, the speaker is also protected against weather influences. It is particularly suitable for the application in corridors and hallways. The speaker complies with British Standard BS 5839, Part 8.
DA-10-260/T weatherproof PA sound projector for wall mounting with EN 54-24 certification
Weatherproof PA sound projector,
for wall mounting and with EN 54-24 certification.
  • 100 V transmission technology
  • 2 x 13 cm full range speaker for bi-directional radiation
  • 100 V transformer with power taps 10/6/3/1.5 W
  • Connection via ceramic terminals with thermal fuse in the mounting base
  • Robust plastic-coated aluminium housing with front protective grille
  • Robust vandal-resistant aluminium mounting base
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/6/3/1.5 W
Frequency range 120-17,000 Hz
Full range speaker 2 x 13 cm
Number of speakers 2
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 103 dB
Radiation angle/beam angle 150°
Radiation angle, horizontal 150°
Radiation angle, vertical 150°
Housing material aluminium
Colour white, RAL 9010
Mounting device mounting base
Protection class IP65
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 166 x 197 x 161 mm
Width 166 mm
Height 197 mm
Depth 161 mm
Weight 2.31 kg
Inputs ceramic screw terminal
Packaging dimensions (W x H x L) 0.17 x 0.185 x 0.21 m
Gross weight 2.43 kg
Net weight 2.31 kg

Fisiere de descarcat

Fisa produsului DA-10-260/T Manual de utilizare
