DRIVE-12P

Cod EAN: 4007754276305

With the passive speaker systems of the DRIVE series, you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrang...

Citeste mai mult

Intreaba despre produs
Cumpara acum

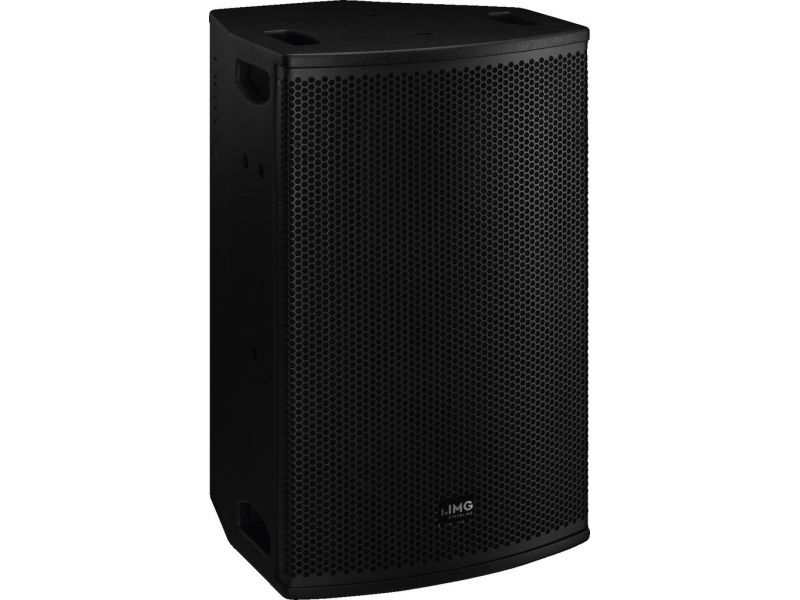

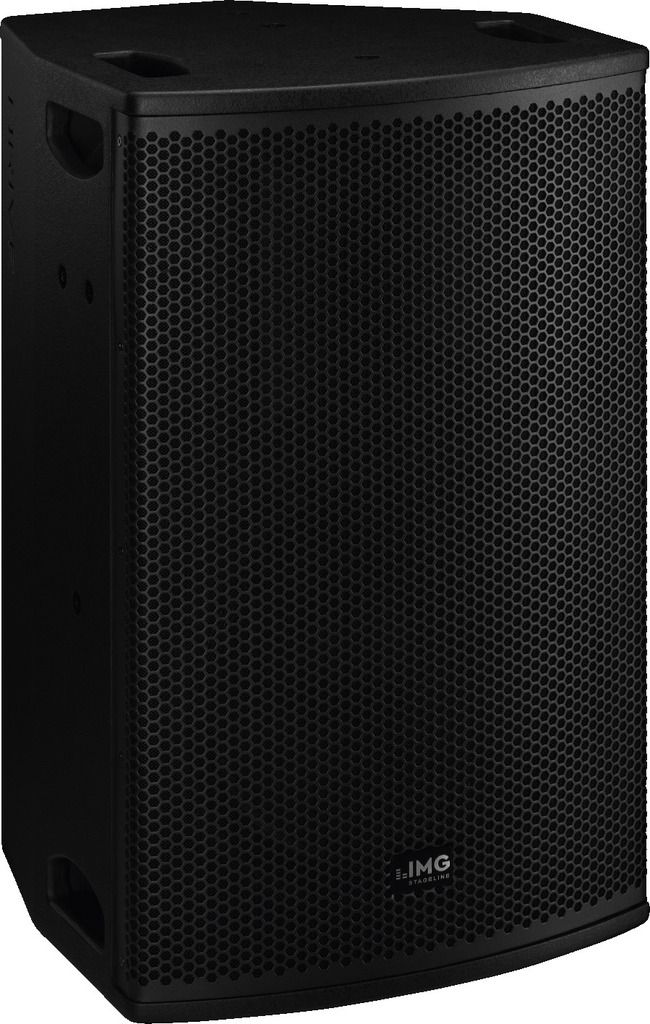

DRIVE-12P

With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 500 W
  • Compact 12/2 fulll range system with cabinet made of birch plywood
  • 30 cm (12") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern

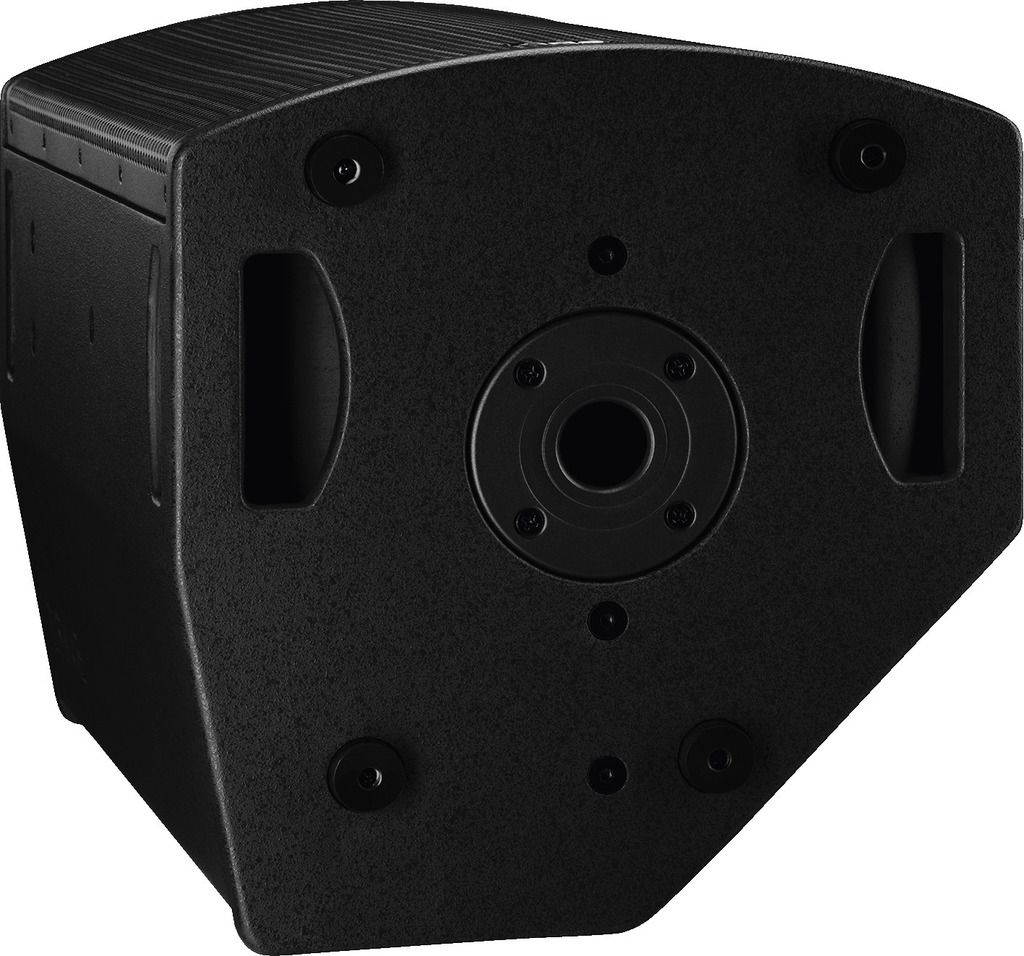

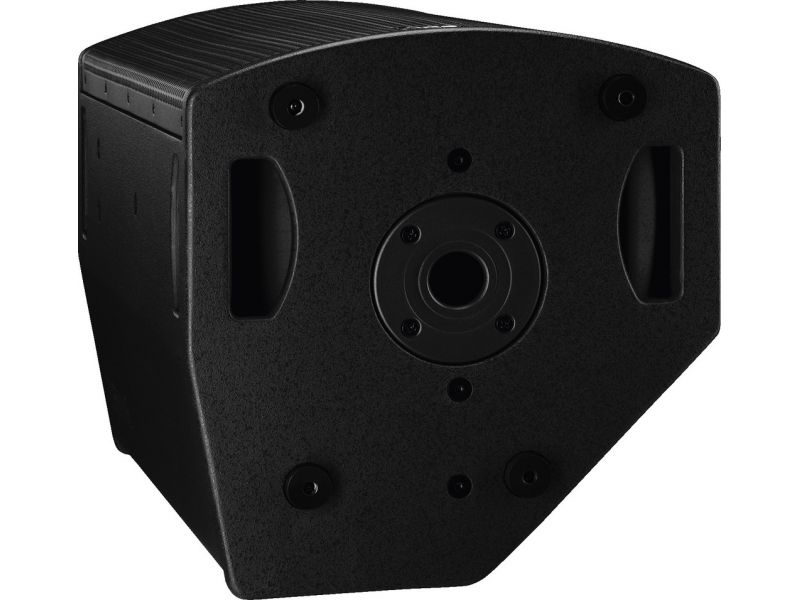

  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology cable
Total power rating 500 W
Power rating (RMS) 250 W
Impedance 8 Ω
Frequency range 45-20,000 Hz
System 12/2 full range
Bass speaker 30 cm (12") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 30 cm (12")
SPL 98 dB/W/m
Max. rated SPL 123 dB
Radiation angle/beam angle H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material birch plywood
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Dimensions 360 x 620 x 380 mm
Width 360 mm
Height 620 mm
Depth 380 mm
Weight 15.9 kg

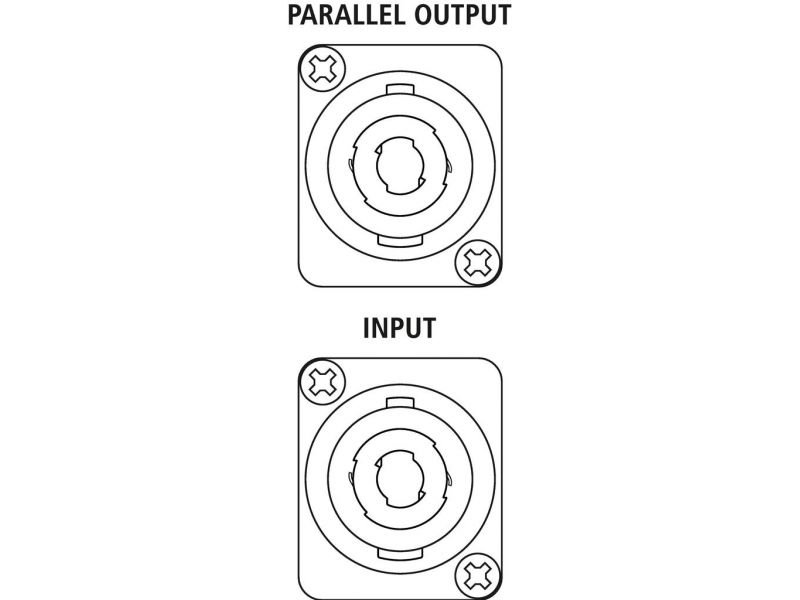

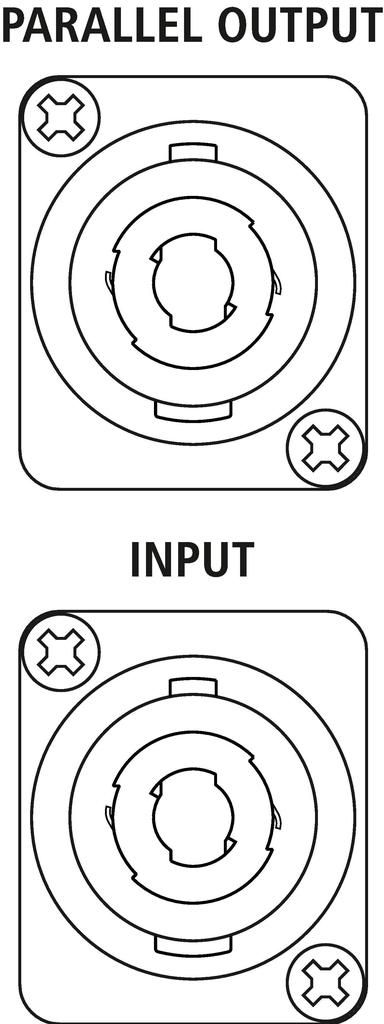

Inputs 1 x SPEAKER jack
Outputs 1 x SPEAKER jack par. out
Packaging dimensions (W x H x L) 0.49 x 0.77 x 0.47 m
Gross weight 20.52 kg
Net weight 15.9 kg

Fisiere de descarcat

Fisa produsului DRIVE-12P konformitaetserklaerung-ce konformitaetserklaerung-ukca
