DRIVE-15A

Cod EAN: 4007754276282

With the DRIVE series you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjust...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DRIVE-15A

With the DRIVE series
you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjustment for any kind of application. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional active DSP speaker system with 2-channel amplifier, 360 W

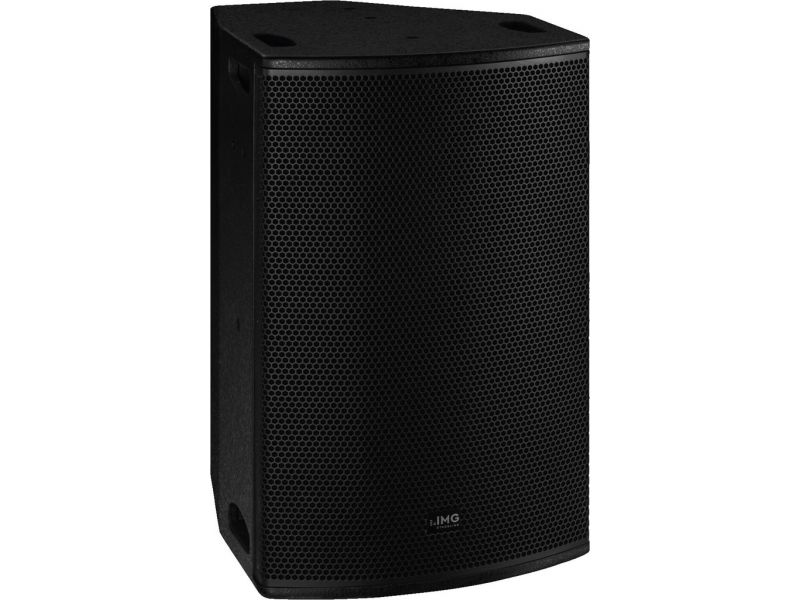

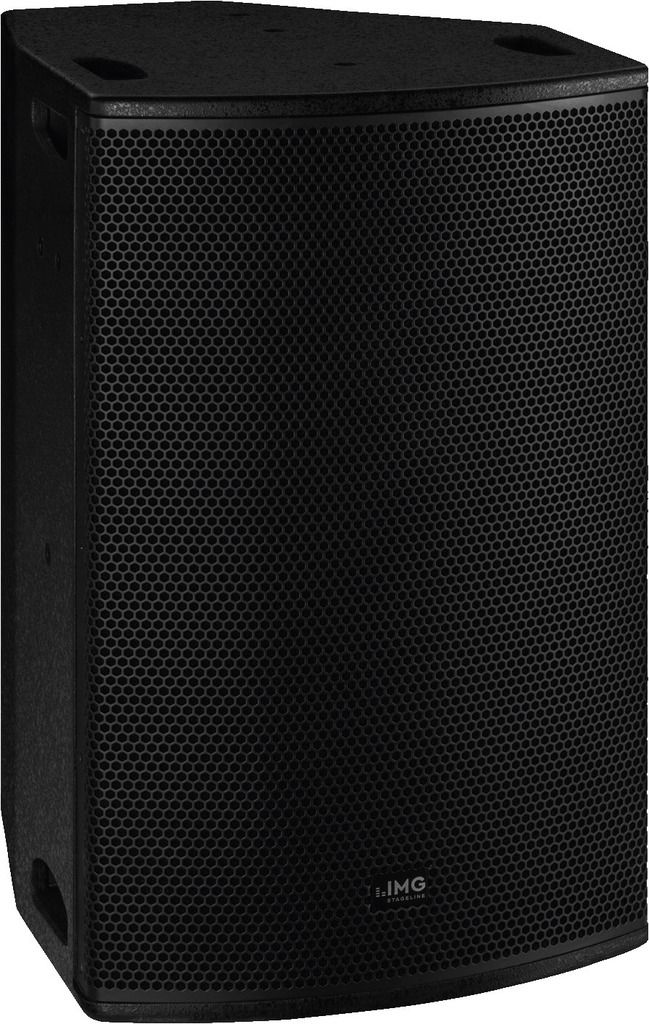

  • Compact 15/2 full range system with cabinet made of birch plywood
  • DSP-controlled 2-channel amplifier (bass: class D, tweeter: class A/B)
  • 3 selectable presets
  • FLAT (linear adjustment)
  • MUSIC (slightly raised bass and treble)
  • LOW CUT (with high-pass filter for application with an additional subwoofer)
  • 38 cm (15") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern

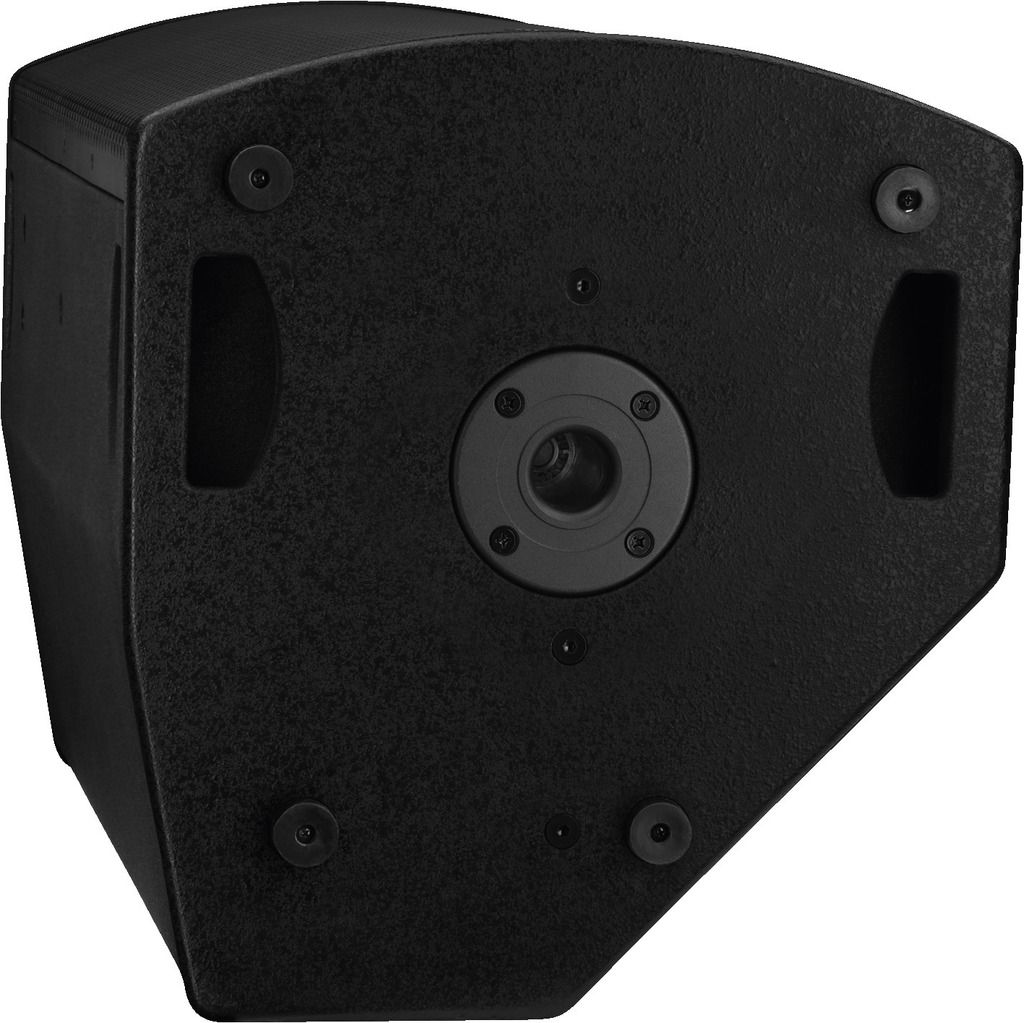

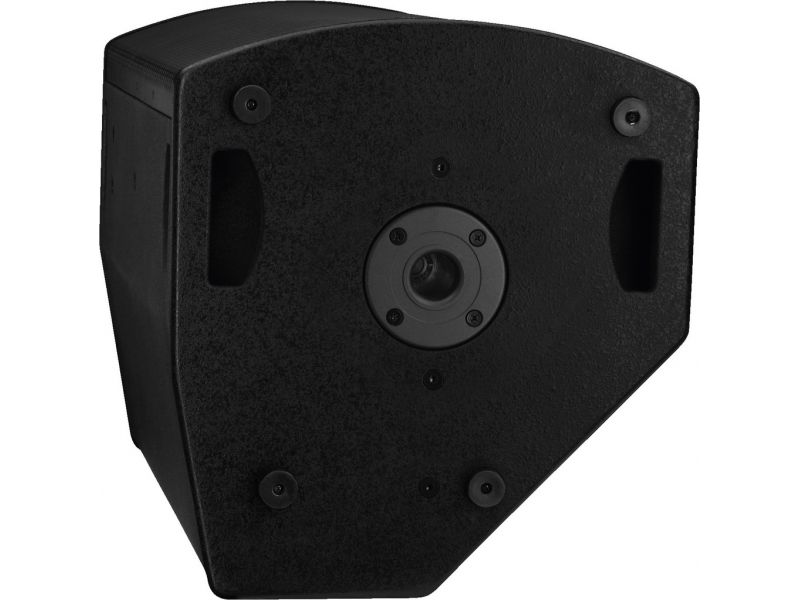

  • M8 threaded inserts for suspended installation, stand sleeve
  • Volume control

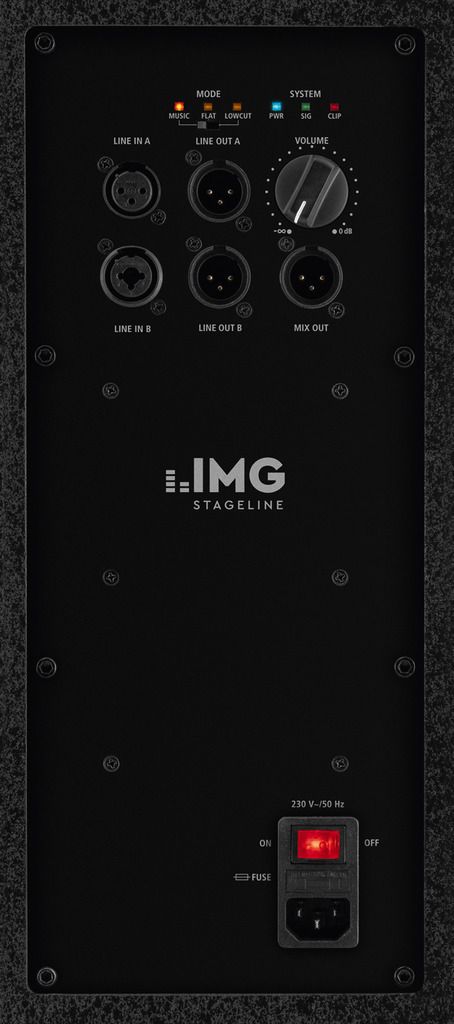

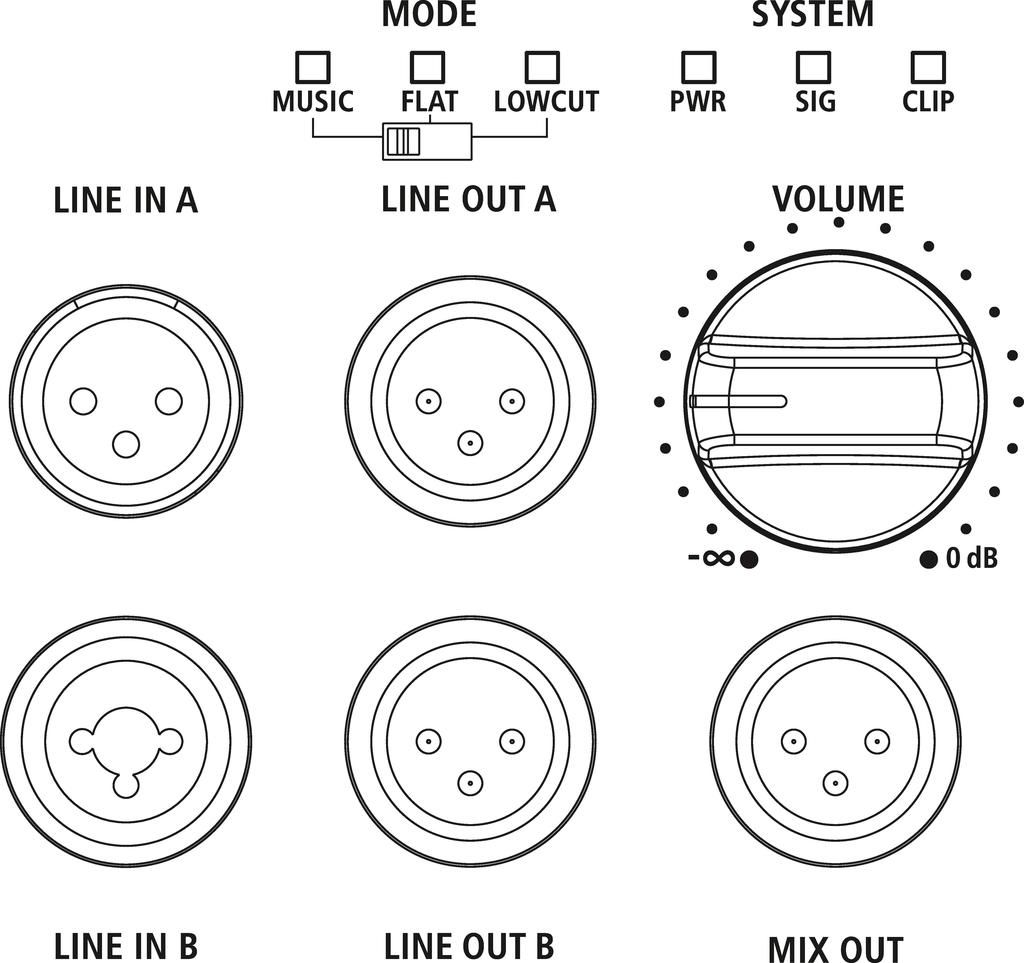

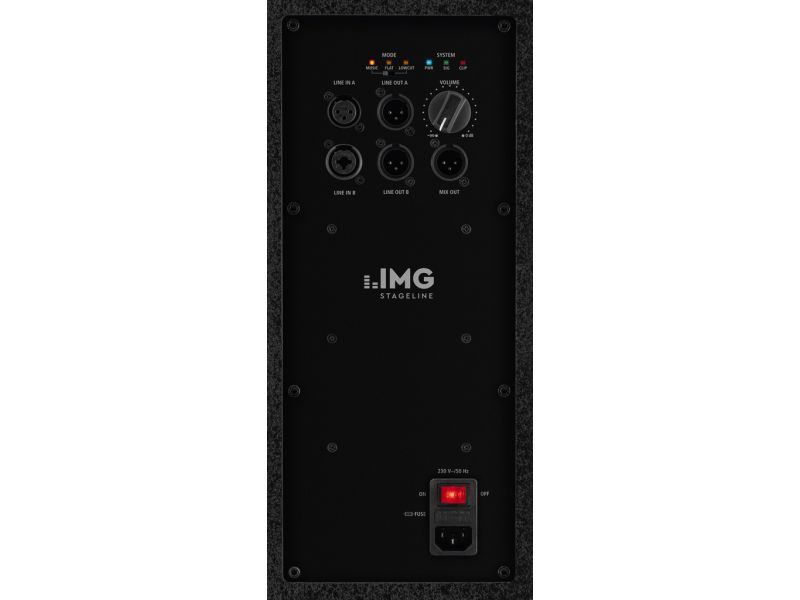

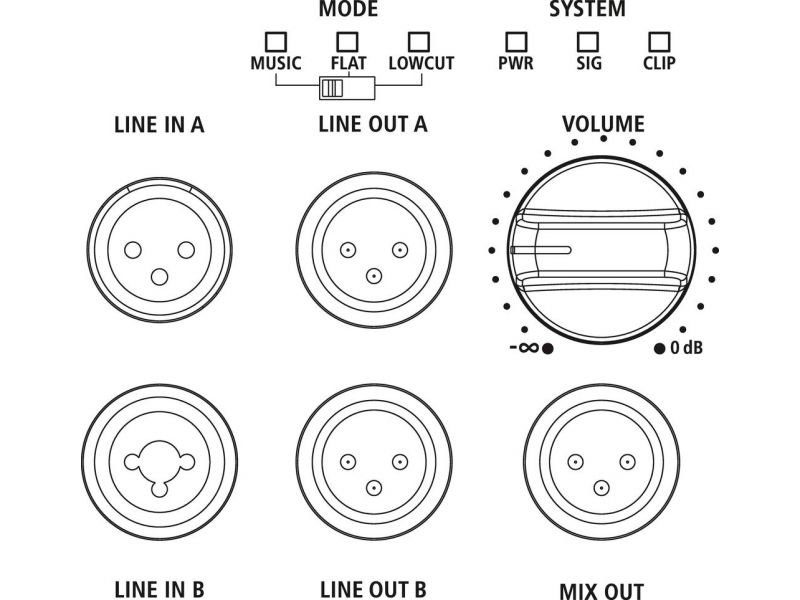

  • 2 x balanced line in
  • 2 x parallel line out
  • 1 x balanced mix out
  • Power and clip indicator
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 750 W
Power rating (RMS) DSP-controlled 360 W (300 + 60) bass: 300 W treble: 60 W
Frequency range 40-20,000 Hz
Input signal 790 mV/40 kΩ (line, bal.)
System 15/2 full range
Bass speaker 38 cm (15") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 38 cm (15")
SPL 98 dB/W/m
Max. rated SPL 125 dB
Radiation angle/beam angle H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material birch plywood
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/550 VA
Dimensions 415 x 695 x 455 mm
Width 415 mm
Height 695 mm
Depth 455 mm
Weight 22.04 kg
Inputs 1 x comb. XLR/6.3 mm: line 1 x XLR: line
Outputs 2 x XLR par. out 1 x XLR mix out
Other features DSP-controlled limiter 3 selectable presets
Packaging dimensions (W x H x L) 0.56 x 0.81 x 0.52 m
Gross weight 28.07 kg
Net weight 22.04 kg

Fisiere de descarcat

Fisa produsului DRIVE-15A konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
