DRM-882WP

Cod EAN: 4007754273205

Wall-mounted remote control panel, for digital matrix router DRM-882LAN. The first 4 presets of the DRM-882LAN can be activated at the touch of a button Preset status display Individual adjustment of the master volume Protected from unauthorised ac...

Citeste mai mult

Intreaba despre produs
Cumpara acum

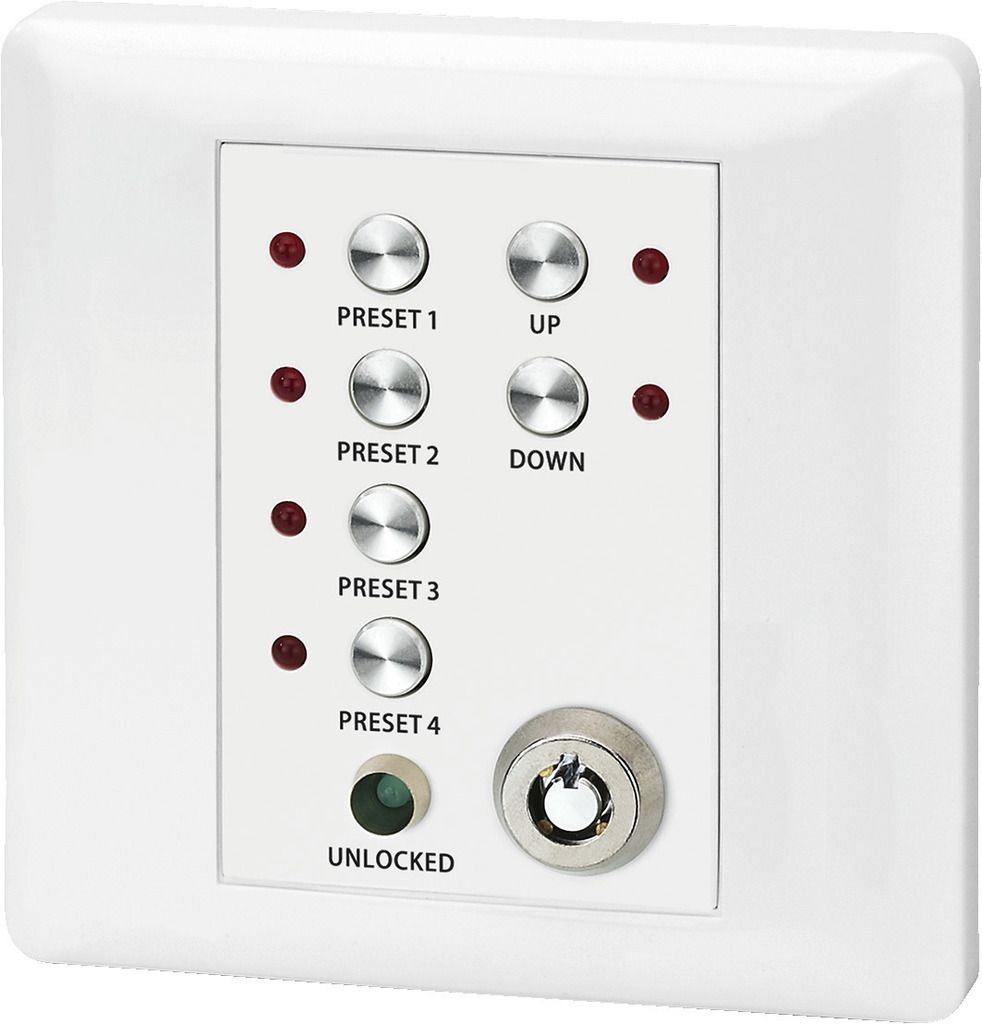

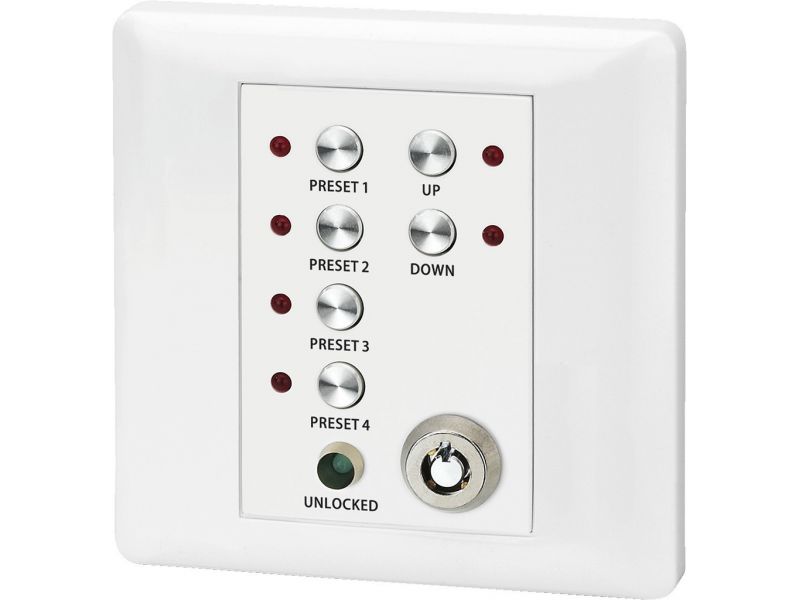

DRM-882WP

Wall-mounted remote control panel,
for digital matrix router DRM-882LAN.
  • The first 4 presets of the DRM-882LAN can be activated at the touch of a button
  • Preset status display
  • Individual adjustment of the master volume
  • Protected from unauthorised access via key switch
  • Connection to DRM-882LAN via RS485 interface
  • Power supply: DC 5 V/20 mA via optional power supply PSS-510DC
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description wall-mounted remote control panel
Colour white
Suitable for DRM-882LAN
Power supply DC 5 V/20 mA
Admiss. ambient temp. 0-40 °C
Dimensions 86 x 86 x 30 mm
Weight 164 g
Packing unit 1
Packaging dimensions (W x H x L) 0.095 x 0.05 x 0.175 m
Gross weight 0.2 kg
Net weight 0.164 kg

Fisiere de descarcat

Fisa produsului DRM-882WP konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
