DRM-882WPX

Cod EAN: 4007754273212

Wall-mounted remote control panel, for digital matrix router DRM-882LAN. 3 operating modes: system setup, master and zone Momentary push-buttons to select the 6 presets of the DRM-882LAN Volume control for each zone Gain control Source selection f...

Citeste mai mult

Intreaba despre produs
Cumpara acum

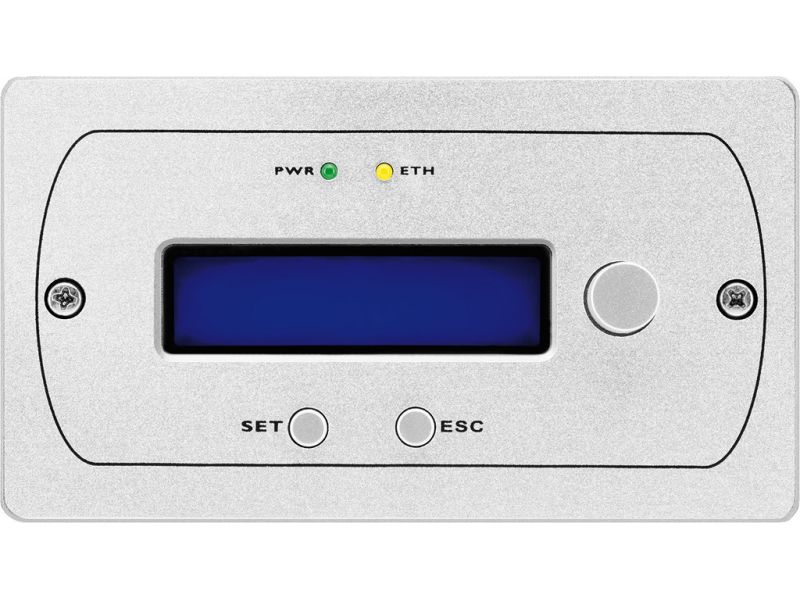

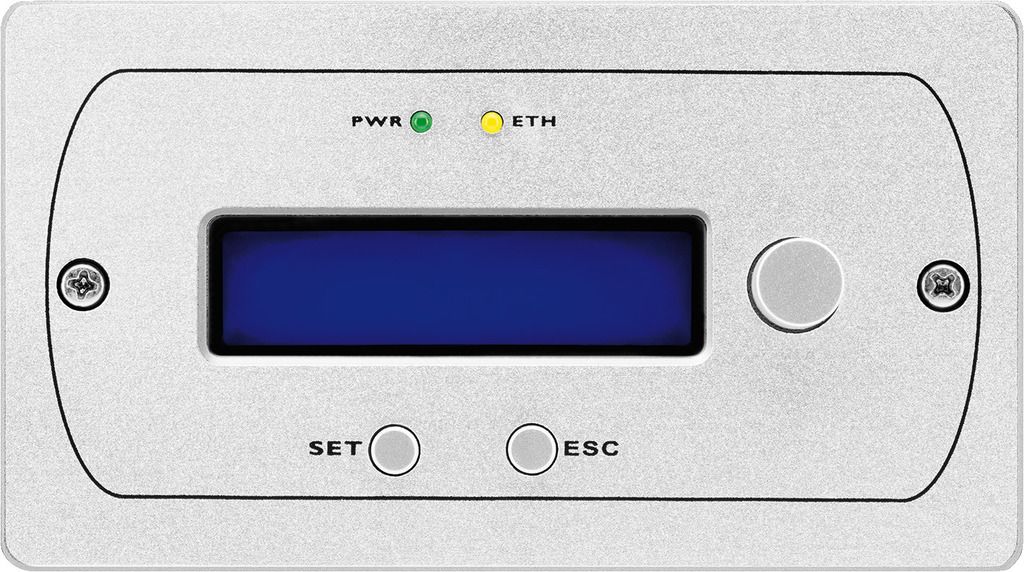

DRM-882WPX

Wall-mounted remote control panel,
for digital matrix router DRM-882LAN.
  • 3 operating modes: system setup, master and zone
  • Momentary push-buttons to select the 6 presets of the DRM-882LAN
  • Volume control for each zone
  • Gain control
  • Source selection for each zone
  • Auto standby (selectable)
  • Lock mode
  • LCD with 2 x 20 characters
  • Connection to DRM-882LAN via RS485 interface
  • Power supply: DC 12 V/75 mA via optional power supply PSS-1205DC
  • Supplied with flush-mounted housing
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description wall-mounted remote control panel
Colour silver
Suitable for DRM-882LAN
Power supply DC 12 V/75 mA
Admiss. ambient temp. 0-40 °C
Dimensions 144 x 80 x 40 mm
Weight 260 g
Packing unit 1
Packaging dimensions (W x H x L) 0.1 x 0.07 x 0.165 m
Gross weight 0.29 kg
Net weight 0.26 kg

Fisiere de descarcat

Fisa produsului DRM-882WPX konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
