DT-100
Cod EAN: 4007754005264
Hi-fi dome tweeter, 30 W, 8 Ω Soft dome of high power capability, classic rectangular size Ferrofluid Good linearity with extra brilliant characteristics Reproduction rich in detail

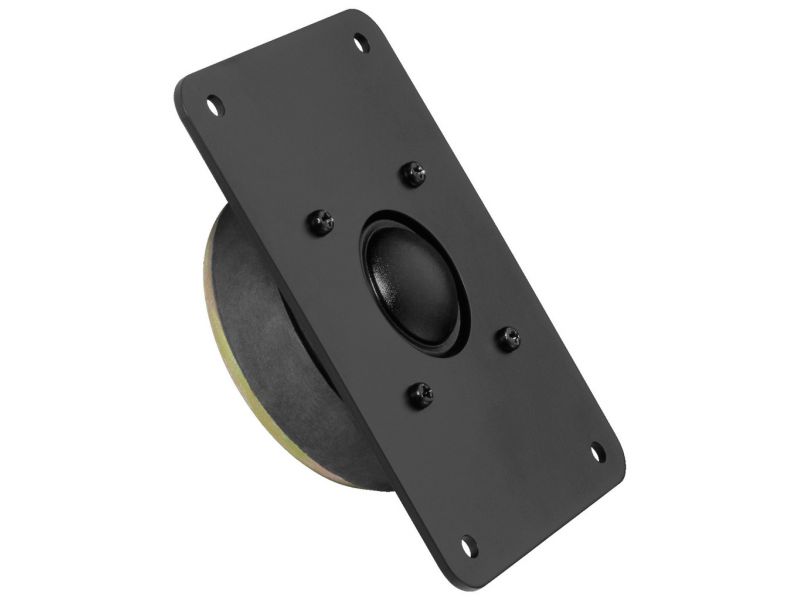

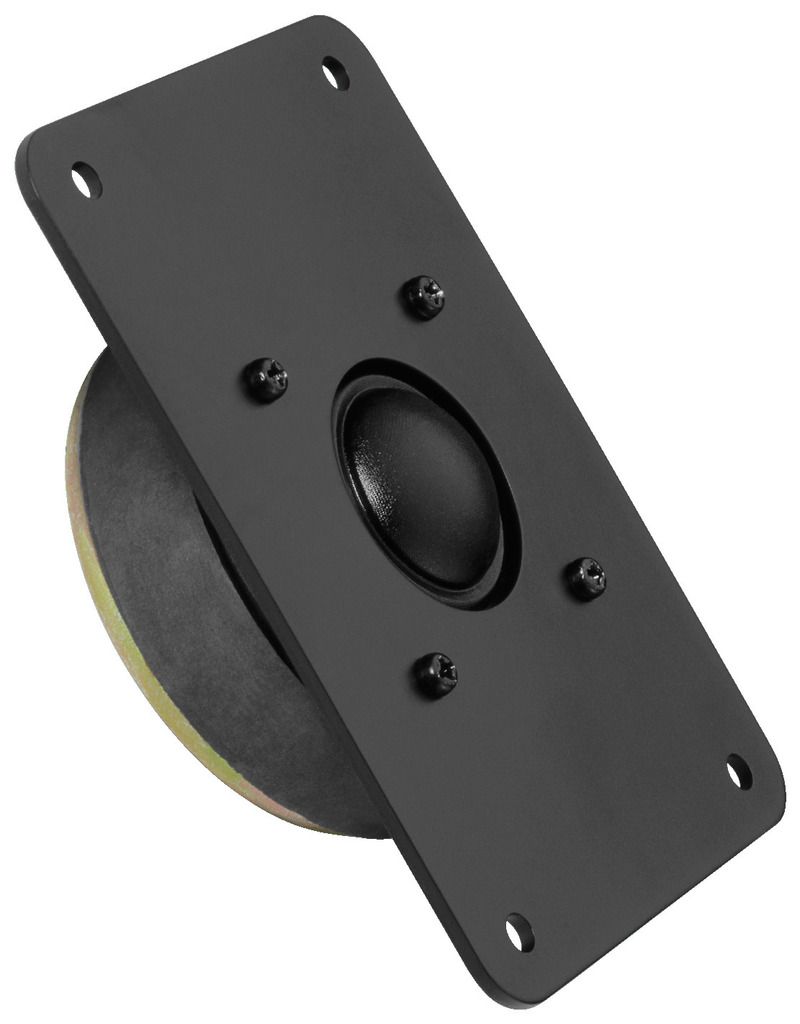

DT-100
Hi-fi dome tweeter, 30 W, 8 Ω
- Soft dome of high power capability, classic rectangular size
- Ferrofluid
- Good linearity with extra brilliant characteristics
- Reproduction rich in detail
Parametrii
| Impedance (Z) | 8 Ω |

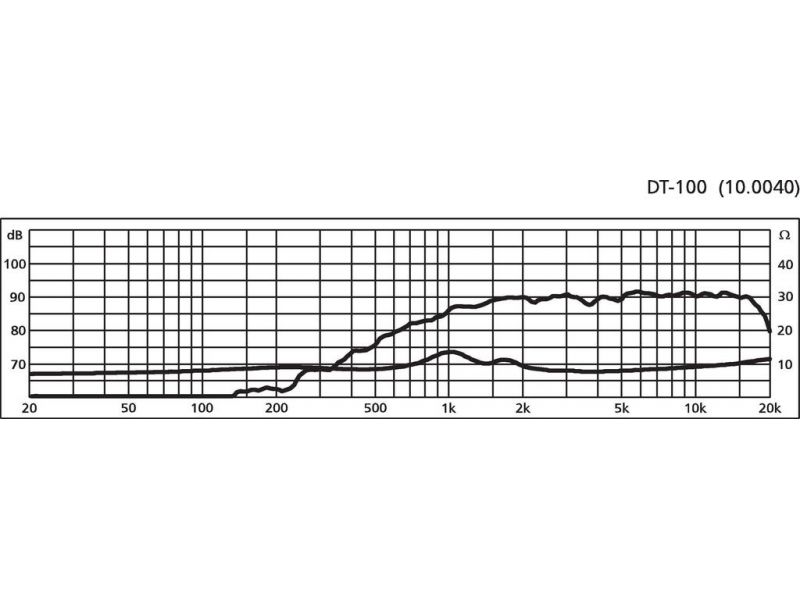

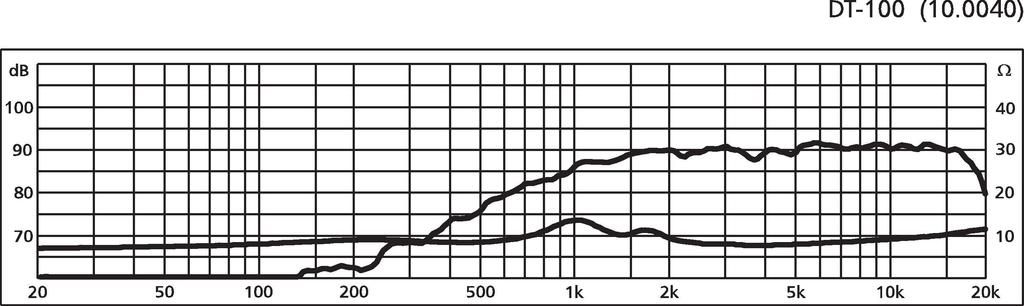

| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 1,500 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 92 dB/W/m |
| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 72 mm |
| Mounting depth | 26 mm |

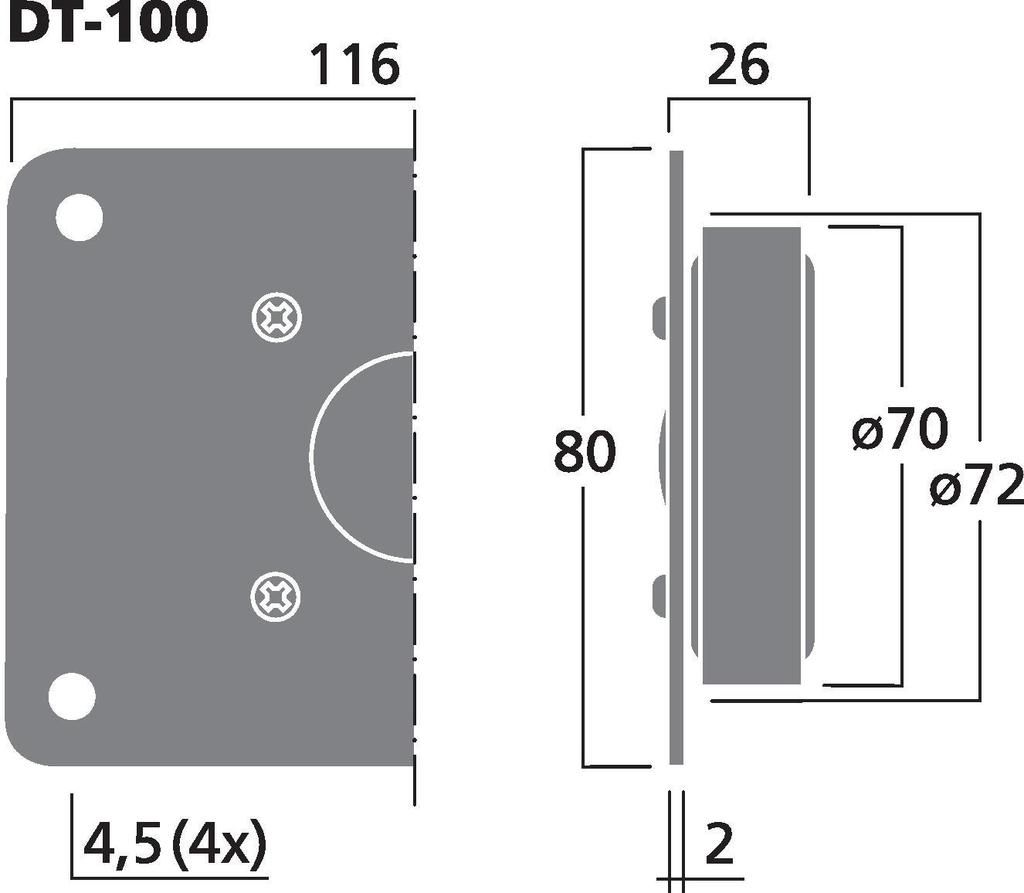

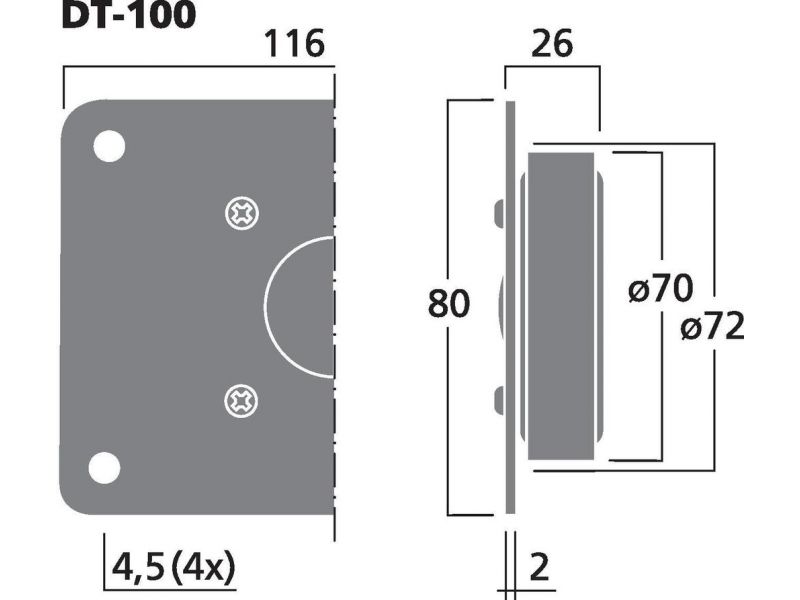

| Dimensions | 116 x 80 x 26 mm |
| Width | 116 mm |
| Height | 80 mm |
| Depth | 26 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.525 kg |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.09 x 0.05 x 0.125 m |
| Gross weight | 0.58 kg |
| Net weight | 0.525 kg |
