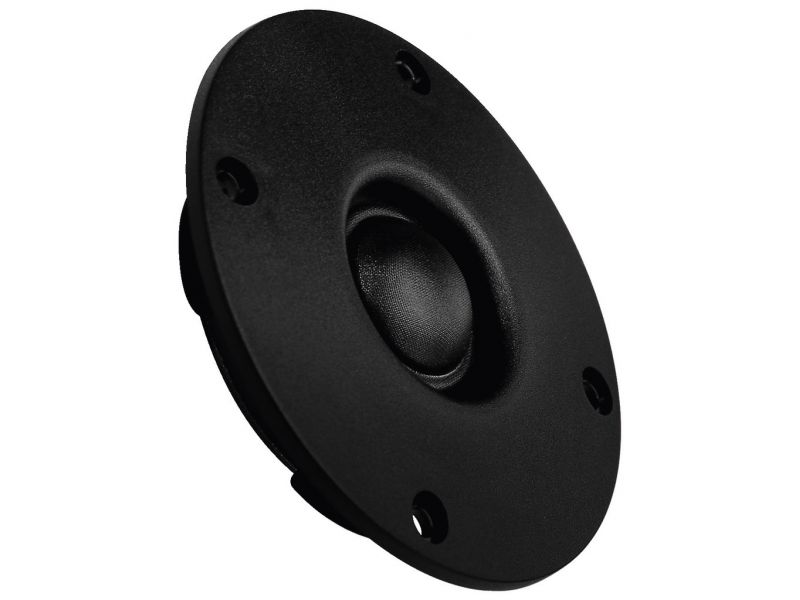

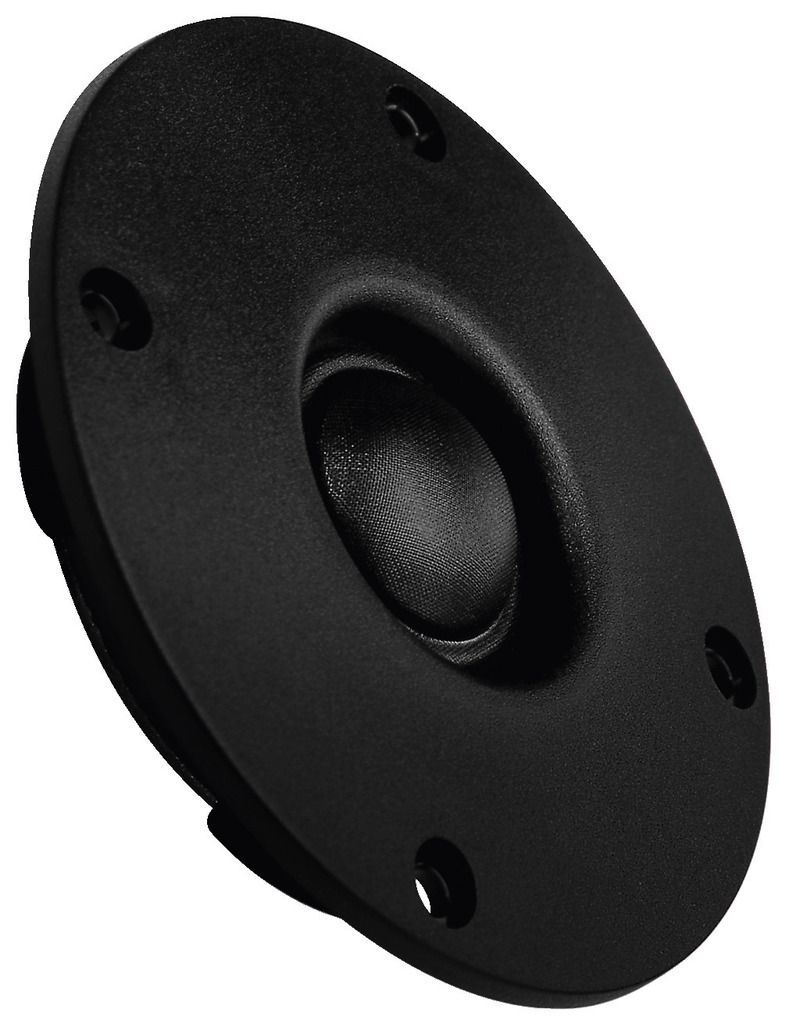

DT-107

Cod EAN: 4007754087505

Hi-fi dome tweeter, 80 W, 8 Ω Textile soft dome with inside damping Highest linearity with good efficiency Extra silky and brilliant sound For any hi-fi application of high requirements



DT-107

Hi-fi dome tweeter, 80 W, 8 Ω
  • Textile soft dome with inside damping
  • Highest linearity with good efficiency
  • Extra silky and brilliant sound
  • For any hi-fi application of high requirements

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range fx-22,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating (RMS) 80 W
Peak music power output (MAX) 130 W
SPL 89 dB/W/m
Voice coil diameter Ø 25 mm
Magnet diameter Ø 60 mm
Mounting cutout Ø 71 mm
Mounting depth 23 mm

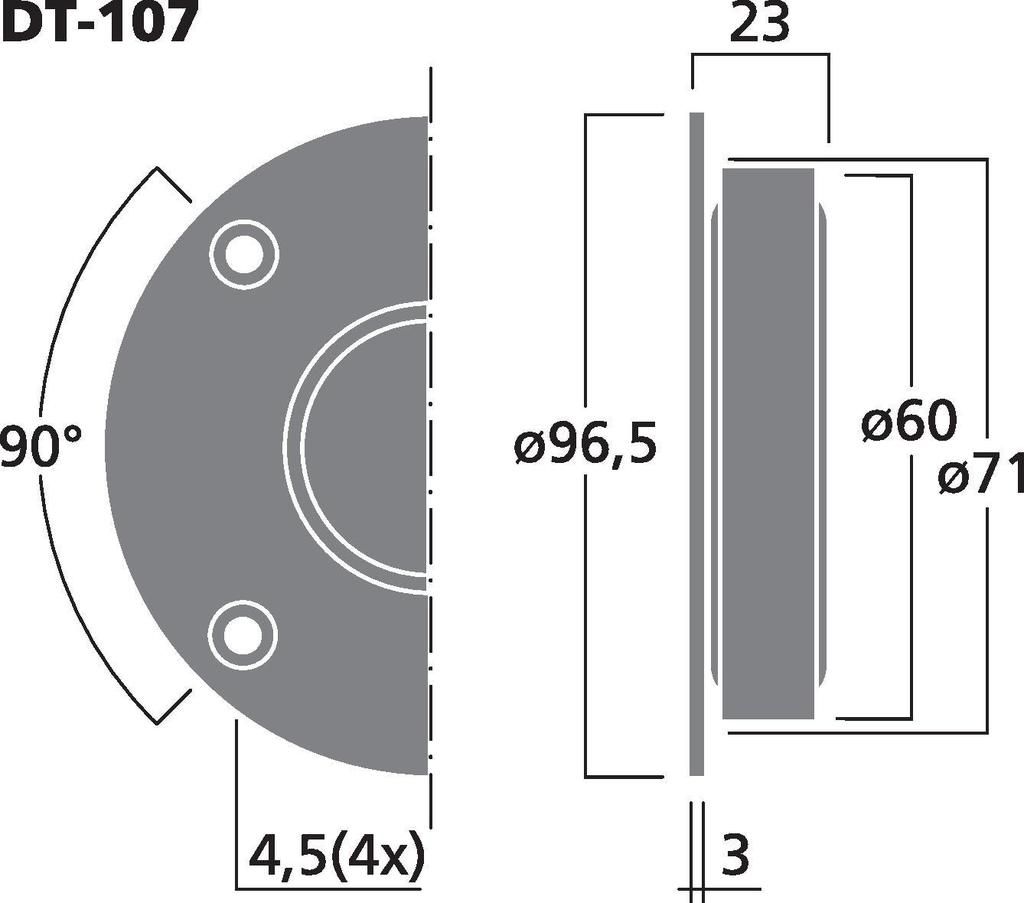

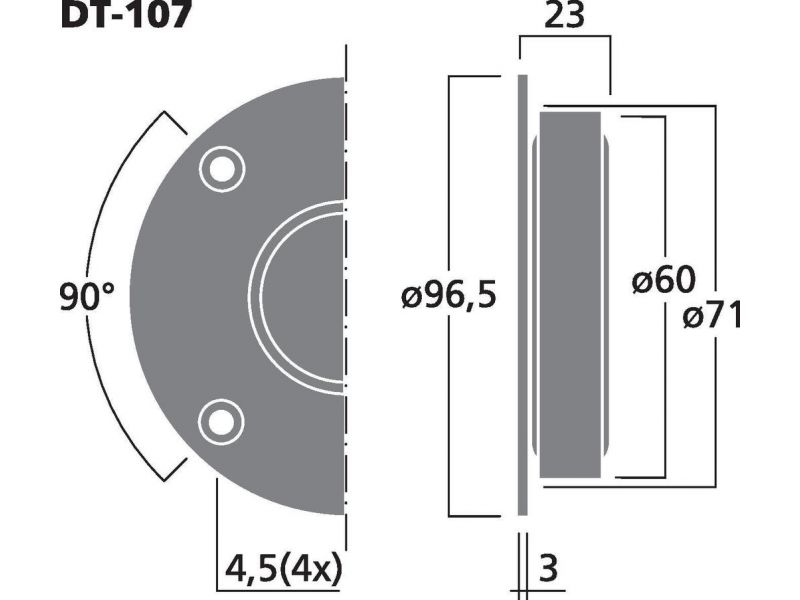

Dimensions Ø 96.5 x 23 mm
Outside diameter Ø 96.5 mm
Width Ø 96.5 mm
Height Ø 96.5 mm
Depth 23 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.27 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.105 x 0.04 x 0.105 m
Gross weight 0.305 kg
Net weight 0.27 kg
