DT-25N

Cod EAN: 4007754154641

Neodymium hi-fi tweeter, 40 W, 8 Ω Outstanding sound characteristics Silk soft dome cone with optimised geometry Front plate with a specially adapted design Very linear reproduction even of lower frequencies High efficiency Low magnetic dispersion an...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DT-25N

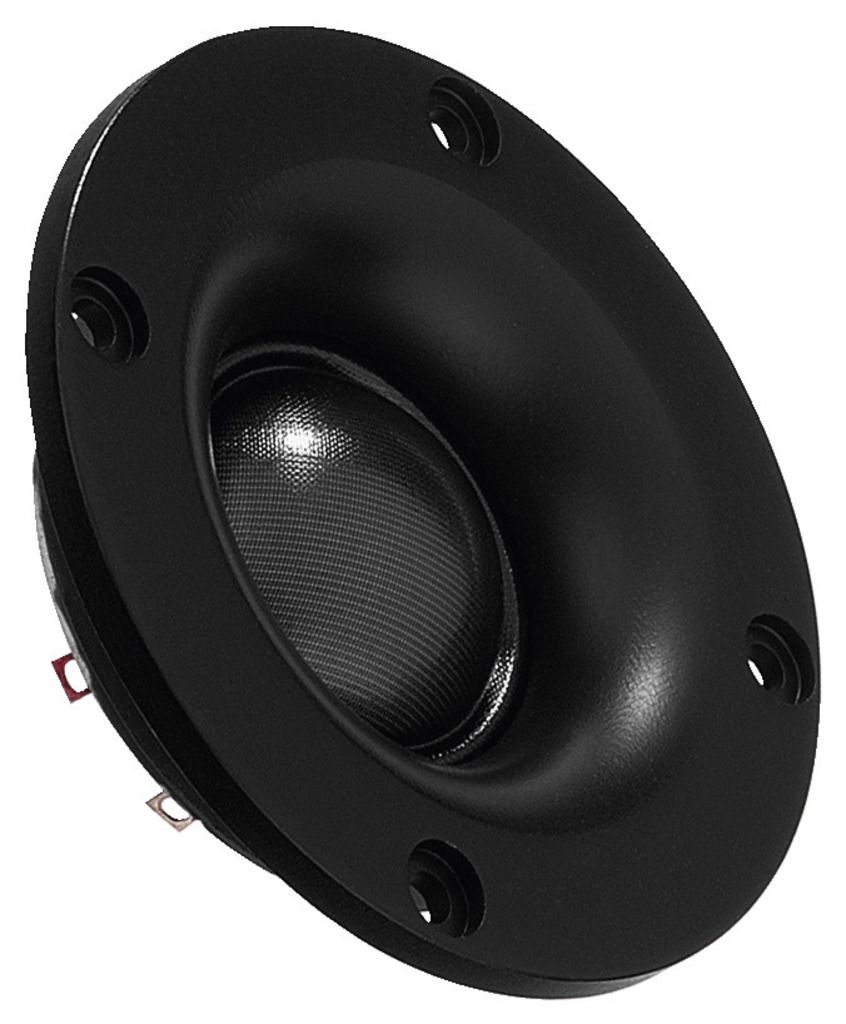

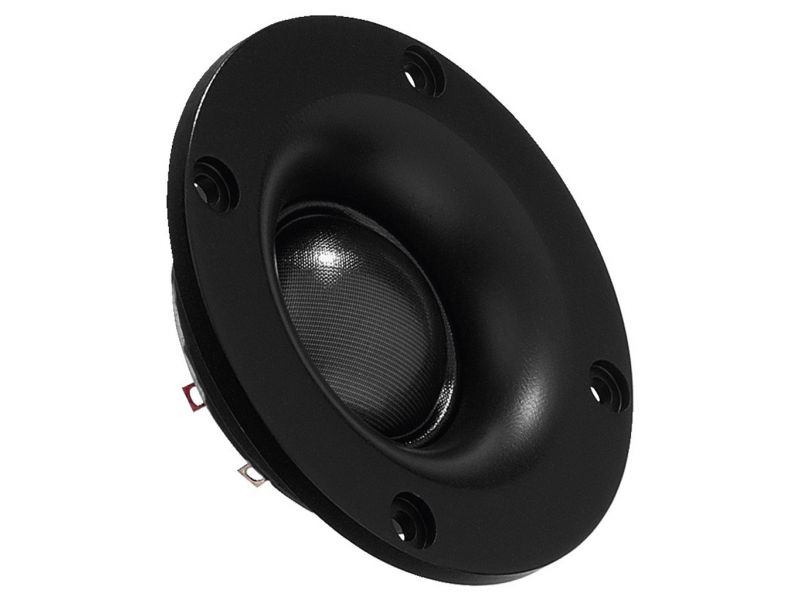

Neodymium hi-fi tweeter, 40 W, 8 Ω
  • Outstanding sound characteristics
  • Silk soft dome cone with optimised geometry
  • Front plate with a specially adapted design
  • Very linear reproduction even of lower frequencies
  • High efficiency
  • Low magnetic dispersion and mechanically very compact due to the application of a high-performance neodymium magnet
  • Ideally suited for building smaller speaker systems
  • For high-quality floorstanding hi-fi speakersy, e.g. in DAppolito arrangements
  • Very fine and natural sound
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,600 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 95 dB/W/m

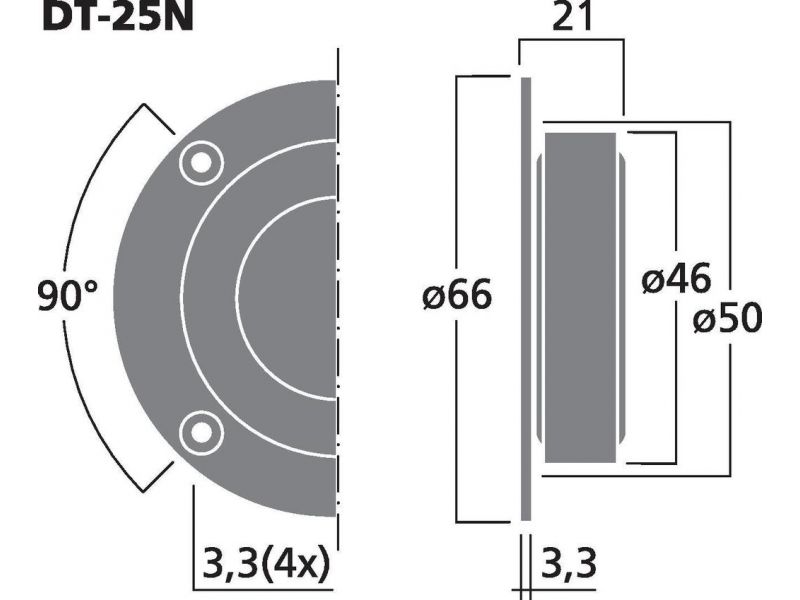

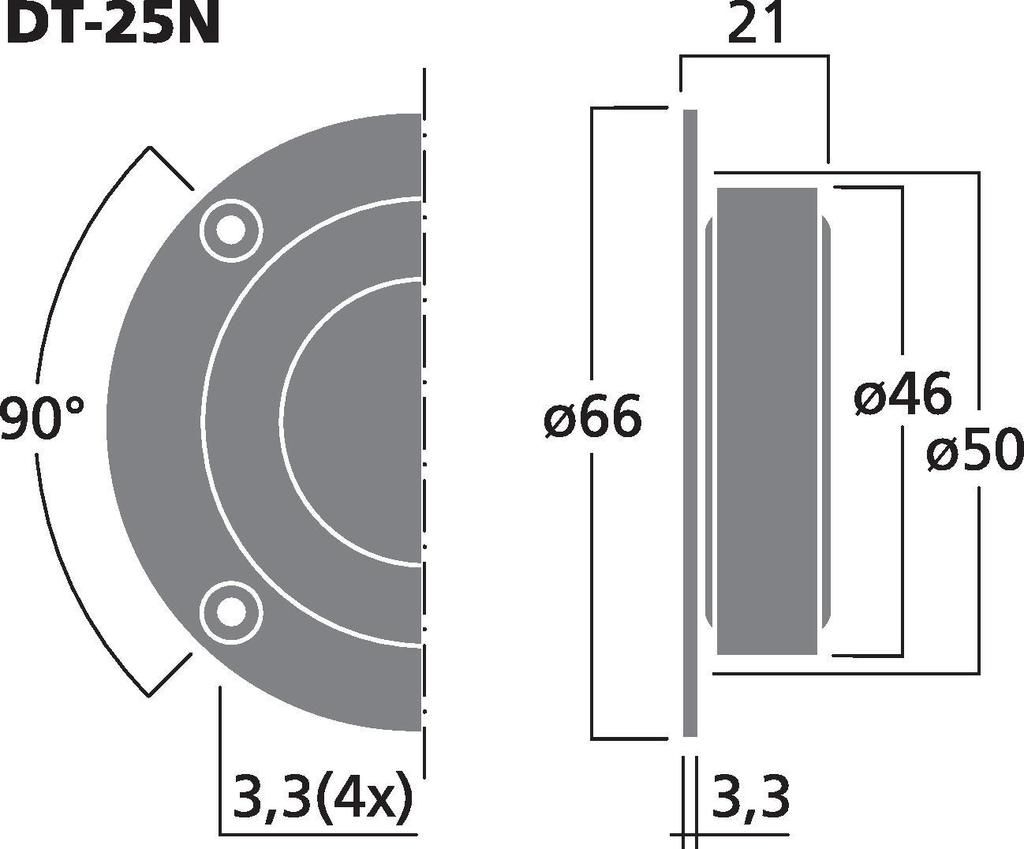

Voice coil diameter Ø 25 mm
Magnet diameter Ø 46 mm
Mounting cutout Ø 50 mm
Mounting depth 17.7 mm
Dimensions Ø 66 x 21 mm
Outside diameter Ø 66 mm
Width Ø 66 mm
Height Ø 66 mm
Depth 21 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.065 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.075 x 0.03 x 0.075 m
Gross weight 0.085 kg
Net weight 0.065 kg

Fisiere de descarcat

Fisa produsului DT-25N konformitaetserklaerung-ce konformitaetserklaerung-ukca
