DT-28N

Cod EAN: 4007754154658

Neodymium hi-fi tweeter, 50 W, 8 Ω Outstanding sound characteristics Very linear reproduction, even of lower frequencies High efficiency 28 mm extra efficient silk cone Perfectly small front plate for high-performance speaker systems of the smallest...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DT-28N

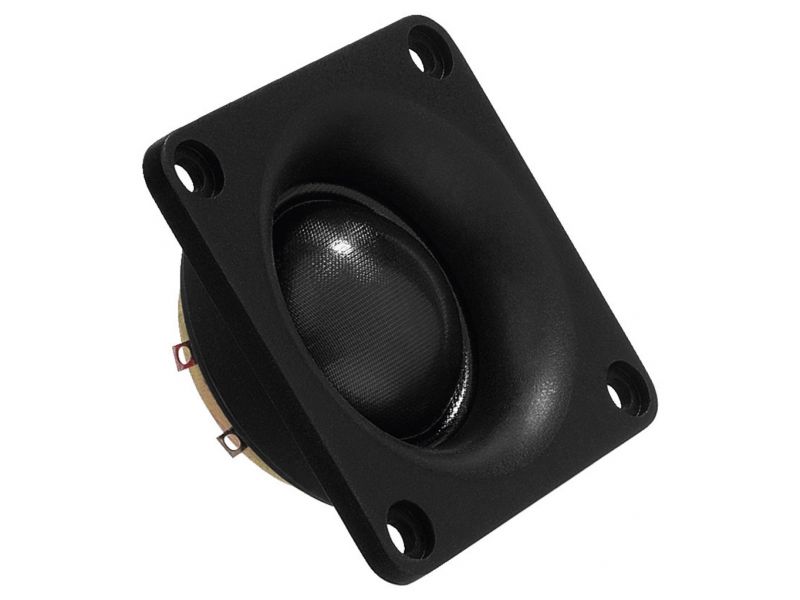

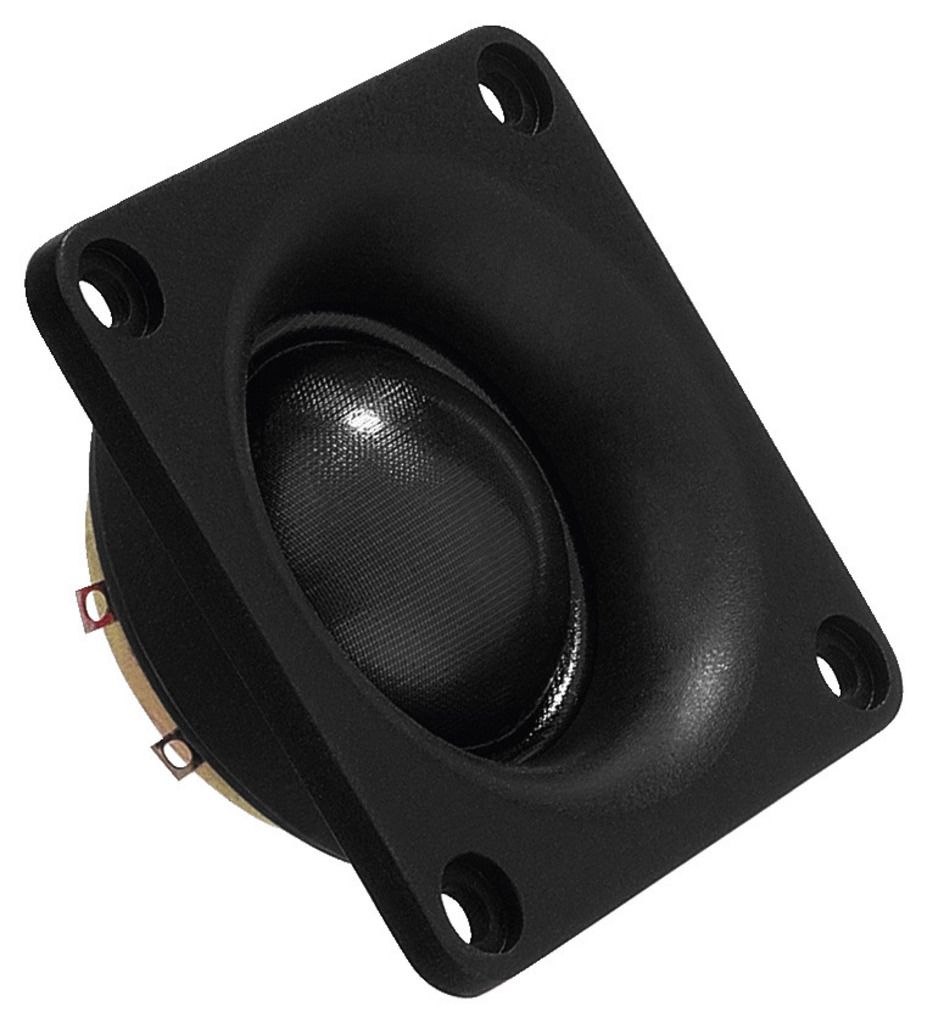

Neodymium hi-fi tweeter, 50 W, 8 Ω
  • Outstanding sound characteristics
  • Very linear reproduction, even of lower frequencies
  • High efficiency
  • 28 mm extra efficient silk cone
  • Perfectly small front plate for high-performance speaker systems of the smallest size possible
  • Mounting into perfect DAppolito arrangements also in lying centres due to low magnetic dispersion
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

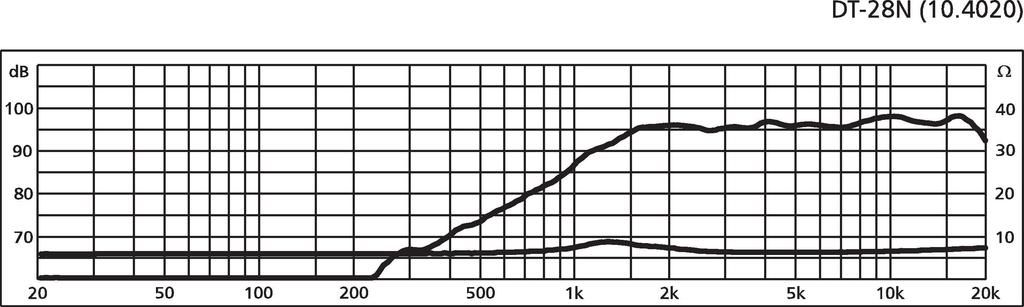

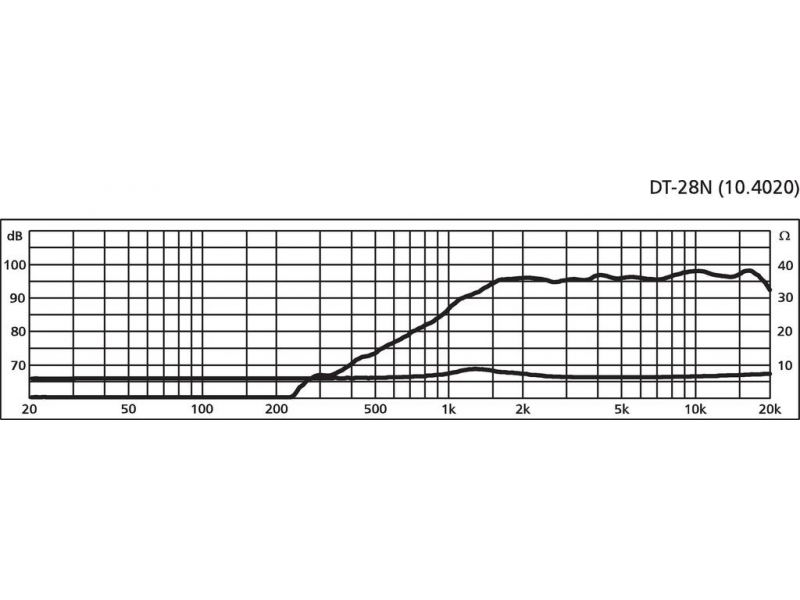

Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 94 dB/W/m

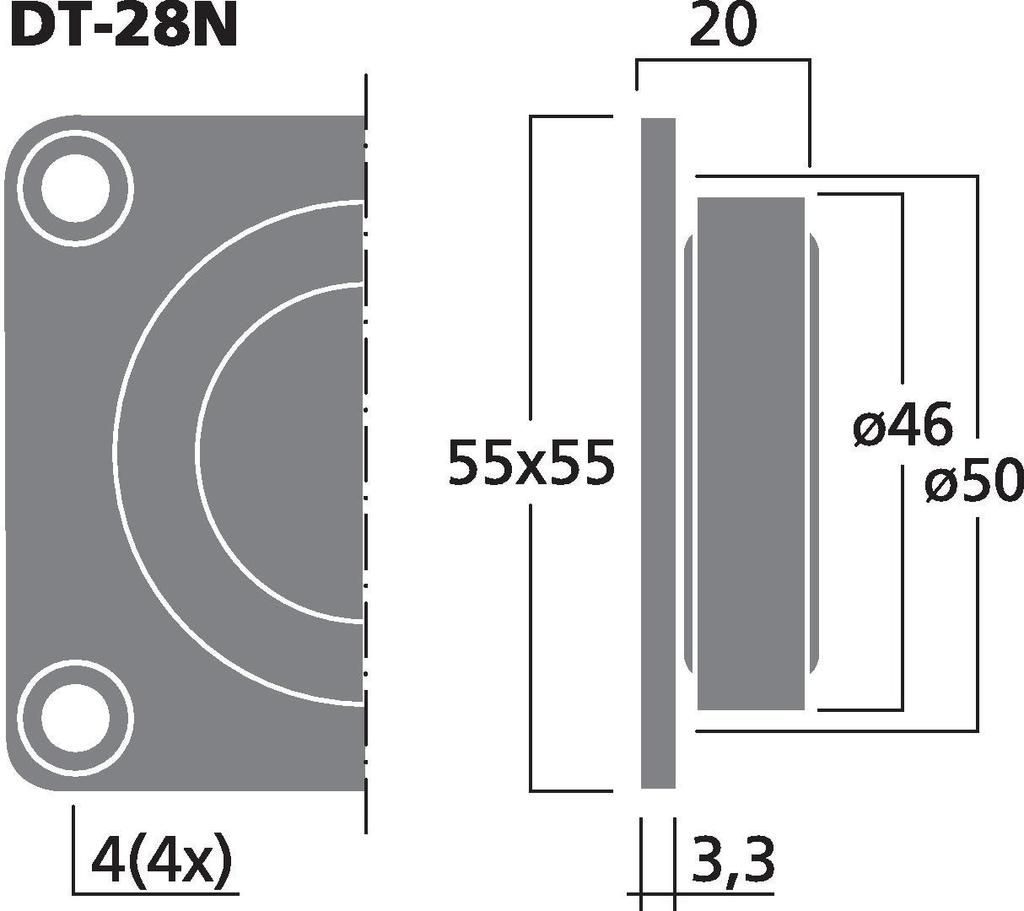

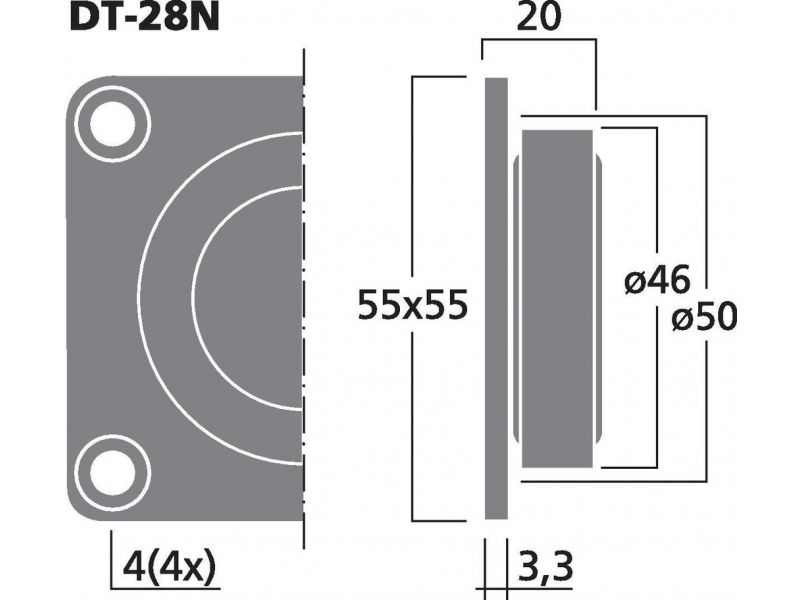

Voice coil diameter Ø 28 mm
Magnet diameter Ø 46 mm
Mounting cutout Ø 50 mm
Mounting depth 16.7 mm
Dimensions 55 x 55 x 20 mm
Width 55 mm
Height 55 mm
Depth 20 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.074 kg
Packing unit 1
Type of speaker 28 mm
Packaging dimensions (W x H x L) 0.075 x 0.035 x 0.075 m
Gross weight 0.096 kg
Net weight 0.074 kg

Fisiere de descarcat

Fisa produsului DT-28N konformitaetserklaerung-ce konformitaetserklaerung-ukca
