DT-99
Cod EAN: 4007754146516

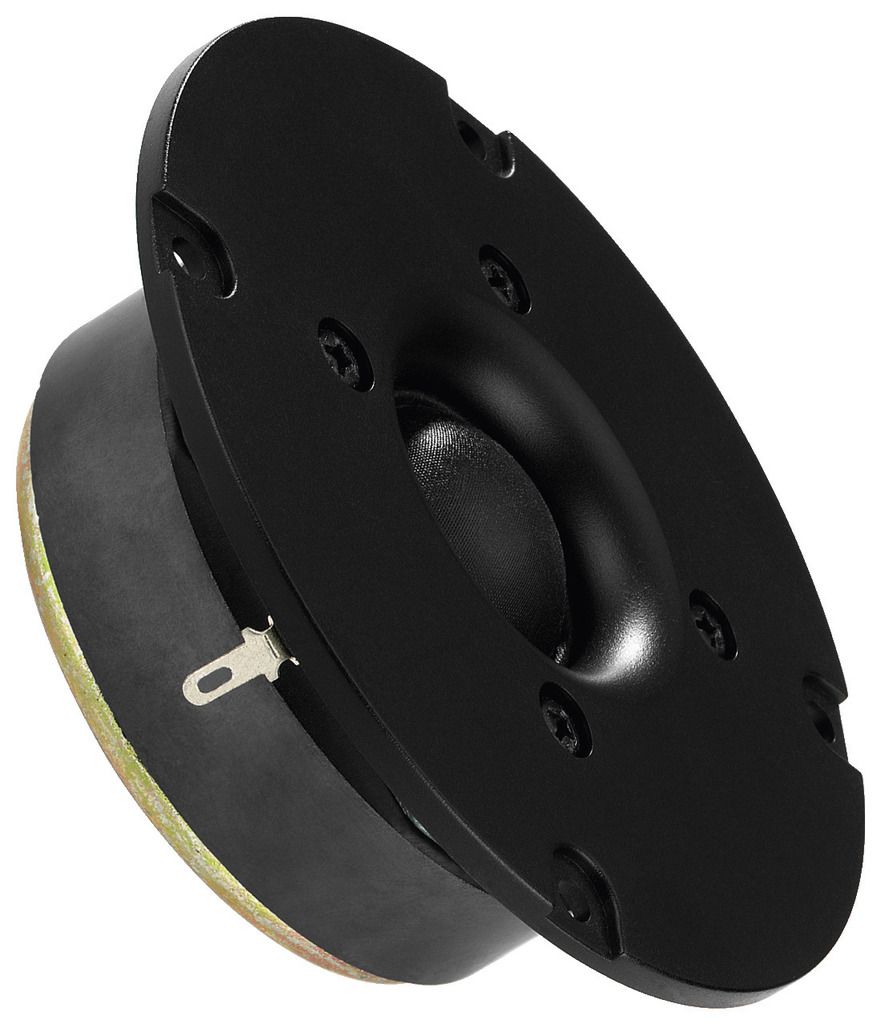

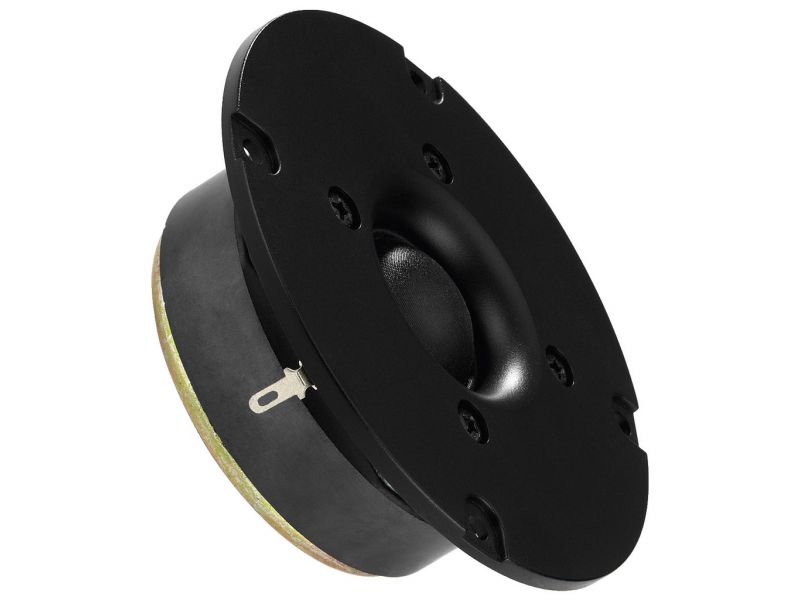

Hi-fi dome tweeter, 40 W, 8 Ω Pure silk cone Excellent radiation Very typical sound pressure curve For replacement purposes and hi-fi applications
DT-99
Hi-fi dome tweeter, 40 W, 8 Ω
- Pure silk cone
- Excellent radiation
- Very typical sound pressure curve
- For replacement purposes and hi-fi applications
Parametrii
| Impedance (Z) | 8 Ω |

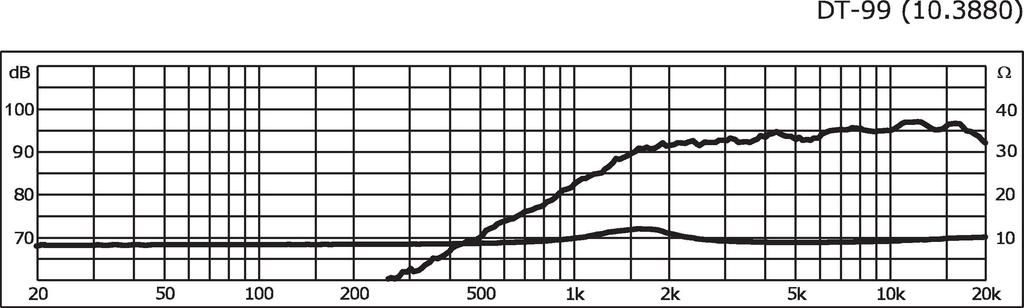

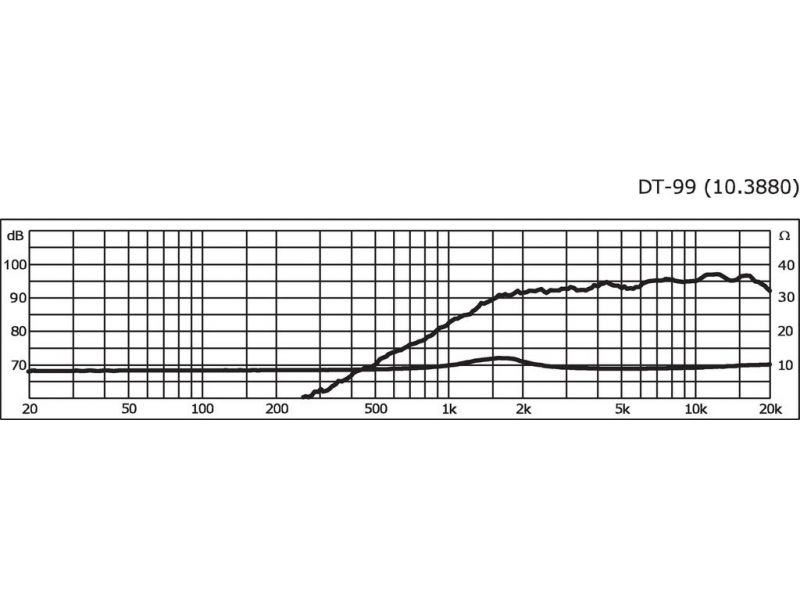

| Frequency range | fx-18,000 Hz |
| Resonant frequency (fs) | 1,500 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 40 W |
| Peak music power output (MAX) | 80 W |
| SPL | 93 dB/W/m |

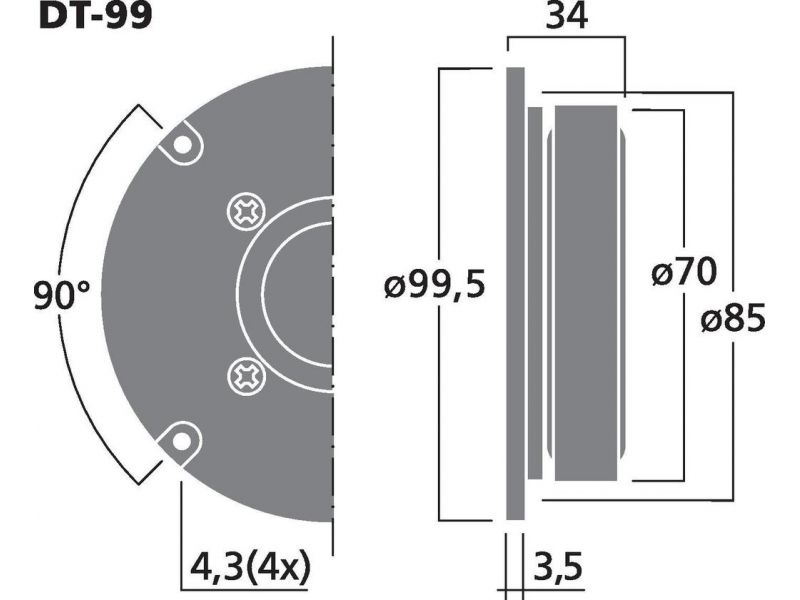

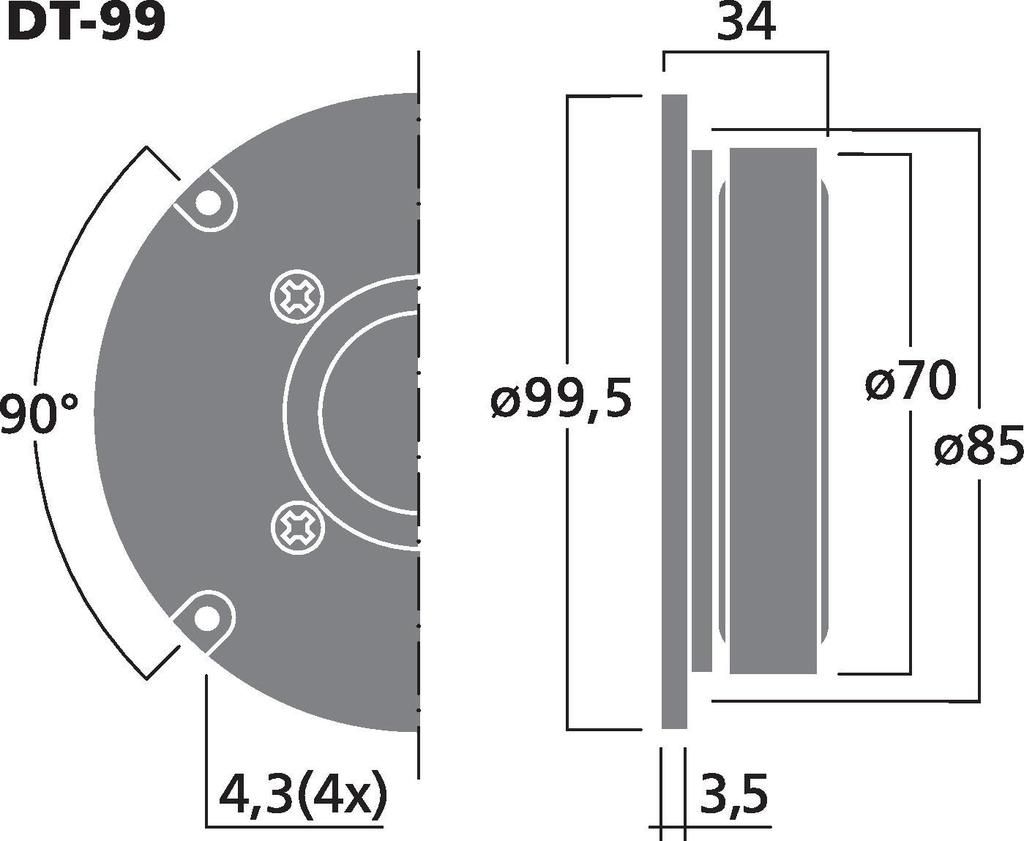

| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 85 mm |
| Mounting depth | 34 mm |
| Dimensions | Ø 99.5 x 34 mm |
| Outside diameter | Ø 99.5 mm |
| Width | Ø 99.5 mm |
| Depth | 34 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.51 kg |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.105 x 0.045 x 0.115 m |
| Gross weight | 0.547 kg |
| Net weight | 0.506 kg |
