DTM-104/4
Cod EAN: 4007754220940
Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4) Textile dome tweeter with Kapton voice coil former Excellent radiation pattern due to waveguide Very well-suited as a replacement for high-quality hi-fi speakers Manufacturer information: MONACOR...
DTM-104/4

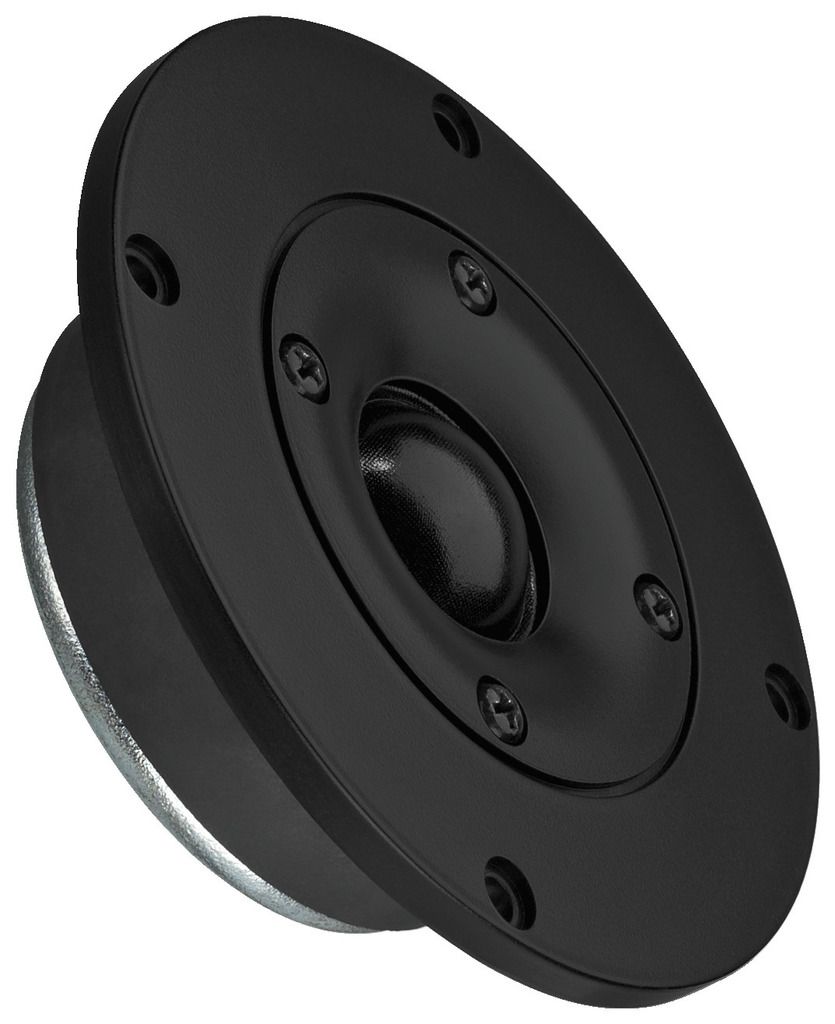

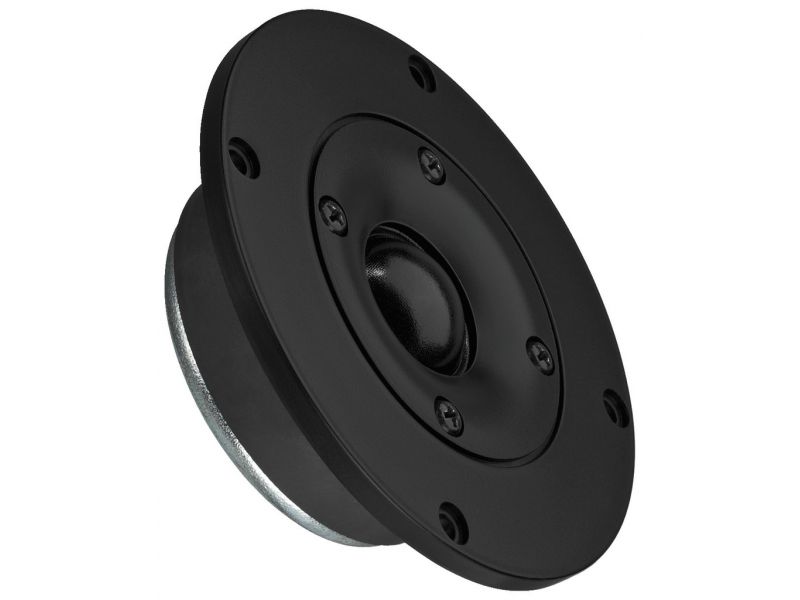

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4)
- Textile dome tweeter with Kapton voice coil former
- Excellent radiation pattern due to waveguide
- Very well-suited as a replacement for high-quality hi-fi speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |

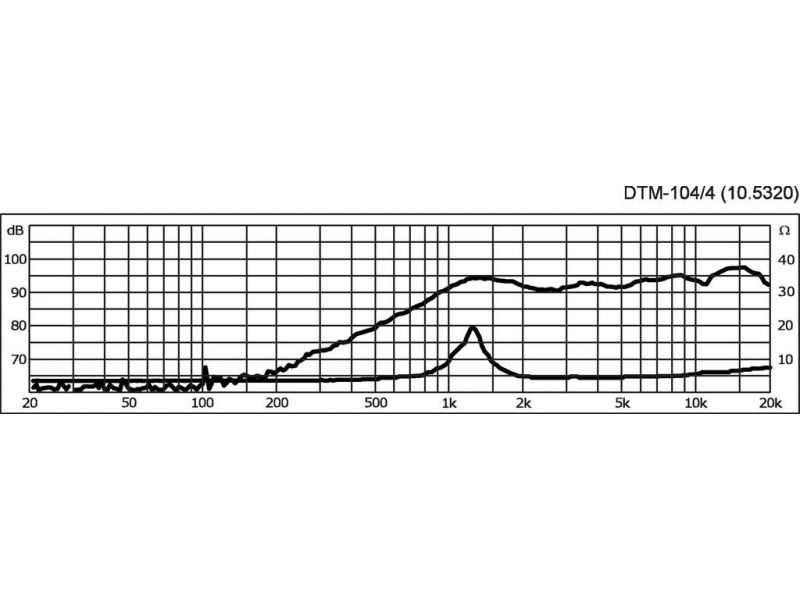

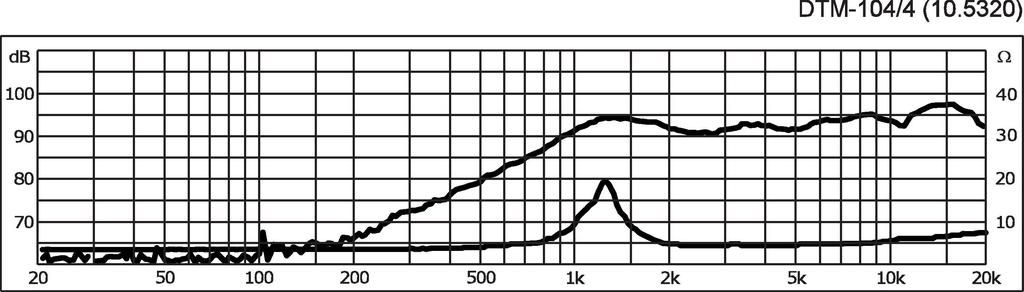

| Frequency range | fx-19,000 Hz |
| Resonant frequency (fs) | 1,200 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 45 W |
| Peak music power output (MAX) | 100 W |
| SPL | 92 dB/W/m |

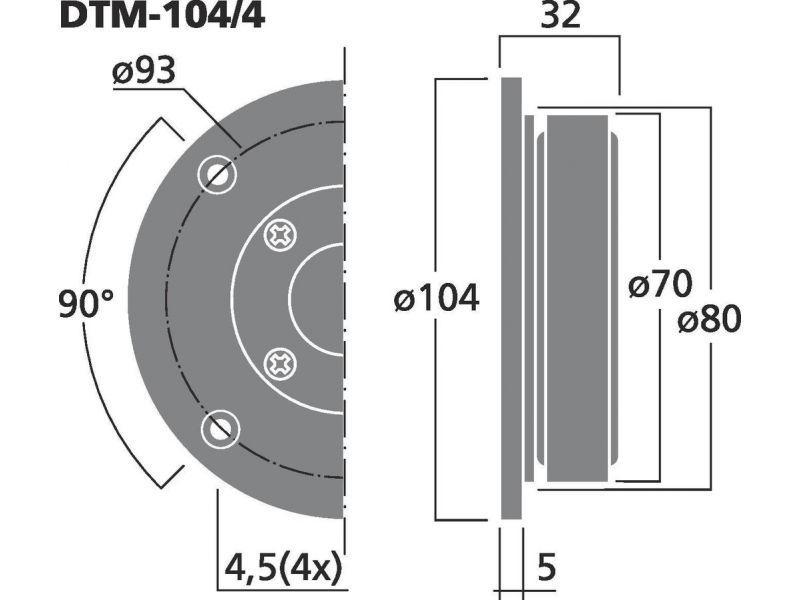

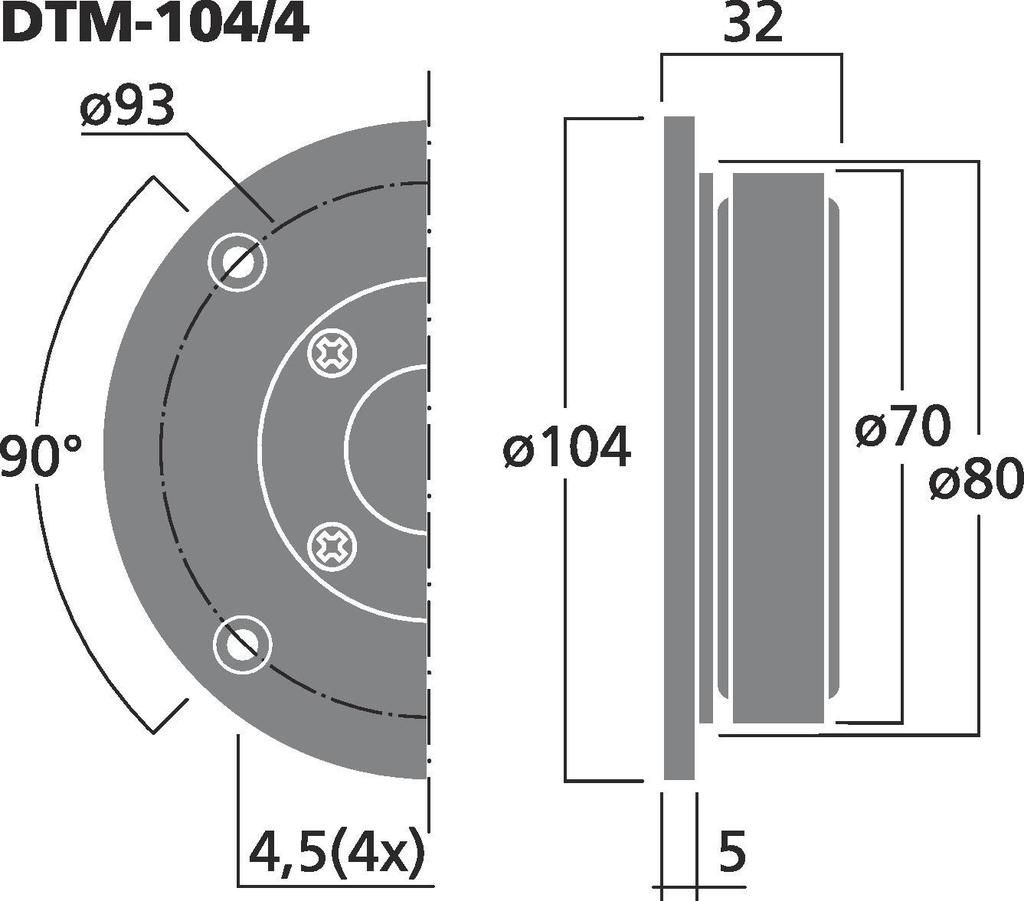

| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 80 mm |
| Mounting depth | 29 mm |
| Dimensions | Ø 104 x 32 mm |
| Outside diameter | Ø 104 mm |
| Width | Ø 104 mm |
| Height | Ø 104 mm |
| Depth | 32 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.54 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.11 x 0.042 x 0.11 m |
| Gross weight | 0.562 kg |
| Net weight | 0.54 kg |
