ECM-302B/WS
Cod EAN: 4007754178975
Boundary microphone Integrated electronics for the direct connection to a phantom power supply 17-48 V DC Transformer-balanced AF output 6 m connection cable with 3-pole mini XLR/XLR Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KG...

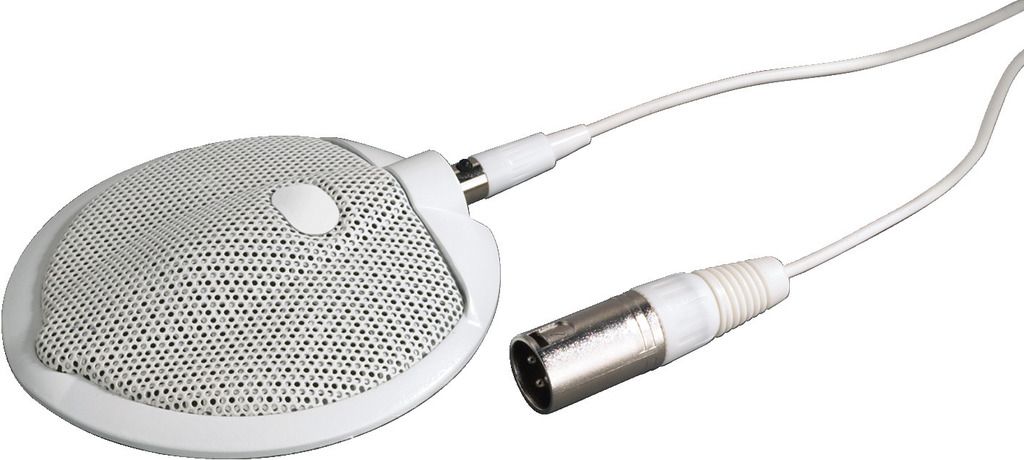

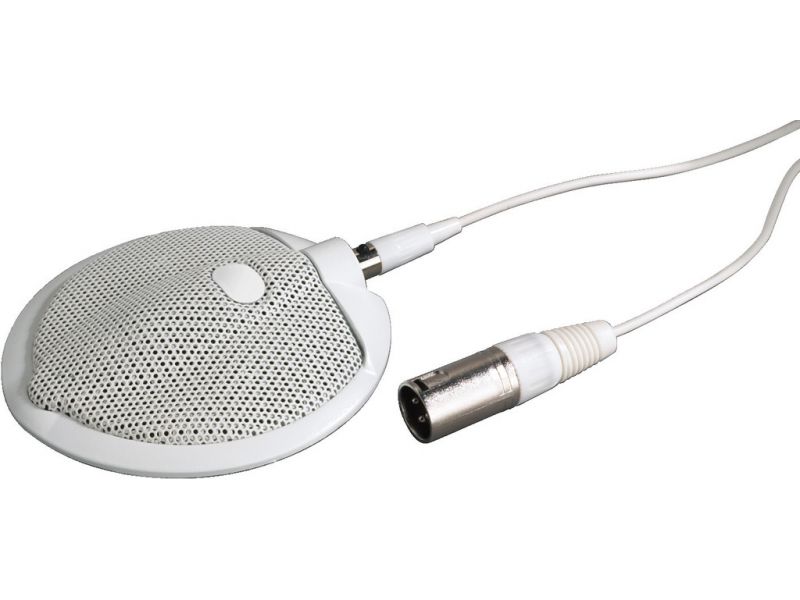

ECM-302B/WS
Boundary microphone
- Integrated electronics for the direct connection to a phantom power supply 17-48 V DC
- Transformer-balanced AF output
- 6 m connection cable with 3-pole mini XLR/XLR
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametrii
| Description | boundary microphone |
| Transmission method | cable |
| Polar pattern | semi-cardioid |
| System | electret |
| Audio frequency range | 30-20,000 Hz |
| Nominal impedance | 250 Ω |
| Sensitivity | 22 mV/Pa |
| Max. sound pressure | 140 dB |
| Power supply | DC 17-48 V, phantom power |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 120 mm x 22 mm |
| Weight | 350 g |
| Cable | 6 m |
| Connection | 3-pole mini XLR/XLR |
| Packaging dimensions (W x H x L) | 0.15 x 0.06 x 0.215 m |
| Gross weight | 0.777 kg |
| Net weight | 0.497 kg |
