EDL-15

Cod EAN: 4007754266092

PA ceiling speaker 100 V transmission technology 13 cm (5") full range speaker Metal housing with protective speaker grille Power taps: 6/3/1.5 W Quick-mounting facility with spring clips Connection via spring-loaded terminal For a ceiling thickness...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-15

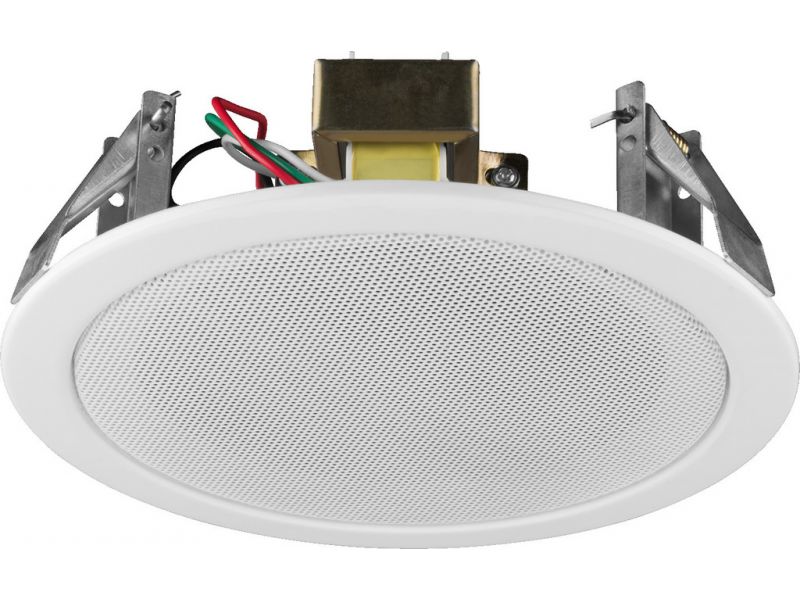

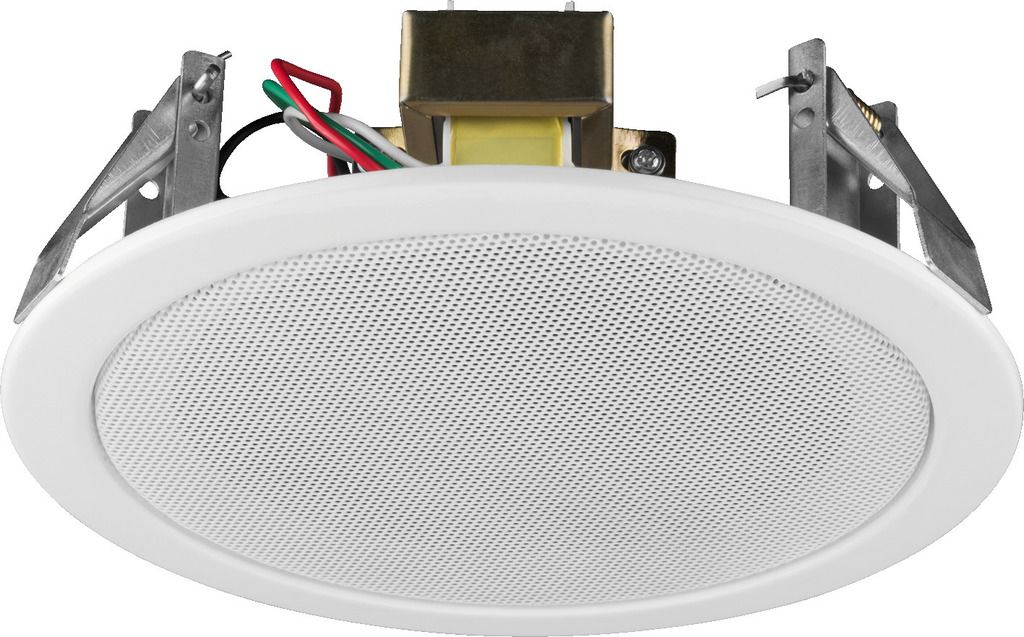

PA ceiling speaker
  • 100 V transmission technology
  • 13 cm (5") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 100-16,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 92 dB/W/m
Max. rated SPL 100 dB

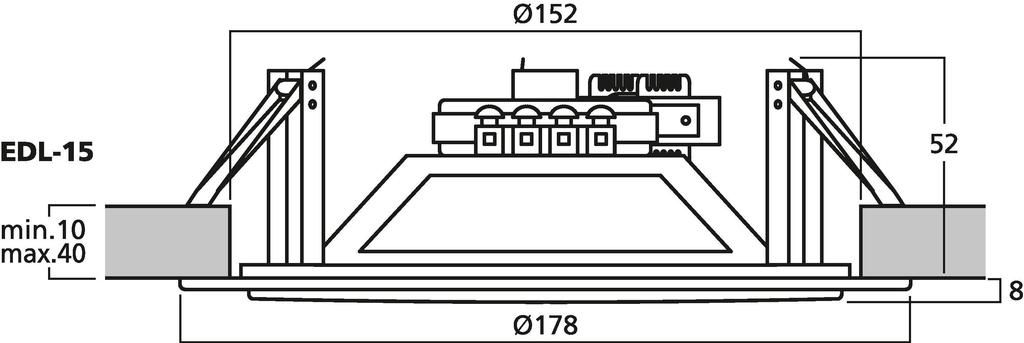

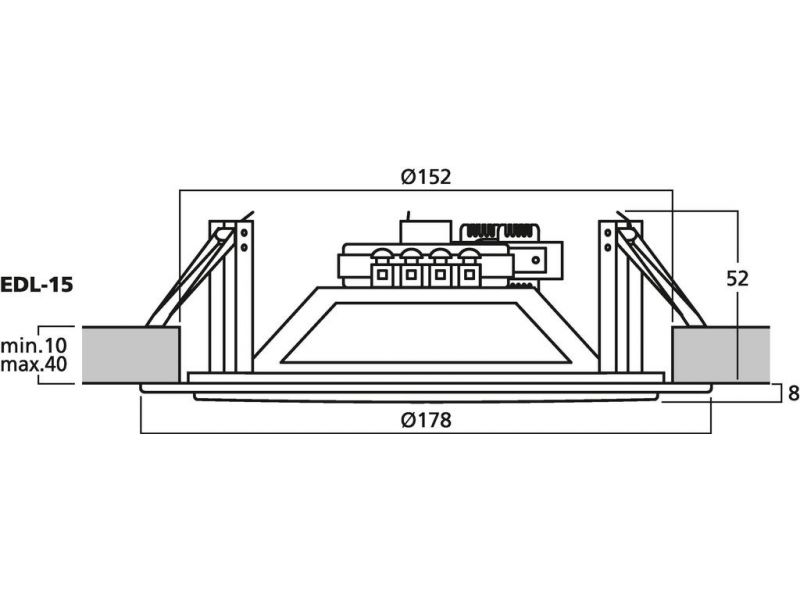

Mounting cutout Ø 152 mm
Mounting depth 50 mm
Dimensions Ø 182 mm x 50 mm
Outside diameter Ø 182 mm
Width Ø 182 mm
Height Ø 182 mm
Depth 50 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.6 kg
Packing unit 1
Type of speaker 130er
Packaging dimensions (W x H x L) 0.215 x 0.07 x 0.2 m
Gross weight 0.749 kg
Net weight 0.663 kg

Fisiere de descarcat

Fisa produsului EDL-15 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
