EDL-16

Cod EAN: 4007754266108

PA ceiling speaker 100 V transmission technology 15 cm (6") full range speaker Metal housing with protective speaker grille Power taps: 10/6/3/1.5 W Quick-mounting facility with spring clips Connection via spring-loaded terminal For a ceiling thickn...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-16

PA ceiling speaker
  • 100 V transmission technology
  • 15 cm (6") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 10/6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 90-16,000 Hz
Power rating (RMS) 10/6/3/1.5 W
SPL 92 dB/W/m
Max. rated SPL 102 dB

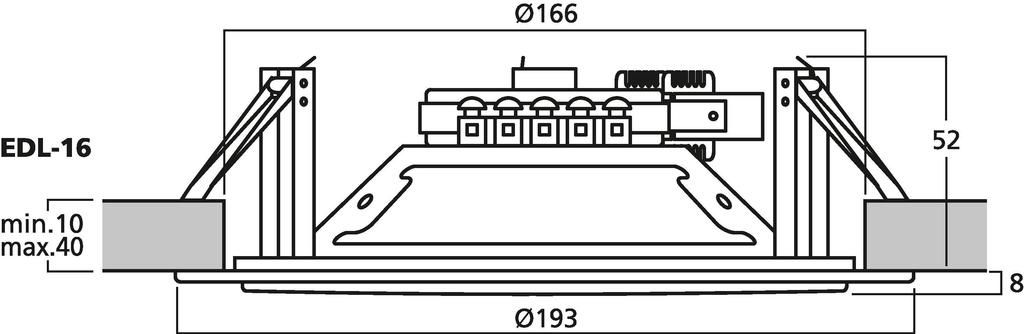

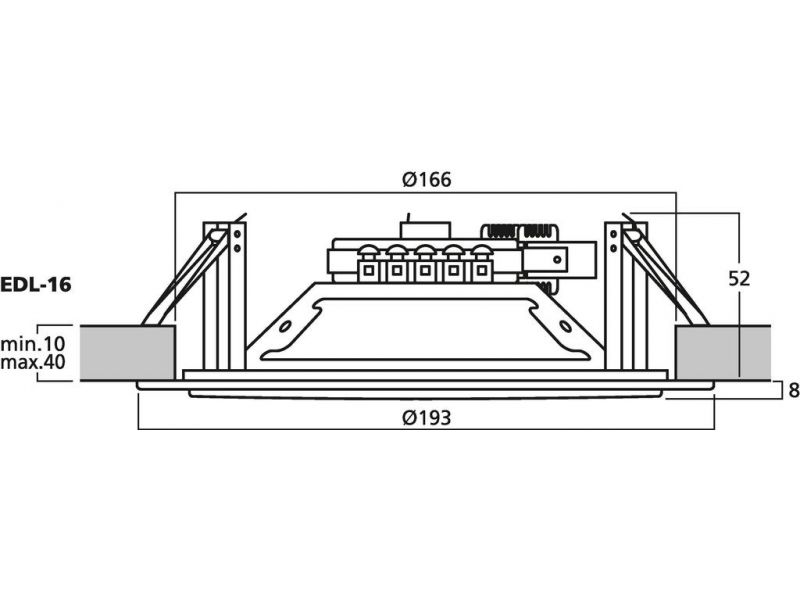

Mounting cutout Ø 166 mm
Mounting depth 55 mm
Dimensions Ø 195 mm x 55 mm
Outside diameter Ø 195 mm
Width Ø 195 mm
Height Ø 195 mm
Depth 55 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.8 kg
Packing unit 1
Type of speaker 150
Packaging dimensions (W x H x L) 0.22 x 0.07 x 0.21 m
Gross weight 0.901 kg
Net weight 0.803 kg

Fisiere de descarcat

Fisa produsului EDL-16 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
