EDL-165C/WS

Cod EAN: 4007754233346

PA ceiling speaker, with EN 54-24 certification. 100 V transmission technology Full range speaker with a high efficiency Metal housing Fire protection cover Quick mounting facility 3 power taps via push terminals Ball-proof according to DIN 18032,...

Citeste mai mult

Intreaba despre produs
Cumpara acum

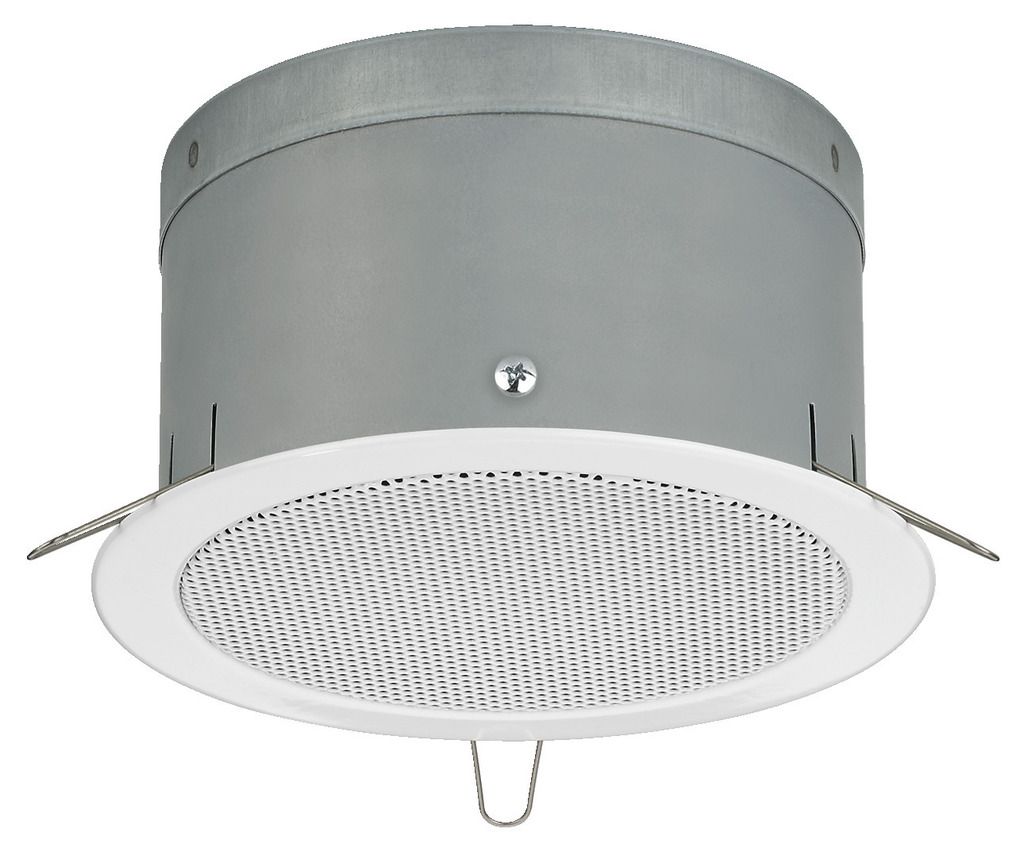

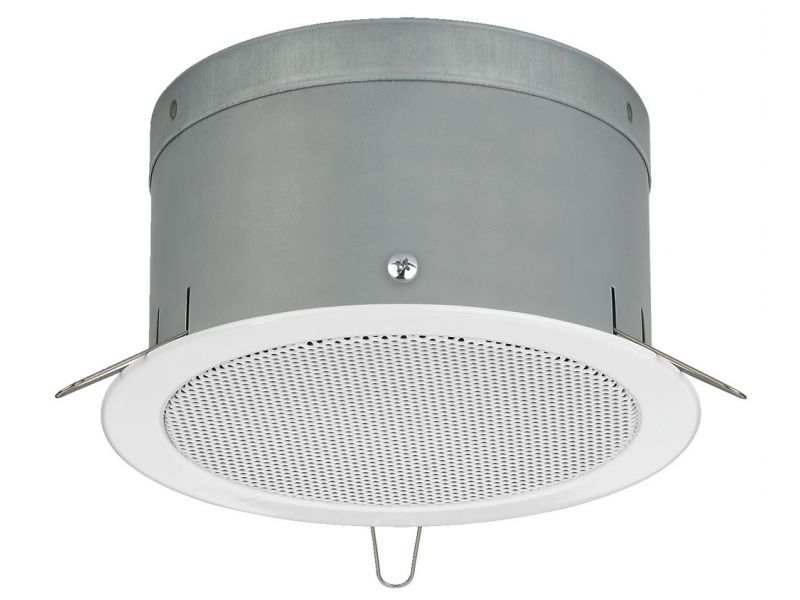

EDL-165C/WS

PA ceiling speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • Full range speaker with a high efficiency
  • Metal housing
  • Fire protection cover
  • Quick mounting facility
  • 3 power taps via push terminals
  • Ball-proof according to DIN 18032, Part 3
  • Connection via 4-pole ceramic terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 80-19,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 93 dB (1 W/1 m) 78 dB (EN, 1 W/4 m)
Max. rated SPL 101 dB (1 m) 86 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz), 180° (1,000 Hz), 155° (2,000 Hz), 76° (4,000 Hz)
Radiation angle, vertical 180° (500 Hz), 180° (1,000 Hz), 155° (2,000 Hz), 76° (4,000 Hz)
Mounting cutout Ø 150 mm
Mounting depth 90 mm
Dimensions Ø 170 mm x 95 mm
Outside diameter Ø 170 mm
Width Ø 170 mm
Height Ø 170 mm
Depth 95 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.1 kg
Packing unit 1
Type of speaker 130
Packaging dimensions (W x H x L) 0.195 x 0.1 x 0.195 m
Gross weight 1.26 kg
Net weight 1.16 kg

Fisiere de descarcat

Fisa produsului EDL-165C/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
