EDL-24

Cod EAN: 4007754156683

PA ceiling speaker 100 V transmission technology via audio transformer with power taps 6/3/1.5 W Type 100 full range speaker with dual cone Plastic housing with protective metal grille ABS plastic material, self-extinguishing according to UL 94V-0 Fo...

Citeste mai mult

Intreaba despre produs
Cumpara acum

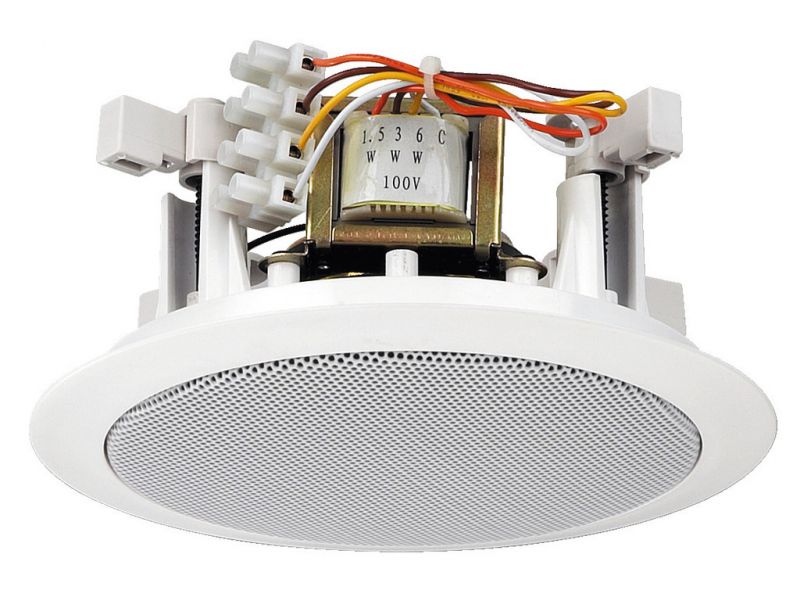

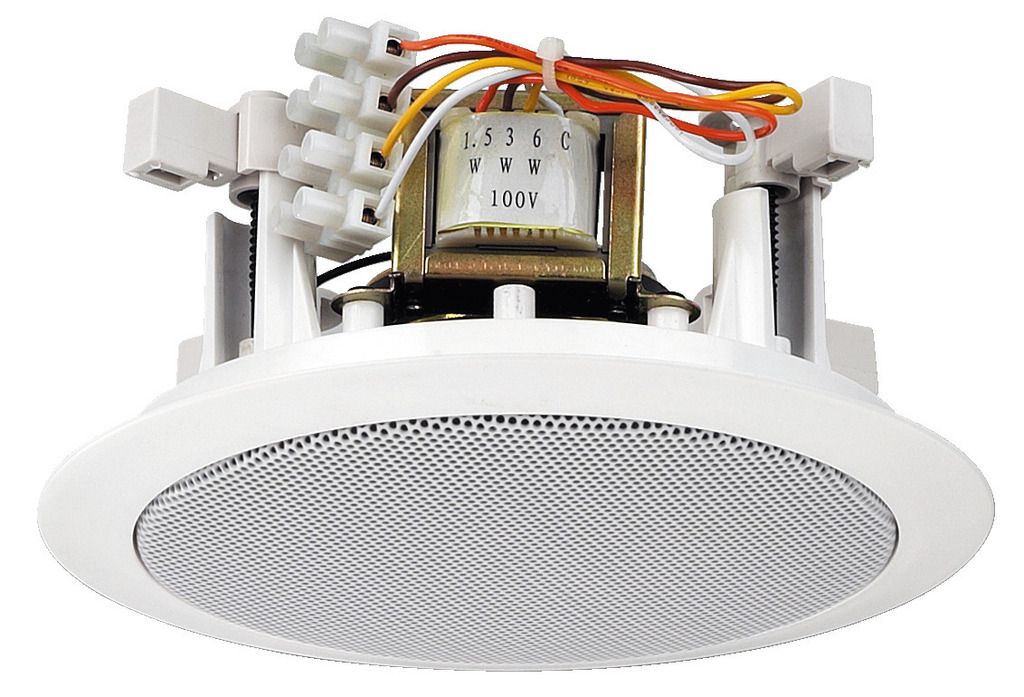

EDL-24

PA ceiling speaker
  • 100 V transmission technology via audio transformer with power taps 6/3/1.5 W
  • Type 100 full range speaker with dual cone
  • Plastic housing with protective metal grille

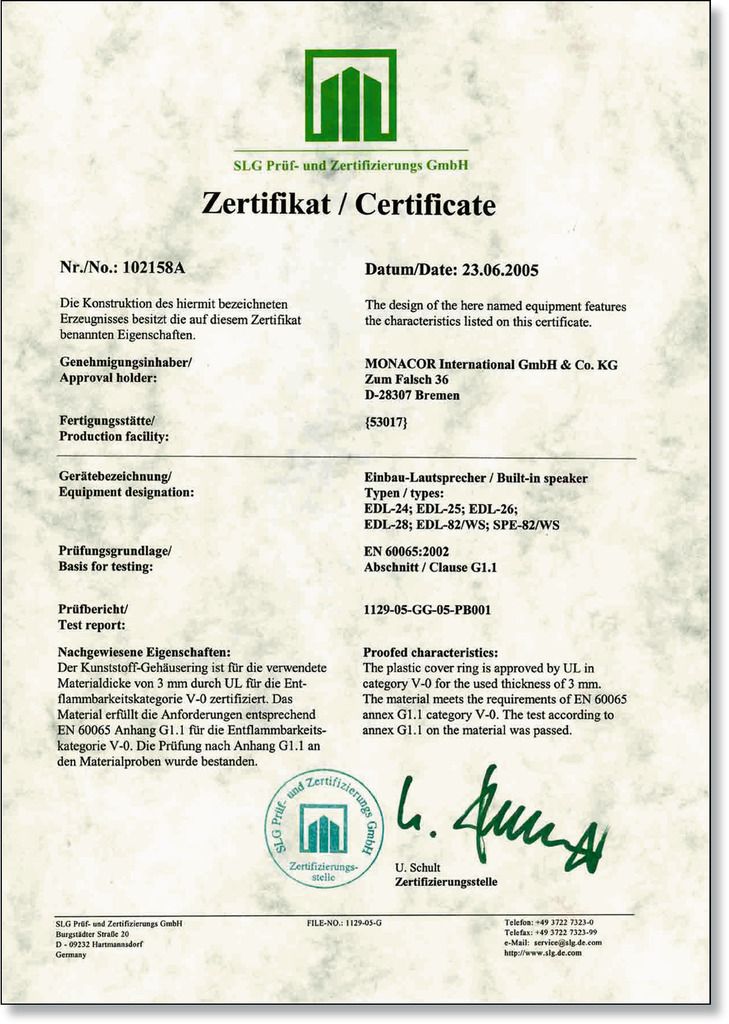

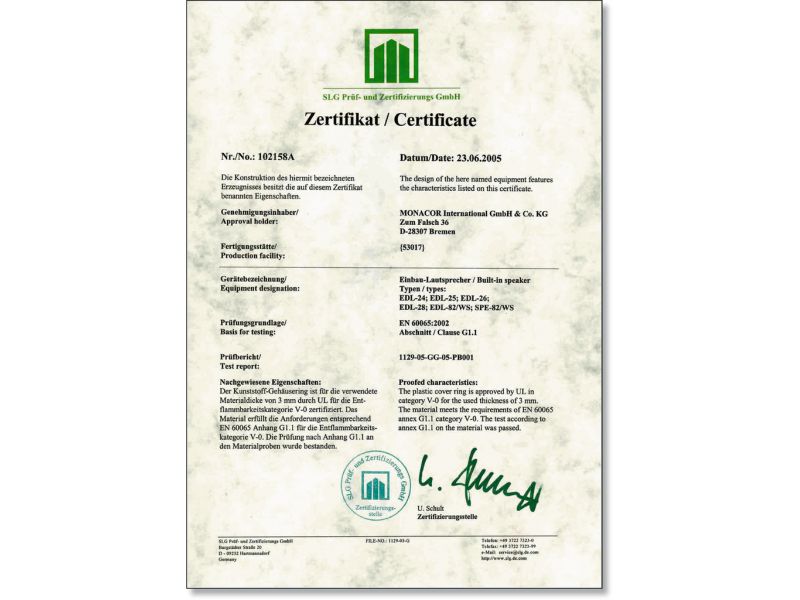

  • ABS plastic material, self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 100-14,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 87 dB/W/m
Max. rated SPL 94 dB

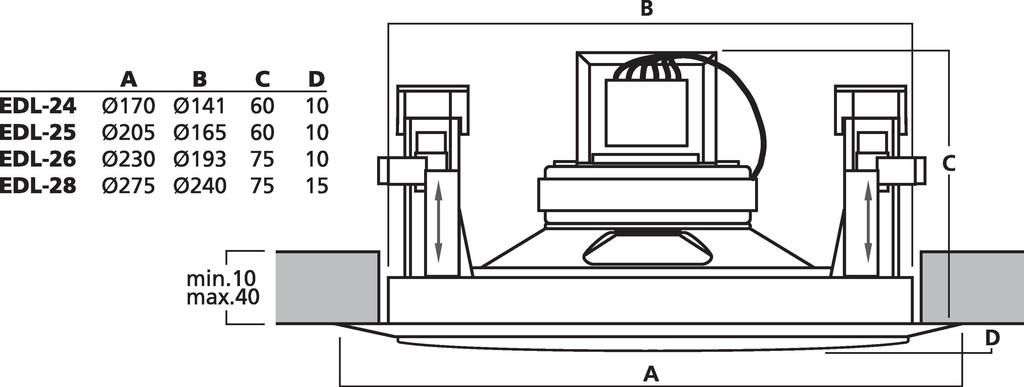

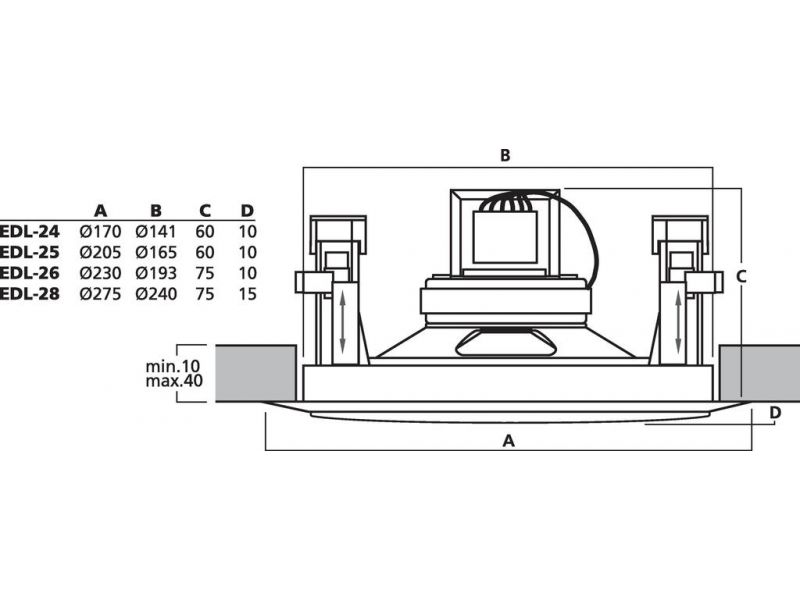

Mounting cutout Ø 142 mm
Mounting depth 60 mm
Dimensions Ø 170 mm x 70 mm
Outside diameter Ø 170 mm
Width Ø 170 mm
Height Ø 170 mm
Depth 70 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.63 kg
Packing unit 1
Type of speaker 100
Packaging dimensions (W x H x L) 0.17 x 0.07 x 0.17 m
Gross weight 0.714 kg
Net weight 0.63 kg

Fisiere de descarcat

Fisa produsului EDL-24 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
