EDL-25

Cod EAN: 4007754156690

PA ceiling speaker 100 V transmission technology via audio transformer with power taps 6/3/1.5 WType 130 full range speaker with dual cone Plastic housing with protective metal grille ABS plastic material, self-extinguishing according to UL 94V-0 For...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-25

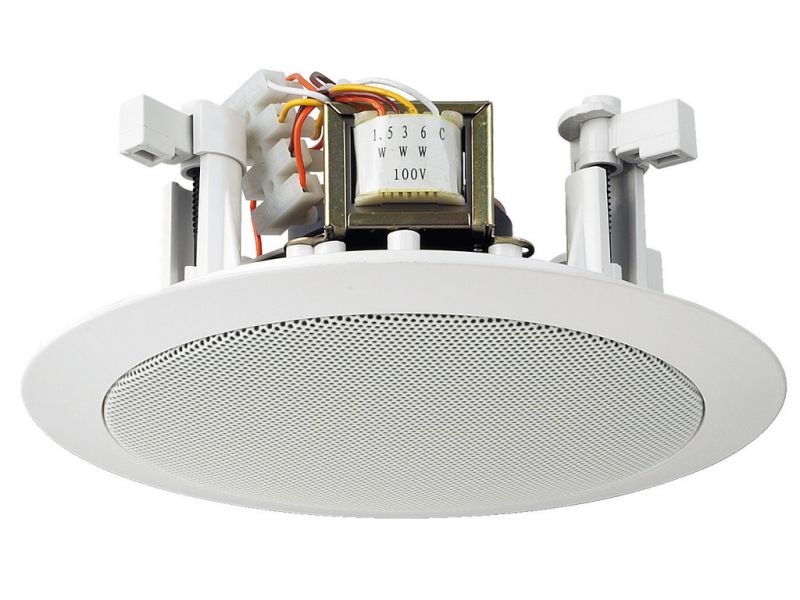

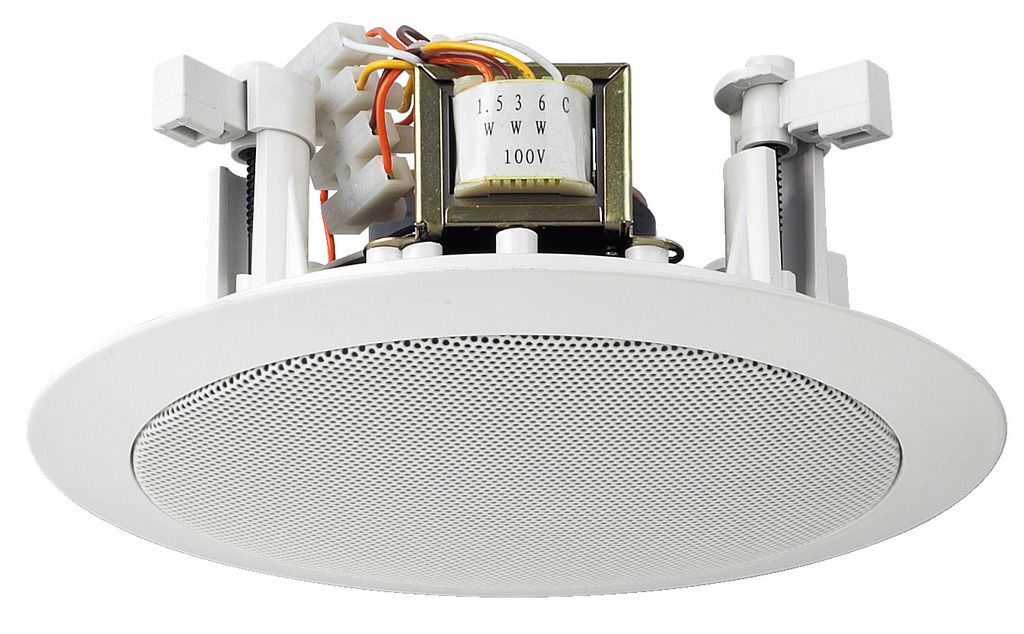

PA ceiling speaker
  • 100 V transmission technology via audio transformer with power taps 6/3/1.5 W
  • Type 130 full range speaker with dual cone
  • Plastic housing with protective metal grille
  • ABS plastic material, self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 100-14,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 87 dB/W/m
Max. rated SPL 94 dB

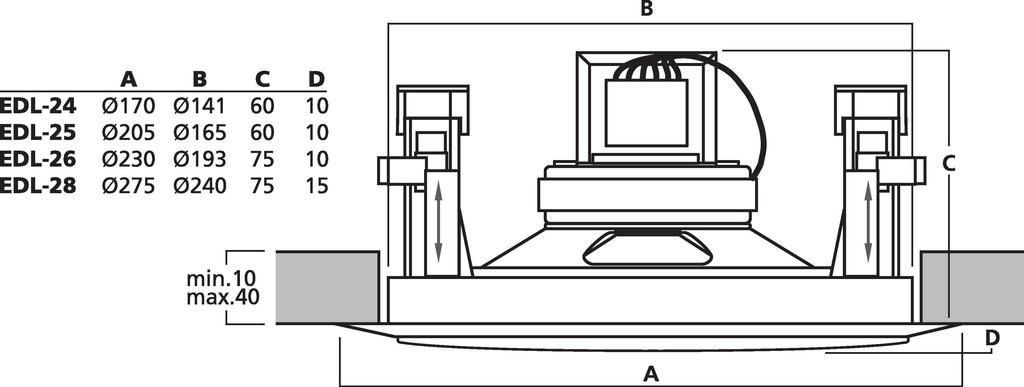

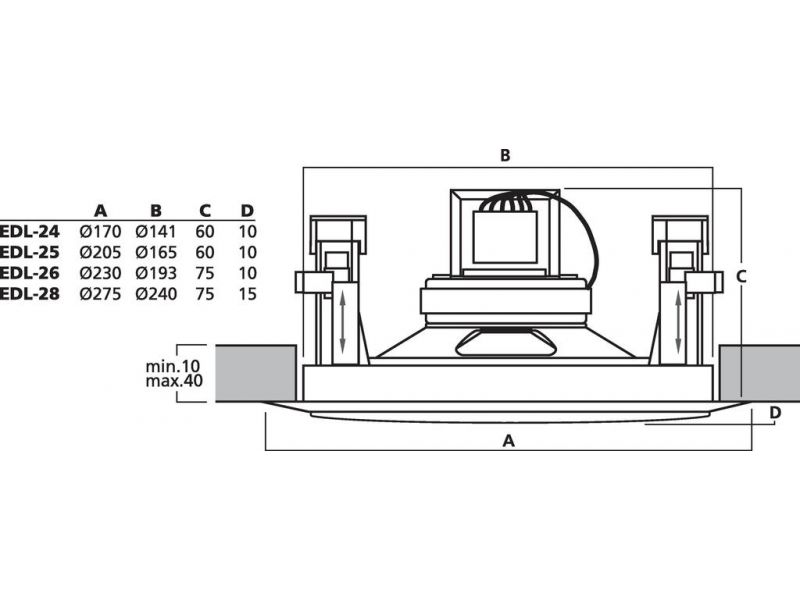

Mounting cutout Ø 165 mm
Mounting depth 60 mm
Dimensions Ø 205 mm x 70 mm
Outside diameter Ø 205 mm
Width Ø 205 mm
Height Ø 205 mm
Depth 70 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.724 kg
Packing unit 1
Type of speaker 130
Packaging dimensions (W x H x L) 0.205 x 0.07 x 0.205 m
Gross weight 0.832 kg
Net weight 0.724 kg

Fisiere de descarcat

Fisa produsului EDL-25 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
