EDL-42HQ

Cod EAN: 4007754272024

PA hi-fi wall and ceiling speaker, 15 W 100 V transmission technology or 8 Ω operation Power taps: 100 V (8/4/2/1 W) 2-way version with coaxial dome tweeter 10 cm (4") bass speaker with waveguide and 20 mm (3/4") silk dome Excellent sound characteri...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-42HQ

PA hi-fi wall and ceiling speaker, 15 W
  • 100 V transmission technology or 8 Ω operation
  • Power taps: 100 V (8/4/2/1 W)
  • 2-way version with coaxial dome tweeter
  • 10 cm (4") bass speaker with waveguide and 20 mm (3/4") silk dome
  • Excellent sound characteristics
  • Supplied with 2 stylish protective metal grilles for an individual look
  • Protective grille to be magnetically attached
  • For a wall thickness/ceiling thickness from 8 to 30 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology 100 V or low-impedance
Frequency range 70-20,000 Hz
Resonant frequency (fs) 70 Hz
Power rating (RMS) 15 W (8 Ω) 8/4/2/1 W (100 V)
Peak music power output (MAX) 30 W
SPL 85 dB/W/m
Max. rated SPL 96 dB

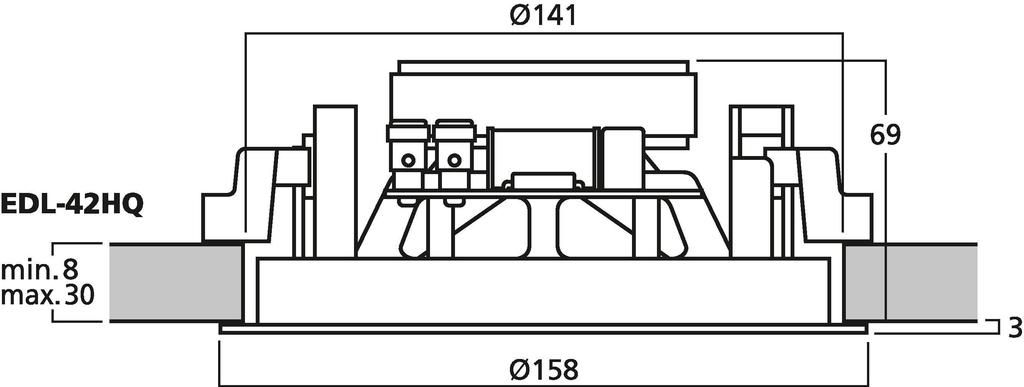

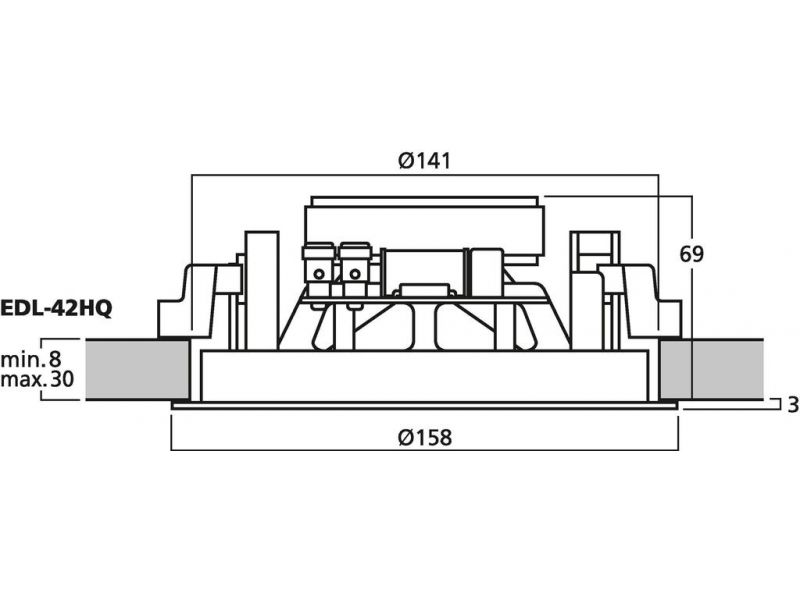

Mounting cutout Ø 141 mm
Mounting depth 70 mm
Dimensions Ø 158 mm x 72 mm
Outside diameter Ø 158 mm
Width Ø 158 mm
Height Ø 158 mm
Depth 70 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.930 kg
Packing unit 1
Type of speaker 100
Packaging dimensions (W x H x L) 0.174 x 0.085 x 0.174 m
Gross weight 1.08 kg
Net weight 0.945 kg

Fisiere de descarcat

Fisa produsului EDL-42HQ konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
