EDL-6

Cod EAN: 4007754276985

PA ceiling speaker 100 V transmission technology 15 cm (6") full range speaker Plastic housing with metal grille Power taps: 8 W Quick-mounting facility with spring clips Connection via screw terminal For a ceiling thickness from 5 to 25 mm

Intreaba despre produs
Cumpara acum

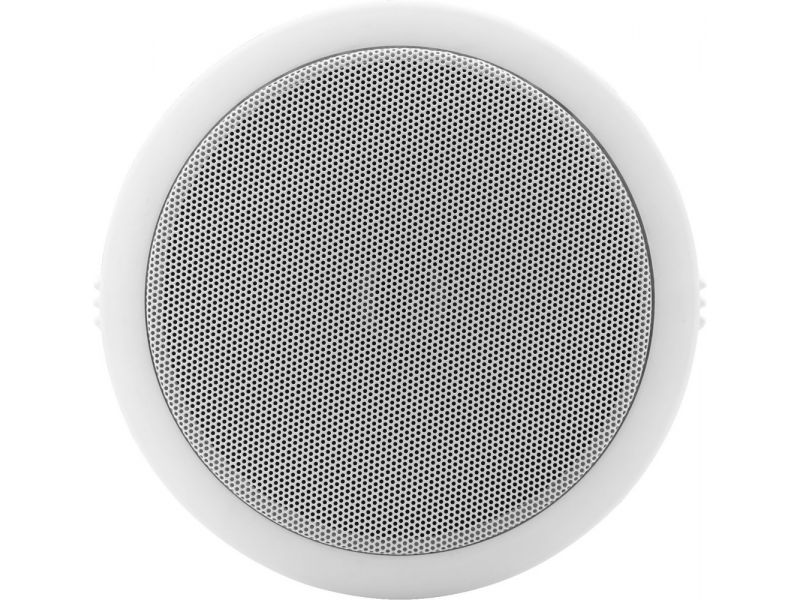

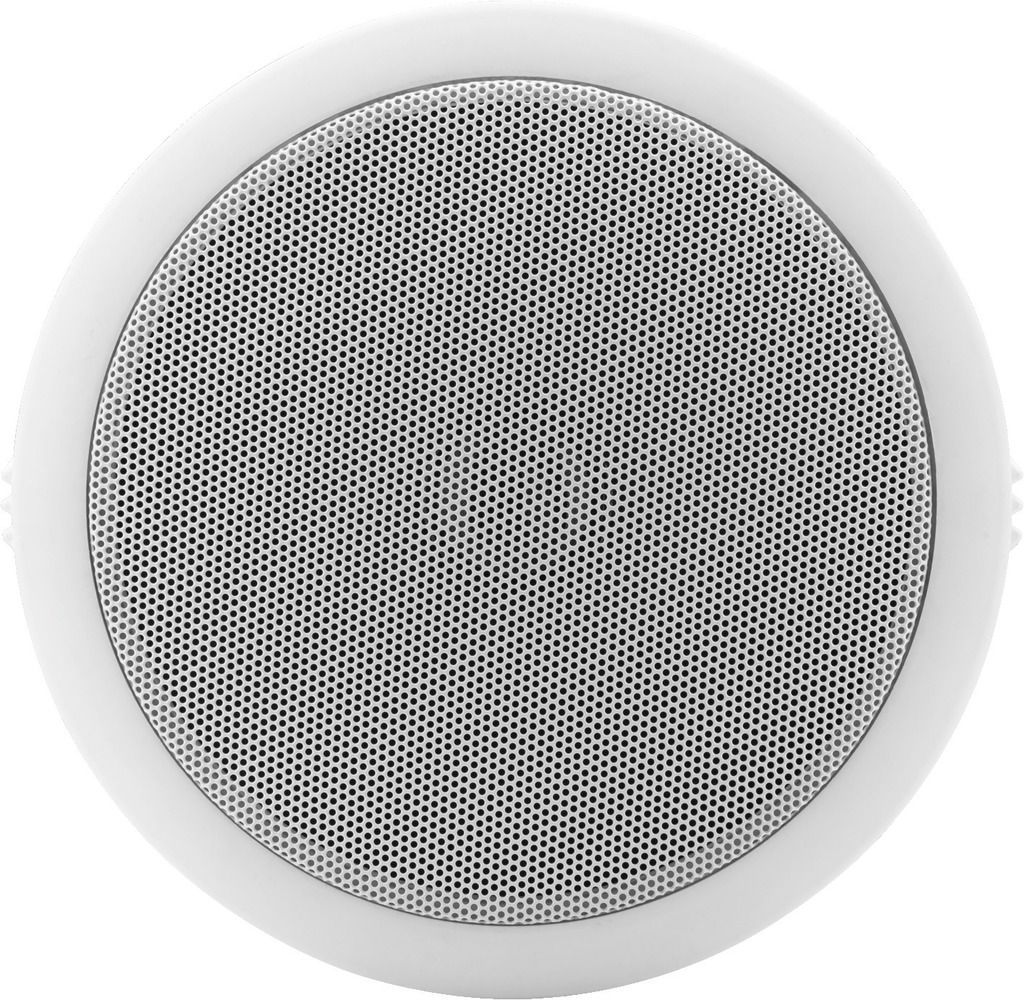

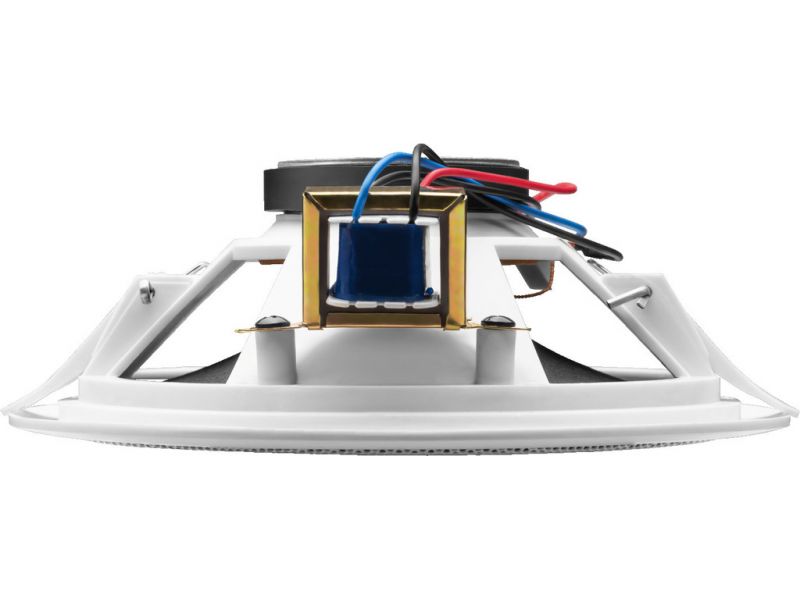

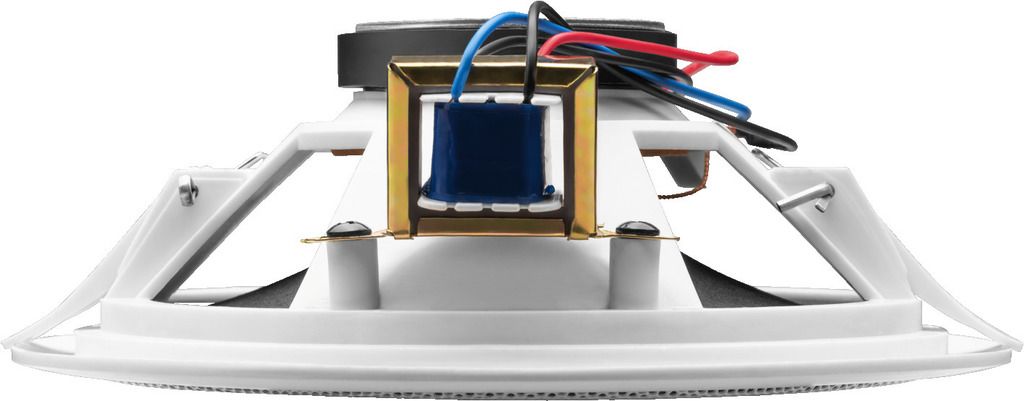

EDL-6

PA ceiling speaker
  • 100 V transmission technology
  • 15 cm (6") full range speaker
  • Plastic housing with metal grille
  • Power taps: 8 W
  • Quick-mounting facility with spring clips
  • Connection via screw terminal
  • For a ceiling thickness from 5 to 25 mm

Parametrii

Transmission technology 100 V
Frequency range 90-18,000 Hz
Power rating (RMS) 8 W
SPL 90 dB/W/m
Max. rated SPL 99 dB
Radiation angle, horizontal 90°
Radiation angle, vertical 90°
Voice coil diameter Ø 20 mm

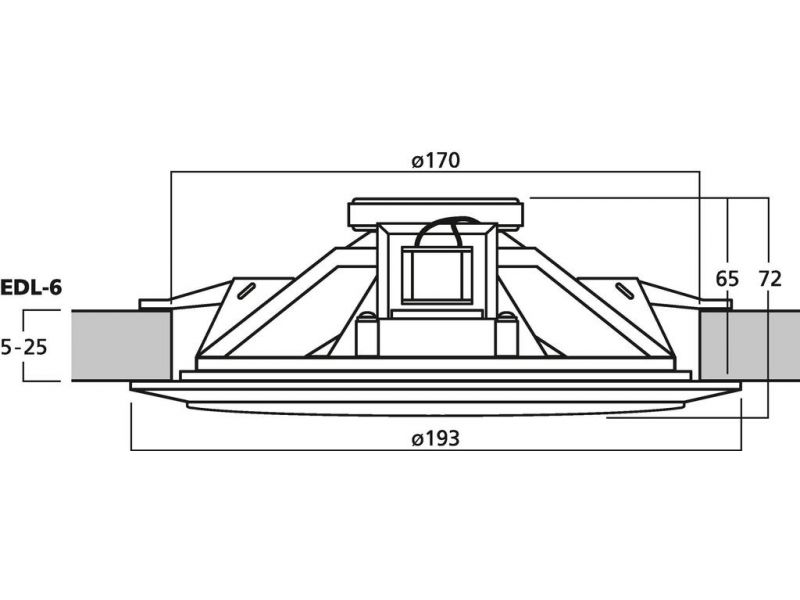

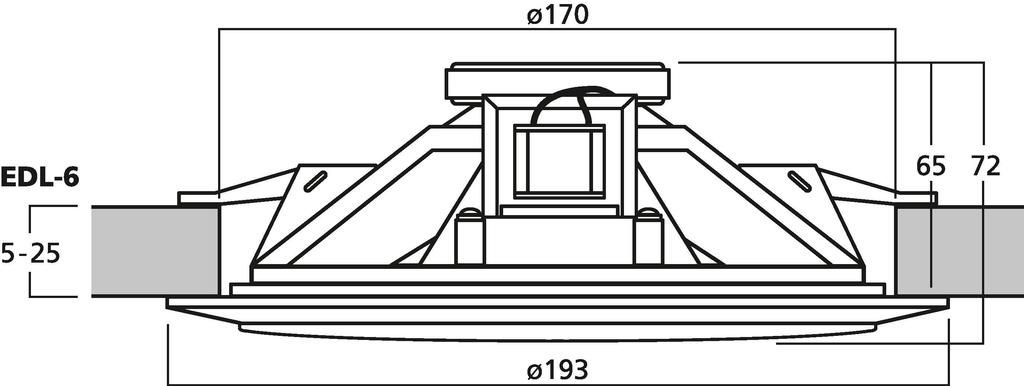

Mounting cutout Ø 170 mm
Mounting depth 65 mm
Dimensions Ø 193 mm x 72 mm
Outside diameter Ø 193 mm
Width Ø 193 mm
Depth 72 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 476 g
Packing unit 1
Type of speaker 150
Packaging dimensions (W x H x L) 0.075 x 0.19 x 0.196 m
Gross weight 0.542 kg
Net weight 0.476 kg

Fisiere de descarcat

Fisa produsului EDL-6 Desen cad 2d konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
