EDL-612

Cod EAN: 4007754181722

PA ceiling speaker 100 V transmission technology via audio transformer with 3 power taps 12/6/3 WFor a ceiling thickness from 5 to 22 mm Type 165 full range speakerA more powerful reproduction of the range of fundamental notes Robust metal version (b...

Citeste mai mult

Intreaba despre produs
Cumpara acum

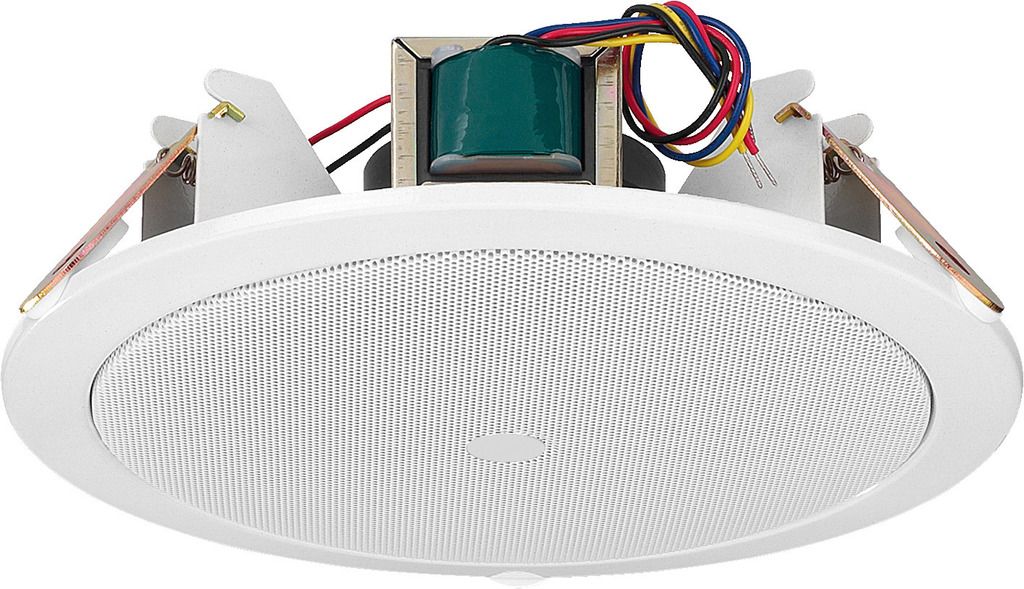

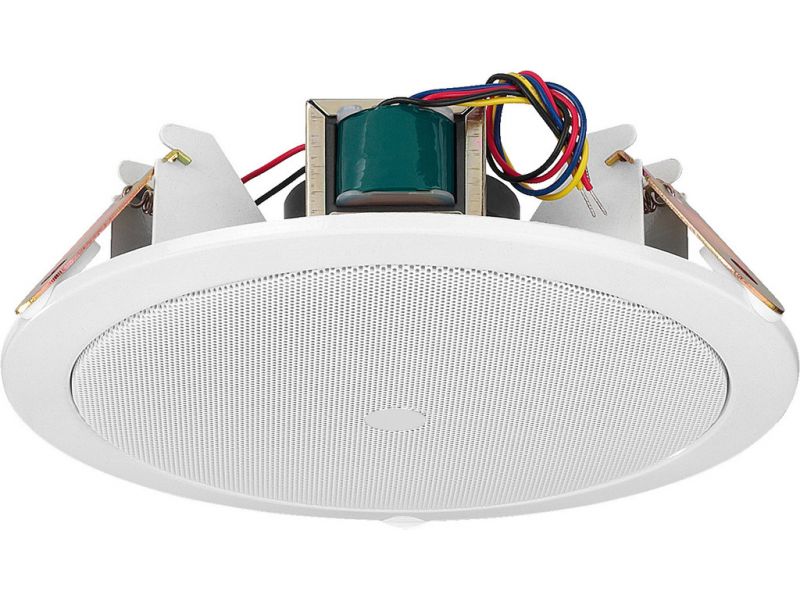

EDL-612

PA ceiling speaker
  • 100 V transmission technology via audio transformer with 3 power taps 12/6/3 W
  • For a ceiling thickness from 5 to 22 mm
  • Type 165 full range speaker
  • A more powerful reproduction of the range of fundamental notes
  • Robust metal version (basket and protective grille)

Parametrii

Transmission technology 100 V
Frequency range 100-20,000 Hz
Power rating (RMS) 12/6/3 W
SPL 92 dB/W/m

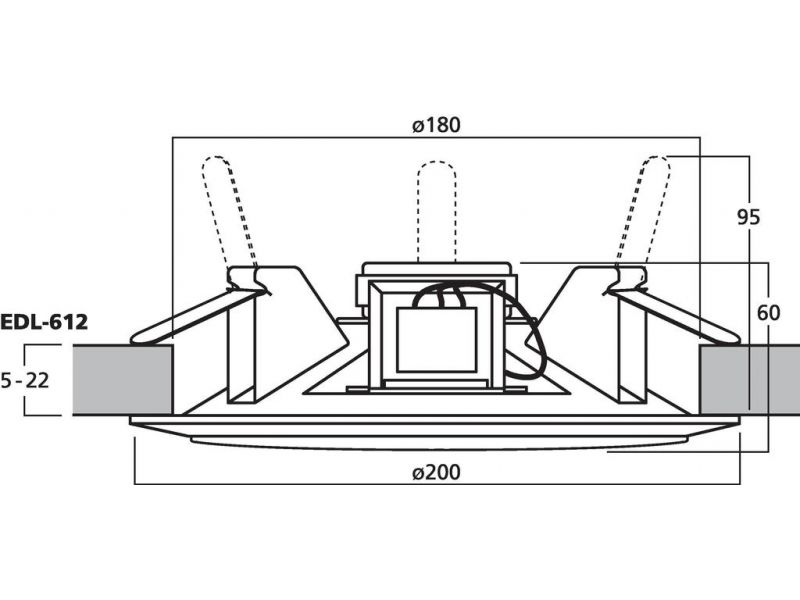

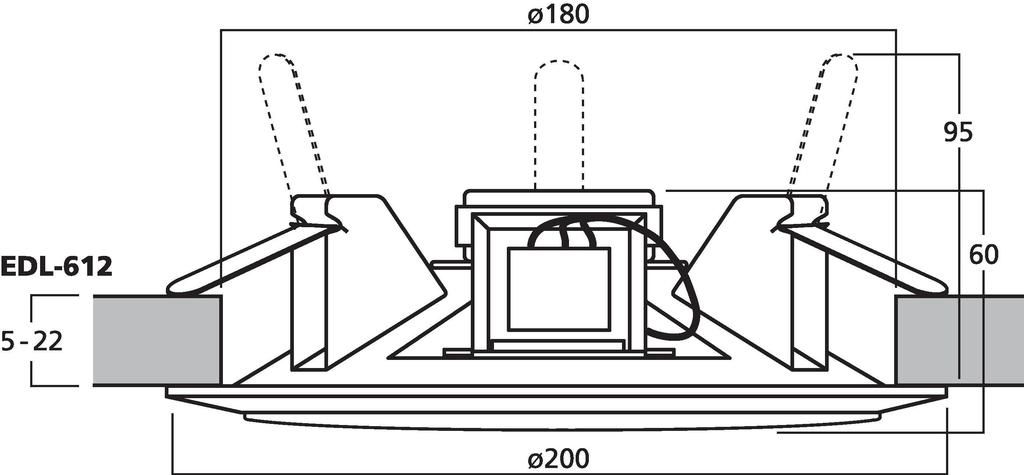

Mounting cutout Ø 180 mm
Mounting depth 50 mm
Dimensions Ø 200 mm x 60 mm
Outside diameter Ø 200 mm
Width Ø 200 mm
Height Ø 200 mm
Depth 60 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 750 g
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.24 x 0.1 x 0.25 m
Gross weight 1.01 kg
Net weight 0.753 kg

Fisiere de descarcat

Fisa produsului EDL-612 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
