EDL-62HQ

Cod EAN: 4007754254686

PA hi-fi wall and ceiling speaker, 30 W 100 V transmission technology or 8 Ω operation 2-way version with coaxial dome tweeter 16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome Pivoting tweeter via ball joint Excellent sound character...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-62HQ

PA hi-fi wall and ceiling speaker, 30 W
  • 100 V transmission technology or 8 Ω operation

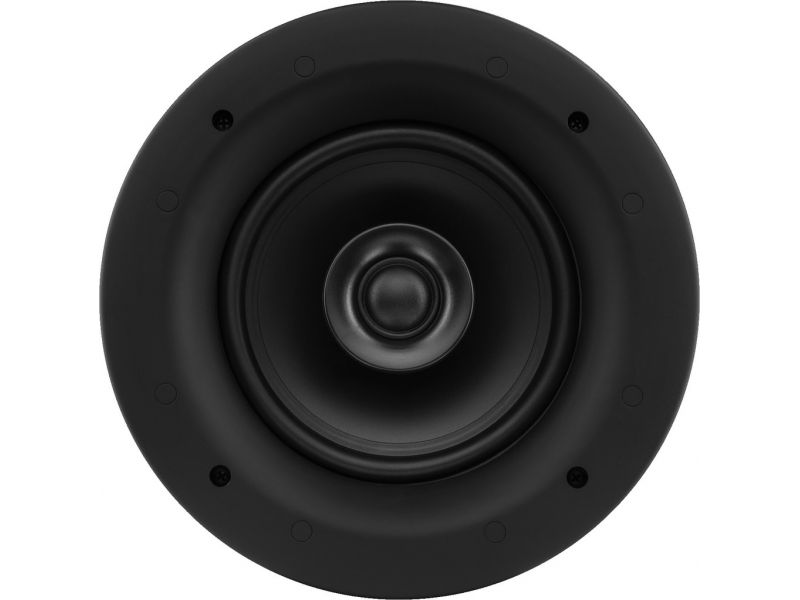

  • 2-way version with coaxial dome tweeter

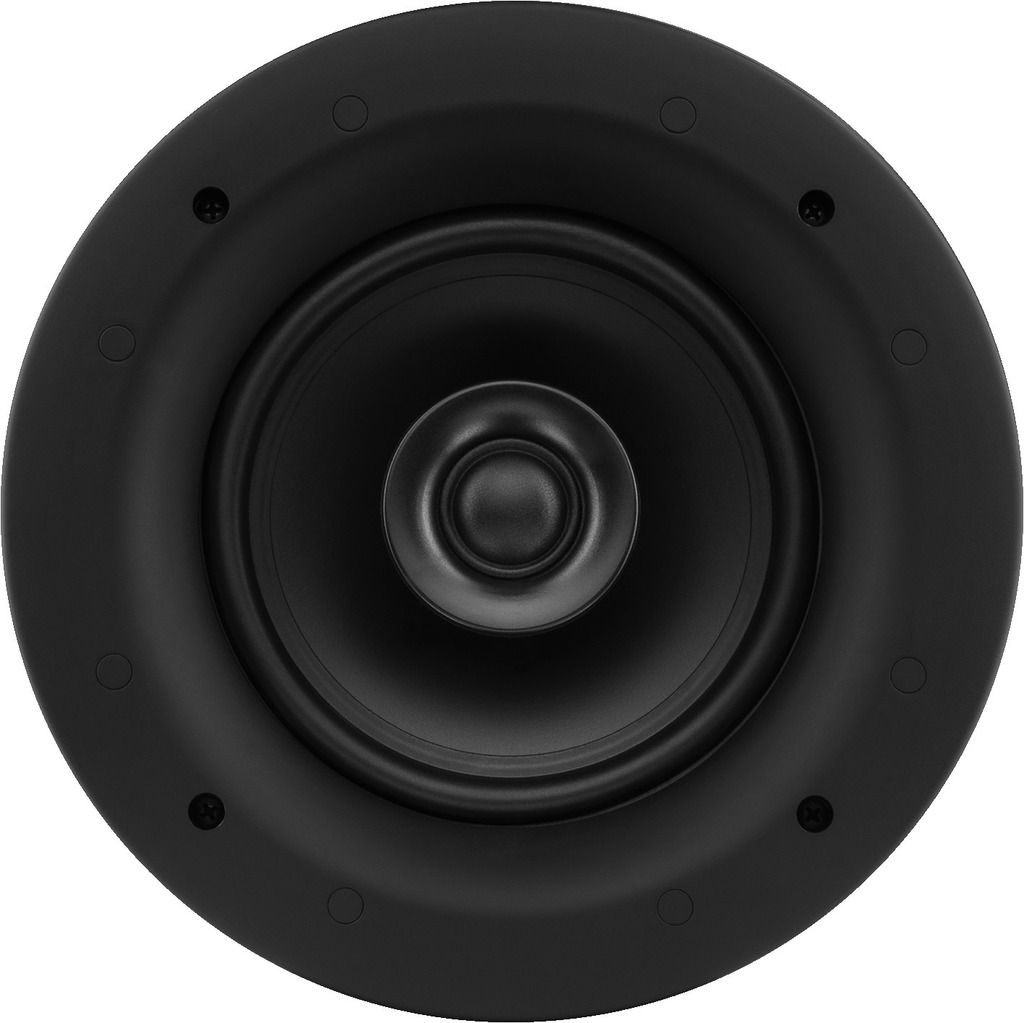

  • 16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome
  • Pivoting tweeter via ball joint
  • Excellent sound characteristics

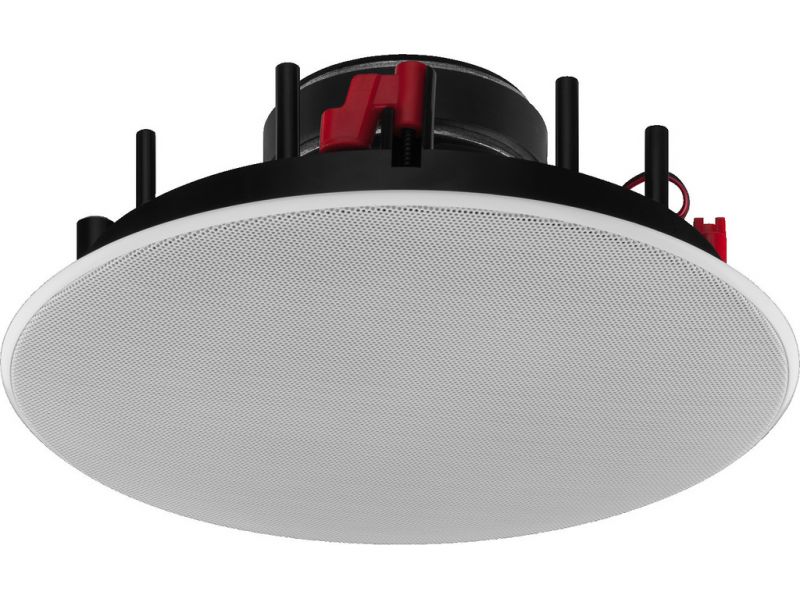

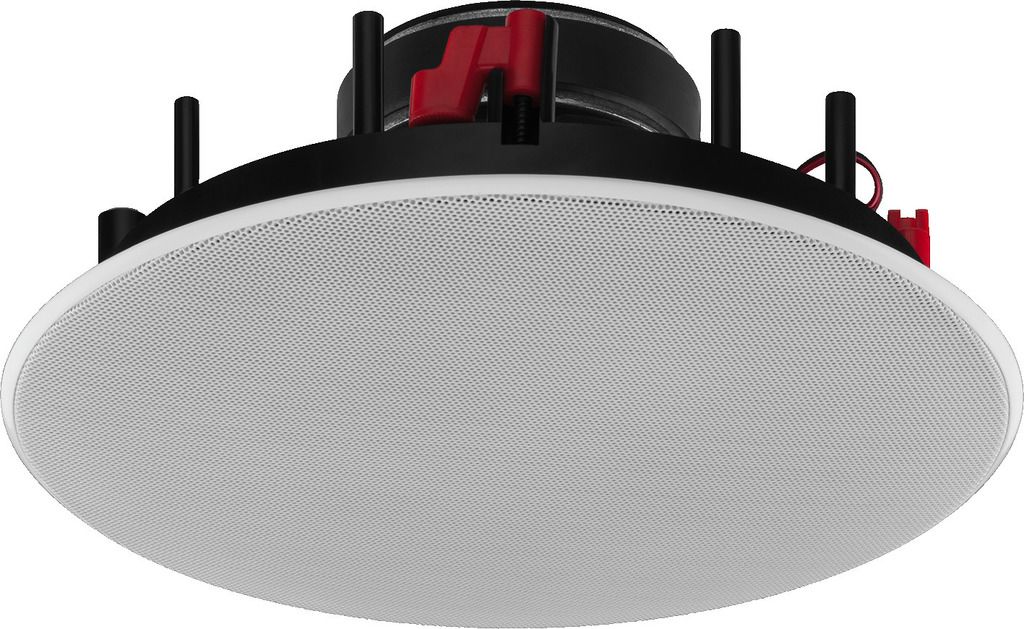

  • Stylish flush fit protective metal grille with slim plastic frame
  • Protective grille magnetically attached to speaker front
  • For a wall thickness/ceiling thickness from 6 to 35 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology 100 V or low-impedance

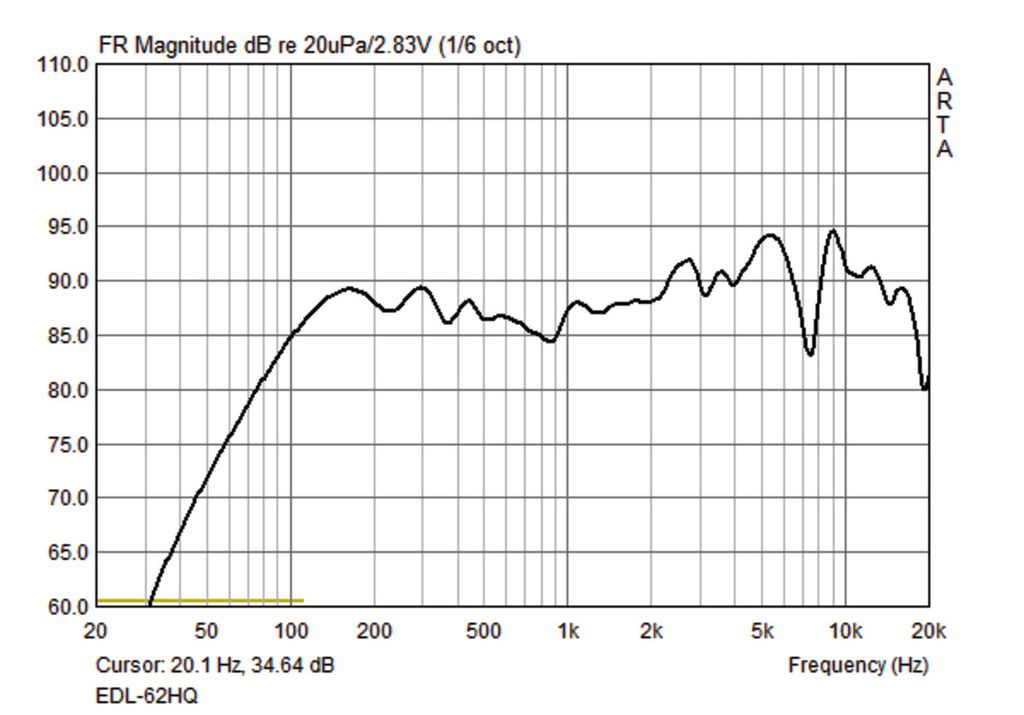

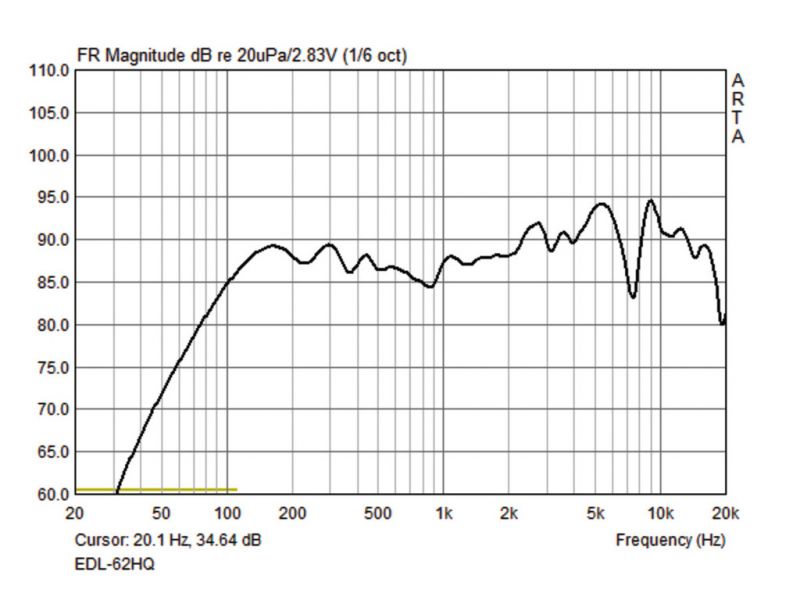

Frequency range 50-20,000 Hz
Resonant frequency (fs) 60 Hz
Power rating (RMS) 35 W (8 Ω) 30/16/8/4 W (100 V)
Peak music power output (MAX) 70 W
SPL 89 dB/W/m

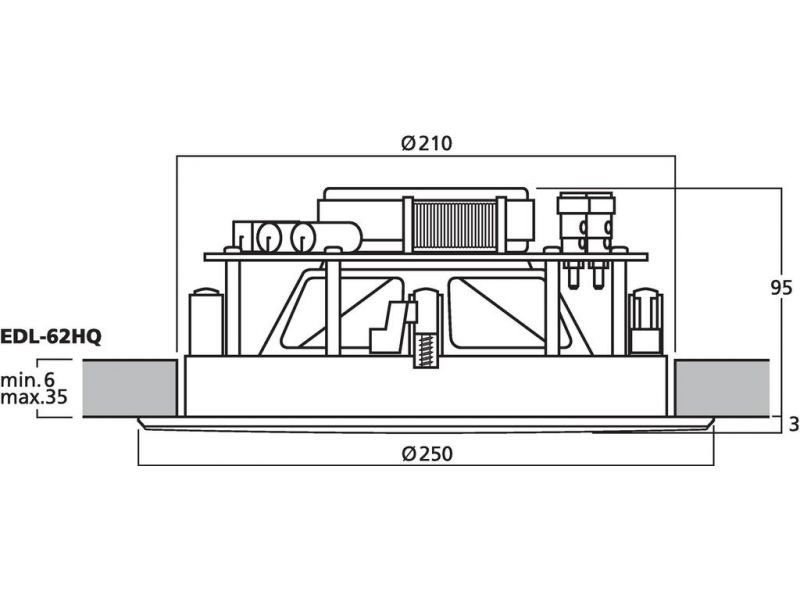

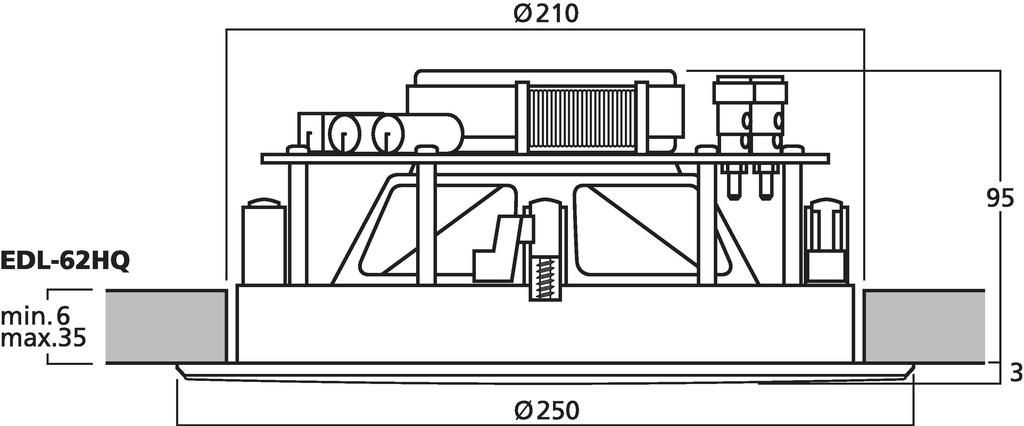

Mounting cutout Ø 210 mm
Mounting depth 97 mm
Dimensions Ø 250 mm x 98 mm
Outside diameter Ø 250 mm
Width Ø 250 mm
Height Ø 250 mm
Depth 98 mm
Colour white/black
Admiss. ambient temp. 0-40 °C
Weight 1.82 kg
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.27 x 0.13 x 0.27 m
Gross weight 2.15 kg
Net weight 1.82 kg

Fisiere de descarcat

Fisa produsului EDL-62HQ konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
