EDL-70/WS

Cod EAN: 4007754244472

PA ceiling speaker, with special 2-step mounting. 100 V transmission technology Snap-in mounting For a ceiling thickness from 2 to 45 mm Full range speaker with a clear voice reproduction Wide frequency range Robust metal version (basket and protec...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-70/WS

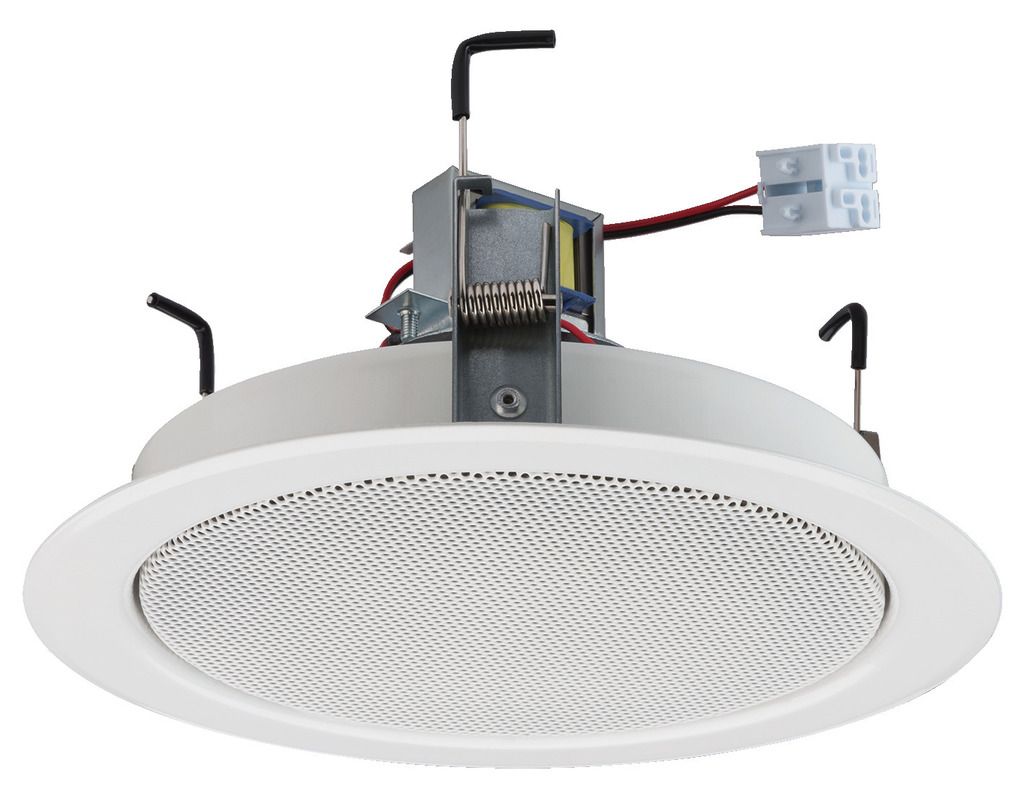

PA ceiling speaker,
with special 2-step mounting.
  • 100 V transmission technology
  • Snap-in mounting
  • For a ceiling thickness from 2 to 45 mm
  • Full range speaker with a clear voice reproduction
  • Wide frequency range
  • Robust metal version (basket and protective grille)

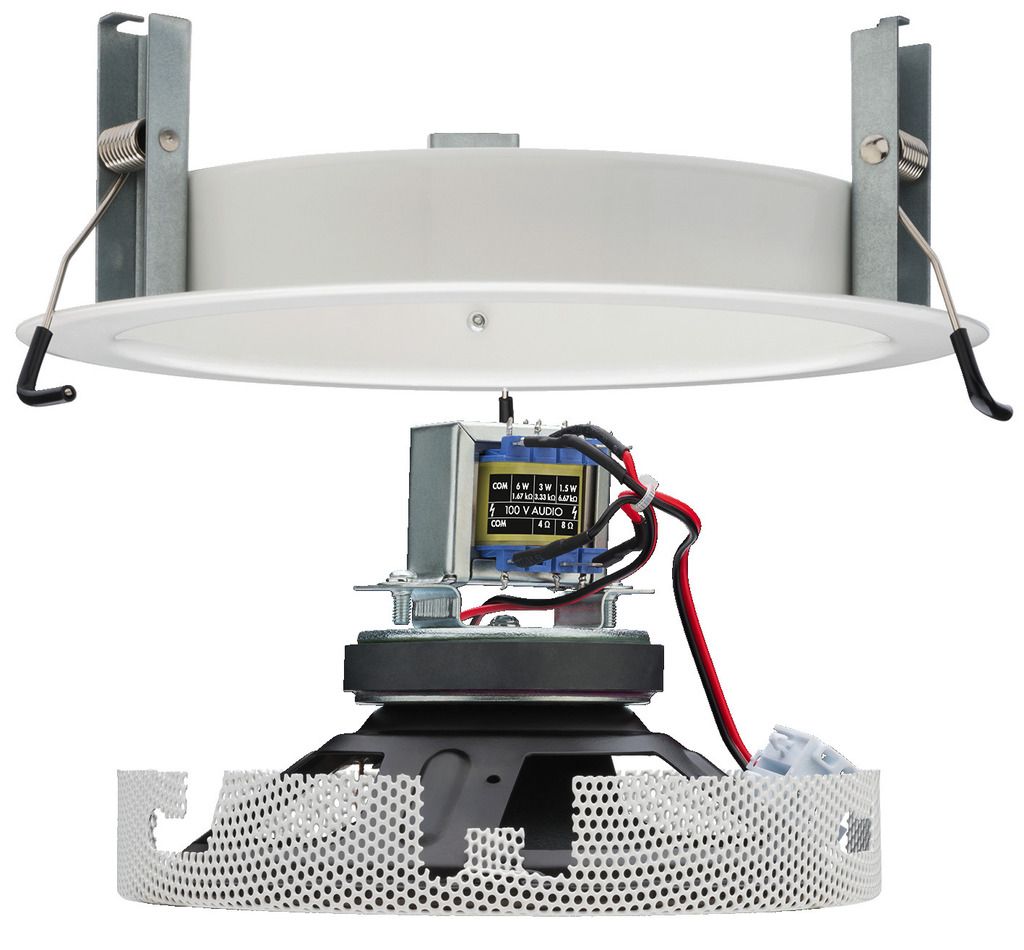

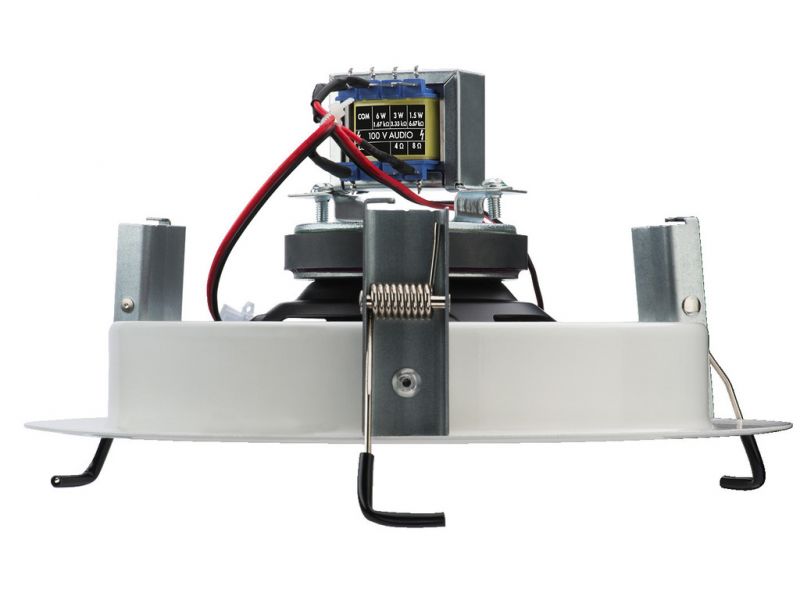

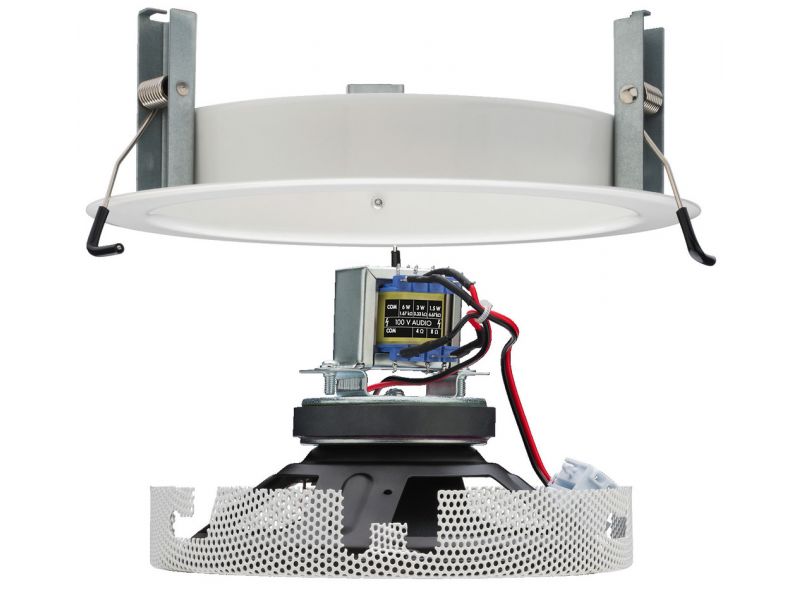

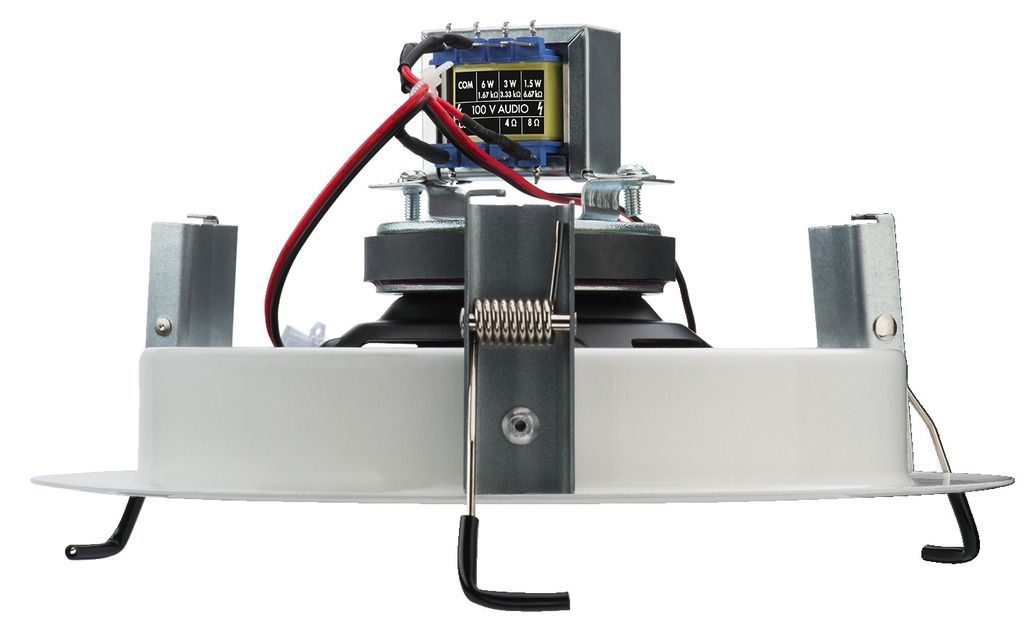

For mounting this PA ceiling speaker, the mounting frame is attached to the ceiling cutout at first via the snap-in system. Then, the speaker is inserted into the frame with a bayonet-type locking. A safety rope provides additional safety.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 90-20,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 97 dB/W/m

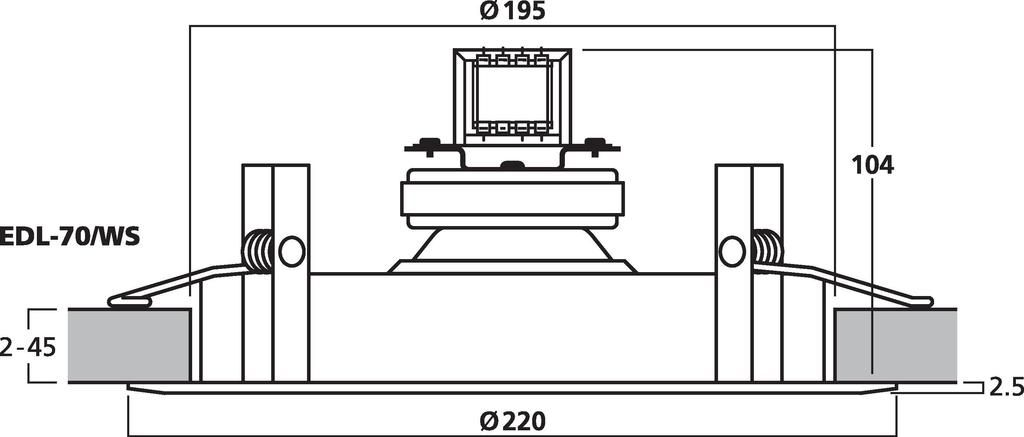

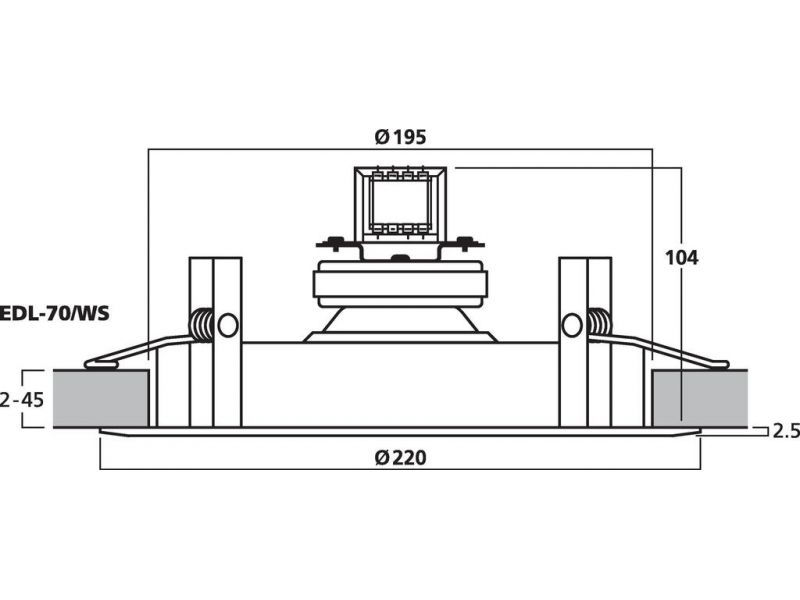

Mounting cutout Ø 195 mm
Mounting depth 100 mm
Dimensions Ø 220 mm x 104 mm
Outside diameter Ø 220 mm
Width Ø 220 mm
Height Ø 220 mm
Depth 104 mm
Colour white, RAL9010
Admiss. ambient temp. 0-40 °C
Weight 1 kg
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.225 x 0.115 x 0.225 m
Gross weight 1.127 kg
Net weight 1.017 kg

Fisiere de descarcat

Fisa produsului EDL-70/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
