EDL-80DT

Cod EAN: 4007754258585

Active 2-way flush-mount ceiling speaker, with integrated Dante® module. 30 W amplifier 20 cm (8") bass speaker with glass fibre cone, 2.5 cm (1") dome tweeter Decoding: 16/24/32 bits Sampling rates: 44.1/48/88.2/96 kHz Power supply via PoE (Power...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-80DT

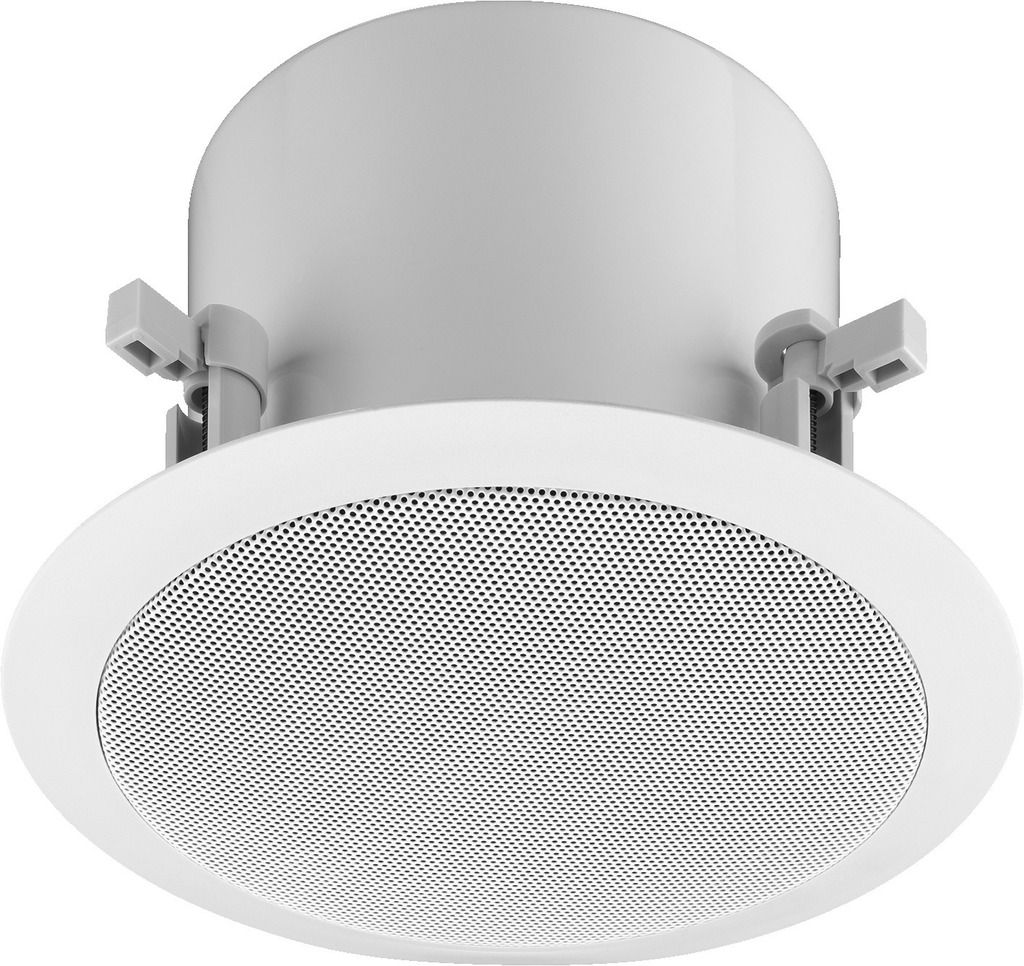

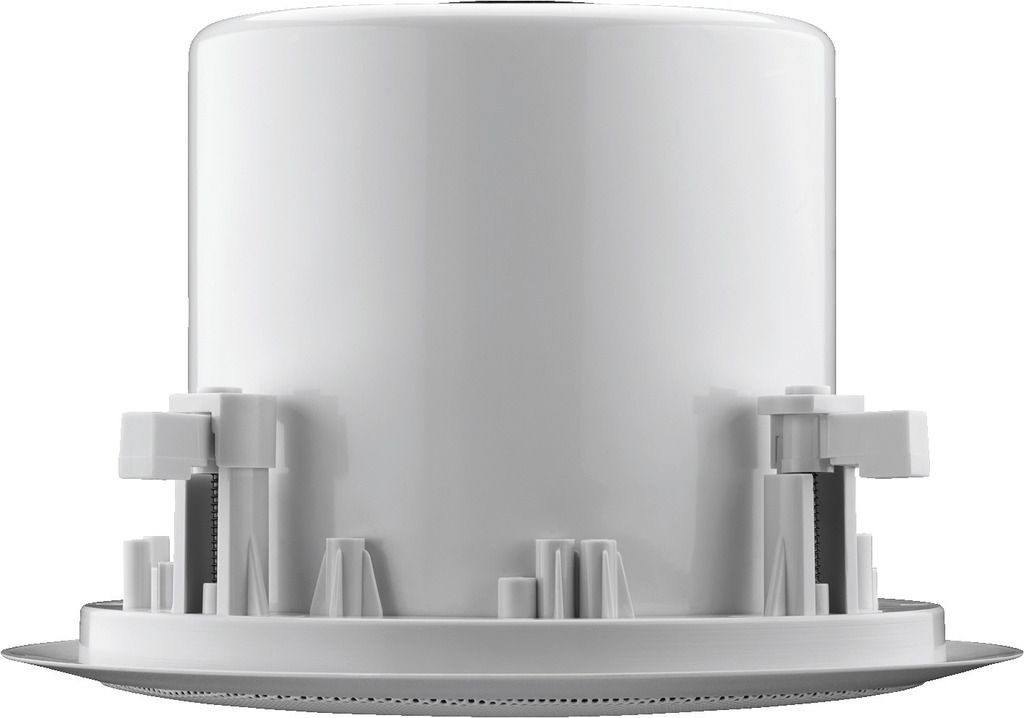

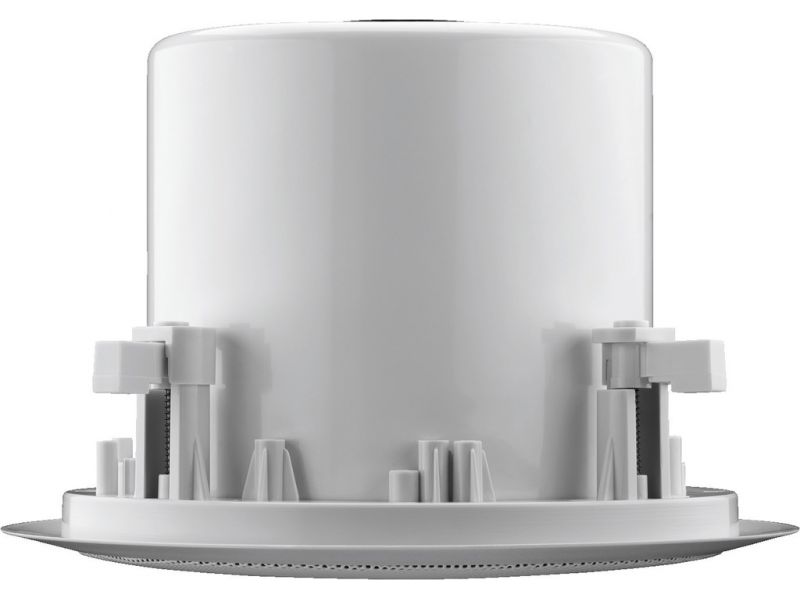

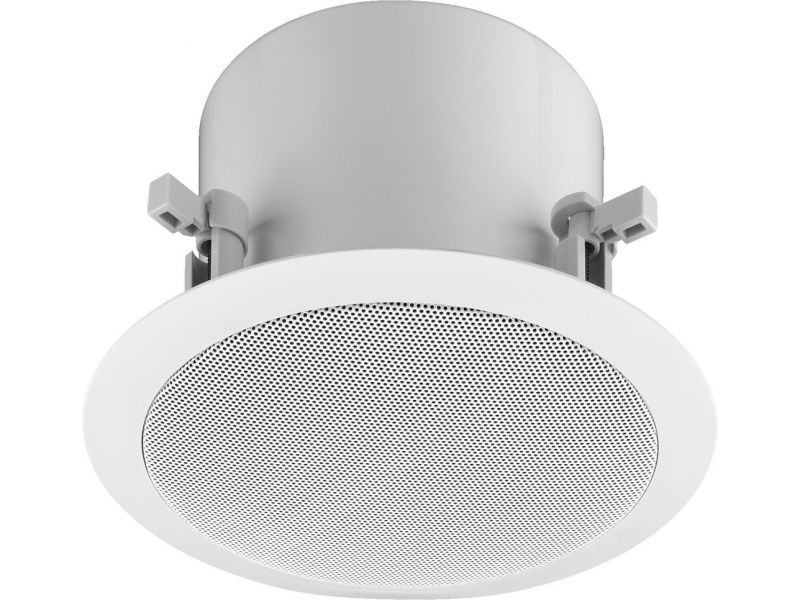

Active 2-way flush-mount ceiling speaker,
with integrated Dante® module.
  • 30 W amplifier
  • 20 cm (8") bass speaker with glass fibre cone, 2.5 cm (1") dome tweeter
  • Decoding: 16/24/32 bits
  • Sampling rates: 44.1/48/88.2/96 kHz
  • Power supply via PoE (Power over Ethernet)
  • Plastic frame and protective metal grille
  • For a ceiling thickness up to 4 cm

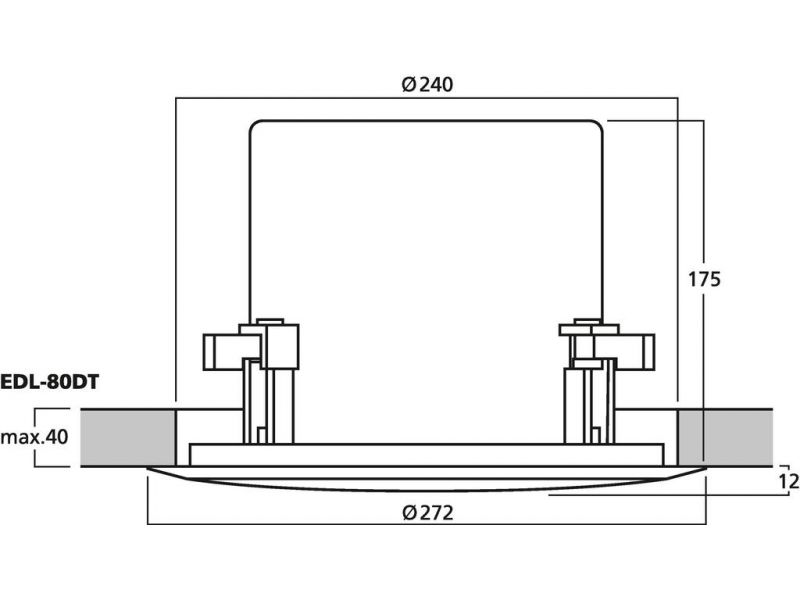

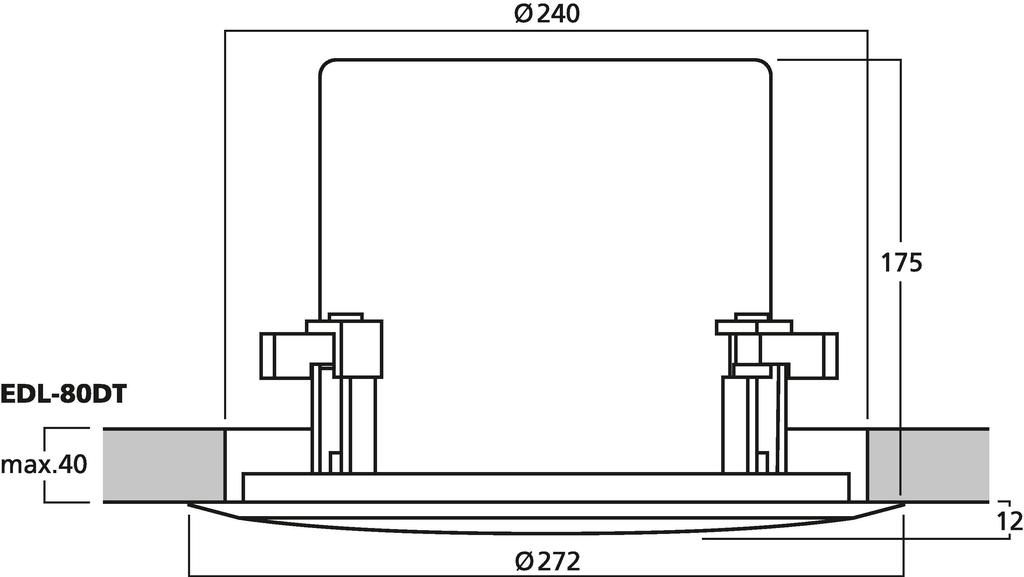

  • Mounting cutout: Ø 240 mm
  • Mounting depth: 225 mm incl. space requirement for network connection

System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Active/passive active
Transmission technology Dante ®
Total output power 40 W
Power rating (RMS) 30 W

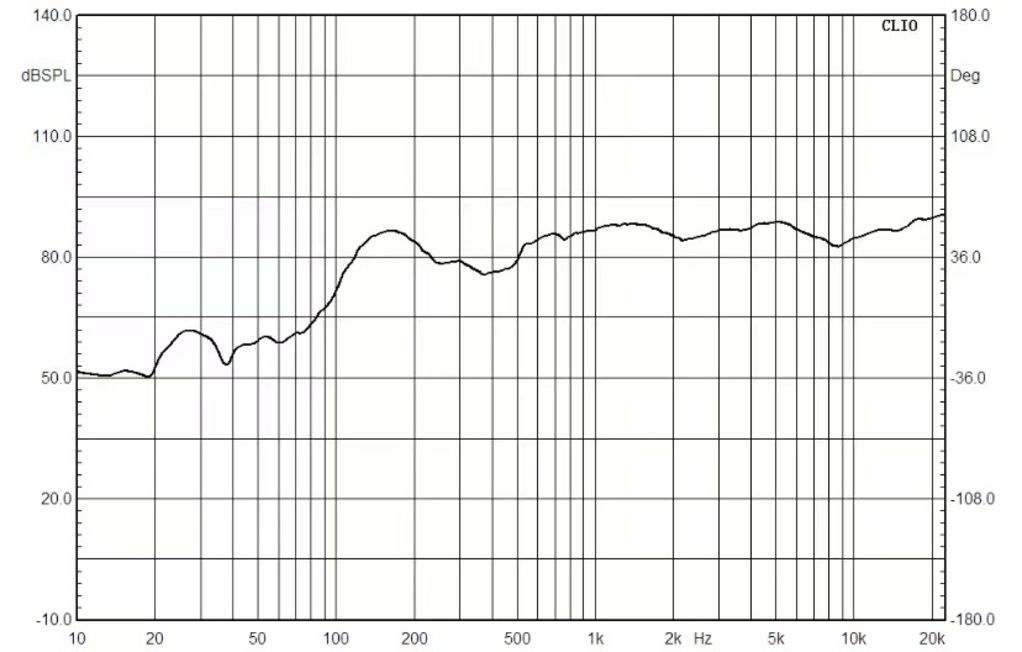

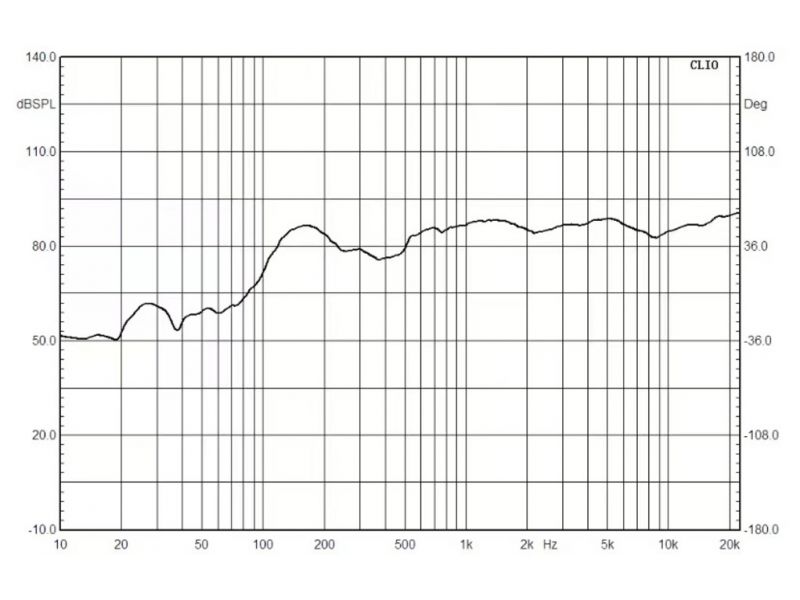

Frequency range 100-20,000 Hz
Input signal DANTE®
System 2-way
Bass speaker 1 x 20 cm
Tweeter 1 x 2.5 cm
Number of speakers 2
Speaker size 20 cm (8")
SPL 93 dB/W/m
Max. rated SPL 105 dB
Radiation angle/beam angle 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Housing material plastic frame, protective metal grille
Colour white
Mounting device ceiling suspension
Admiss. ambient temp. 0-40 °C
Power supply PoE via RJ45
Dimensions Ø 272 mm x 187 mm
Width Ø 272 mm
Height Ø 272 mm
Depth 187 mm
Weight 2.7 kg
Inputs RJ45
Packaging dimensions (W x H x L) 0.31 x 0.22 x 0.31 m
Gross weight 3.64 kg
Net weight 2.73 kg
