ESP-152/WS

Cod EAN: 4007754196269

PA wall speaker 100 V transmission technology via audio transformer with 3 power taps High-quality sound and high volume capability due to 2-way coaxial system Plastic cabinet of a special design (open rear panel) with protective metal grille Symmetr...

Citeste mai mult

Intreaba despre produs
Cumpara acum

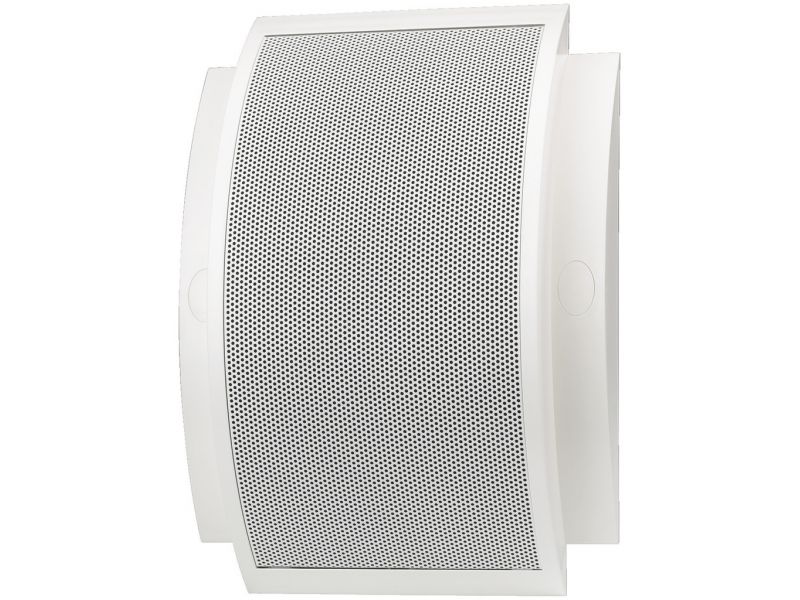

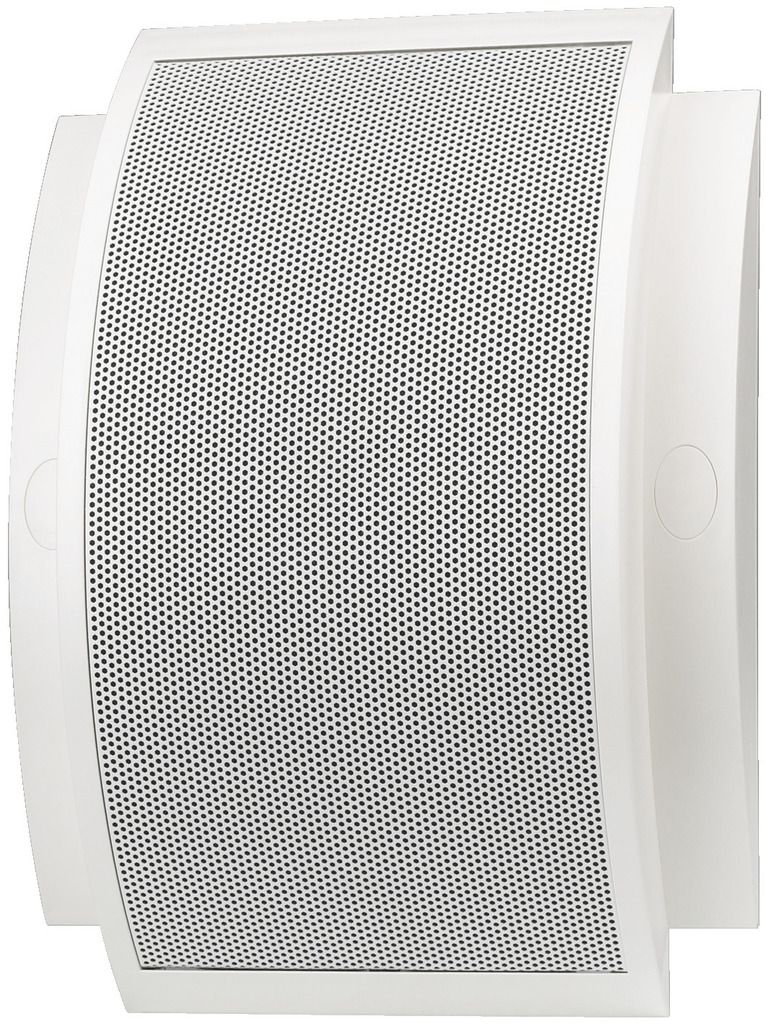

ESP-152/WS

PA wall speaker
  • 100 V transmission technology via audio transformer with 3 power taps
  • High-quality sound and high volume capability due to 2-way coaxial system
  • Plastic cabinet of a special design (open rear panel) with protective metal grille
  • Symmetrical design allows for horizontal and vertical mounting
  • Supplied with mounting screws and cover plates for the screws
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 15 W
Power rating (RMS) 15/7.5/3.75 W
Frequency range 100-20,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 91 dB/W/m
Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°
Radiation angle, vertical 100°
Housing material plastic
Colour white
Mounting device mounting screws
Admiss. ambient temp. 0-40 °C
Dimensions 240 x 330 x 85 mm
Width 240 mm
Height 330 mm
Depth 85 mm
Weight 1.84 kg
Inputs screw terminals
Packaging dimensions (W x H x L) 0.34 x 0.1 x 0.245 m
Gross weight 2.12 kg
Net weight 1.849 kg

Fisiere de descarcat

Fisa produsului ESP-152/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
