ESP-230/WS

Cod EAN: 4007754180152

Weatherproof PA speaker system, in a white plastic cabinet with protective aluminium grille. 100 V line technique Hose-proof Switchable to 8 Ω operation 5 power taps, 8 Ω connection and 100 V power selector switch 2-way system Stainless steel mount...

Citeste mai mult

Intreaba despre produs
Cumpara acum

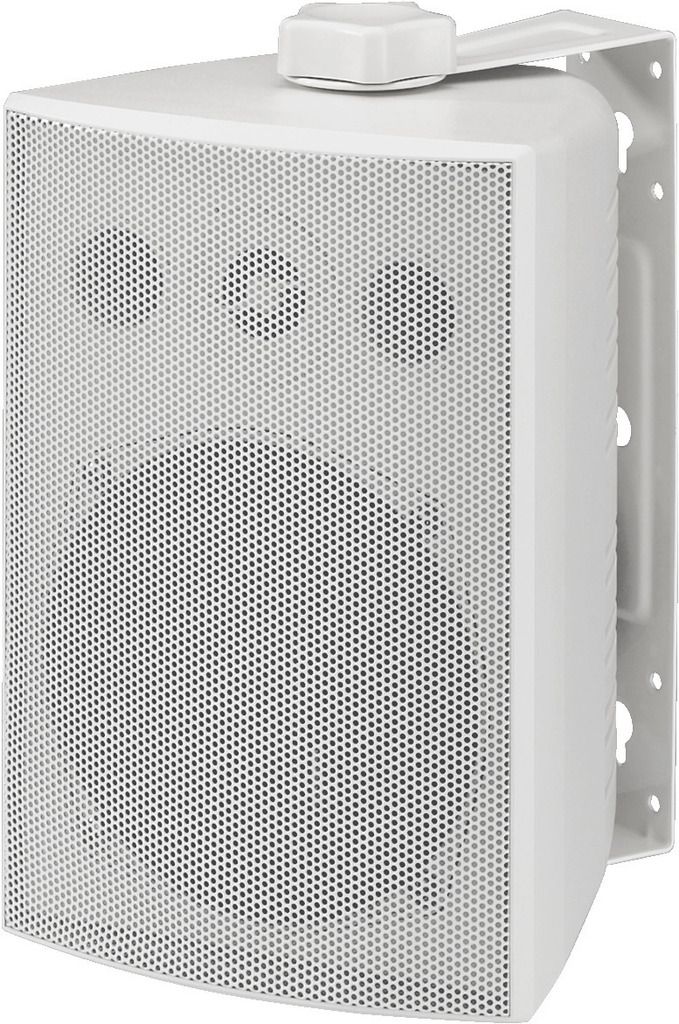

ESP-230/WS

Weatherproof PA speaker system,
in a white plastic cabinet with protective aluminium grille.
  • 100 V line technique
  • Hose-proof
  • Switchable to 8 Ω operation
  • 5 power taps, 8 Ω connection and 100 V power selector switch
  • 2-way system
  • Stainless steel mounting bracket

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 100 W
Power rating (RMS) 30/20/10/5/2.5 W (100 V)50 W (8 Ω)
Impedance 8 Ω
Frequency range 80-20,000 Hz
System 2-way
Number of speakers 2
Speaker size 13 cm (5")
SPL 92 dB/W/m
Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°
Radiation angle, vertical 100°
Housing material plastic
Colour white
Mounting device mounting bracket
Protection class IP65
Admiss. ambient temp. -30 °C to +40 °C
Dimensions 157 x 260 x 170 mm
Width 157 mm
Height 260 mm
Depth 170 mm
Weight 1.8 kg
Inputs spring-load. speaker term.
Packaging dimensions (W x H x L) 0.2 x 0.29 x 0.2 m
Gross weight 2.276 kg
Net weight 2 kg

Fisiere de descarcat

Fisa produsului ESP-230/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
