ESP-315/WS

Cod EAN: 4007754222210

2-way PA wall-mount speaker system 100 V PA speaker system with an excellent sound 2-way system with 10 x 15 cm bass-midrange speaker and 13 mm dome tweeter Power taps: 15/10/5/2.5 W Power selector switch with 8 Ω operating position Can be mounted ho...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ESP-315/WS

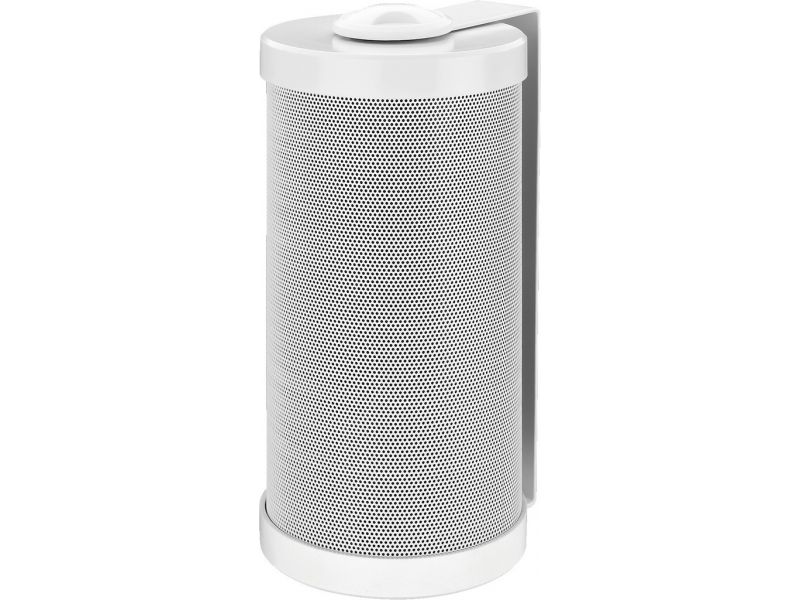

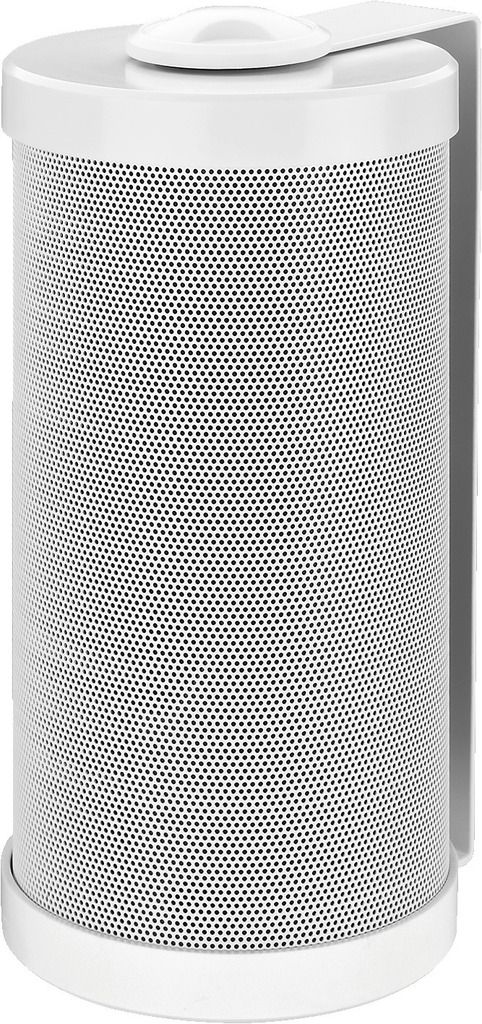

2-way PA wall-mount speaker system
  • 100 V PA speaker system with an excellent sound
  • 2-way system with 10 x 15 cm bass-midrange speaker and 13 mm dome tweeter
  • Power taps: 15/10/5/2.5 W
  • Power selector switch with 8 Ω operating position
  • Can be mounted horizontally or vertically
  • Direction of sound radiation can individually be aligned
  • Available in black (SW) or white (WS) plastic with respectively lacquered metal grille
  • Supplied with wall brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 30 W
Power rating (RMS) 15/10/5/2.5 W (100 V)15 W (8 Ω)
Impedance 8 Ω
Frequency range 75-20,000 Hz
System 2-way
Number of speakers 2
Speaker size 10 x 15 cm (4" x 6")
SPL 90 dB/W/m
Radiation angle/beam angle H: 140°/V: 100°
Radiation angle, horizontal 140°
Radiation angle, vertical 100°
Housing material plastic
Colour white
Mounting device mounting bracket
Admiss. ambient temp. 0-40 °C
Dimensions Ø 133 mm x 280 mm
Width Ø 133 mm
Height 280 mm
Depth Ø 133 mm
Weight 2.1 kg
Inputs spring-load. speaker term.
Packaging dimensions (W x H x L) 0.15 x 0.15 x 0.305 m
Gross weight 2.38 kg
Net weight 2.2 kg

Fisiere de descarcat

Fisa produsului ESP-315/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
