ESP-50AB/WS

Cod EAN: 4007754233377

PA A/B wall speaker, with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849 and DIN VDE 0833-4. 100 V transmission technology 2 separate full range speakers (10 cm), each with its own transformer 6/3...

Citeste mai mult

Intreaba despre produs
Cumpara acum

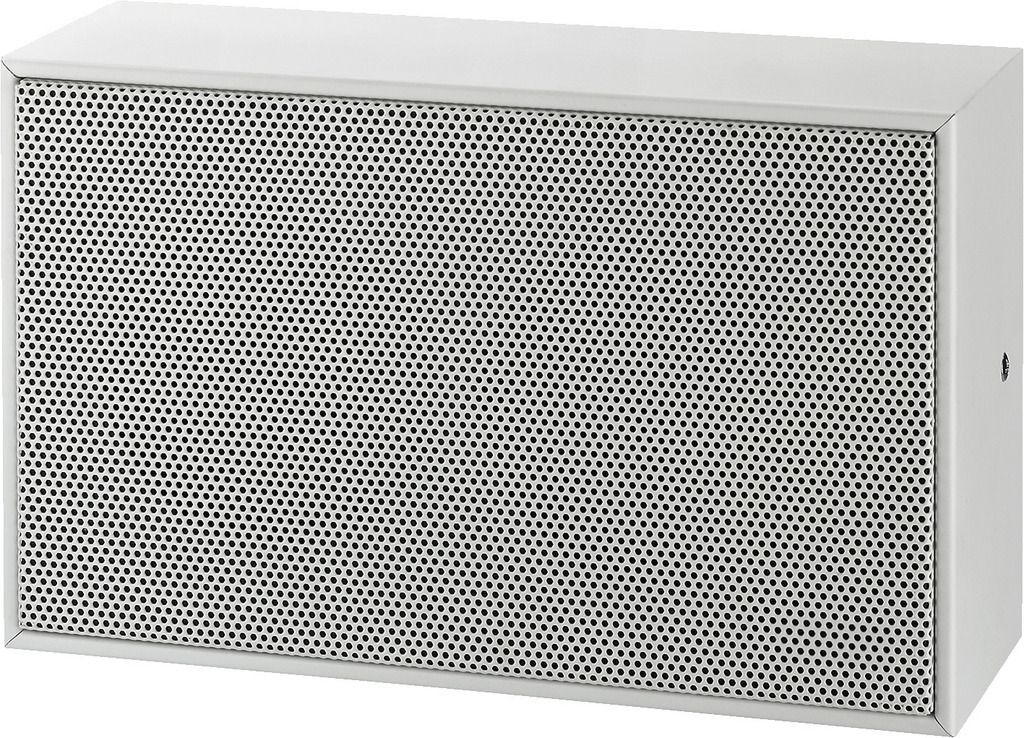

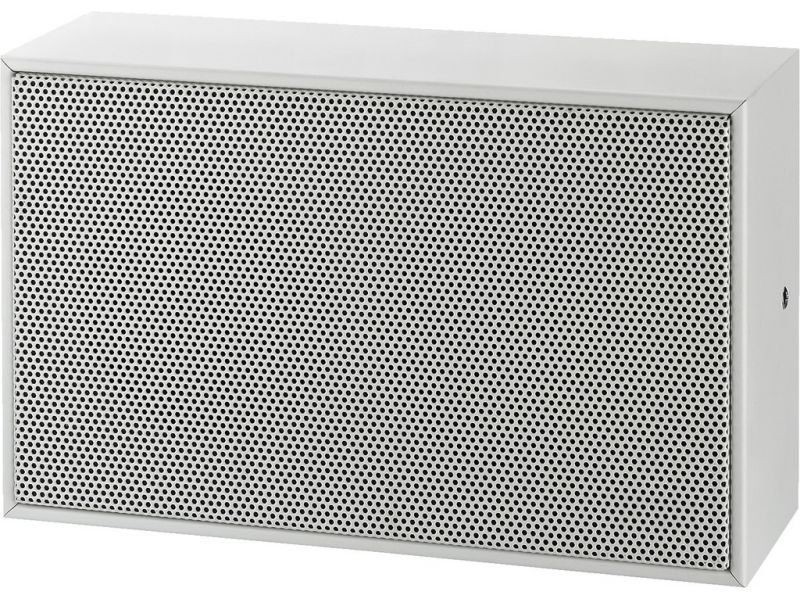

ESP-50AB/WS

PA A/B wall speaker,
with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849 and DIN VDE 0833-4.
  • 100 V transmission technology
  • 2 separate full range speakers (10 cm), each with its own transformer 6/3/1.5 W
  • Connection via 2 spring-loaded terminals inside the cabinet
  • Wooden cabinet with protective metal grille
  • Easy wall mounting via supplied metal bracket and mounting accessories
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 2 x 6 W
Power rating (RMS) 2 x 6/3/1.5 W
Frequency range 120-20,000 Hz
Number of speakers 2
Speaker size 10 cm (4")
SPL 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 2 x 100 dB (1 m) 85 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H83°/V85° (1,000 Hz) H154°/V148° (2,000 Hz) H82°/V88° (4,000 Hz)
Radiation angle, horizontal 180° (500 Hz), 83° (1,000 Hz), 154° (2,000 Hz), 82° (4,000 Hz)
Radiation angle, vertical 180° (500 Hz), 85° (1,000 Hz), 148° (2,000 Hz), 88° (4,000 Hz)
Housing material wood
Colour white
Mounting device metal bracket
Protected against ball rebound yes
Admiss. ambient temp. -10 °C to +50 °C
Dimensions 265 x 165 x 90 mm
Width 265 mm
Height 165 mm
Depth 90 mm
Weight 1.9 kg
Inputs screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.27 x 0.1 m
Gross weight 2.12 kg
Net weight 1.9 kg

Fisiere de descarcat

Fisa produsului ESP-50AB/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
