ESP-50EN/WS

Cod EAN: 4007754234008

PA wall speaker, with EN 54-24 certification. 100 V transmission technology Full range speaker (13 cm) Suitable for voice and music transmissions Connection via spring-loaded terminal inside the cabinet Wooden cabinet with protective metal grille E...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ESP-50EN/WS

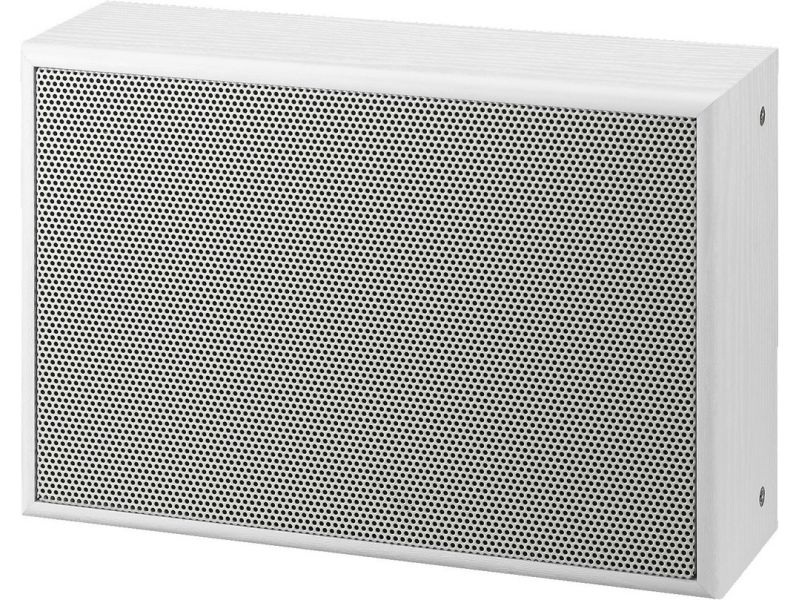

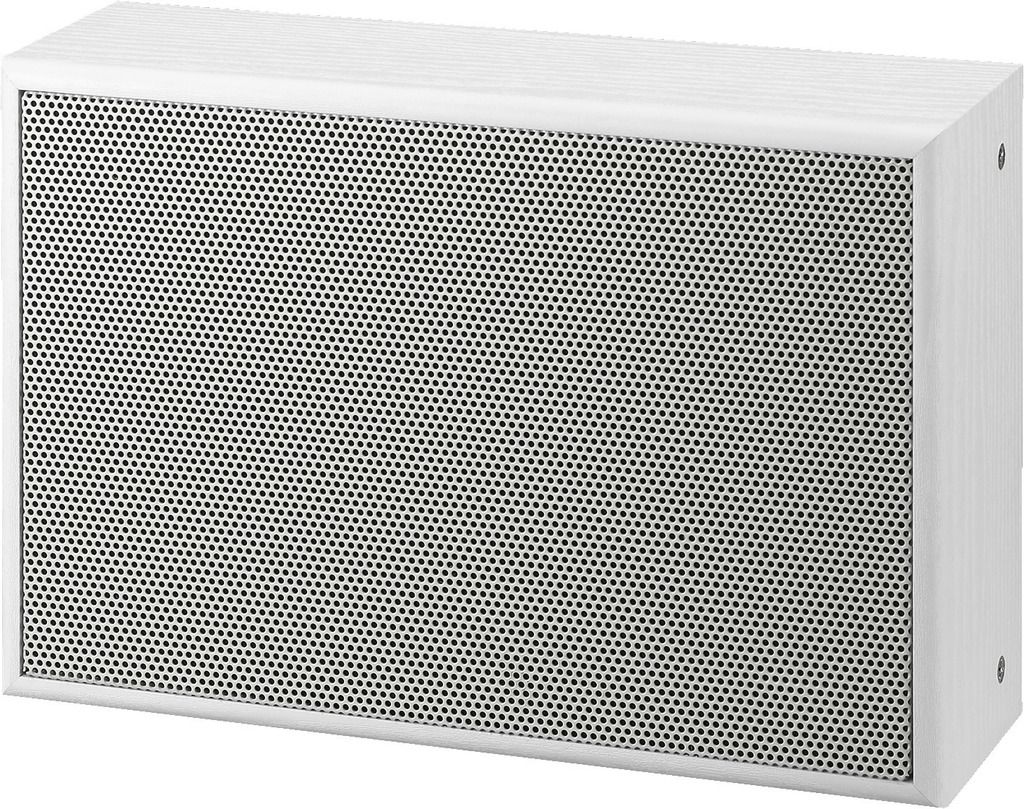

PA wall speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • Full range speaker (13 cm)
  • Suitable for voice and music transmissions
  • Connection via spring-loaded terminal inside the cabinet
  • Wooden cabinet with protective metal grille
  • Easy wall mounting via supplied mounting bracket and mounting accessories
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 100-19,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB (1 W/1 m) 77 dB (EN, 1 W/4 m)
Max. rated SPL 101 dB (1 m) 86 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H80°/V88° (1,000 Hz) H131°/V126° (2,000 Hz) H77°/V69° (4,000 Hz)
Radiation angle, horizontal 180° (500 Hz), 80° (1,000 Hz), 131° (2,000 Hz), 77° (4,000 Hz)
Radiation angle, vertical 180° (500 Hz), 88° (1,000 Hz), 126° (2,000 Hz), 69° (4,000 Hz)
Housing material wood
Colour white, RAL9010
Mounting device mounting bracket
Protected against ball rebound yes
Admiss. ambient temp. -10 °C to +50 °C
Dimensions 265 x 165 x 90 mm
Width 265 mm
Height 165 mm
Depth 90 mm
Weight 1.6 kg
Inputs screw terminals
Packaging dimensions (W x H x L) 0.27 x 0.1 x 0.17 m
Gross weight 1.84 kg
Net weight 1.62 kg

Fisiere de descarcat

Fisa produsului ESP-50EN/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
