ESP-70/WS

Cod EAN: 4007754195651

PA wall speaker 100 V transmission technology 5-step rotary switch for 10/6/4/2 W/off Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection Emergency priority relay White wooden cabinet with protective m...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ESP-70/WS

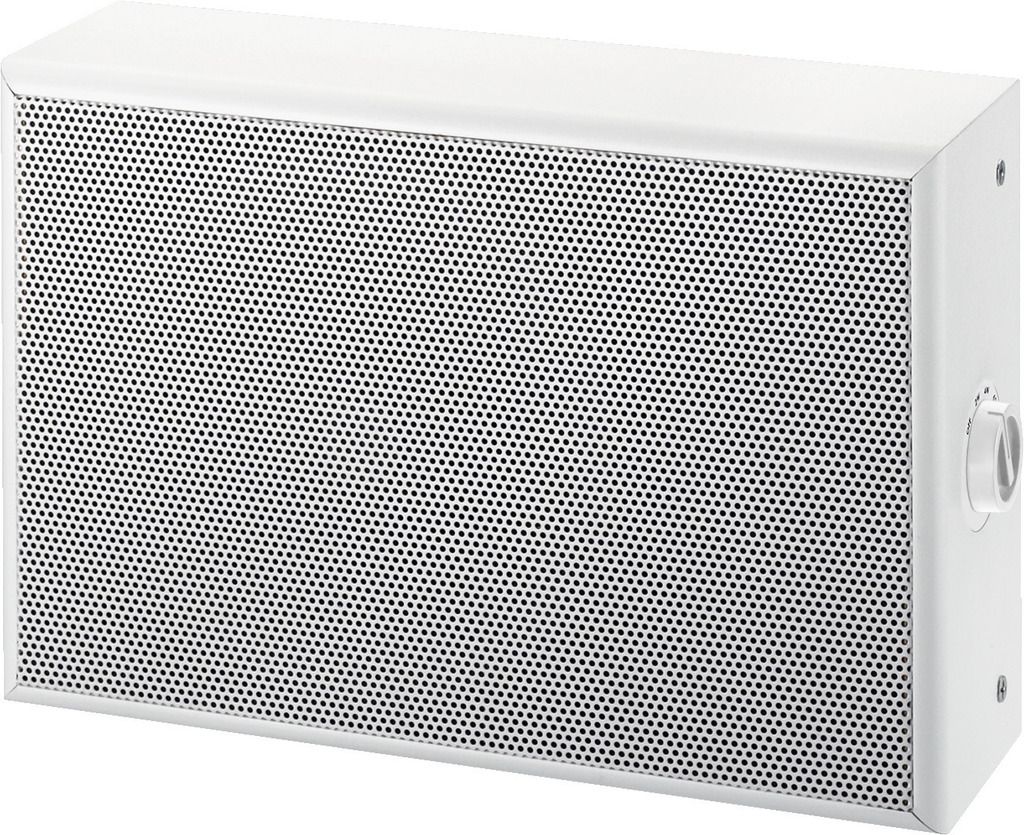

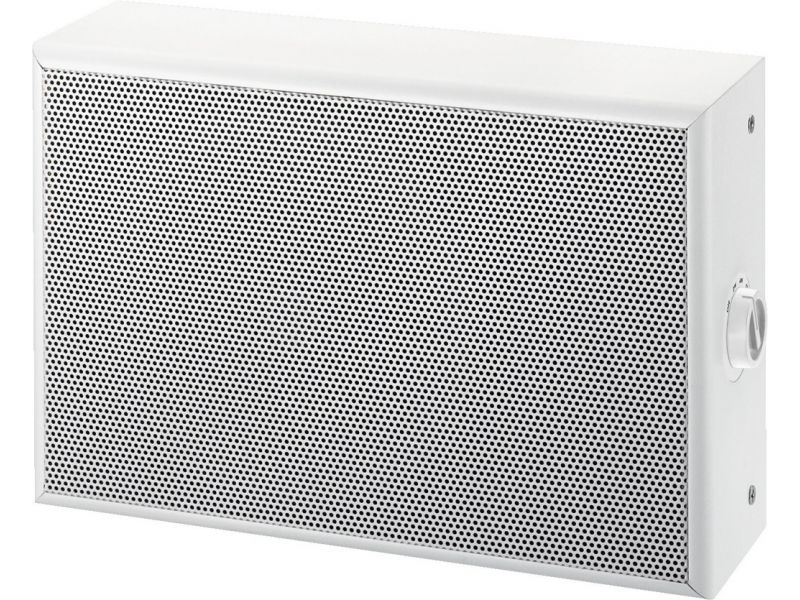

PA wall speaker
  • 100 V transmission technology

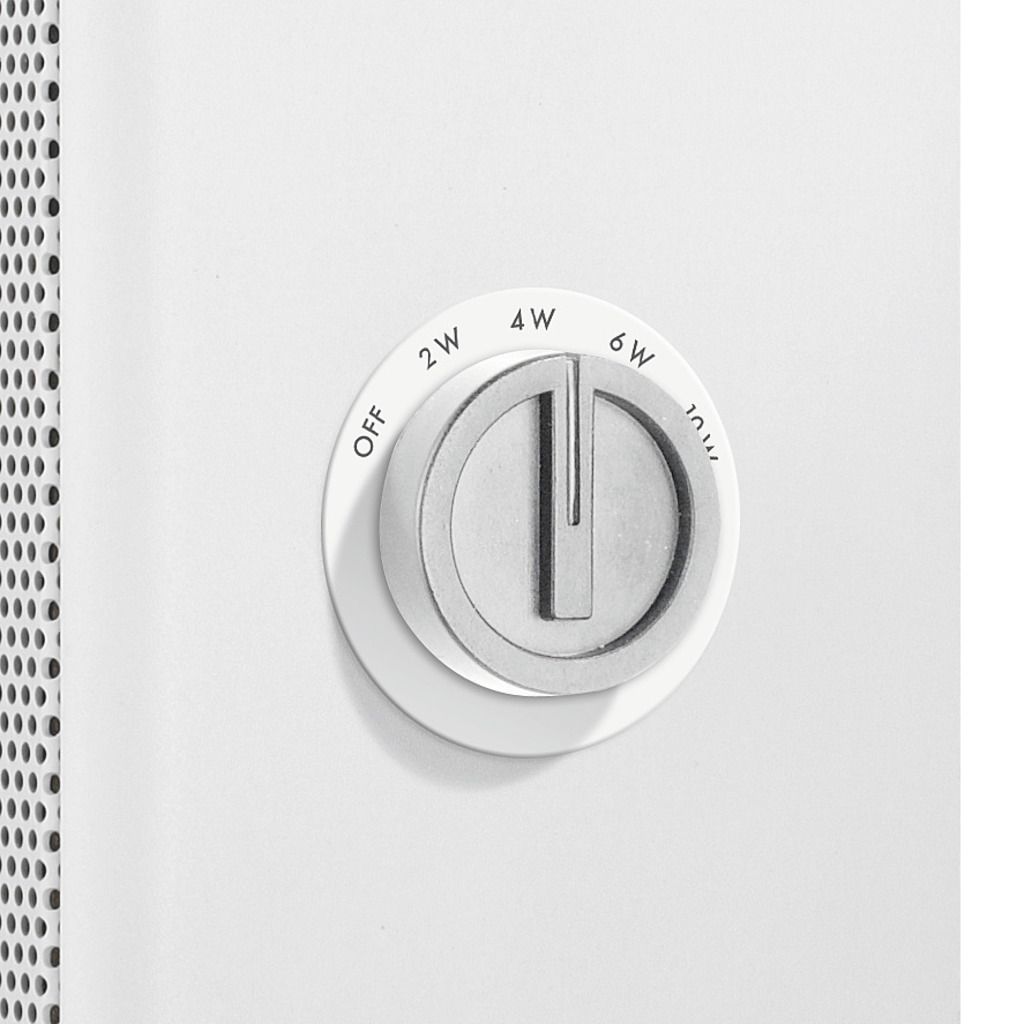

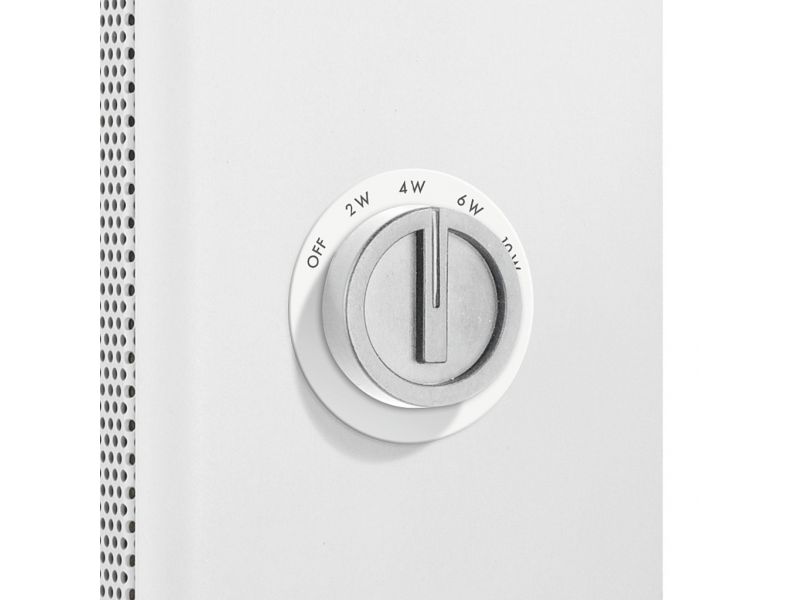

  • 5-step rotary switch for 10/6/4/2 W/off
  • Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
  • Emergency priority relay
  • White wooden cabinet with protective metal grille
  • Easy wall mounting via supporting plate
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/6/4/2 W

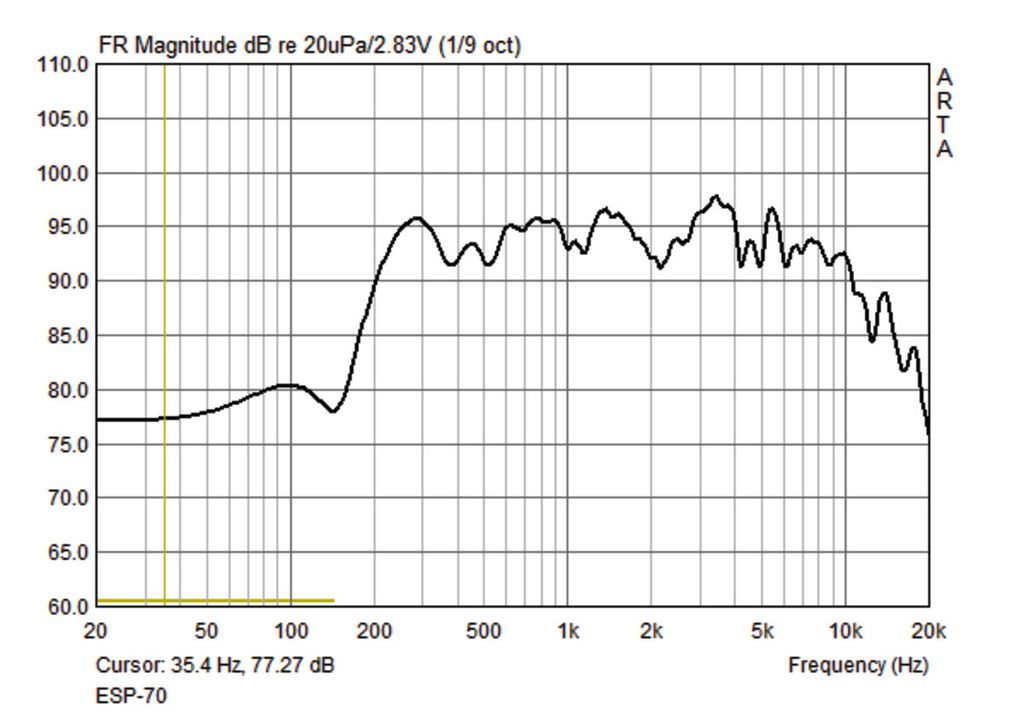

Frequency range 95-19,000 Hz
Number of speakers 1
Speaker size 16 cm (6.5")

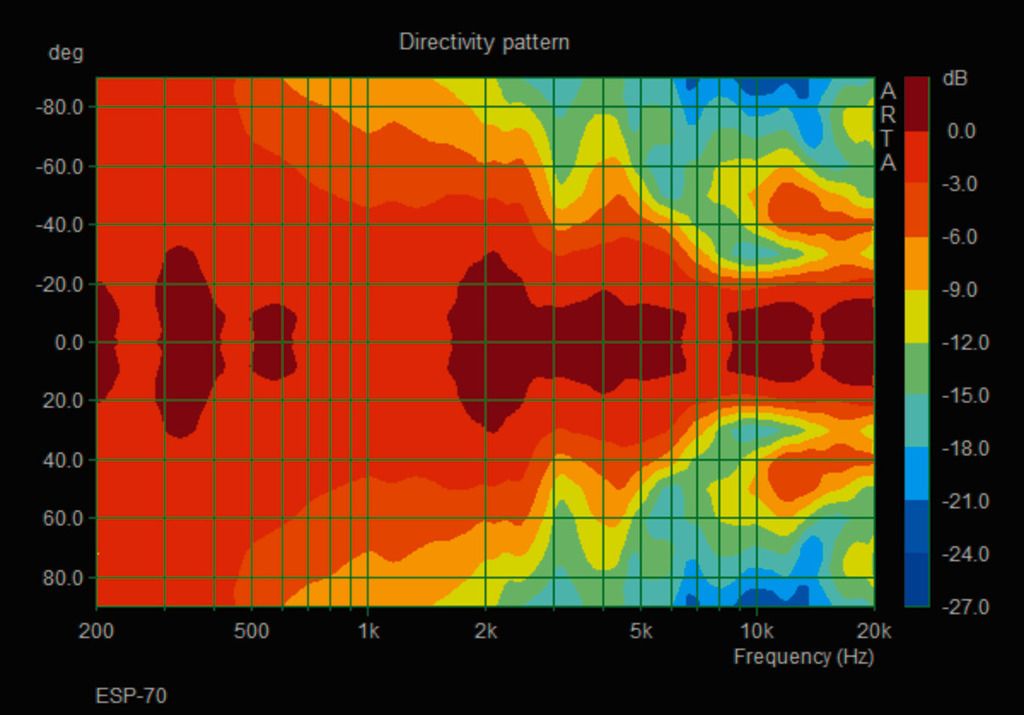

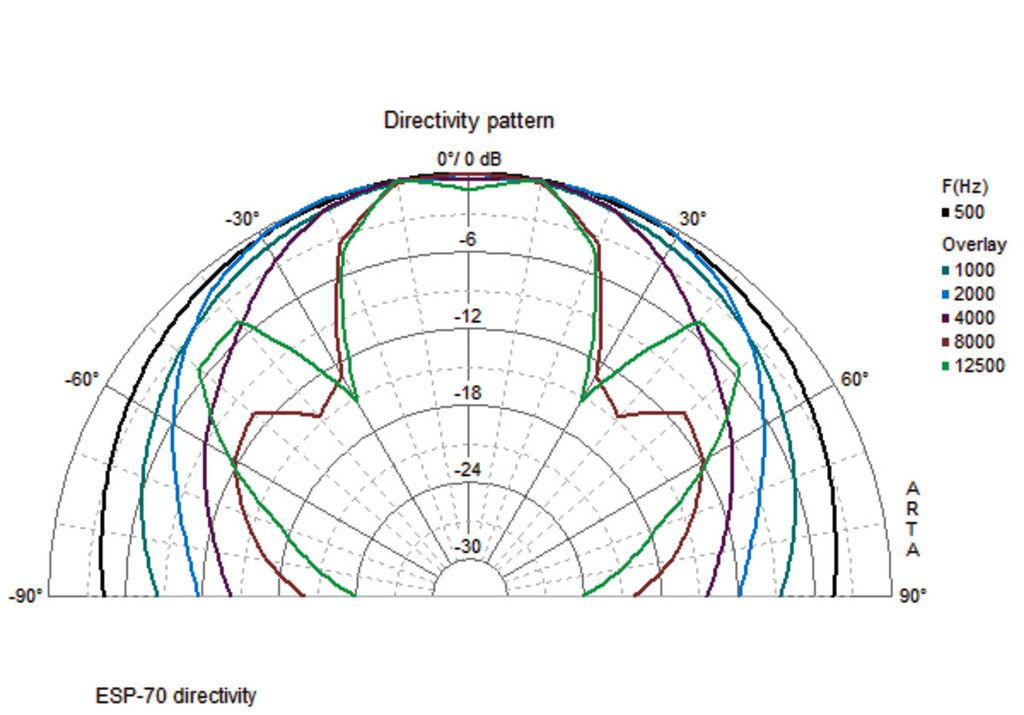

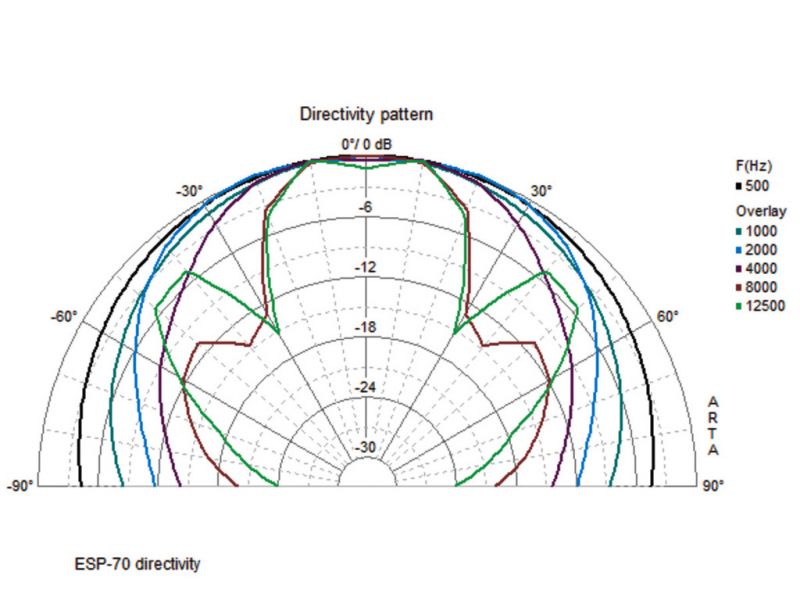

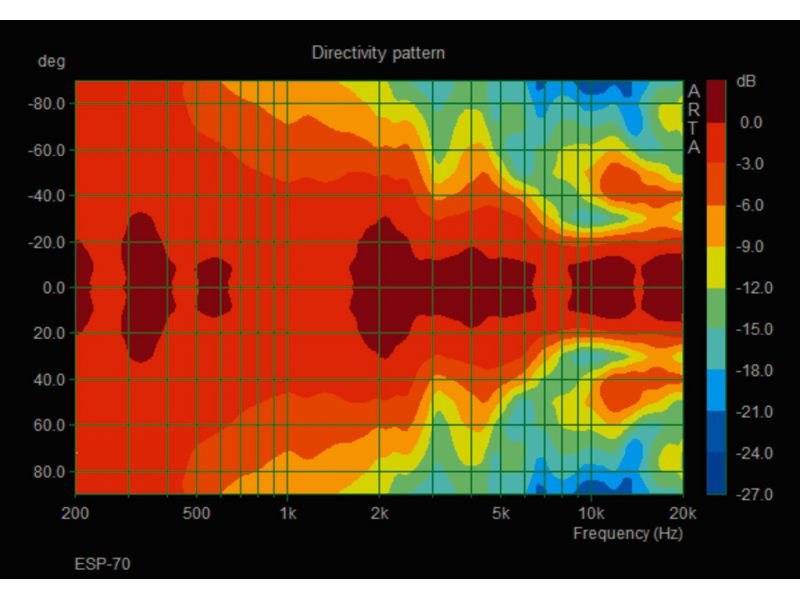

Radiation angle/beam angle H: 120°/V: 120°
Radiation angle, horizontal 120°
Radiation angle, vertical 120°
Housing material wood
Colour white
Mounting device mounting plate
Protected against ball rebound yes
Admiss. ambient temp. 0-40 °C
Dimensions 300 x 200 x 90 mm
Width 300 mm
Height 200 mm
Depth 90 mm
Weight 2.3 kg
Inputs screw terminals
Packaging dimensions (W x H x L) 0.11 x 0.23 x 0.32 m
Gross weight 2.58 kg
Net weight 2.38 kg

Fisiere de descarcat

Fisa produsului ESP-70/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
