ETS-215/WS

Cod EAN: 4007754151268

PA column speaker, in an extruded aluminium cabinet, with top and bottom plates of aluminium. 100 V transmission technology 5-step power selector switch 2 x M6 threaded bushing Metal front grille Supplied with mounting brackets Connection via cable...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ETS-215/WS

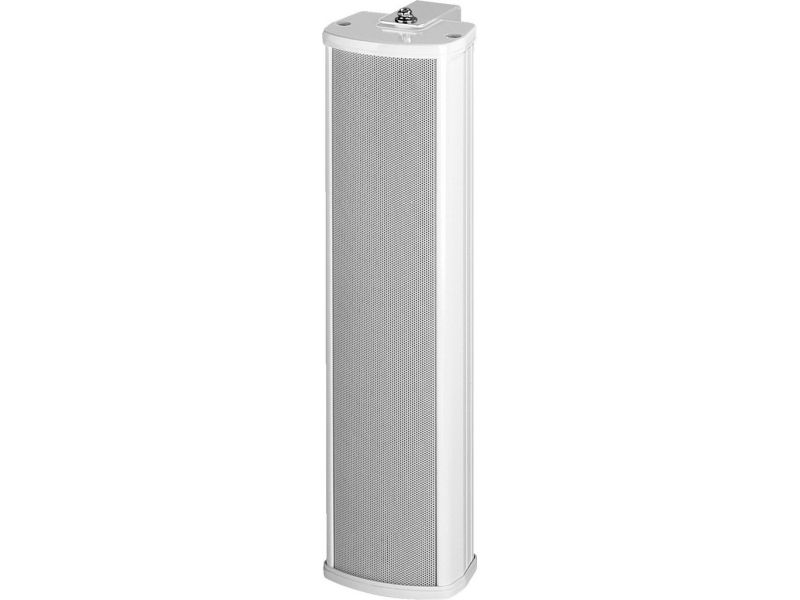

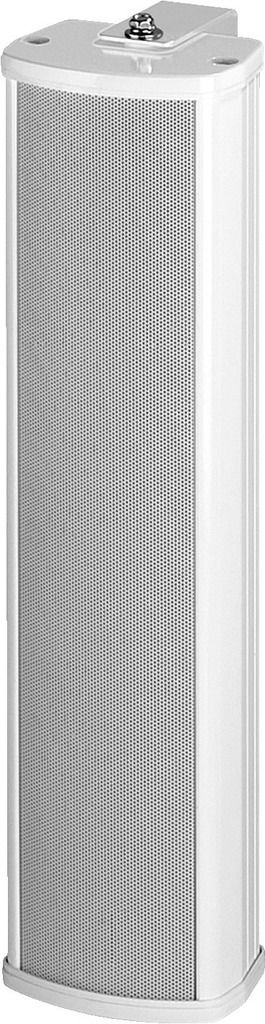

PA column speaker,
in an extruded aluminium cabinet, with top and bottom plates of aluminium.
  • 100 V transmission technology
  • 5-step power selector switch
  • 2 x M6 threaded bushing
  • Metal front grille

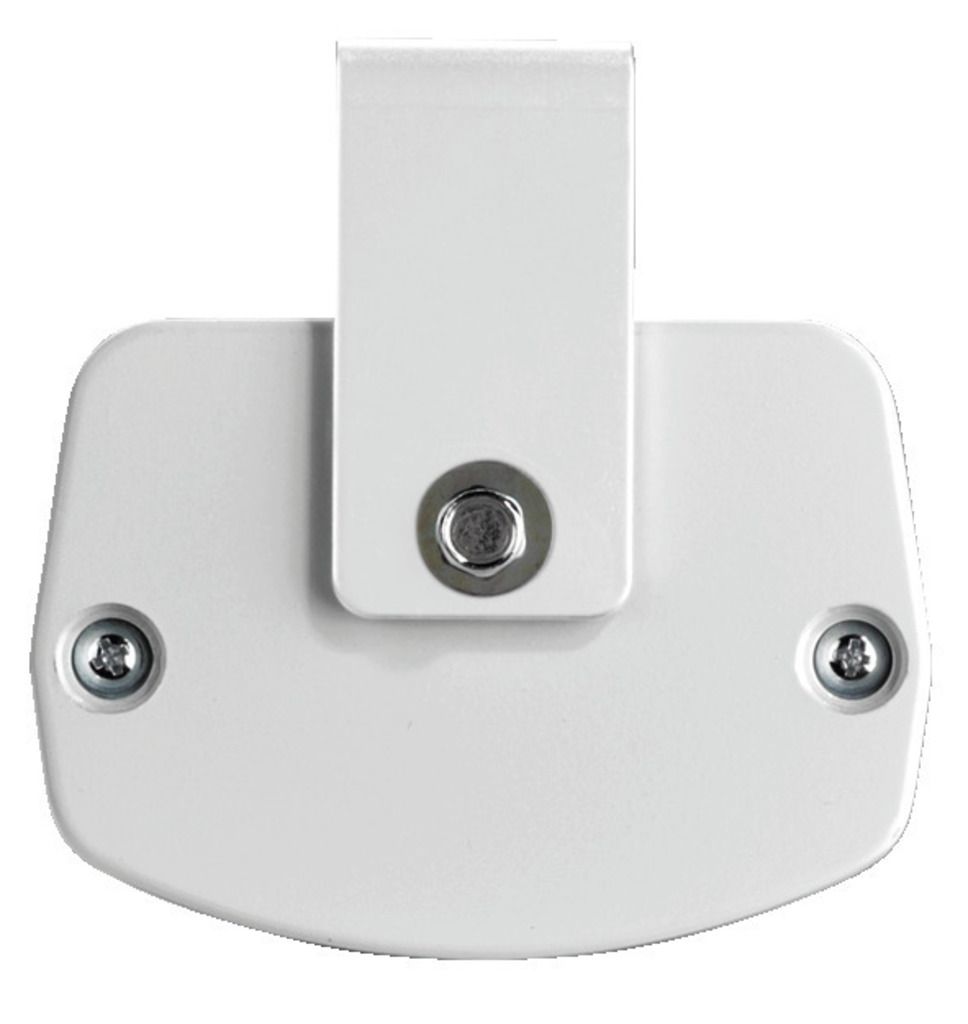

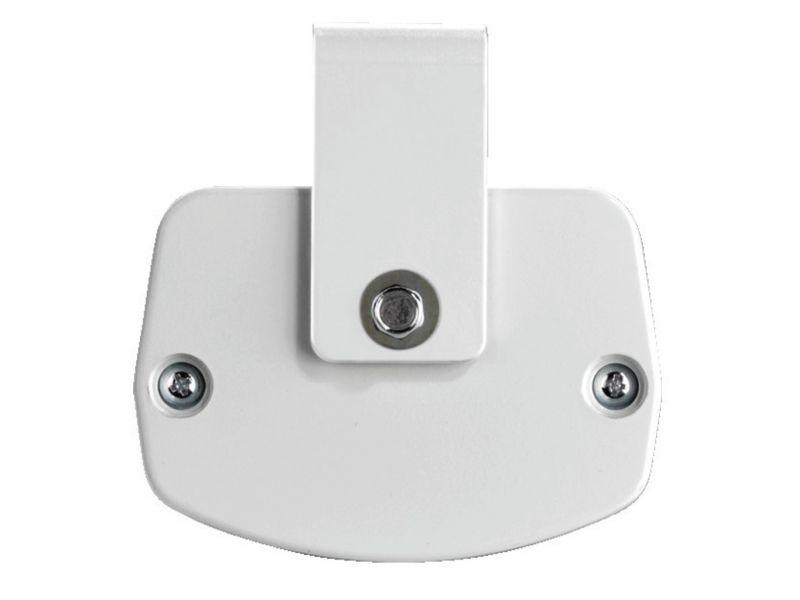

  • Supplied with mounting brackets
  • Connection via cable, 2 cores
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 15 W
Power rating (RMS) 15/7.5/3.75/2 W
Frequency range 250-15,000 Hz
Number of speakers 4
Speaker size 7.5 cm (3")
SPL 92 dB/W/m
Radiation angle/beam angle H: 150°/V: 40°
Radiation angle, horizontal 150°
Radiation angle, vertical 40°
Housing material aluminium
Colour white
Mounting device mounting bracket
Admiss. ambient temp. 0-40 °C
Dimensions 105 x 405 x 85 mm
Width 105 mm
Height 405 mm
Depth 85 mm
Weight 2.5 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.13 x 0.47 x 0.15 m
Gross weight 2.82 kg
Net weight 2.5 kg

Fisiere de descarcat

Fisa produsului ETS-215/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
