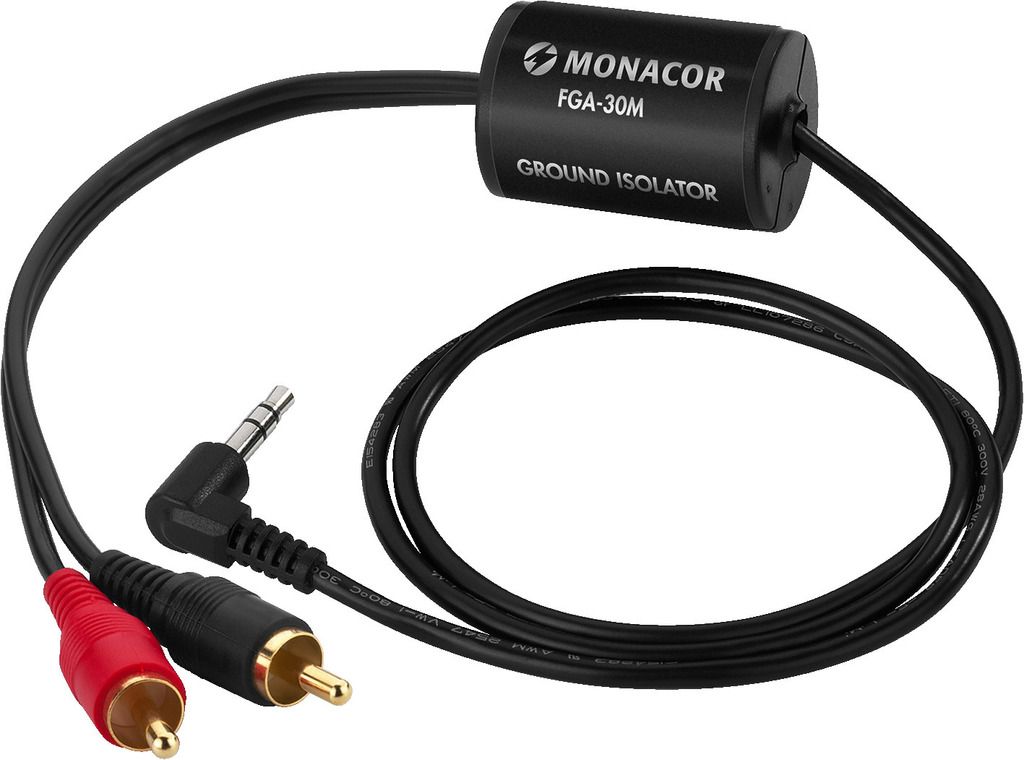

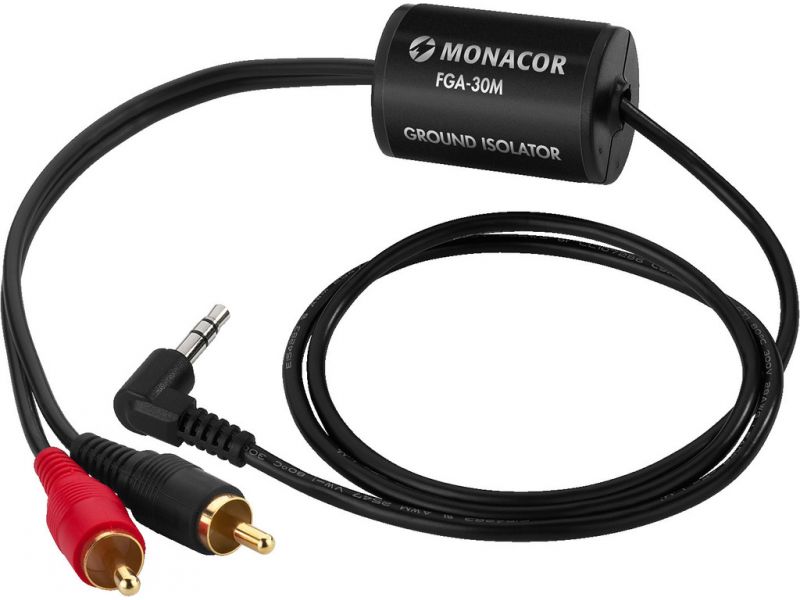

FGA-30M

Cod EAN: 4007754227352

Ground isolator, compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier. Galvanically isolated inputs and outputs 2 RCA plugs 3.5 mm stereo jack plug Input/ou...

Citeste mai mult

Intreaba despre produs
Cumpara acum


FGA-30M

Ground isolator,
compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier.
  • Galvanically isolated inputs and outputs
  • 2 RCA plugs
  • 3.5 mm stereo jack plug
  • Input/output impedance 20 kΩ
  • Frequency response 20?30,000 Hz
  • Total harmonic distortion < 0.01 %
  • Transmission ratio 1:1
  • Ø 24 mm x 38 mm, 32 g
  • Length including connection cable approx. 11.5 cm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description ground isolator
Frequency range 20-30,000 Hz
Input impedance 20 kΩ
Output impedance 20 kΩ
Transmission ratio 1:1
THD < 0.01%
Admiss. ambient temp. 0-40 °C
Dimensions Ø 24 mm x 38 mm
Weight 45 g
Inputs 1 x RCA plug L/R, 1 x 3.5 mm stereo plug
Outputs 1 x RCA plug L/R, 1 x 3.5 mm stereo plug

Fisiere de descarcat

Fisa produsului FGA-30M konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
