FLAT-M8

Cod EAN: 4007754415780

Active PA stage monitor speaker system, 300 W Flat and very compact full range system Fitted with a 20 cm (8") coaxial speaker with horn tweeter Class D amplifier system Sound pressure at nominal power: 121 dB Indication of protect, limiter, signal...

Citeste mai mult

Intreaba despre produs
Cumpara acum


FLAT-M8

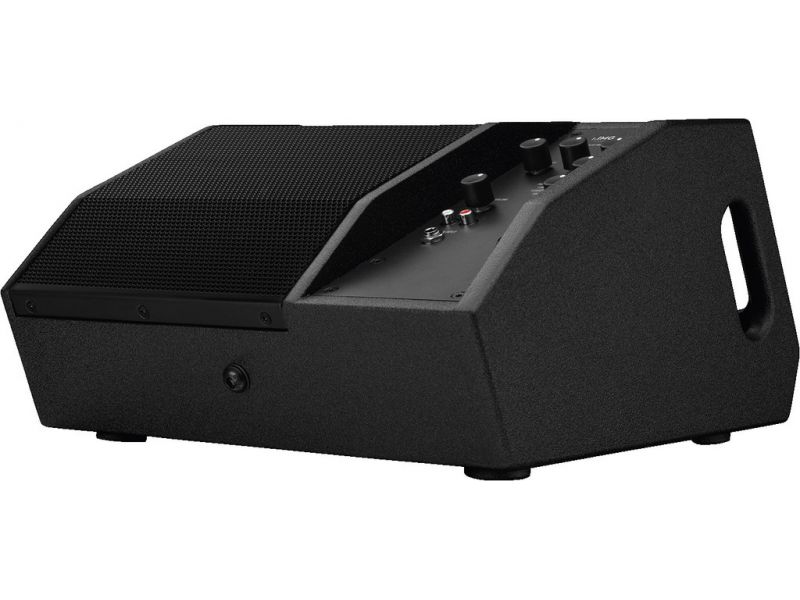

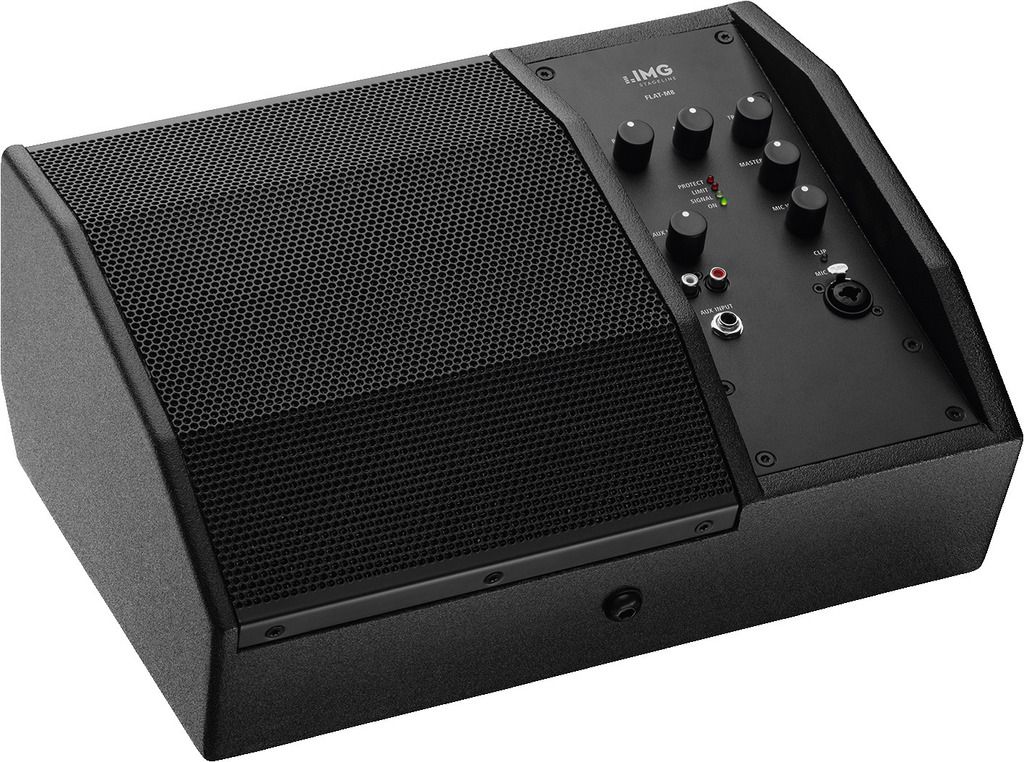

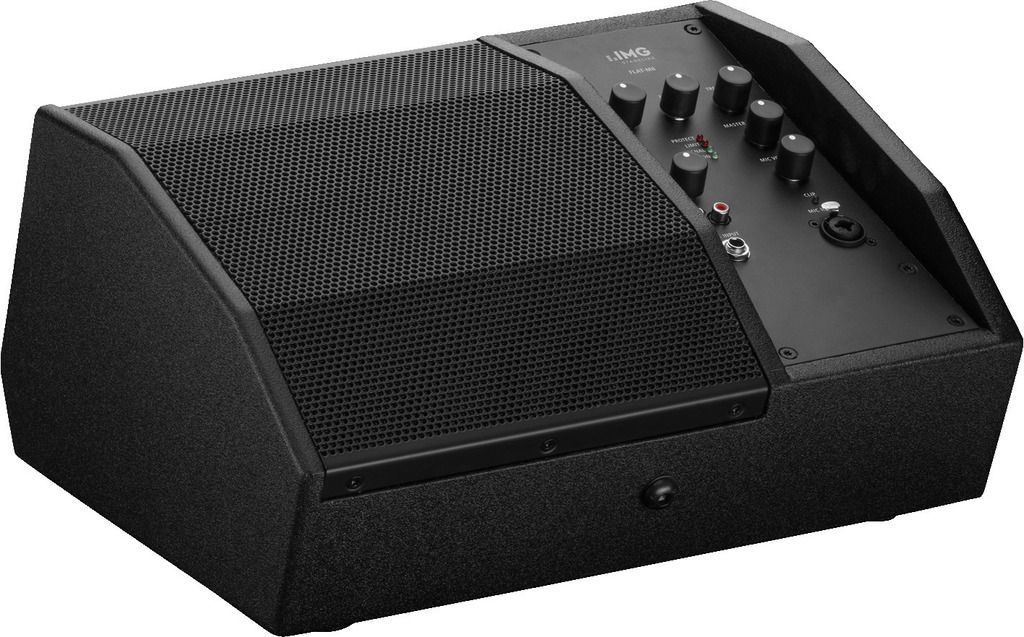

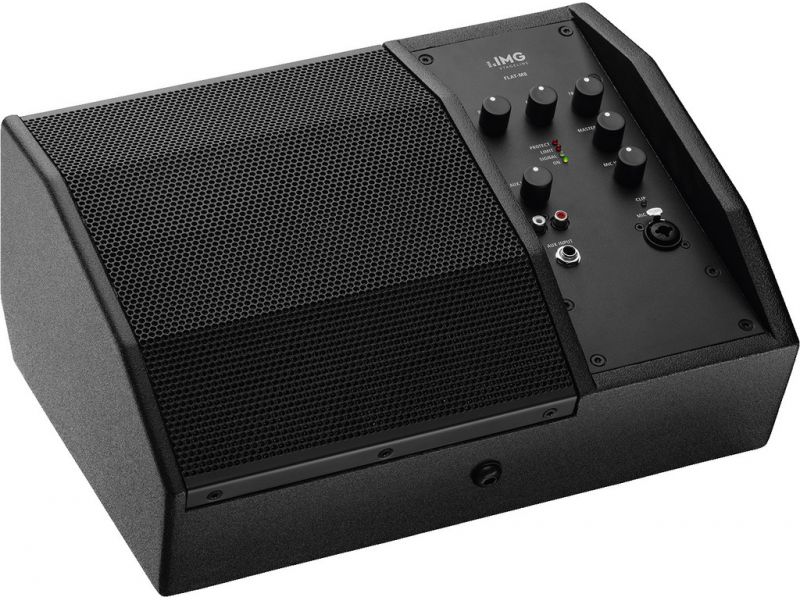

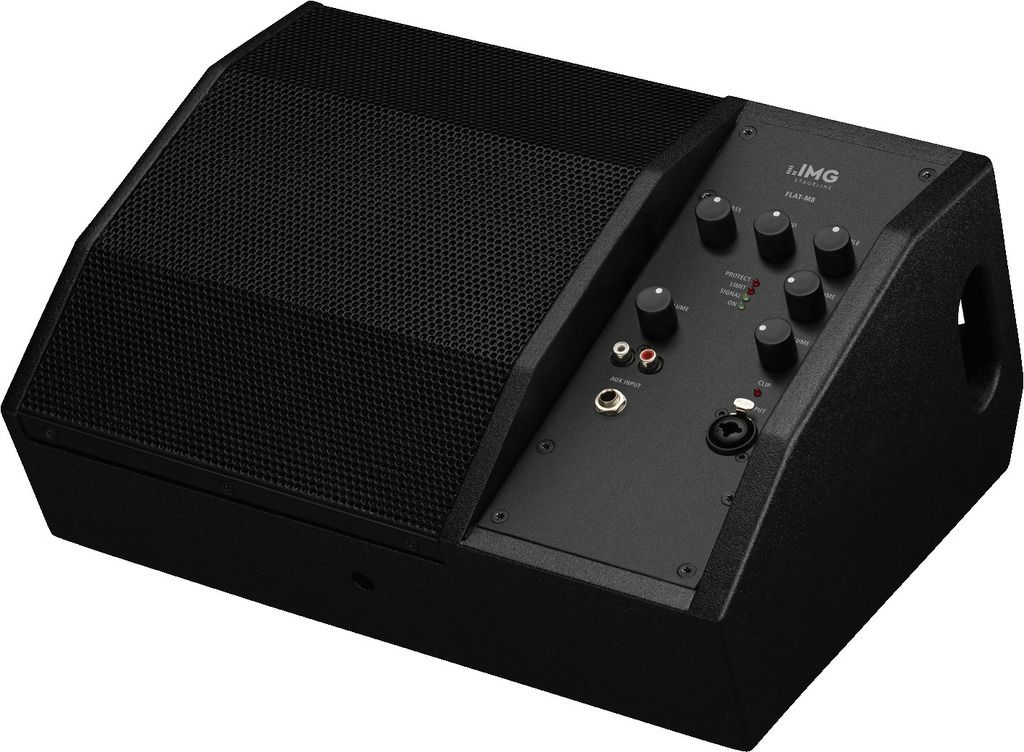

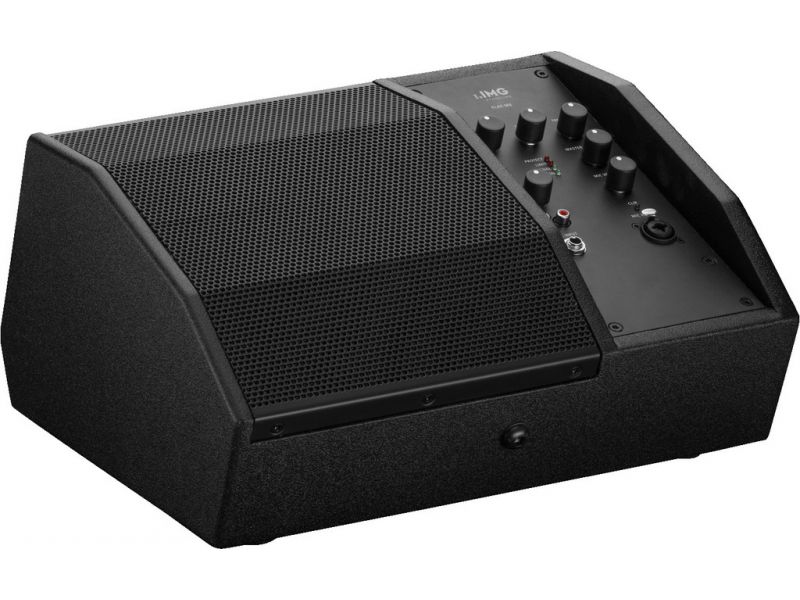

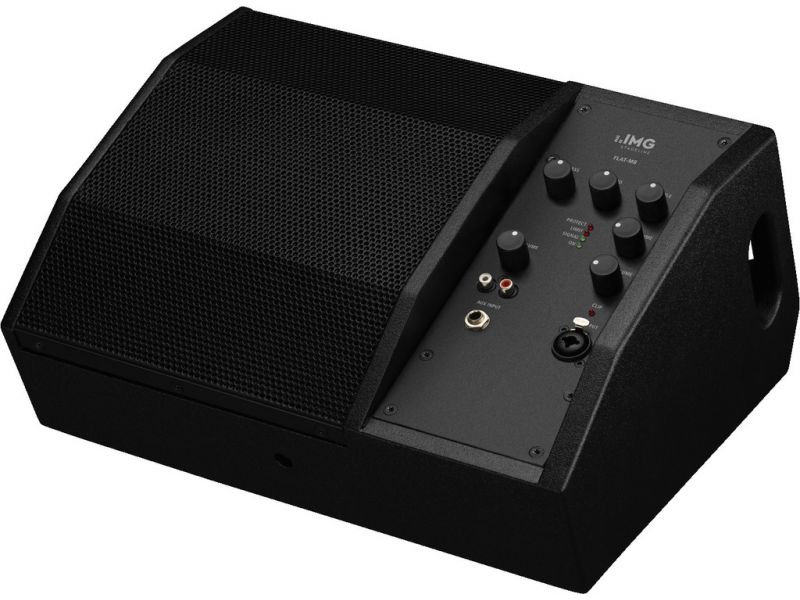

Active PA stage monitor speaker system, 300 W
  • Flat and very compact full range system
  • Fitted with a 20 cm (8") coaxial speaker with horn tweeter
  • Class D amplifier system
  • Sound pressure at nominal power: 121 dB

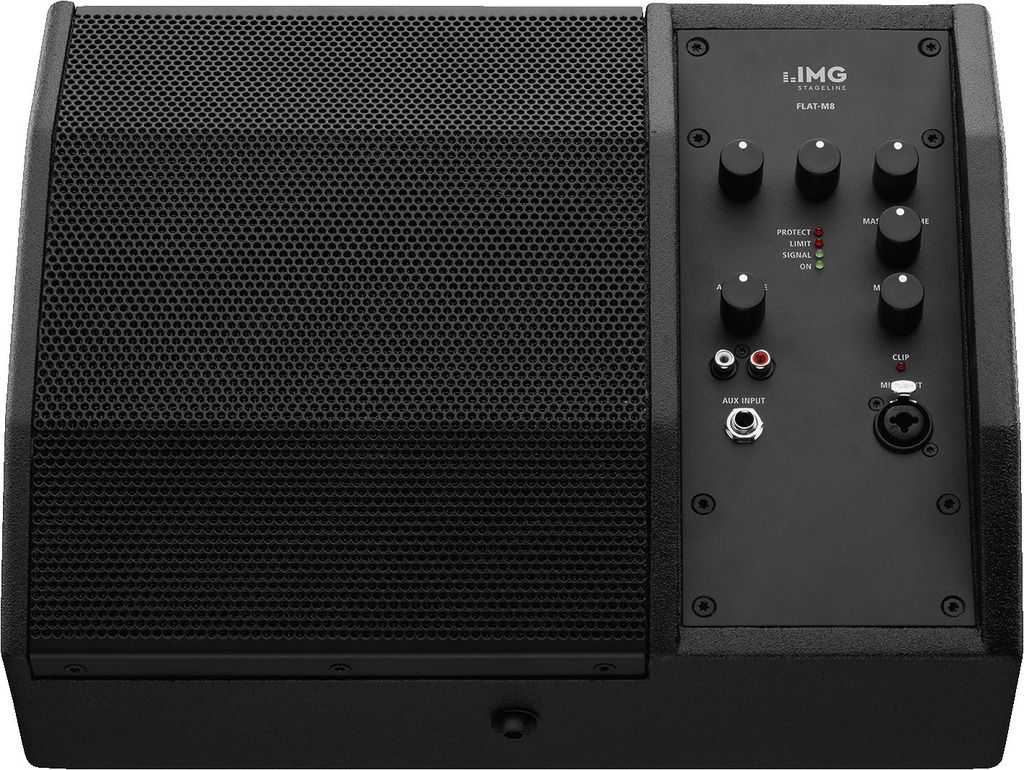

  • Indication of protect, limiter, signal and power-on
  • Volume control and 3-way tone control (bass, midrange and treble)

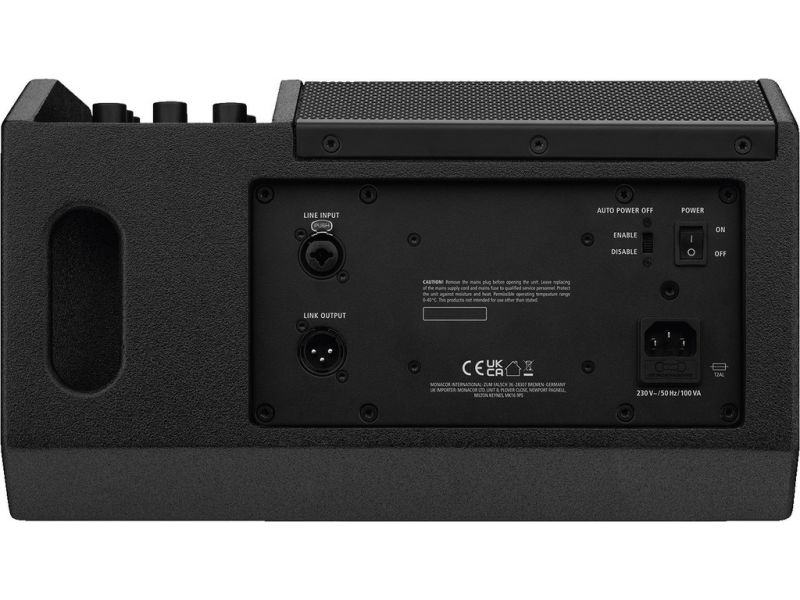

  • Balanced line/mic input and feed-through output
  • Unbalanced line input RCA L/R or 6.3 mm jack
  • Switchable automatic power-off

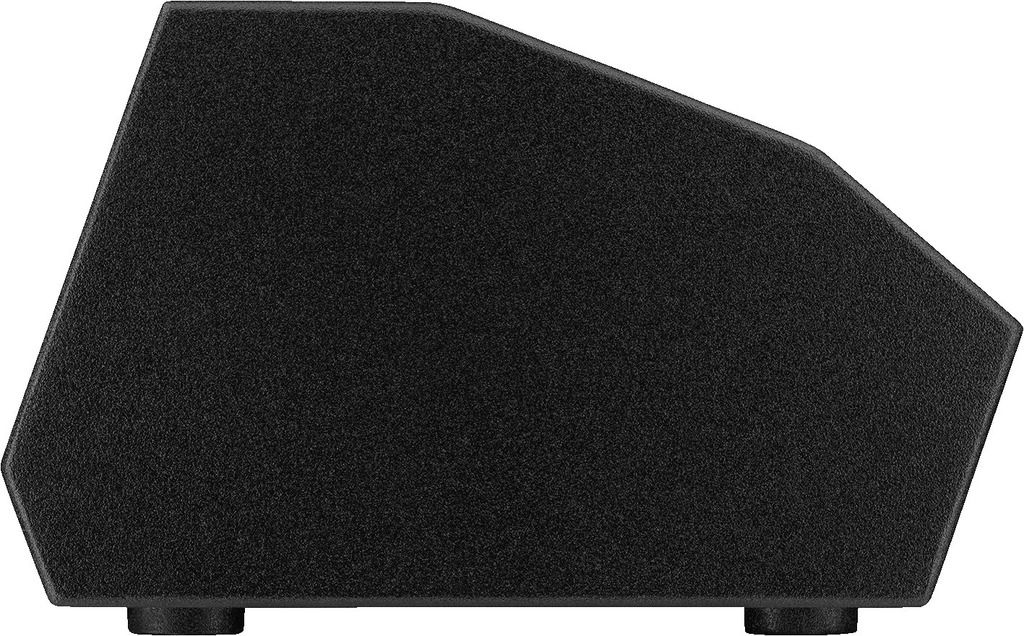

  • High-quality plywood cabinet with protective metal grille
  • M10 threaded insert for stand adapter or mounting device
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 300 W
Power rating (RMS) 100 W
Frequency range 70-21,000 Hz
Input signal 180 mV/5,6 kΩ (line, bal.), 180 mV/5,6 kΩ (aux, RCA) 1.5 mV/1.2 kΩ (mic, bal.), 70 mV/4 kΩ (aux, 6.3 mm jack, asym.)
System 1 x 2-way coaxial speaker
Bass speaker 1 x 20 cm (8")
Tweeter 1 x coaxial horn tweeter
Number of speakers 2
Speaker size 20 cm (8")
SPL 99 dB/W/m
Max. rated SPL 121 dB
Radiation angle/beam angle H: 70°/V: 50°
Radiation angle, horizontal 70°
Radiation angle, vertical 50°
Housing material MDF
Colour black
Mounting device 1 x M10 threaded insert
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/100 VA
Dimensions 375 x 185 x 330 mm
Width 375 mm
Height 185 mm
Depth 330 mm
Weight 7.48 kg

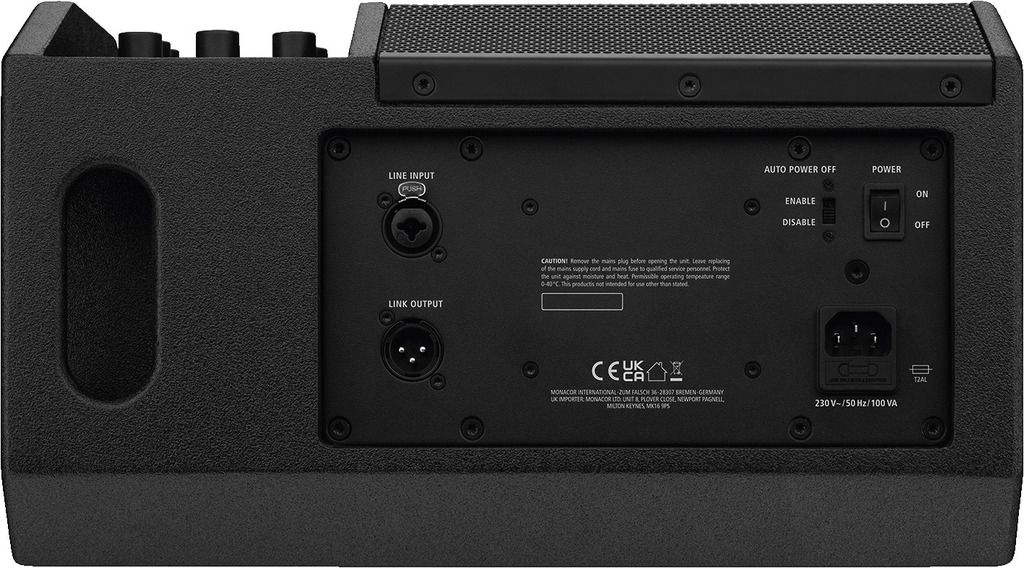

Inputs 1 x comb. XLR/6.3 mm (mic), 1 x comb. XLR/6.3 mm (line), 1 x RCA L/R, 1 x 6.3 mm stereo jack
Outputs 1 x XLR direct out
Other features limiter
Accessories FLAT-M8BAG
Packaging dimensions (W x H x L) 0.43 x 0.29 x 0.47 m
Gross weight 8.82 kg
Net weight 7.48 kg

Fisiere de descarcat

Fisa produsului FLAT-M8 Manual de utilizare
