FM-102DAB

Cod EAN: 4007754242676

Digital stereo tuner for reception of FM and DAB+ FM radio reception (87.5-108 MHz) with RDS function Reception of interference-free digital radio via digital audio broadcasting (DAB+, band III, 174.928-239.2 MHz) Display of additional broadcasting i...

Citeste mai mult

Intreaba despre produs
Cumpara acum


FM-102DAB

Digital stereo tuner for reception of FM and DAB+
  • FM radio reception (87.5-108 MHz) with RDS function
  • Reception of interference-free digital radio via digital audio broadcasting (DAB+, band III, 174.928-239.2 MHz)
  • Display of additional broadcasting information, e.g. frequency, name of radio station, genre, track name, artist
  • Large backlit dot matrix display
  • Field intensity display
  • 20 station presets each for FM mode and DAB mode
  • 10 station keys with double assignment
  • Manual frequency adjustment and station adjustment
  • Automatic station scanning
  • Mono/stereo selection
  • Sleep mode
  • 75 Ω antenna input

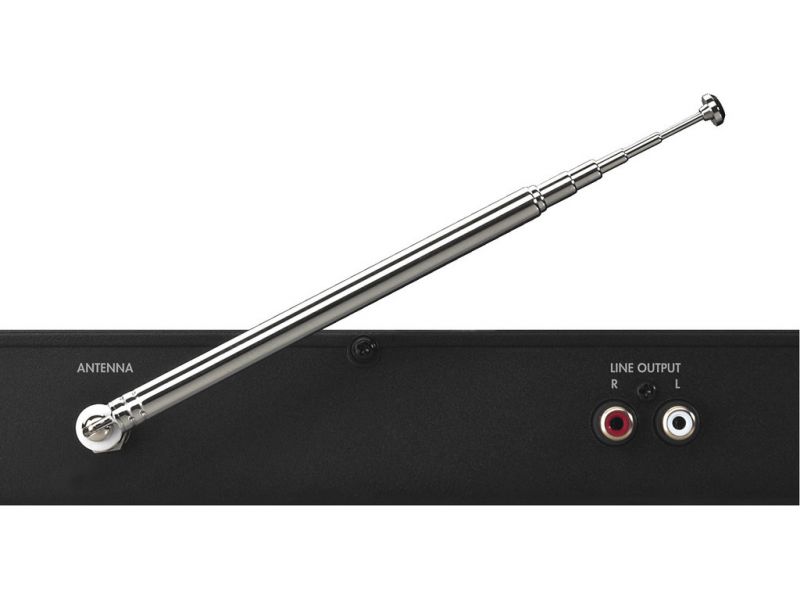

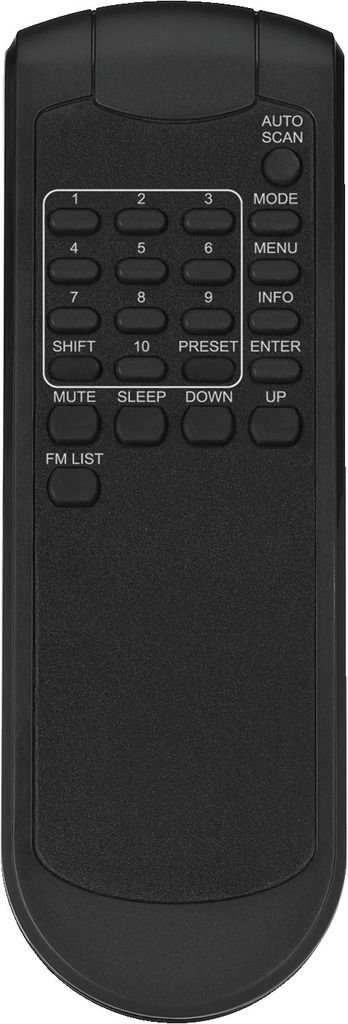

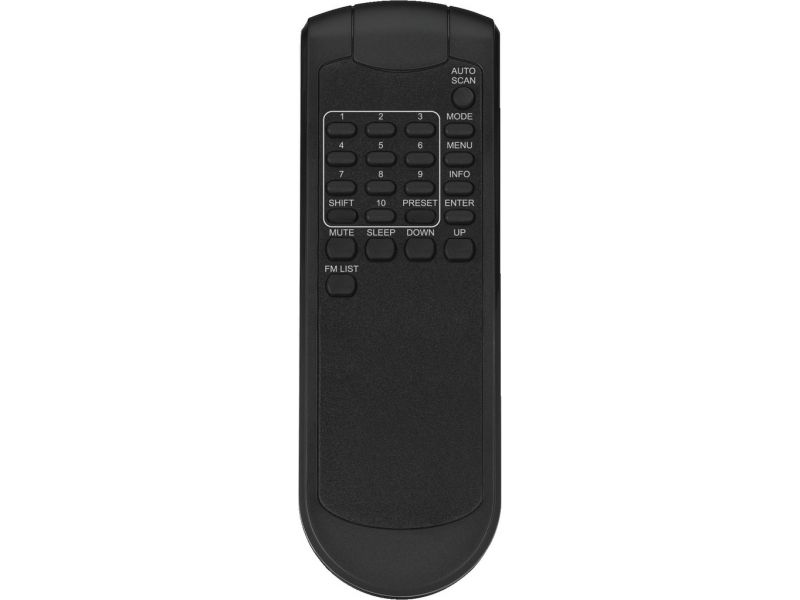

  • Supplied with infrared remote control and telescopic antenna
  • 482 mm (19") rack installation, 1 RU, removable mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description Digital stereo tuner
Media FM, DAB+
Power supply ˜ 230 V/50 Hz/50 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 50 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 44 x 185 mm
Weight 2.66 kg
Connections 1 x RCA L/R
Packaging dimensions (W x H x L) 0.305 x 0.11 x 0.545 m
Gross weight 3.23 kg

Fisiere de descarcat

Fisa produsului FM-102DAB konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
