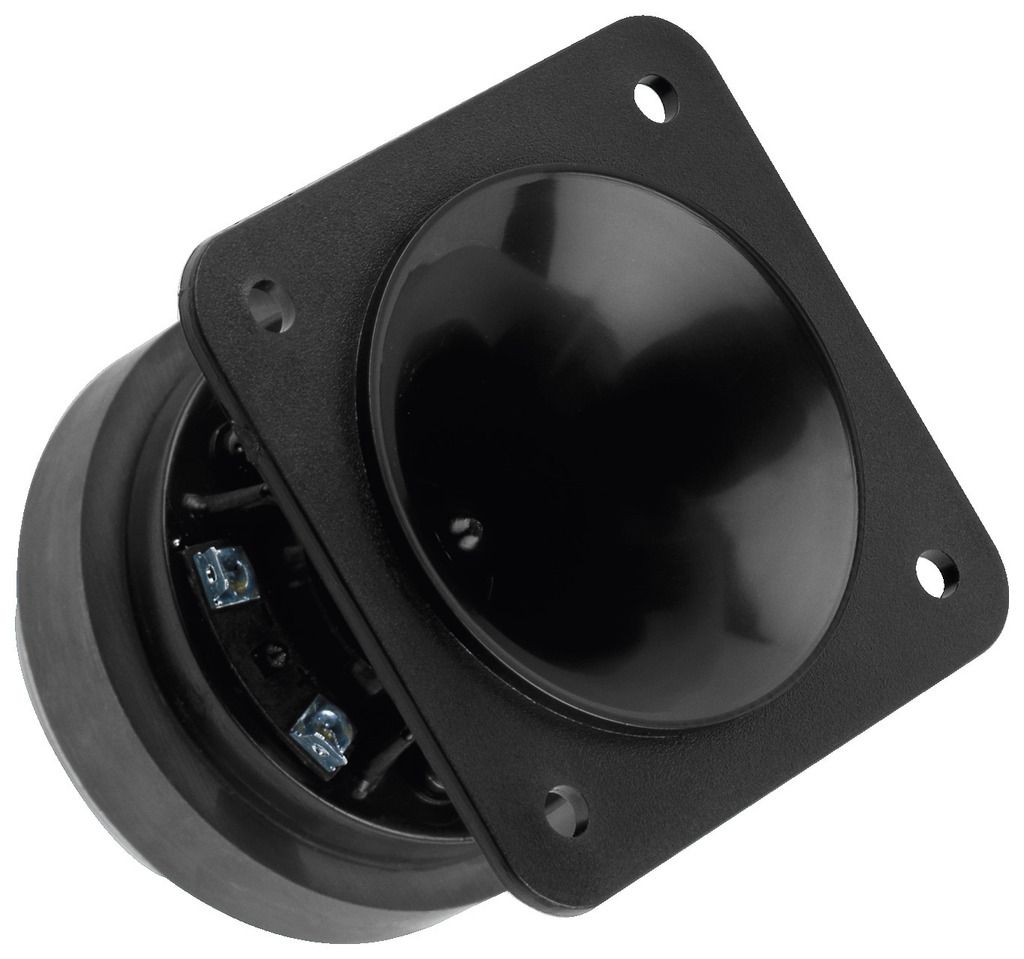

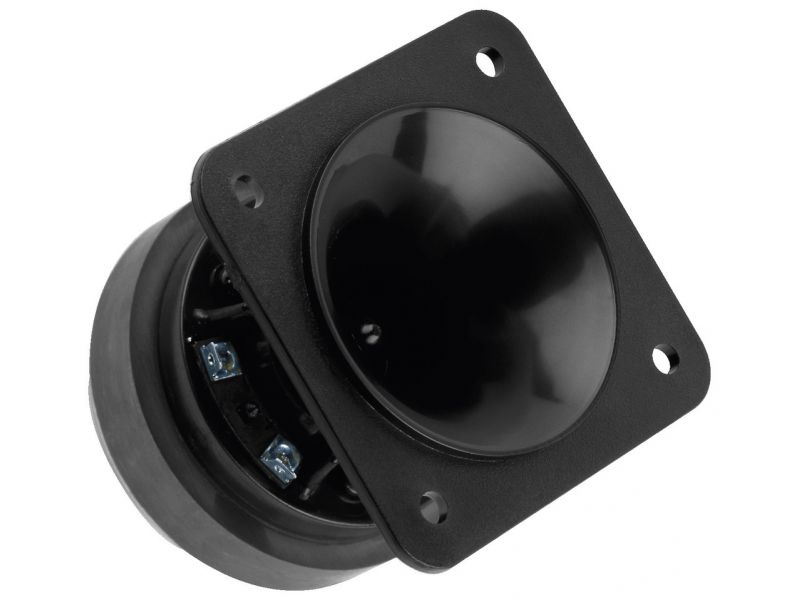

HT-88
Cod EAN: 4007754123982
PA horn tweeter, 50 W, 8 Ω Very linear and wide bandwidth radiation High efficiency Ferrofluid-cooled and ferrofluid-vaporised
HT-88
PA horn tweeter, 50 W, 8 Ω
- Very linear and wide bandwidth radiation
- High efficiency
- Ferrofluid-cooled and ferrofluid-vaporised
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

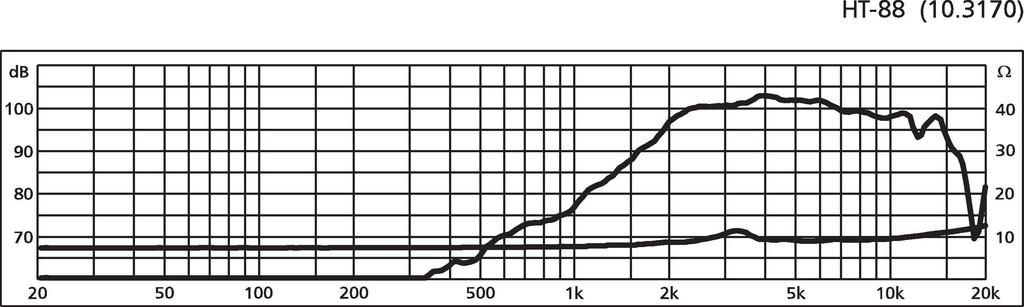

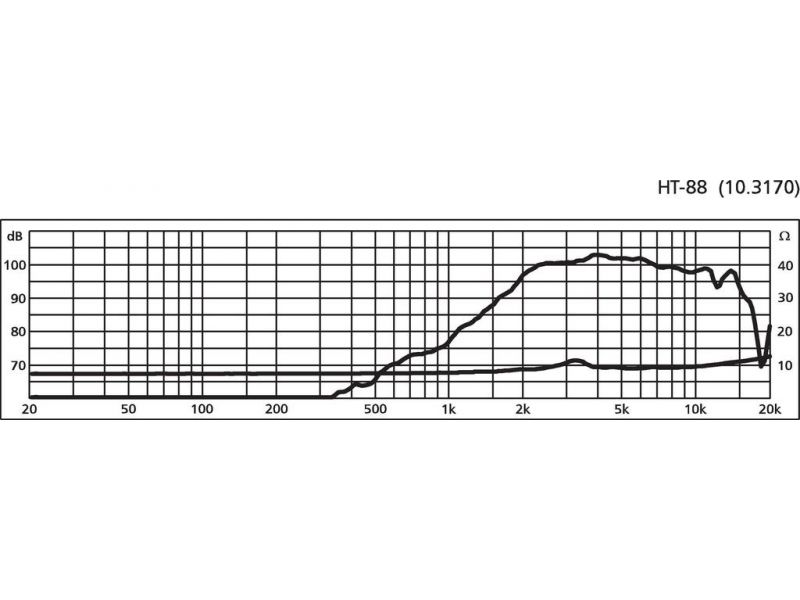

| Frequency range | fx-18 kHz |
| Resonant frequency (fs) | 2.5 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 4 kHz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 99 dB/W/m |

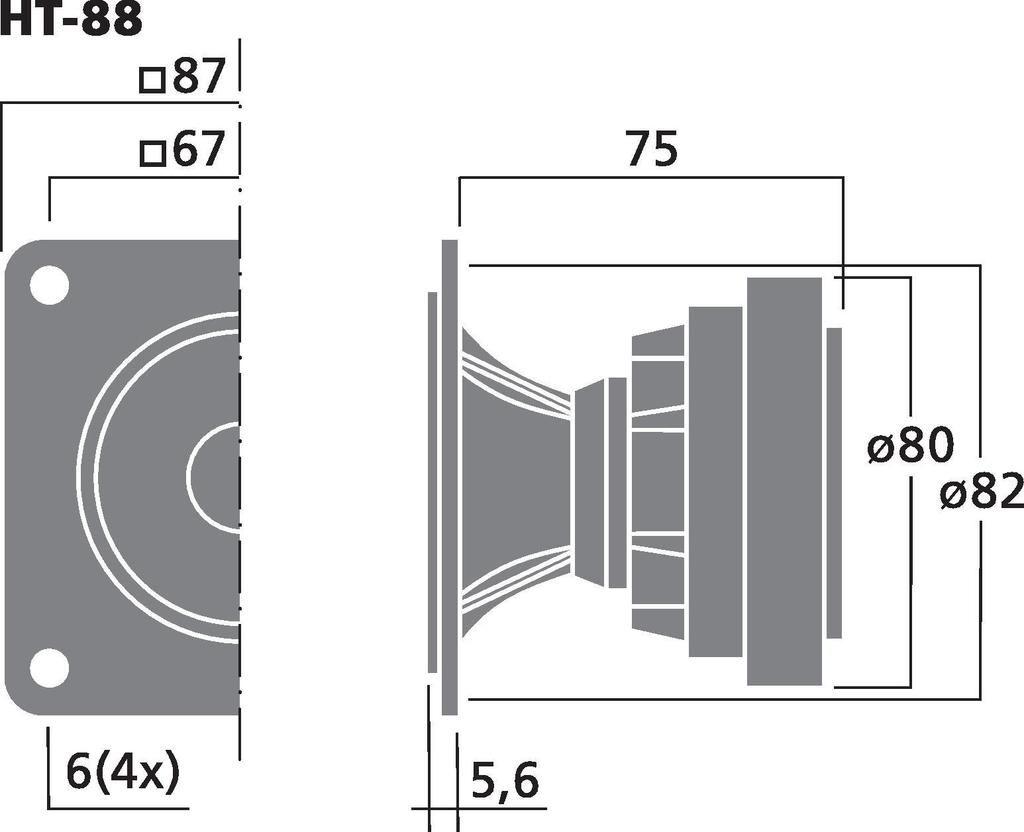

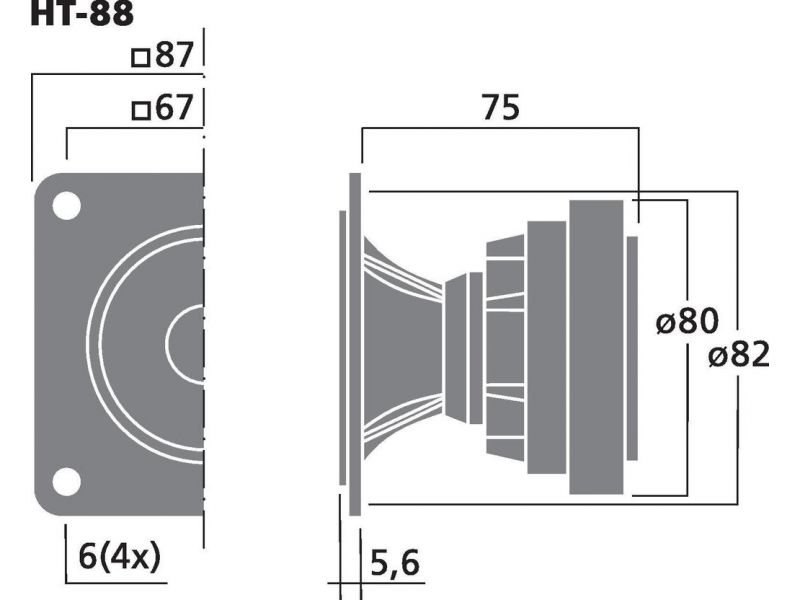

| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 80 mm |
| Mounting cutout | Ø 82 mm |
| Mounting depth | 75 mm |
| Hole spacing X-axis | 67 mm |
| Hole spacing Y-axis | 67 mm |
| Dimensions | 87 x 87 x 75 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 75 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.67 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.095 x 0.085 x 0.095 m |
| Gross weight | 0.71 kg |
| Net weight | 0.67 kg |
