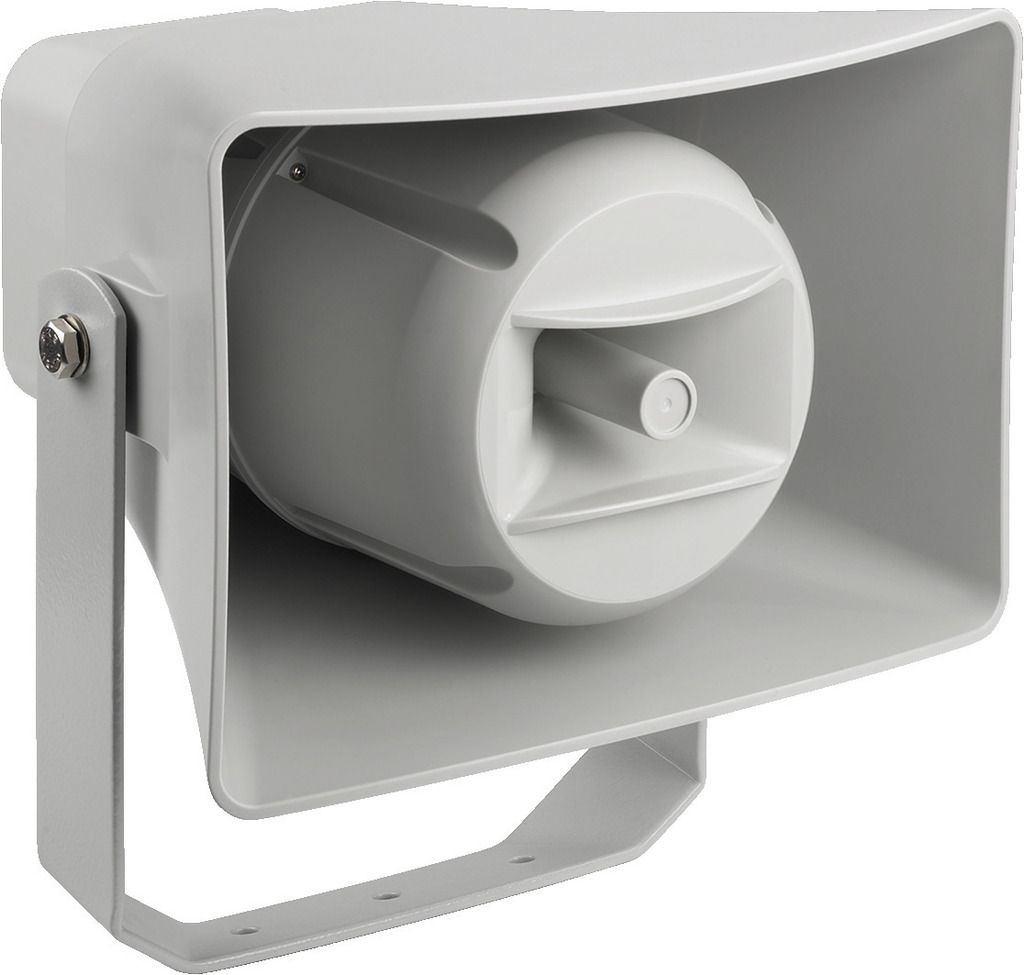

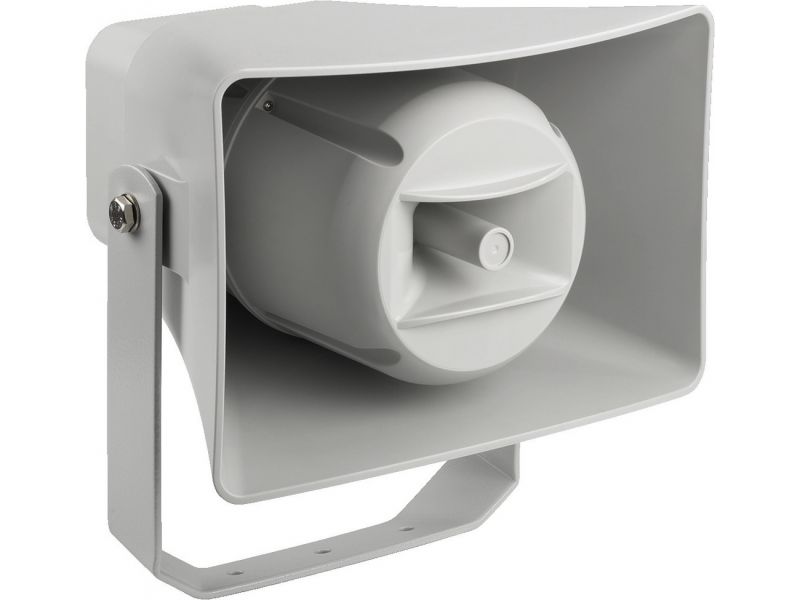

The music horn IT-100TW from MONACOR is a state-of-the-art solution to utilise the operating range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and horn tweeter is able to pro...
Active/passive | passive |
Transmission technology | 100 V |
Total power rating | 30 W |
Power rating (RMS) | 30/15/7.5/3.75 W |

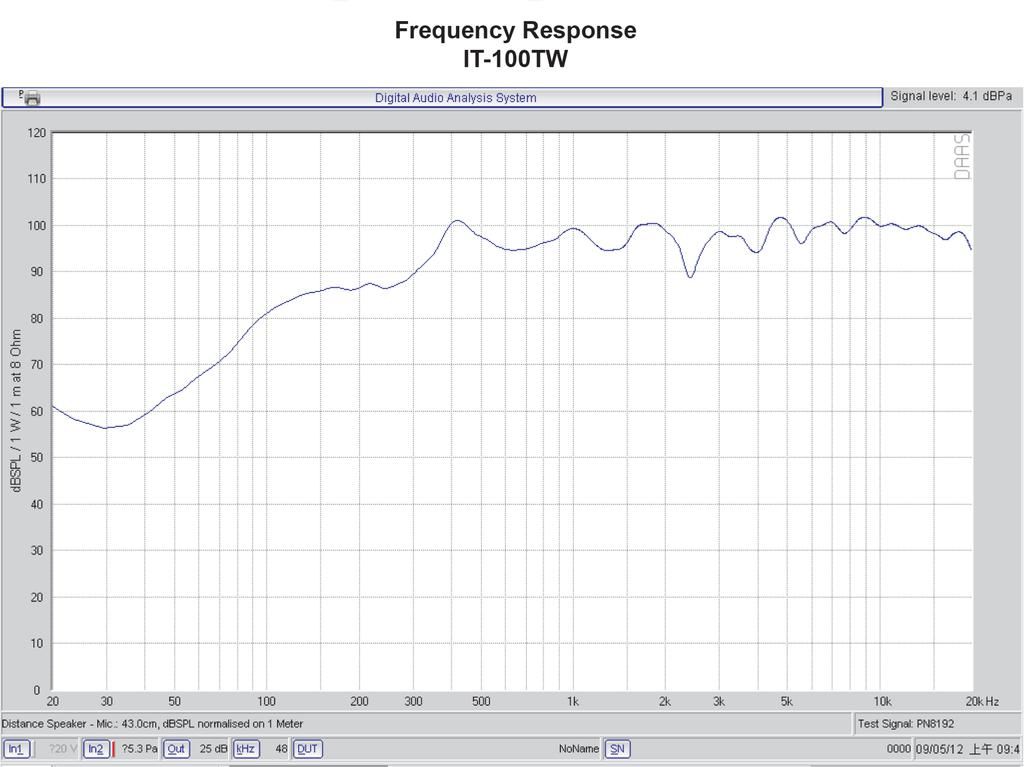

Frequency range | 100-20,000 Hz |
SPL | 99 dB/W/m |
Max. rated SPL | 114 dB |

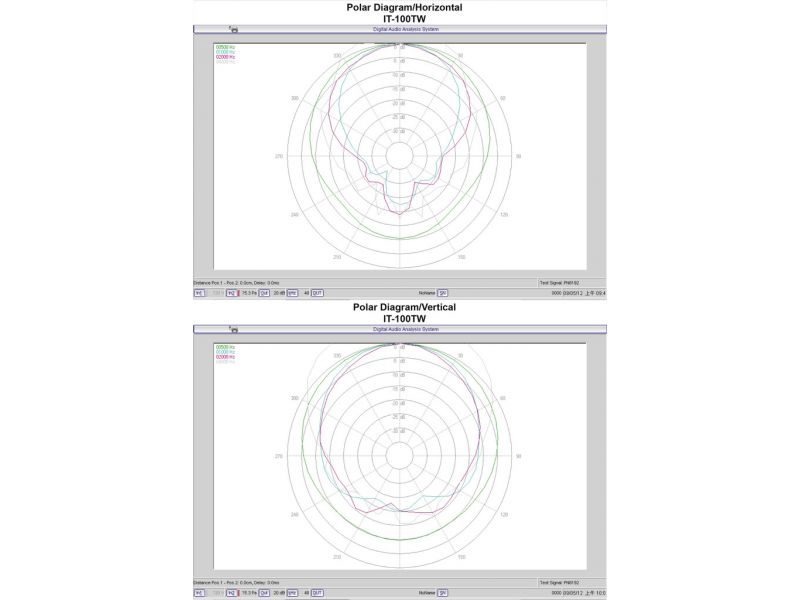

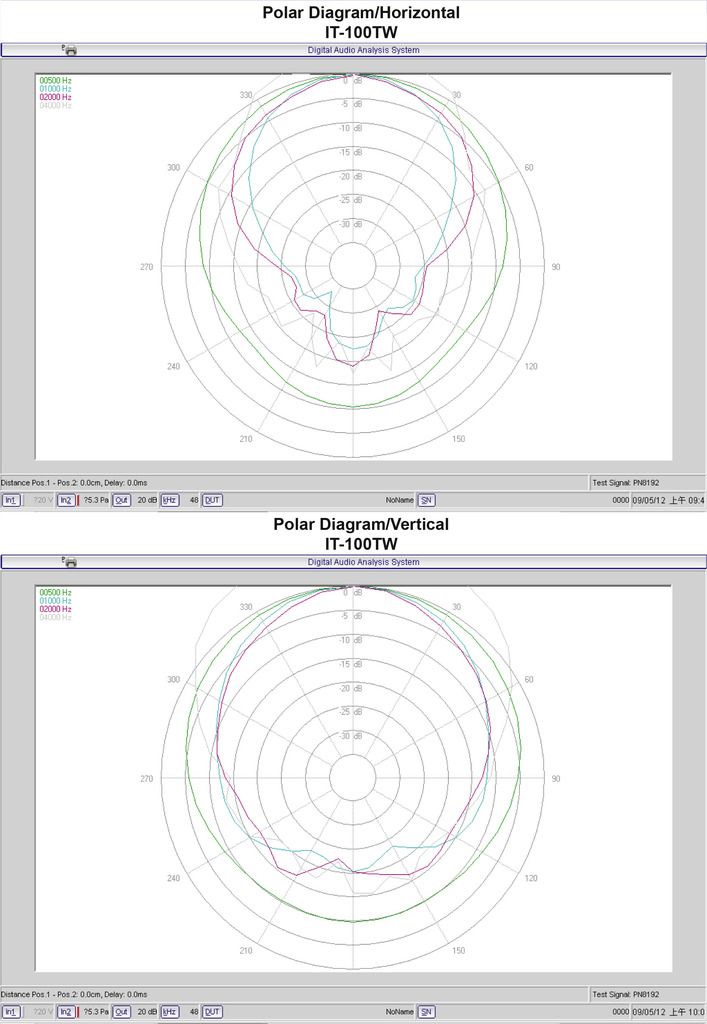

Radiation angle/beam angle | H: 110°/V: 60° |
Radiation angle, horizontal | 110° |
Radiation angle, vertical | 60° |
Features | 2-way |
Housing material | ABS |
Colour | grey |
Mounting device | mounting bracket |
Protection class | IP66 |
Admiss. ambient temp. | -20 °C to +50 °C |
Dimensions | 310 x 215 x 330 mm |
Width | 310 mm |
Height | 215 mm |
Depth | 330 mm |
Weight | 4.42 kg |
Inputs | 4 power taps |
Other features | weatherproof |
Packing dimensions (W x H x L) | 0.28 x 0.39 x 0.34 m |
Gross weight | 5.18 kg |
Net weight | 4.42 kg |
