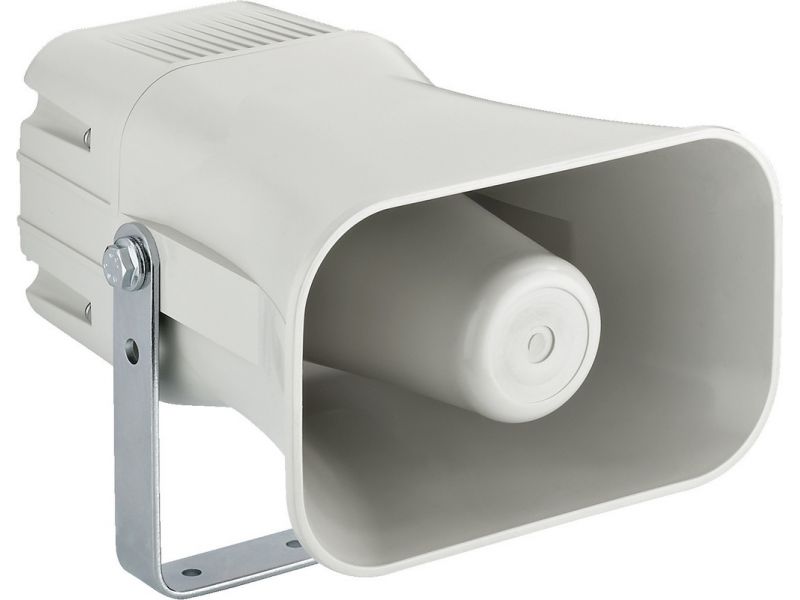

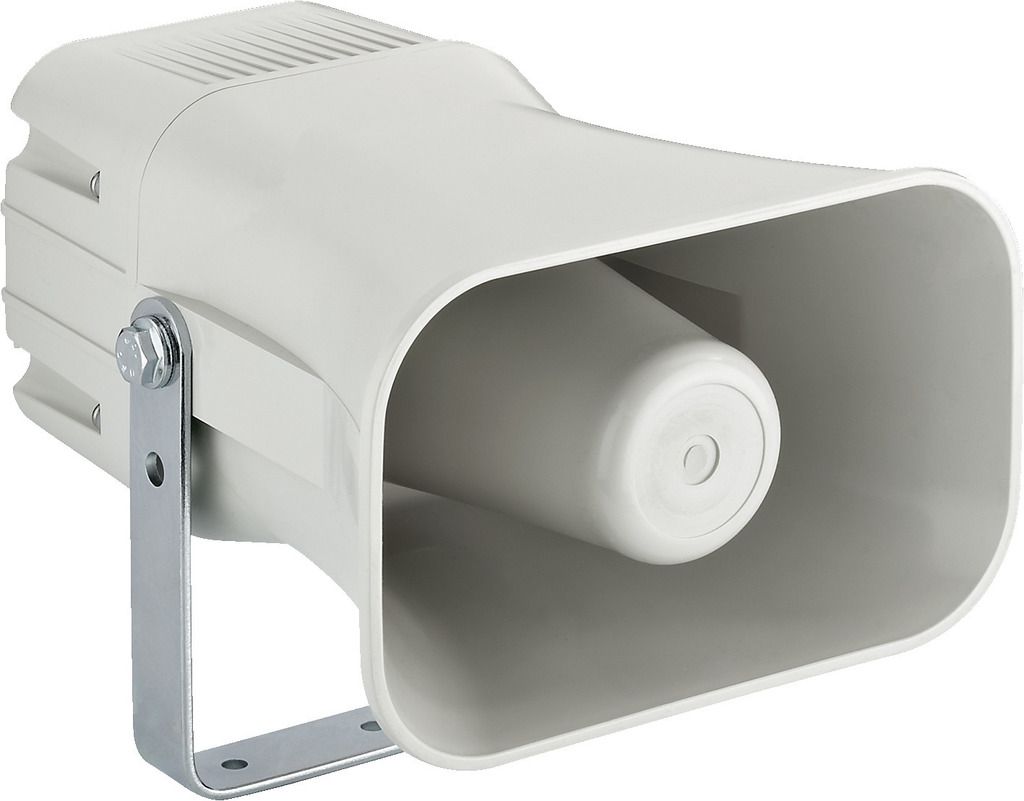

IT-15EN

Cod EAN: 4007754233384

Weatherproof horn speakers, with EN 54-24 certification. 100 V transmission technology IP66 tested Light grey ABS housing (self-extinguishing, complies with the standard UL 94V-0) Cable inlet via high-strength cable gland Suitable for general indoo...

Citeste mai mult

Intreaba despre produs
Cumpara acum


IT-15EN

Weatherproof horn speakers,
with EN 54-24 certification.
  • 100 V transmission technology
  • IP66 tested
  • Light grey ABS housing (self-extinguishing, complies with the standard UL 94V-0)
  • Cable inlet via high-strength cable gland
  • Suitable for general indoor and outdoor applications
  • Integrated high-pass filter for optimising the sound and stability
  • Supplied with mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 15 W
Power rating (RMS) 15/7.5/3.75 W
Frequency range 350-10,000 Hz
Number of speakers 1
SPL 110 dB/W/m
Radiation angle/beam angle H: 110°/V: 55°
Radiation angle, horizontal 110°
Radiation angle, vertical 55°
Features EN 54-24 certification
Housing material ABS, UL 94V-0
Colour light grey
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -25 °C to +70 °C
Dimensions 180 x 120 x 230 mm
Width 180 mm
Height 120 mm
Depth 230 mm
Weight 2.1 kg
Inputs screw terminals
Other features weatherproof
Packaging dimensions (W x H x L) 0.18 x 0.28 x 0.18 m
Gross weight 2.27 kg
Net weight 2.1 kg

Fisiere de descarcat

Fisa produsului IT-15EN konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
