IT-60

Cod EAN: 4007754227048

Weatherproof horn speaker, with high power capability. 100 V transmission technology Weatherproof and IP66 tested Protected against powerful water jets Suitable for general indoor and outdoor applications Light grey ABS housing (self-extinguishing,...

Citeste mai mult

Intreaba despre produs
Cumpara acum


IT-60

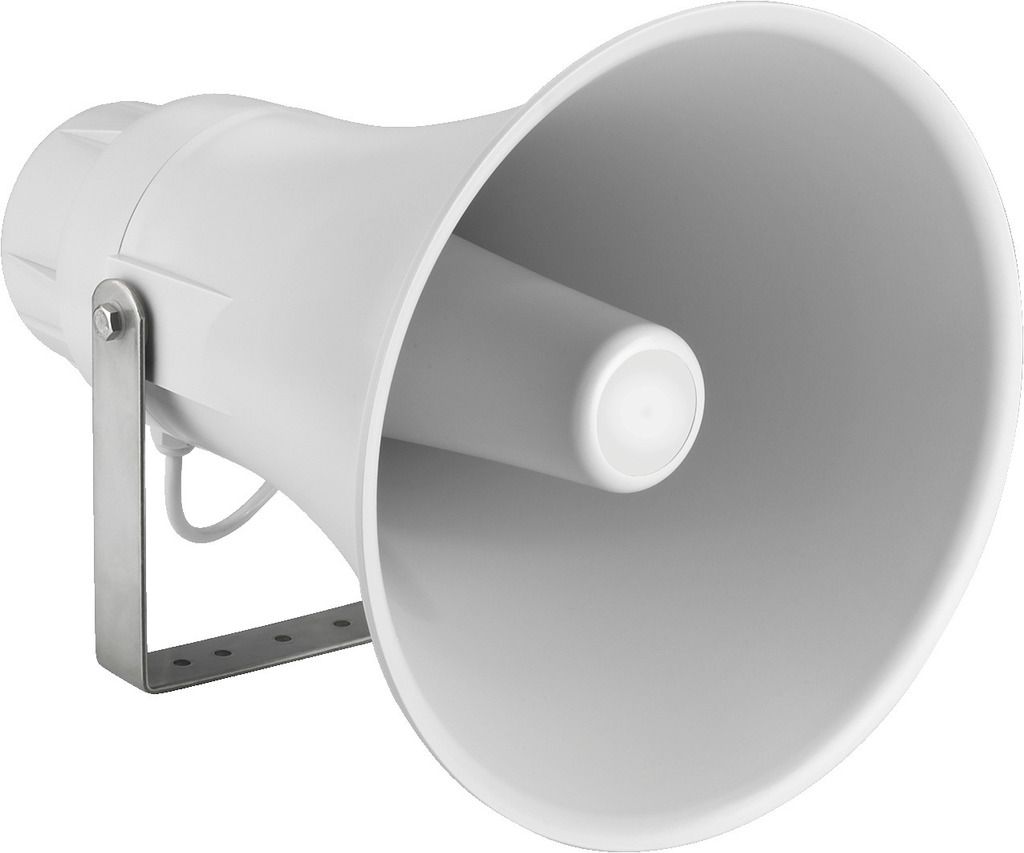

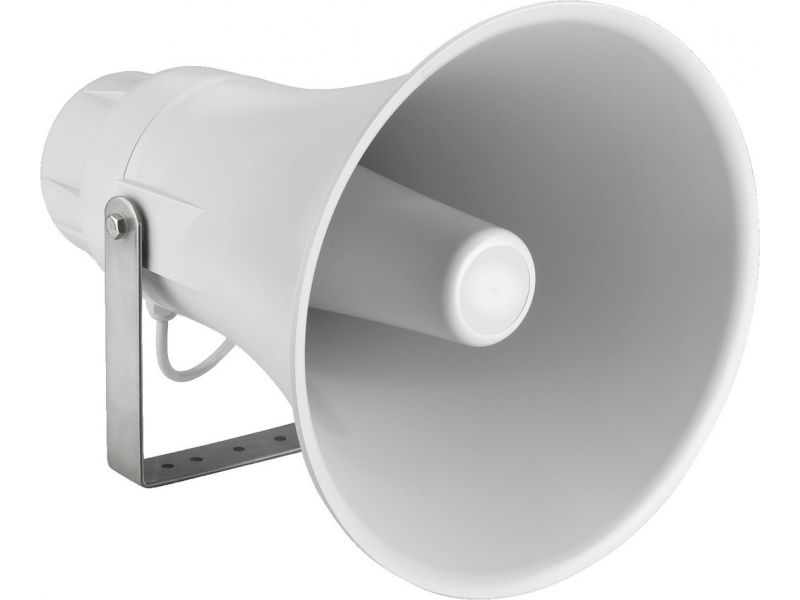

Weatherproof horn speaker,
with high power capability.
  • 100 V transmission technology
  • Weatherproof and IP66 tested
  • Protected against powerful water jets
  • Suitable for general indoor and outdoor applications
  • Light grey ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with stainless steel mounting bracket
  • Integrated ceramic connection terminal with thermal fuse
  • 4 power taps
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 60 W
Power rating (RMS) 60/30/15/7.5 W

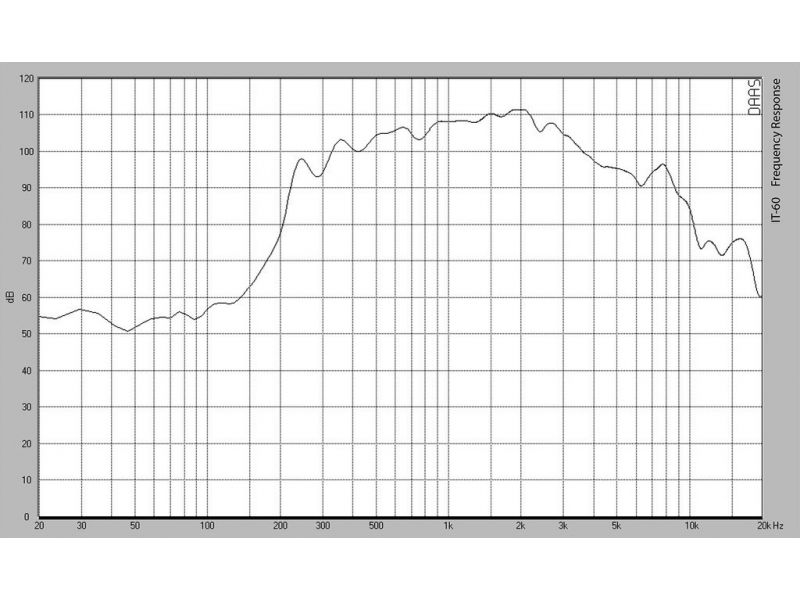

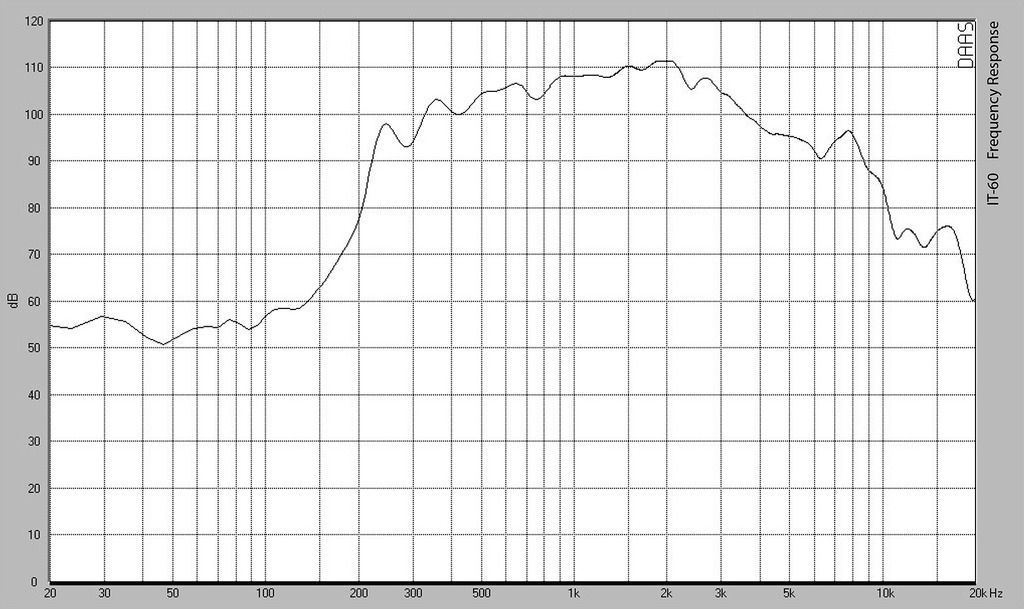

Frequency range 230-9,000 Hz
Number of speakers 1
SPL 110 dB/W/m

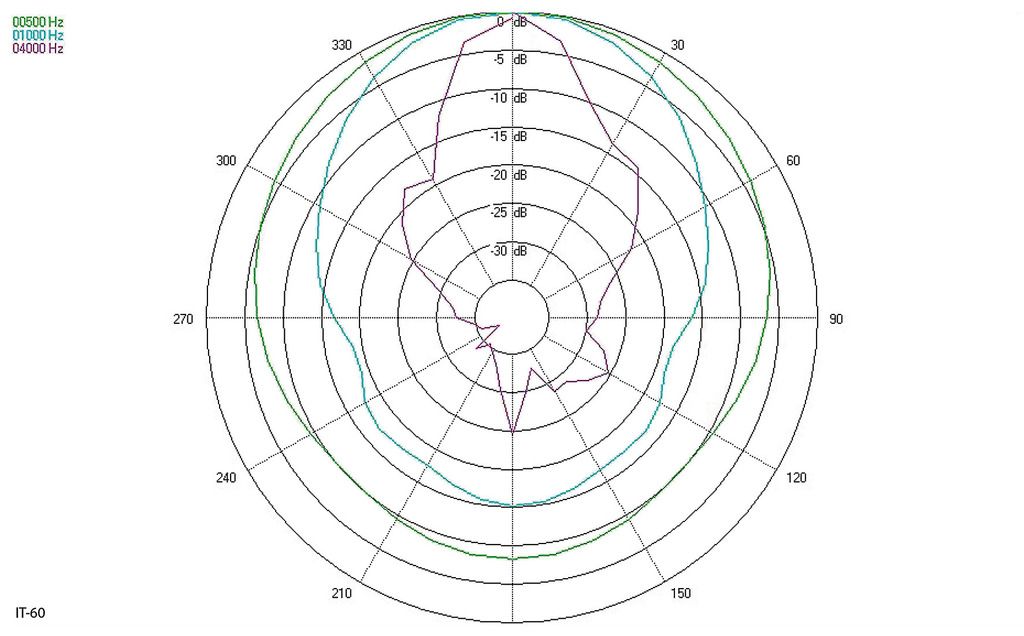

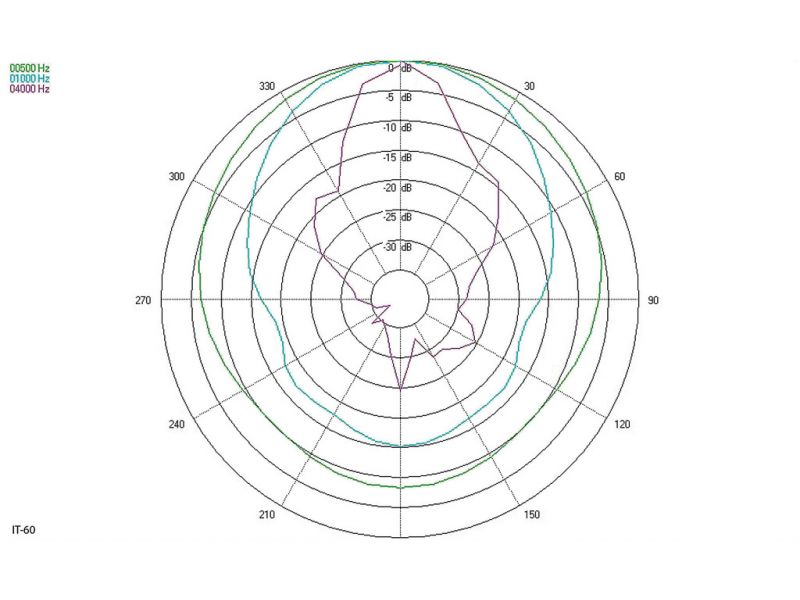

Radiation angle/beam angle H: 80°/V: 80°
Radiation angle, horizontal 80°
Radiation angle, vertical 80°
Features thermal fuse
Housing material ABS, UL 94V-0
Colour light grey
Mounting device stainless steel mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Dimensions Ø 305 mm x 385 mm
Width Ø 305 mm
Height Ø 305 mm
Depth 385 mm
Weight 4 kg
Inputs 4 power taps
Other features weatherproof
Packaging dimensions (W x H x L) 0.32 x 0.43 x 0.32 m
Gross weight 4.92 kg
Net weight 4.04 kg

Fisiere de descarcat

Fisa produsului IT-60 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
