MCE-400
Cod EAN: 4007754179286
High-quality electret microphone cartridge, (omnidirectional polar pattern), for PCB mounting, pin spacing 2.5. Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com

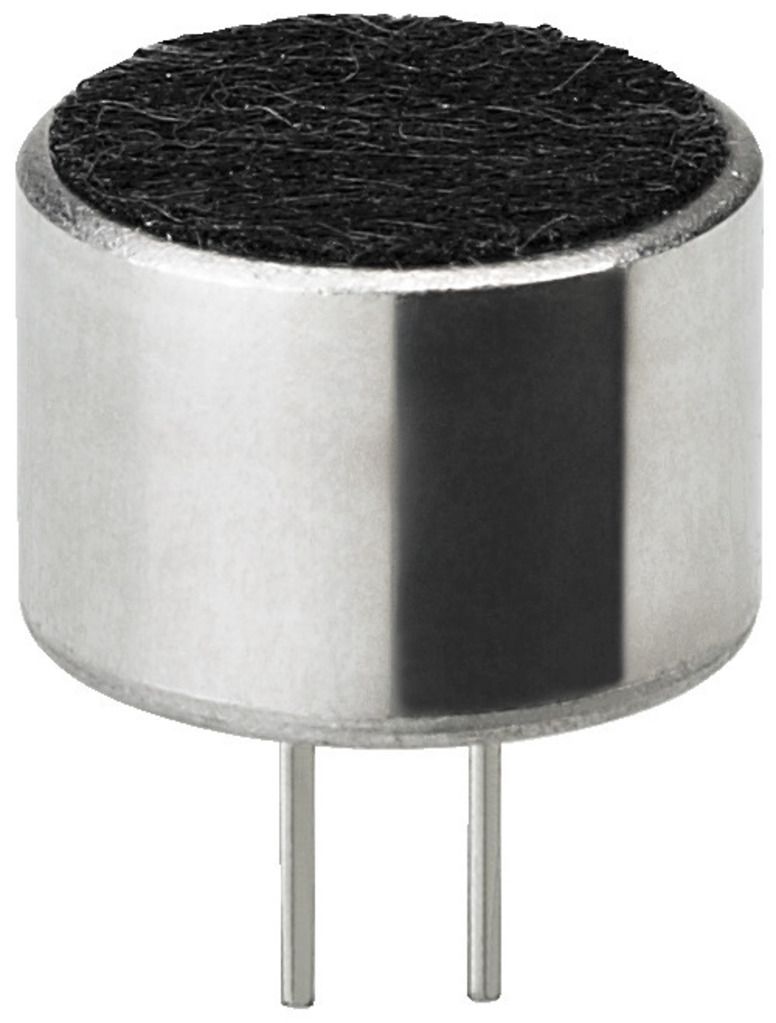

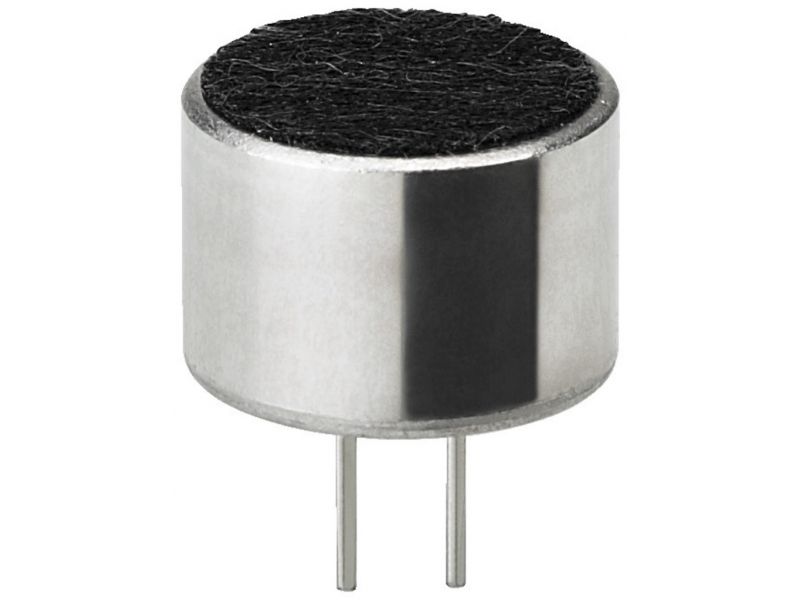

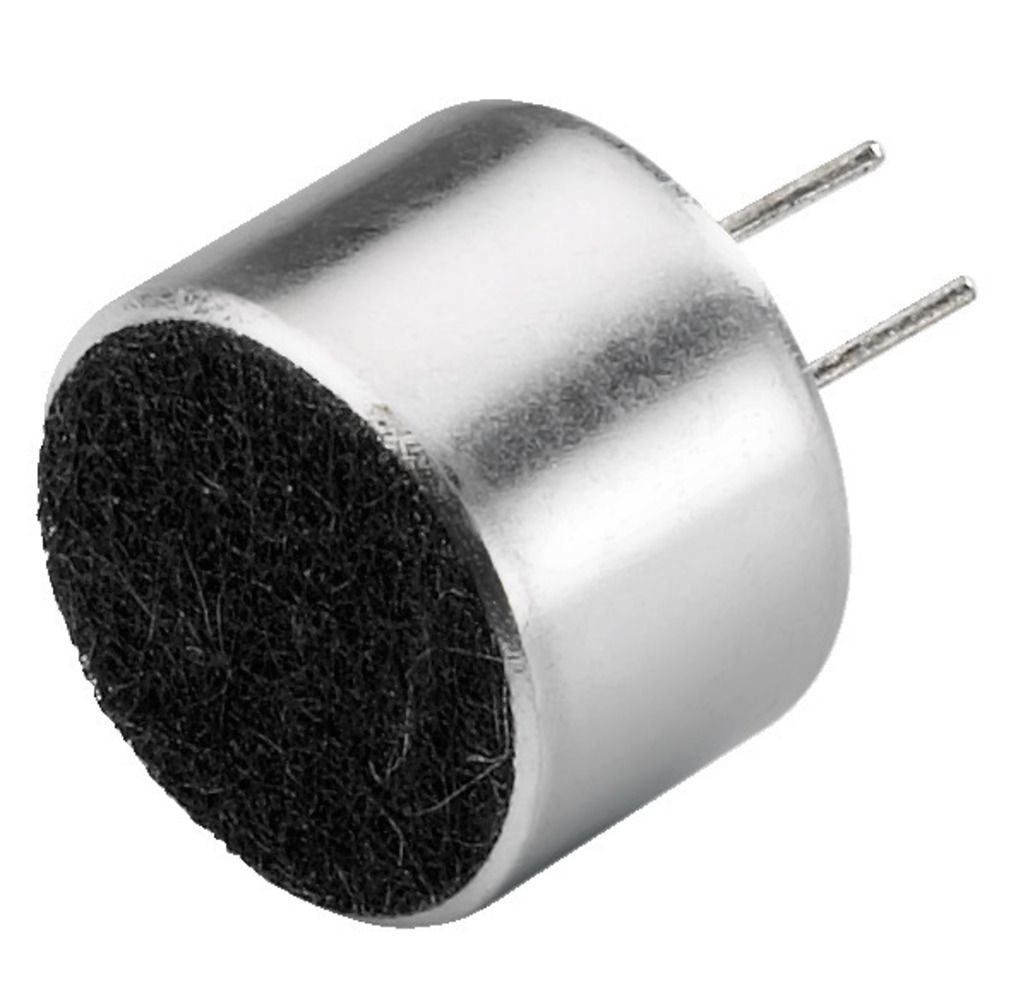

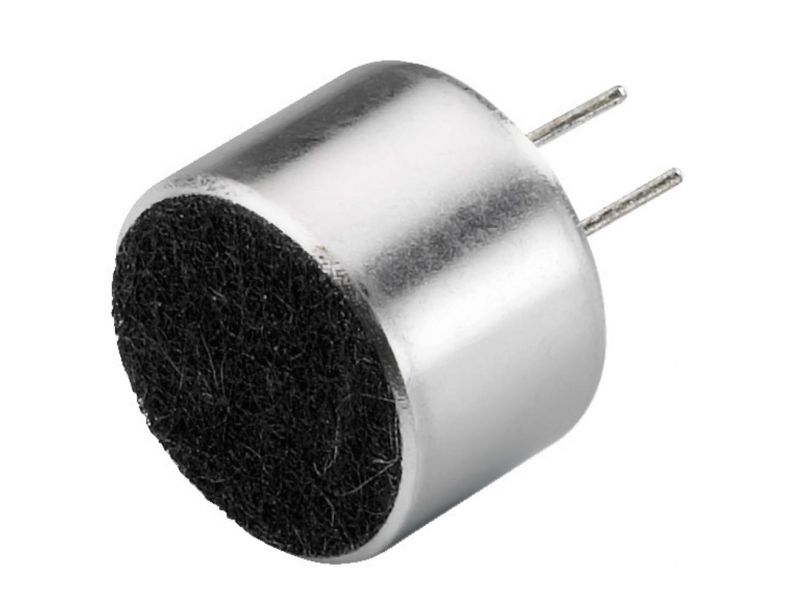

MCE-400
High-quality electret microphone cartridge,
(omnidirectional polar pattern), for PCB mounting, pin spacing 2.5.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Polar pattern | omnidir. |
| Frequency range | 50-16,000 Hz |
| Sensitivity | 7.9 mV/Pa |
| Output impedance | 2.2 kΩ |
| S/N ratio | > 58 dB |
| Coupling capacitor | 0.1-4.7 µF |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | DC 1.5-10 V/0.5 mA |

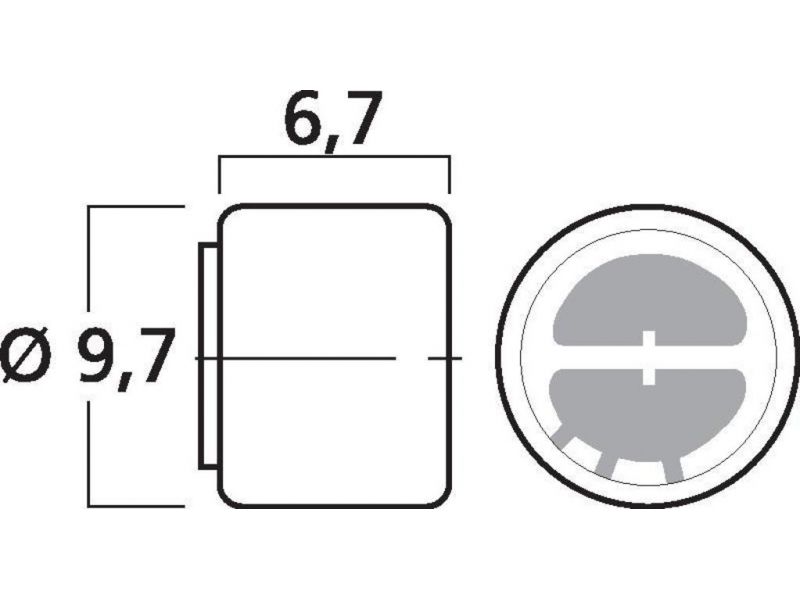

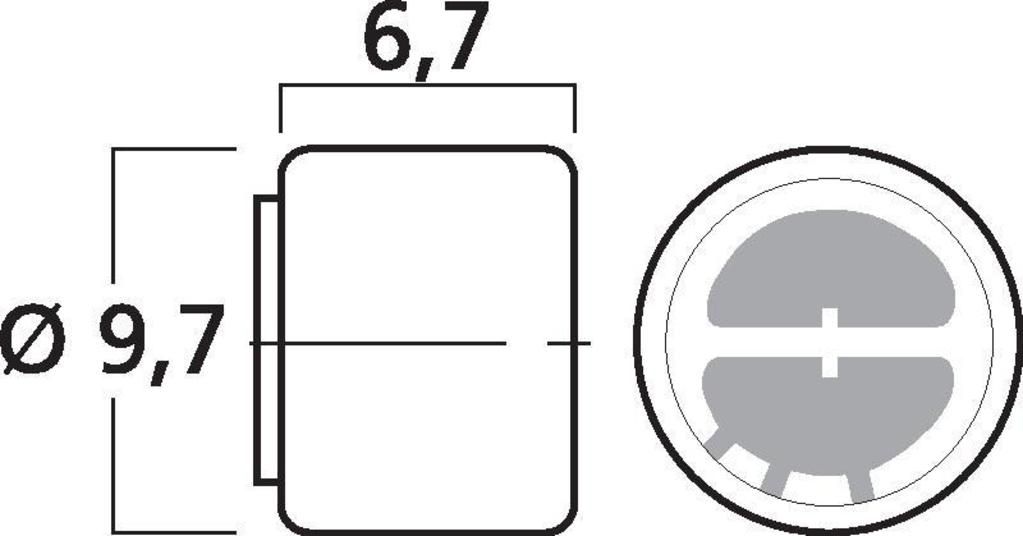

| Dimensions | Ø 9.7 mm x 6.7 mm |
| Weight | 1 g |
